Intelligent 3D K9800 Wheel Alignment with Touchless Wheel Clamps
- Category: Wheel Alignment >>>
- Supplier: Lawrence Equipment Co. Ltd.
Share on (62356181315):
Product Overview
Description
Product Description

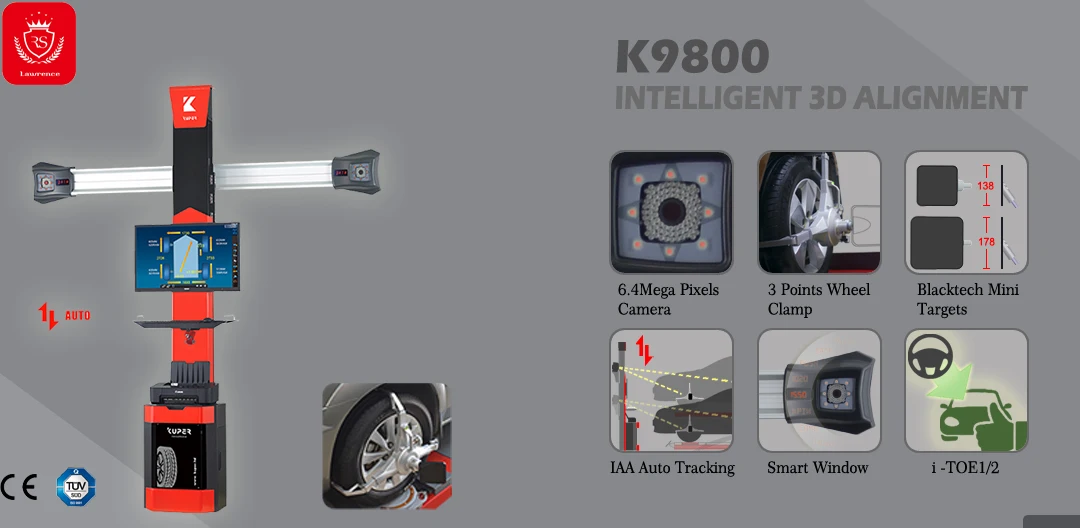

Hot Sell K9800 3D Wheel Alignment
1) Newly developed design;
2.)Space saving with newly design cabinet;
3)Blacktech Mini Target;
4) Auto Tracking system;
5) Touchless wheel clamp;
6) Dual-display system;
7)LED intelligent display system;
8) 6.4 M HD camera.
TECHNICAL PARAMETERS
Measurement Range and Accuracy | ||||||||||||||||
Items | Camber | Caster | S.A.I | TOE | Setback | Thrust Angle | Wheel Base | Track Width | ||||||||
Range | ±4.5° | ±40° | ±40° | ±30° | ±15° | ±15° | <6m | <3m | ||||||||
Accuracy | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±0.01° | ±5mm | ±5mm | ||||||||
Measurement Functions
Basic Measurement:
TOE,CAMBER,CASTER,KINGPIN,INCLINATION,SETBACK,THRUST ANGLE ,INCLUDED ANGLE.
Additional Fuctions:
MAX TRUNING ANGLE,TOE-OUT-ON-TURN,WHEEL ROLL RADUIS MEASUREMENT,TIRE RATATIONS RATE,AXLE OFFSET ,WHEEL OFFSET,TRACK WIDTH/WHEELBASE,VEHICLE LIFTING MEASUREMENT,ALIGNMENT PLATFORM LEVEL DETECTION,TOE CONSTANT VALUE MEASUREMENT,TWO-WHEEL MEASUREMENT(OPTIONAL),RIDE HEIGHT MEASUREMENT(OPTIONAL).
Detailed Images

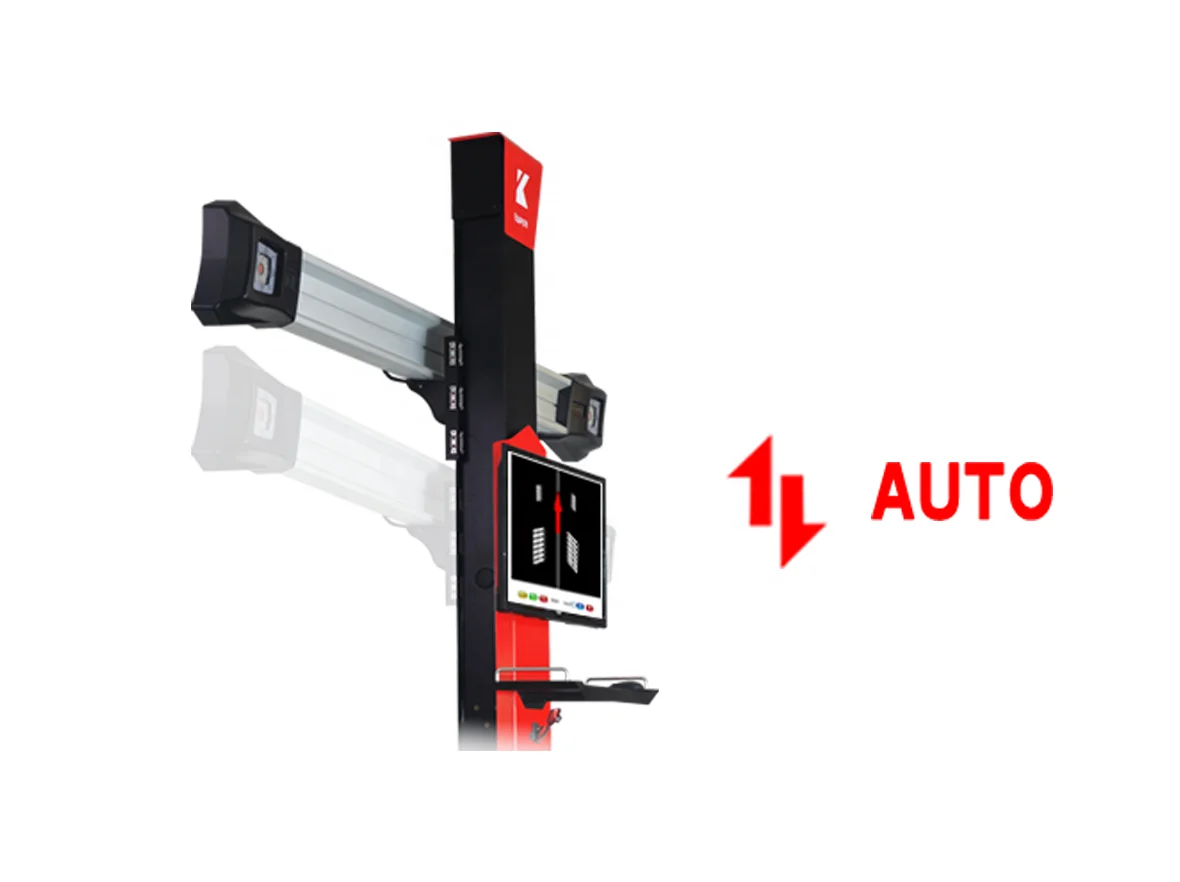

IAA Lifting System

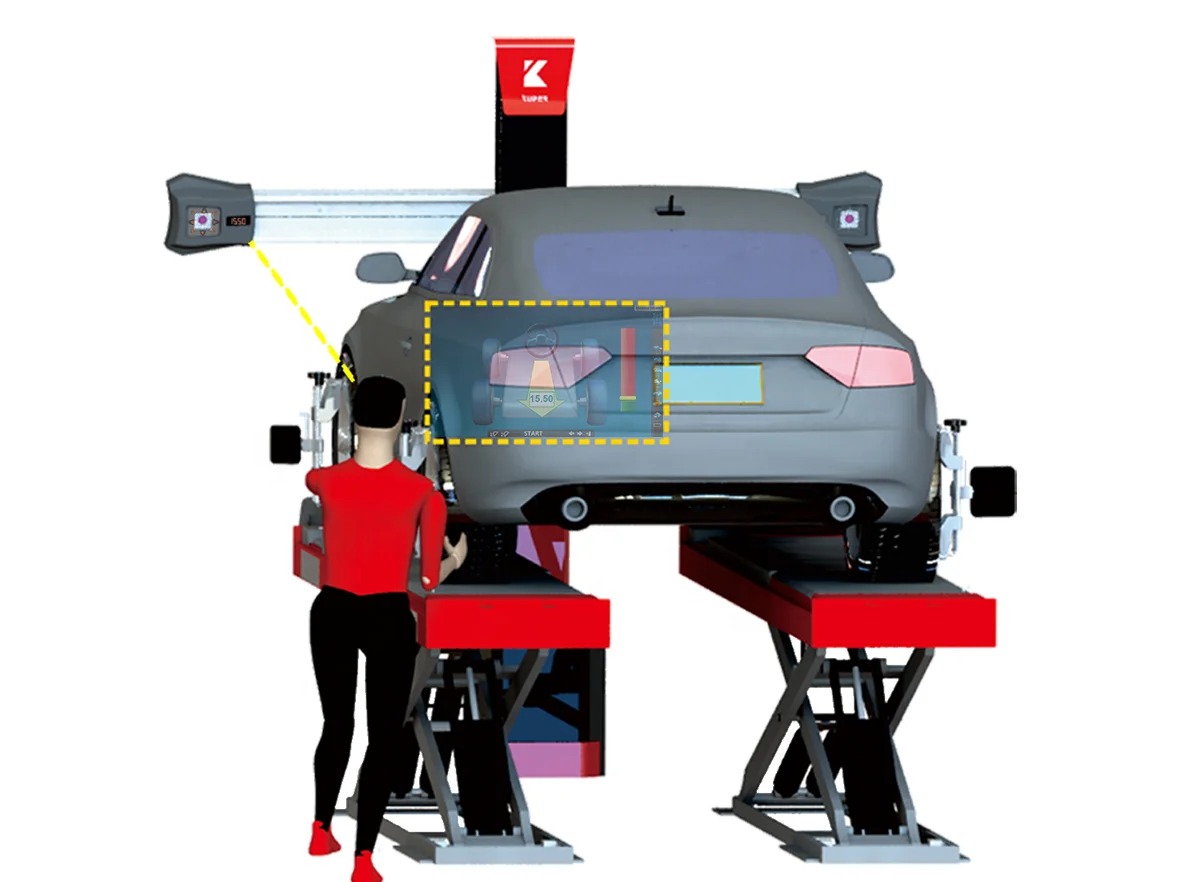

Visual Detection System
Brand: Kuper
Original: China
Automatically track targets without human intervention;
Adjust to the optimum height based on the length of vehicle wheelbase.

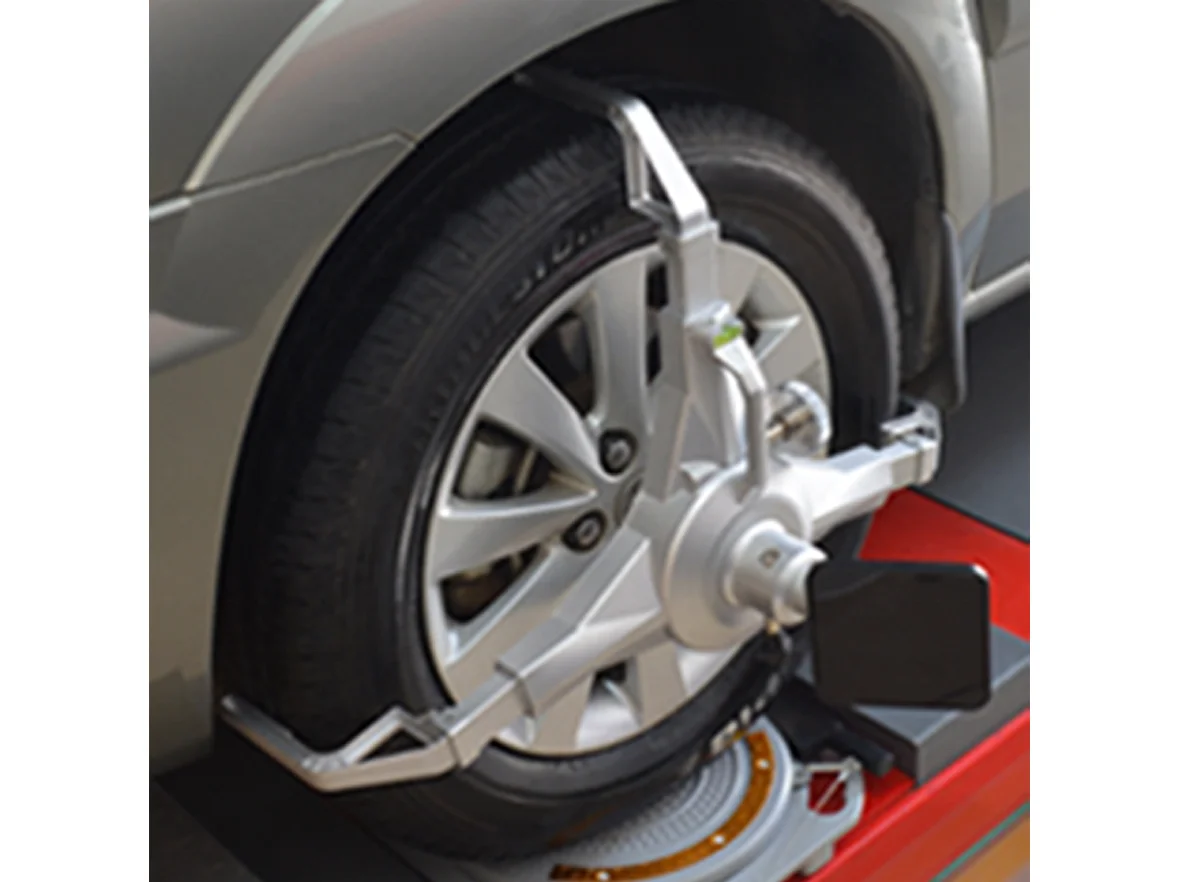

Touchless Wheel Clamp Made of Magnalium
Easy to grip the tire ,eliminating metal-to-metal contact and subsequent rim damage.
SMART WINDOW PATENTED
Patented mini display screen;
Monitoring the real-time measurement and operating independently without assistance.

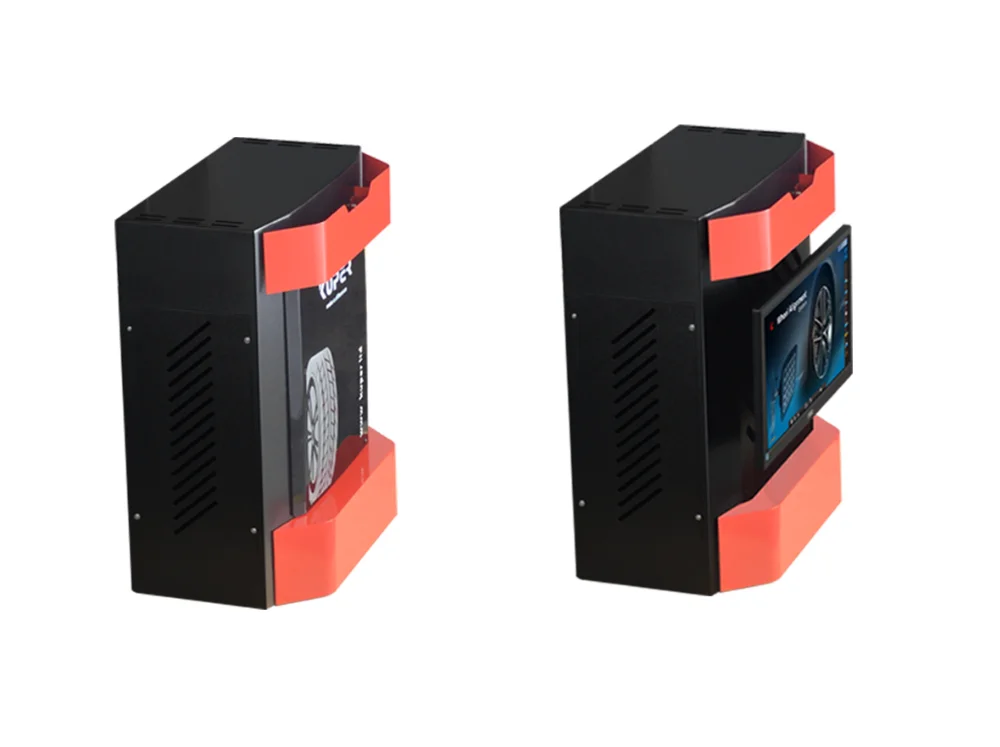

Spacing Saving and Convenient for Storage Cabinet(Optional with Dual Screen )

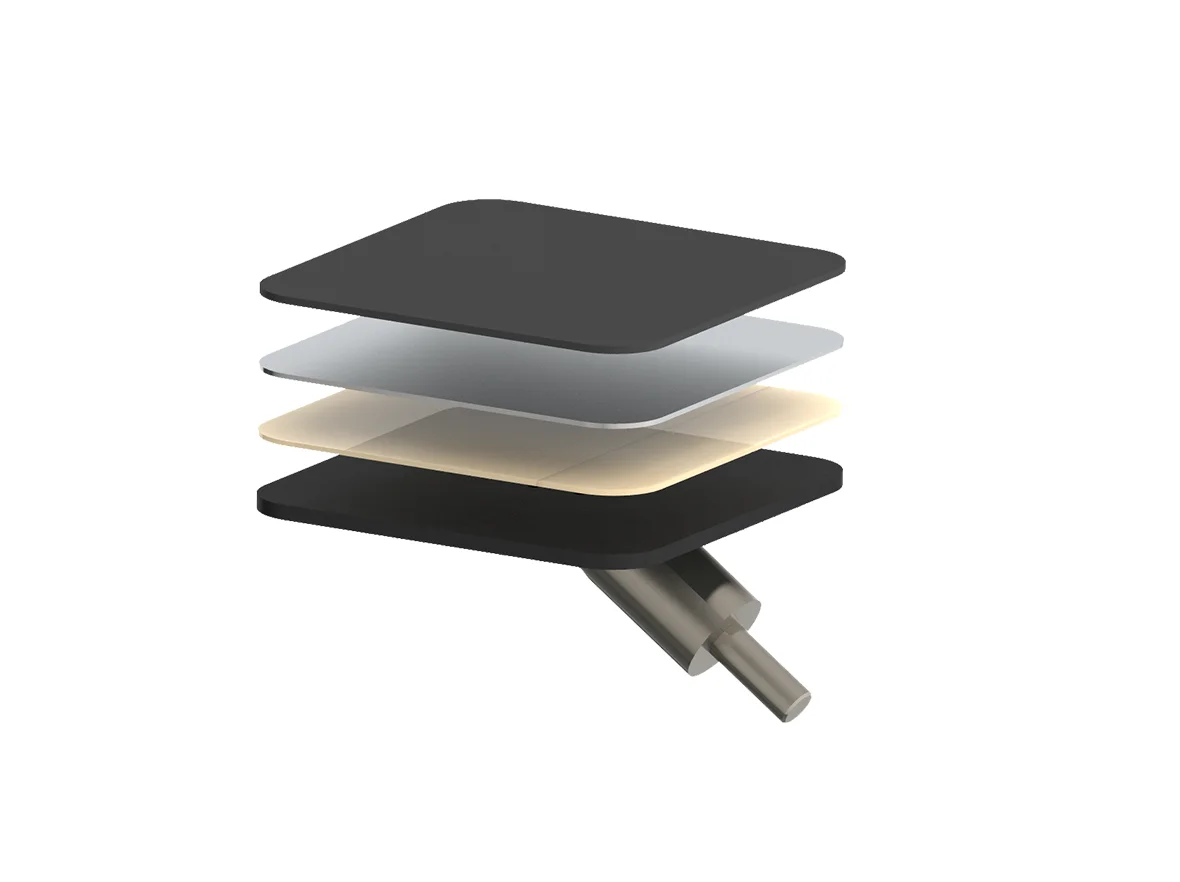

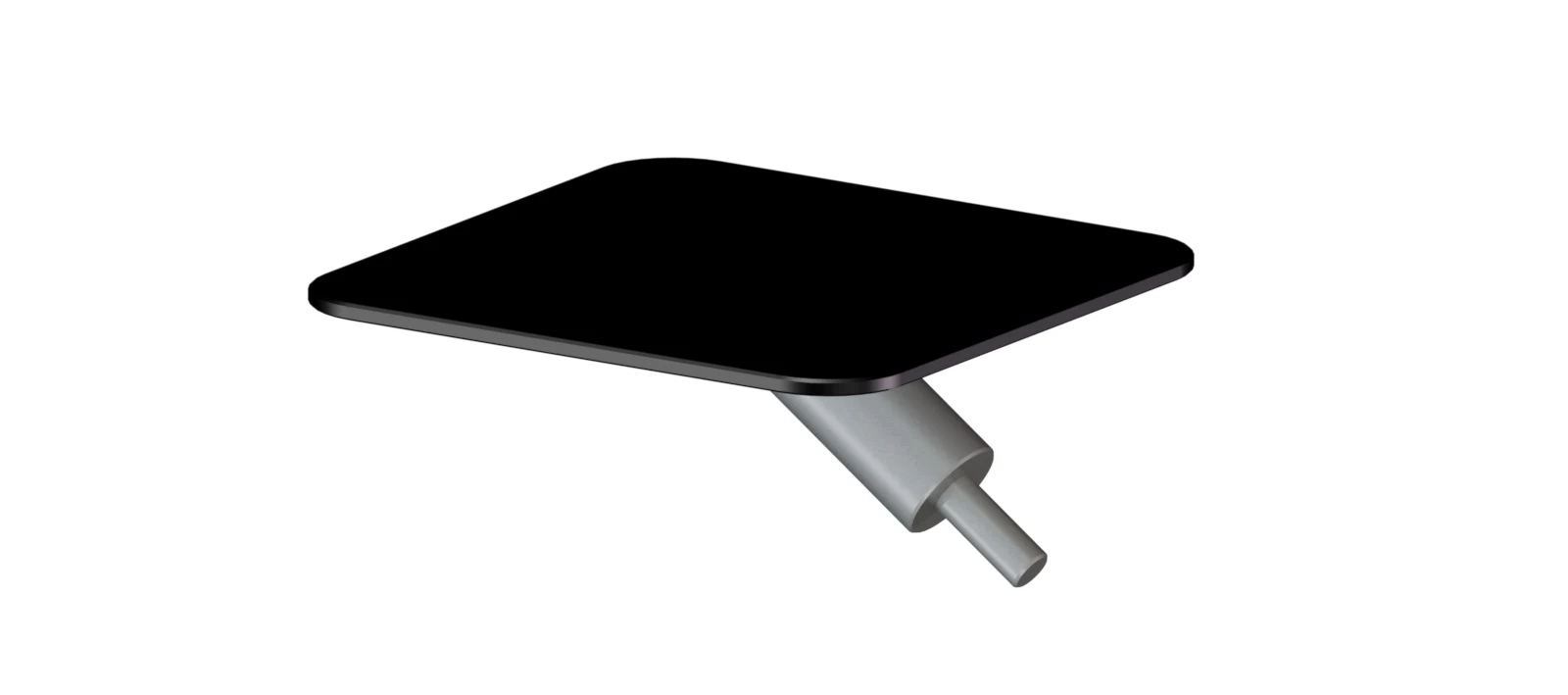

Ultra-thin Mini Aluminium Black Tech Target
BLACK TECH target can reduce theinfluence of sidelight to improve the clarity of the image and ensure the accuracy of measurement .Made of aluminium material , ultra-thin and light .Size of target : 5.3 inches & 6.9 inches .

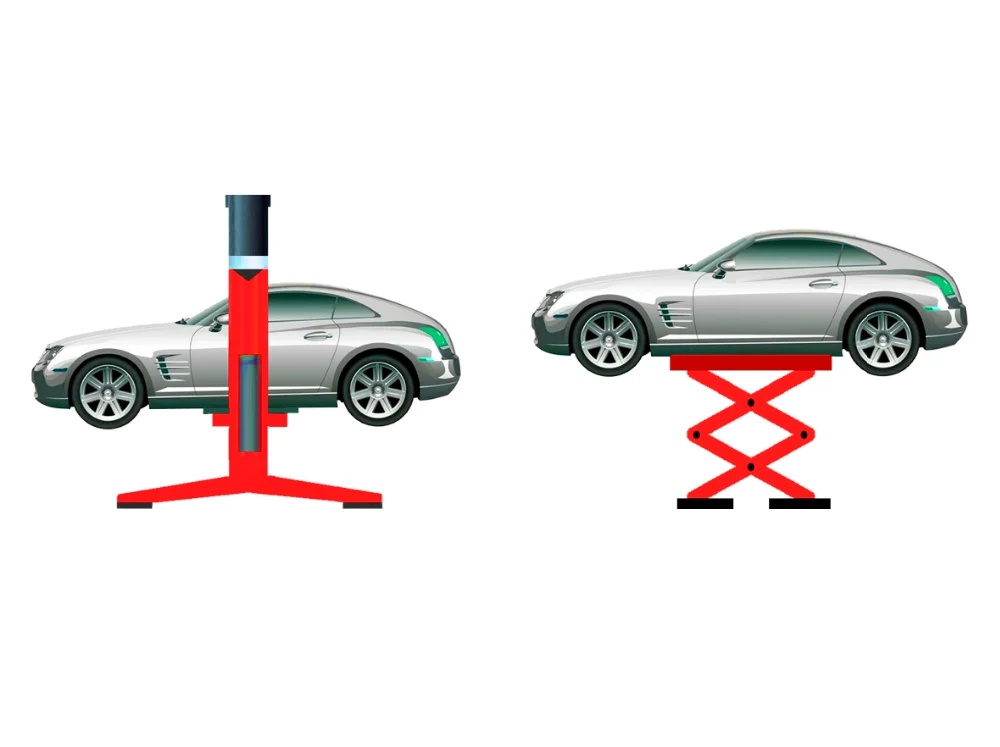

Two-Post and Mini Scissor Lift Jack-up Adjustment

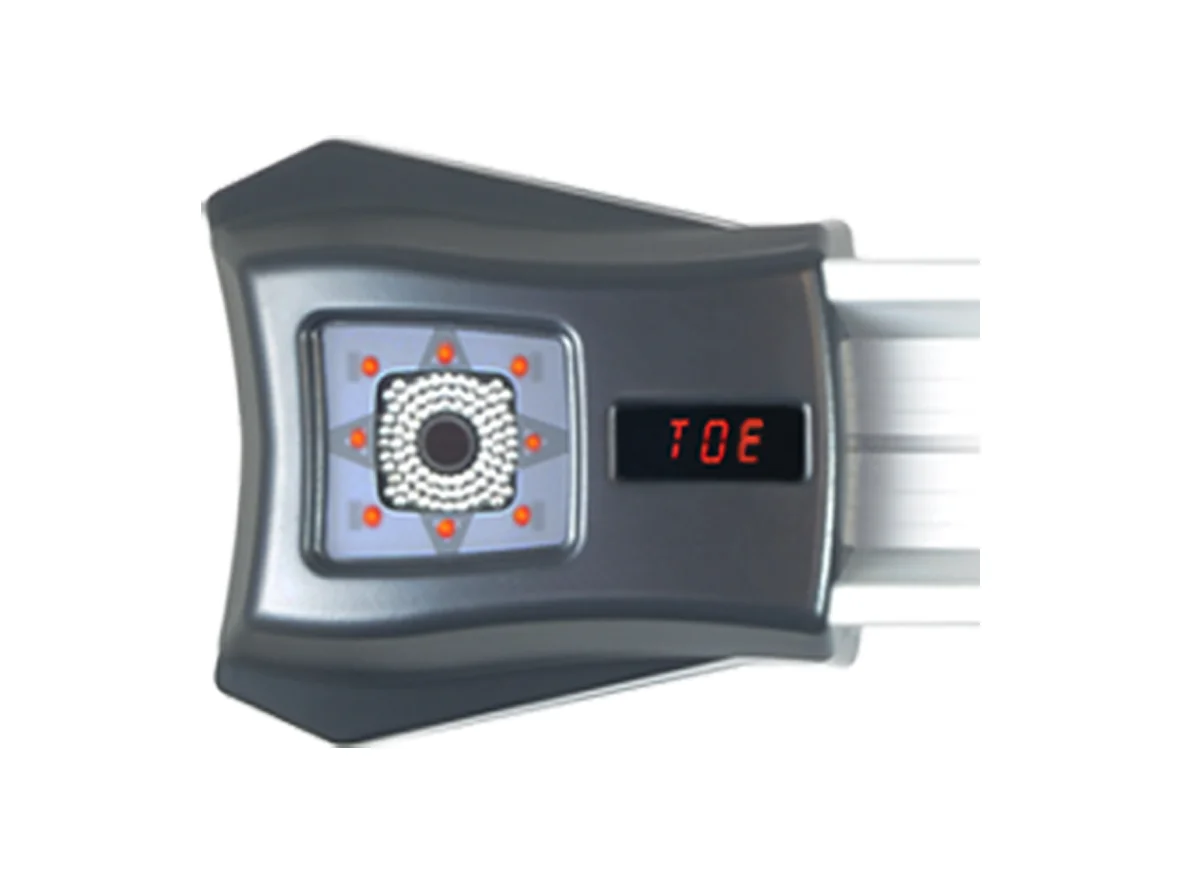

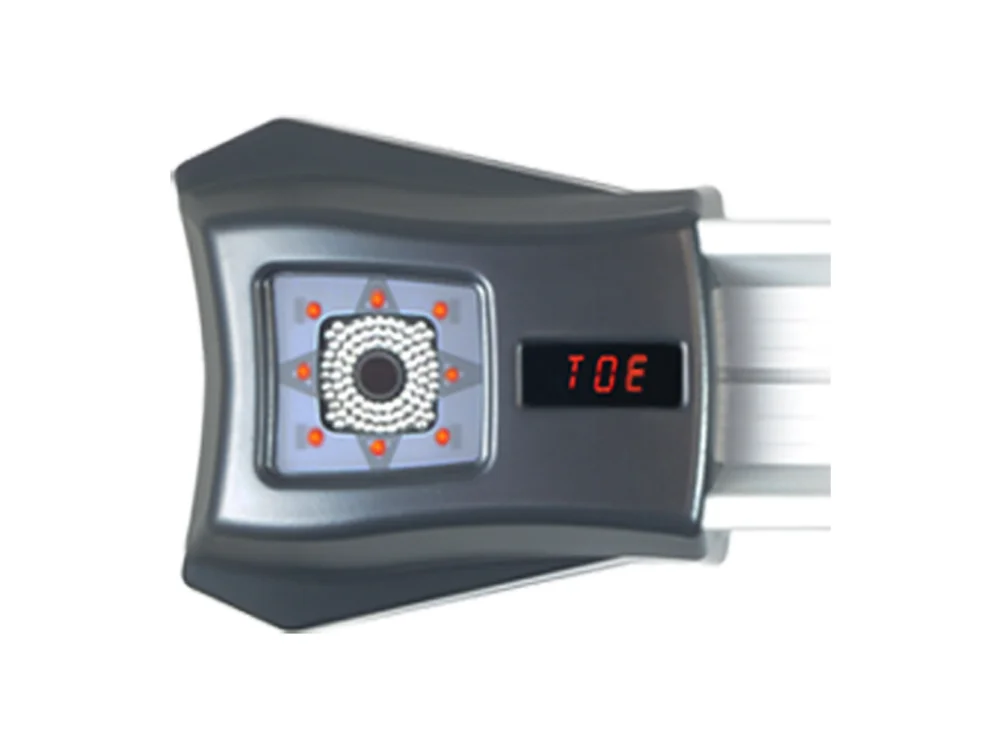

Intelligent SMART WINDOW System
Patented mini display screen . Monitoring the real-time measurement and operating independently without assistance .

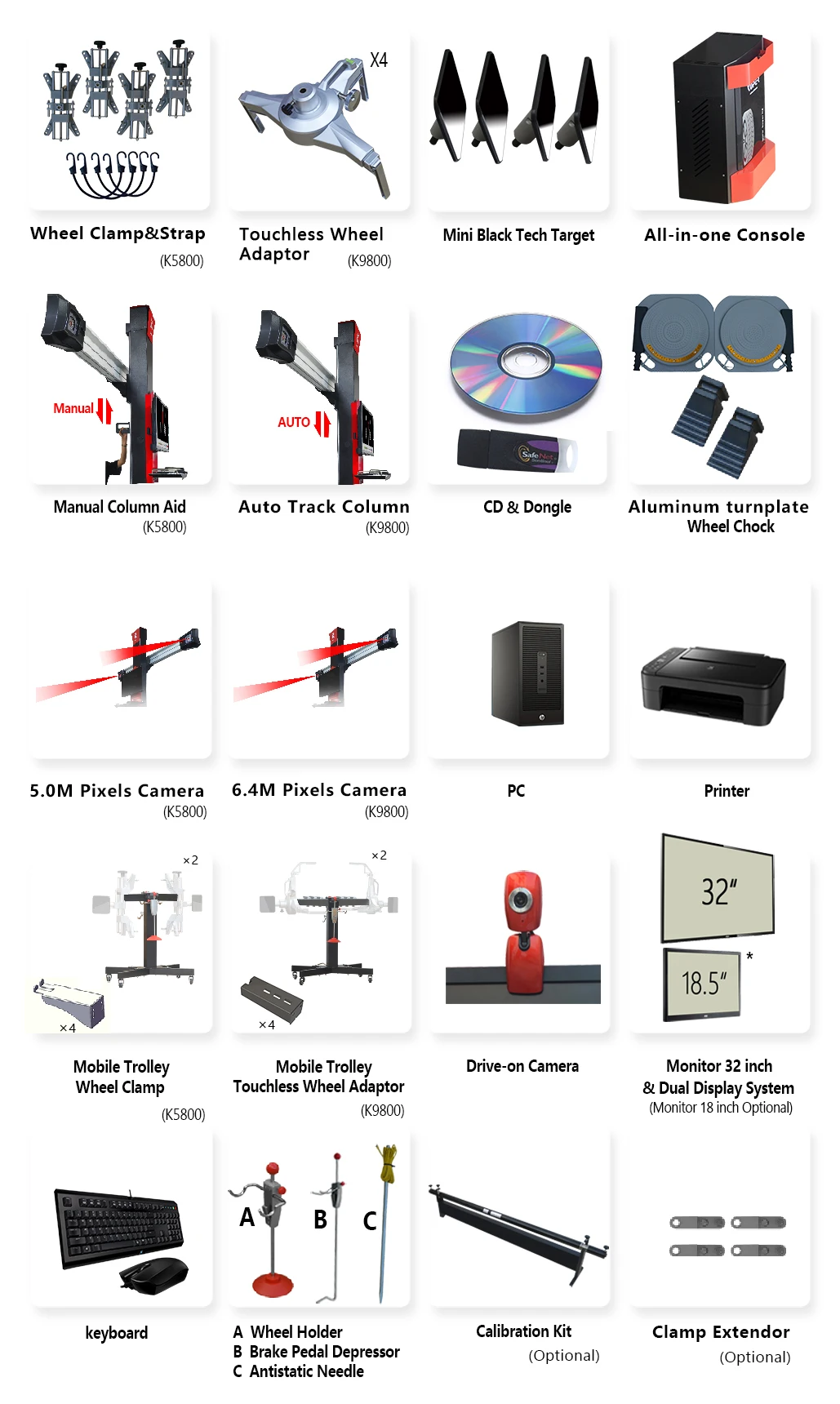

Accessories
You May Like
Why Choose Us
Lawrence is a manufacturer specializing in tyre service equipment. For 15 years, we keep focusing on developing and researching, and manufacturing 3D wheel aligners, tyre changer, wheel balancer and supplying supporting car lifts, nitrogen machines. The products cover 4 series and 5 categories, which can meet the requirements for different target users including OEM manufacturer, workshops, tyre shops, etc. With accumulated numberous patents, and have passed CE and German TUV official certification. After more than 10 years of operation, we have accumulated rich experience in market operation, product use and after-sales service. We are seeking for long-term strategic partners in your region.
FAQ
Q: Can computer and camera beam be installed in different room ?
A: Yes.We will provide different install solution according to your workshop condition.
Q:Cane we use 380V/50HZ as power supply ?
A:Yes,additional cost needed .
Q:Can you install wheel on cabinet make the machine movable?
A:Yes,but it's only valid on 8s and 708 model.
Q: How to update the database?
A:Freely whole life through online .
Q:Can you customize logo, color, interface on cabinet and software interface?
A:Yes.As long as the LOGO function for your request if you want to add or remove any function and database bank can be yours name also.
Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor except in Brazil ,India, South Africa, Pakistan, Malaysia. Welcome to join Lawrence!
Q:Can I buy wheel aligner kit ?
A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.
Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.
Q:How to calibrate the camera and target plates ?
A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.
Q:Do I need to Re-Calibrate after equipment arrived and installed ?
A:No need, we already calibration well in factory before departure.
Q:Where Calibration Data Your Battle-Axe Designed ?
A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break
Q:What is delievery time ?
A:2 working days upon receiption of down payment .
Q:Could you send me a demo software ?
A:Yes. Contact us for download linkage.
Q:Could you translate the software language to our native language ?
A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .
Q:How to installation ?
A:Through video show training.
Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation .
A: Yes.We will provide different install solution according to your workshop condition.
Q:Cane we use 380V/50HZ as power supply ?
A:Yes,additional cost needed .
Q:Can you install wheel on cabinet make the machine movable?
A:Yes,but it's only valid on 8s and 708 model.
Q: How to update the database?
A:Freely whole life through online .
Q:Can you customize logo, color, interface on cabinet and software interface?
A:Yes.As long as the LOGO function for your request if you want to add or remove any function and database bank can be yours name also.
Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor except in Brazil ,India, South Africa, Pakistan, Malaysia. Welcome to join Lawrence!
Q:Can I buy wheel aligner kit ?
A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.
Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.
Q:How to calibrate the camera and target plates ?
A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.
Q:Do I need to Re-Calibrate after equipment arrived and installed ?
A:No need, we already calibration well in factory before departure.
Q:Where Calibration Data Your Battle-Axe Designed ?
A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break
Q:What is delievery time ?
A:2 working days upon receiption of down payment .
Q:Could you send me a demo software ?
A:Yes. Contact us for download linkage.
Q:Could you translate the software language to our native language ?
A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .
Q:How to installation ?
A:Through video show training.
Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation .
