XPON ONU Basic features (Auto-negotiation)(When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode)
Features to Gpon •Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol •Support bidirectional FEC and RS(255,239) FEC CODEC •Support 32 TCONT and 256 GEMPORT •Support AES128 decryption function of G.984 standard •Support SBA and DBA dynamically broadband allocation •Support the PLOAM function of G.984 standard •Support Dying-Gasp check and report •Support synchronous Ethernet •Support the rogue ONU alarm function •Support multiple VLAN function •Operation mode:SFU or HGU option •Support TR069,NAT,DMZ,DNS features •Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface •Support IP,MAC Filtering,Firewall Functionality in routed mode •Good interworking with the OLT from different manufacturers,such as HUAWEI,ZTE,Broadcom,etc. Features to Epon •Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement •Support bidirectional FEC •Support downlink triple churning •Support AES128 decryption function •ONU discovery and registration process implemented by Pure hardware •Support the report of the CTC requirement •Support Dying-Gasp check and report •Support OAM remote management •Support VLAN function •Operation mode:SFU or HGU option •Support TR069,NAT,DMZ,DNS features •Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface •Support IP,MAC Filtering,Firewall Functionality in routed mode •Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,HUAWEI, etc.
Tech parameters
Description
Up-link interface
PON quantity
1PC XPON PON
PON interface receiving rate
1.25/2.488Gbits/s(Auto-negotiation)
PON interface transmitting rate
1.25/1.244Gbits/s(Auto-negotiation)
TX Optical power
0-4dBm
RX Sensitivity
-28dBm
Safety
ONU authentication mechanism
Down-link interface
Fiber type
Single mode singlefiber,20km
Wavelength(nm)
TX 1310nm, RX 1490nm
Fiber port
SC/PC,SC/UPC,SC/APC
Ethernet port
1PC*10/100/1000M with auto-negotiation 3PCS*10/100M with auto-negotiation

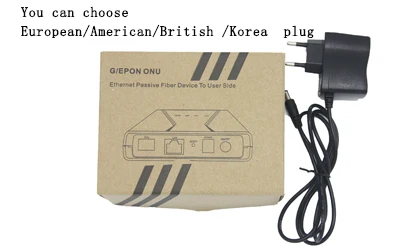

Power supply
12V 1 A
Power
≤5W
Operating temperature
-5~55℃
Humidity
10～85%（non-condensation）
Storage temperature
-30~70℃

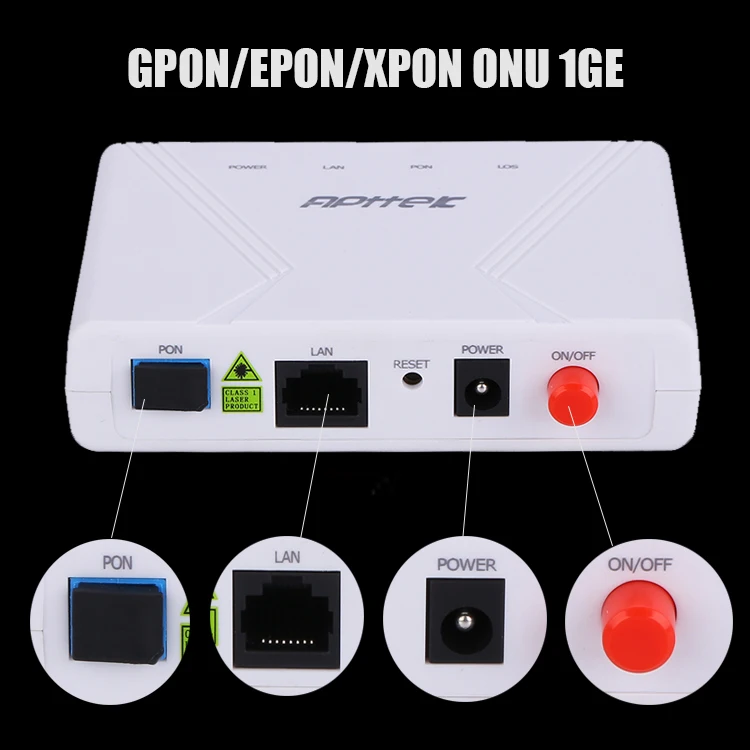

Definition of indicator LED
symbol
color
meaning
PWR
green
ON:successfully connect with power OFF:fail to connect with power
PON
green
ON:ONU port Link link correctly
Flicker: PON port data is transmitting
OFF:ONU ports link link faulty
LAN
green
ON: Link link correctly in link link faulty
Flicker: data is transmitting in twised-pair
OFF: link link faulty in twised-pair
LOS
red
Flicker: fail to connect with PON port
OFF: detected fiber to input
