Флотационная система переработки сточных вод DAF

Product Overview

Description

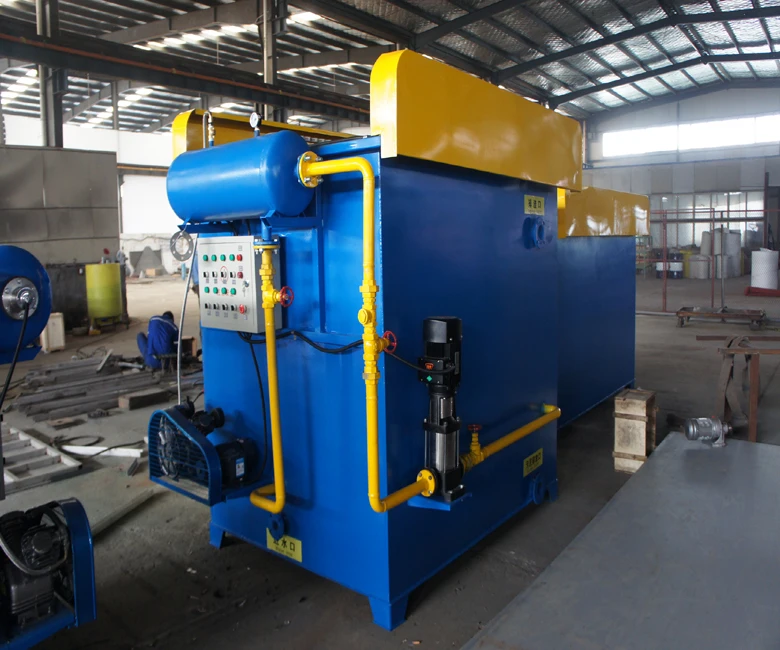

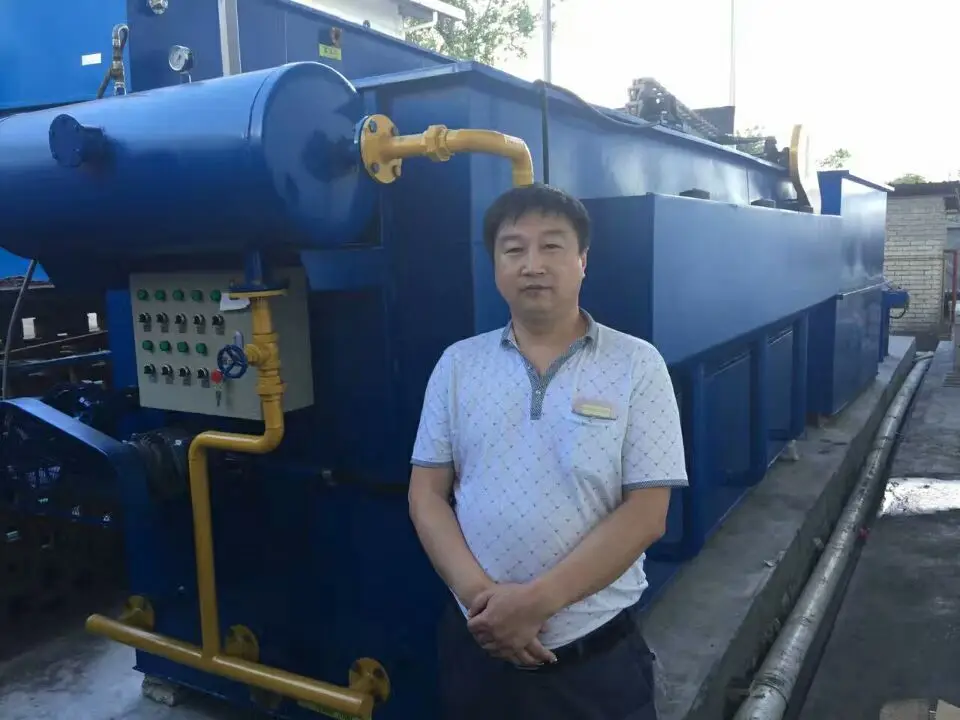

Dissolved Air Flotation DAF Wastewater Recycling System







Dissolved air flotation (DAF) is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.YMRF series of DAF is the most advanced air flotation equipment in the world at present, it was design by brought in abroad advanced dissolved air flotation. Environmental and Energy Group patent products, enjoy exclusive manufacturing license.



Work Principle

The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.











Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemical and chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities. YMRF series DAF is specialized used to remove industrial and municipal sewage grease,jelly and suspended solid. Aiming at different sewage,grease removal rate above 95%, most part of suspended solid will be remove, and inject suitable flocculant and mixture, it can make COD,BOD remove rate above 60%, mainly used water treatment of paper mill,chemical,pollution,food,paint,tannery,oil refining, milk processing,beverage,textile ,machinery processing ,municipal etc industrial sewage.



Data:

Model	Disposal capacity(m3/h)	Equipment size (m)			Dissolved air vessel size(mm)	With motor power	Equipment total weight
		Length	Width	Height		(Kw)	(Kg)
YMRF-1	1	1.0	0.8	1.0	Φ200 x h800	1.75	300
YMRF-3	3	1.7	1.2	2.0	Φ300 xh1000	1.75	800
YMRF-5	5	2.5	1.5	2.0	Φ300 xh1500	2.97	1500
YMRF-10	10	4.6	2.0	2.0	Φ400 x h3000	2.97	3600
YMRF-20	20	5.0	2.0	2.0	Φ400 xh3000	2.97	5400
YMRF-30	30	5.7	2.0	2.2	Φ500 x h3000	2.97	6300
YMRF-40	40	6.3	2.2	2.2	Φ500  xh3000	3.64	7500
YMRF-60	60	8.3	2.2	2.2	Φ600xh3000	5.5	10000
YMRF-80	80	9.0	2.2	2.5	Φ800 xh3000	5.5	11500







Application :

Papermaking wastewater treatment and fiber recycling, printing and dyeing wastewater treatment, electroplating, etc with heavy metal ions wastewater treatment, oily wastewater treatment, tan wastewater treatment, chemical wastewater treatment, paint wastewater treatment, food waste water treatment, the biological treatment of mud and water separation, low turbidity water treatment, including algae surface water treatment, and a variety of other wastewater solid, liquid separation etc.





Characteristics

1. Pump pressurized mix within.Gas to liquid efficient dissolving, small bubbles than 30 um

2. Low voltage operation, the dissolved gas efficiency is as high as 99%.

3. Tiny bubbles and suspended particles of efficient absorption, improve the SS remove effect

4. Dissolved gas water dissolving efficiency 80-100%. Than traditional dissolved gas floating high efficiency three times.

5. Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.













1. How to buy your idea products?

 A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

 2. How to pay?

A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

 3. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

 4. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

 5. How to keep your equipments from corrosion?

 A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
