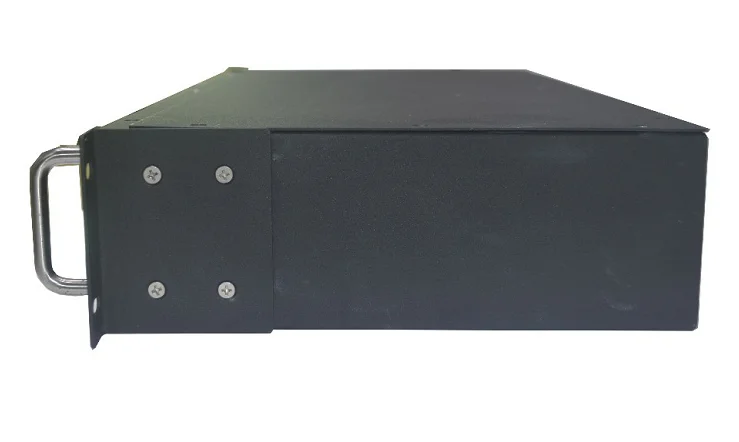

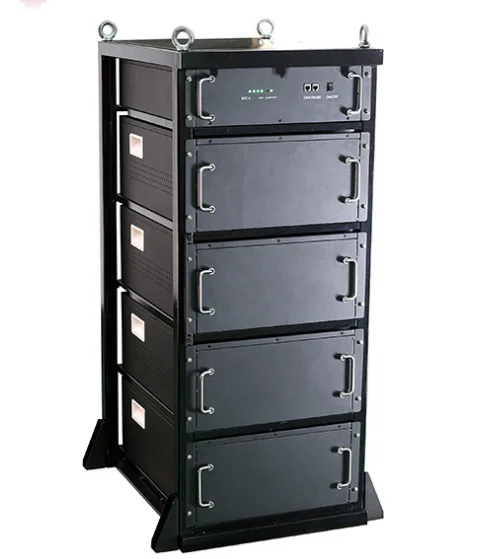

12v 48v 100ah 200ah deep cycle lithium ion lifepo4 battery for BTS Tower Energy Storage Battery System UPS Backup
- Category: >>>
- Supplier: QS Energy (Shenzhen) Co. Ltd.
Share on (62356651927):
Product Overview
Description
PRODUCT PARAMETER
12v 48v 50ah 100ah 200ah deep cycle lithium ion lifepo4 battery for BTS Tower Energy Storage Battery System UPS Backup
50ah lithium ion battery pack
|
orminal Capacity |
50Ah |
|
Norminal Voltage |
48V |
|
Cycle Life |
<6000 |
|
Internal Resistance |
≤30mΩ |
|
Charger Current |
10A |
|
Max. Charge Current |
50A |
|
Charge Voltage |
53.2~54V |
|
Continuous Current |
10A |
|
Max continuous discharge current |
50A |
|
Discharge Cut-off Voltage |
40.5V |
|
Cell & Method |
3.2V50Ah |
|
Dimensions |
|
|
Weight (lbs./kg.) |
22kgs |

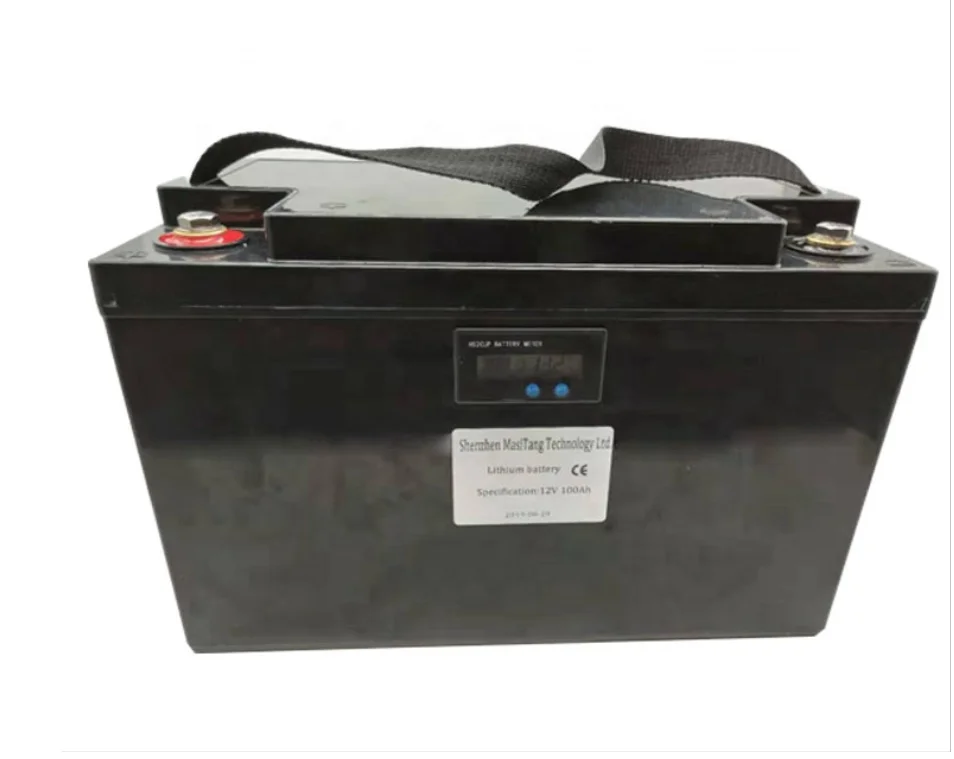

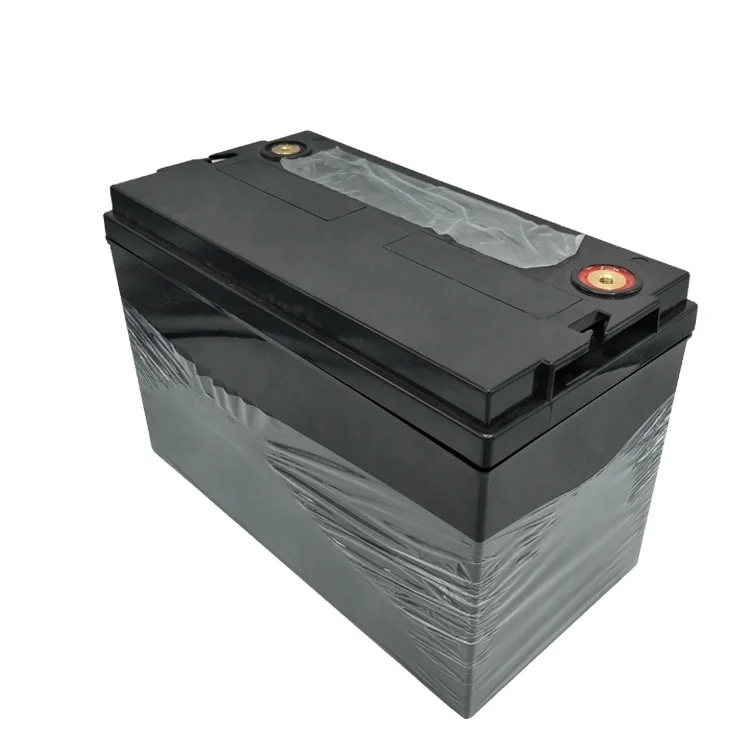

100ah lithium ion lipo battery pack
|
Battery type |
LifePO4 battery cell |
|
Nominal voltage |
12.8V |
|
Charge voltage |
14.6V |
|
Nominal capacity |
100Ah |
|
Internal resistance |
≤20mΩ |
|
Battery configation |
4S1P(4 series,1 parallel) |
|
Limited charge voltage |
14.6±0.2V |
|
Floating Charge Voltage |
13.8±0.2V |
|
Charge method |
CC/CV |
|
Discharge cut off voltage |
10.0V |
|
Standard charge current |
50A |
|
Max charge current |
80A |
|
Standard discharge current |
50A |
|
Max discharge current |
86A |
|
Max pulse discharge current(3 minutes) |
172A |
|
Max pulse discharge current(short pulse) |
258A |
|
Lifecycle |
2000 times |
|
Warranty |
12 months |
|
Dimension |
235*196*170mm |
|
Net weight |
10.5KG |
200ah lithium ion lifepo4 battery pack
|
Name |
Value |
|
Product |
12V 200Ah LiFePO4 battery pack |
|
Maximum Continuous Charge Current |
≤30A can be adjustable |
|
Maximum Continuous Discharge Current |
≤60A can be adjustable |
|
Maximum Pulse discharge current |
≤180A can be adjustable |
|
Weight |
Approx 30kg |
|
Cycle Characteristic |
over 2000 times |
|
Export |
2 wires/plugs with metal case |
|
Dimension |
170*265*450mm , can be customized |
|
C (1KHz) Impedance New Cell Max.(mΩ) |
≤120 mΩ |
Product Advantages
Lithium Battery Advantages:
1.Long life cycle, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire

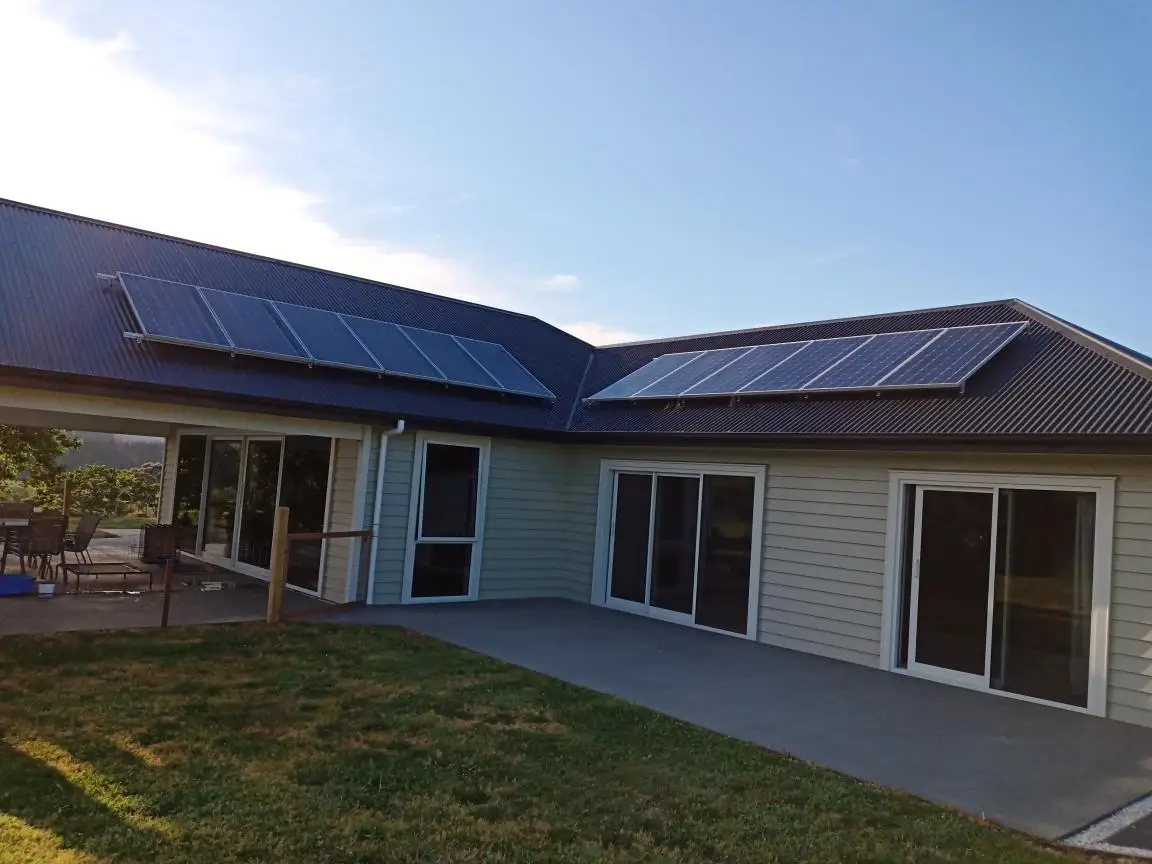

Application for :
PROCESSING
Certifications
FAQ
1,Q: What’s the main rechargeable batteries product in QSPOWER?
A: Rechargeable battery. Li-ion, Lipo battery for solar storage and electric vehicles .
2,Q: What is lithium ion battery overcharge?
A: After charge, tested the batteries’ initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.
3,Q: What is the rechargebale lithium iron phosphate battery over discharge?
A: After charge, test the batteries’ initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4,Q: Can I have a sample battery order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5,Q: Do you have MOQ limit for the lifepo4 cells or battery pack?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.for examples .for completely battery pack the moq is 1 sample is fine for order;for 18650 cylinderical cells moq is 100pcs for order.
6,Q: How about the lead time for both sample order battery 18650 and mass order batteries?
A: Samples will takes 10-15 business days. Mass production will takes 20-25 days. It depends on how many battery quantity you will placed.
7,Q: How about shipping and delivery time for the battery sample and batteries mass order ?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 4-8 business days.for sample and mass order Or DDP service, delivery time is 15-20 business days. Airline and sea shipping also available.
8,Q: What about after-sale service for lipo battery customers ?
A: We will offer you 3-5 year guarantee(based on your battery materials). If there are any problems, please inform us, we will offer you positive solutions.
