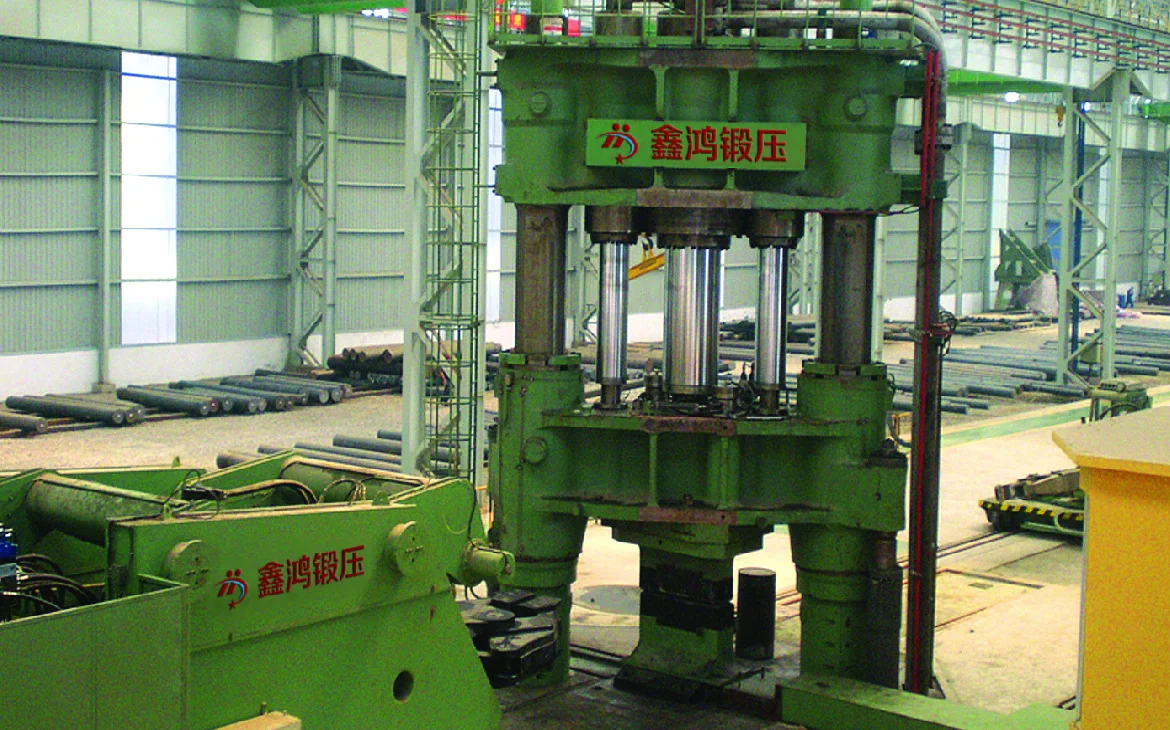

Double column press type fast forging press

Product Overview

Description









Item	Unit	Technical Paramaters
Norminal pressure	MN	20	25	31.5	45	50	63	80
Max stroke	mm	1600	1800	2000	2200	2400	2600	3000
Platform size	mm	1600*5000	2000*5000	1400*4000	2200*6000	2500*6000	3000*7000	3400*7000
Platform stroke	mm	2500/1500	800/1200	2000/1000	3500/1500	3500/1500	4000/2000	4000/2000
Upper anvil Height	mm	600	800	800	1000	1000	1100	1200
Bottom anvil height	mm	1000	1000	1000	1200	1300	1500	1800
Power	Kw	2250	2650	2950	3900	4450	5200	6345
Forging frequency	Time/min	>100	>100	>100	90	90	85	85
Manipulator Load	Ton	25	30	40	60	80	100	120
