SPECIFICATIONS | ||||
RD1100 & RD1500 | Options & comments | |||
Sensor Frequency | 250MHZ Ultra Wide Band | RD1500: Includes FrequensSee | ||
Signal Enhancement | DynaQ (optimizes data quality with cart speed).spatial filting. | |||
Data Analysis | In field analysis | RD1500: Post-processing analysis with EKKO_Project and Utility Suite (Option) | ||
Touch Screen Display | Size:21cm (8'') diagonal | Enhanced: Upgrated Dispaly Unit package | ||
Power | Consumption: 1025V Battery: 12V,9AH Lead Acid | Battery life typically 4-6hrs | ||
Spatial interval | 5 cm (2'') | |||
Depths range | Up to 8m (27') maximum | Ground conditions dependent | ||
Dispaly depths scale | 1m-8m (3'-30') | |||
Languages supported | Non-lingual icons,English, Spaish, French, German | |||
Dimensions(H×W×D) | 100 × 70 × 115cm (39.4×27.6×45.3'') | |||
Weight | 22kg (48lb) | |||
Operating temperature range | Dispaly:-10° to +50℃ (14°F to +122°F) Sensor:-40℃ to +50℃ (-40°F to 122°F) | |||
Environmental protection | IP65 | |||
Compliance | CE,FCC,ETSI,Industry Canada | |||
Standard warranty | 1 year | |||




1) Geo-referenced data,display the position of your surveys in Google Earth™ and other geo-referencing programs.
2) Screen captures,add markers via the touch screen display to highlight features of interest
3) Depth Slices (RD1500),view horizontal slices at different depths to display cables, pipes and other utilities in unprecedented clarity.
4) On-site Map View (RD1500),view your identified features in plan map view using the optional external GPS.
5) Instant email,generate and deliver mini reports from your survey site by connecting to a Wi-Fi network or by using your phone as a hotspot.

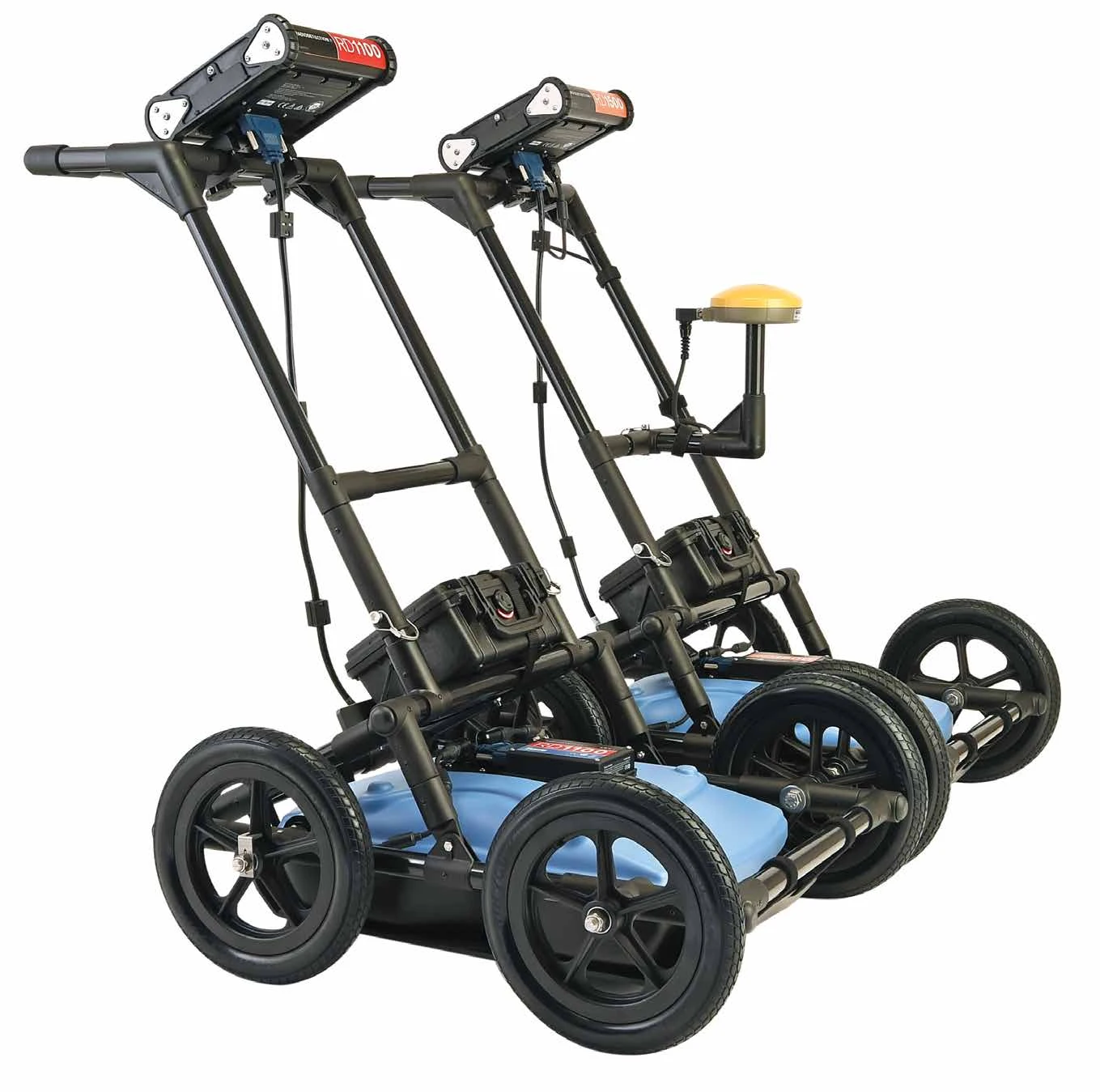

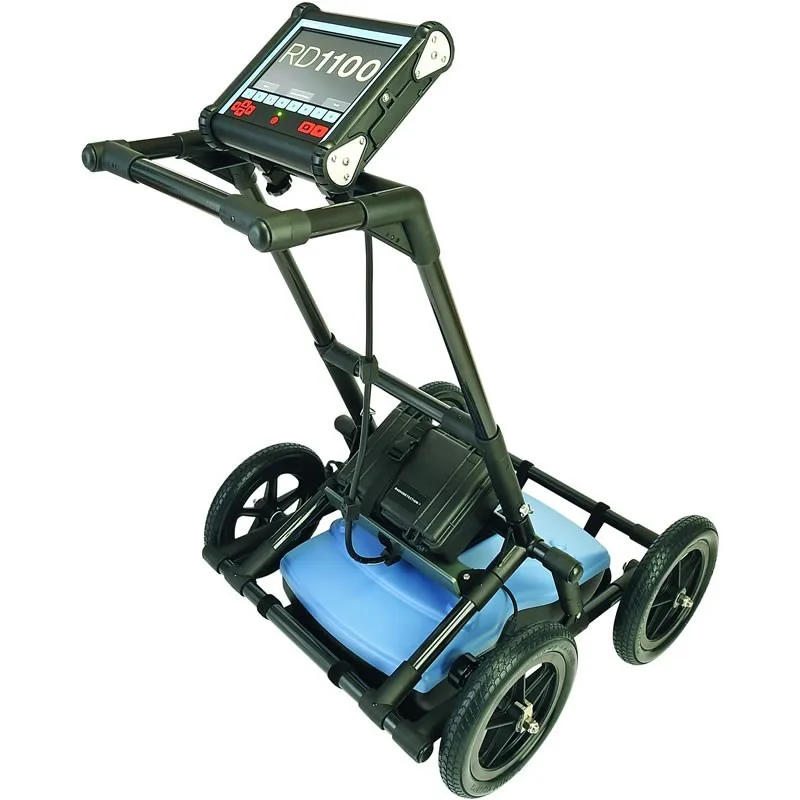

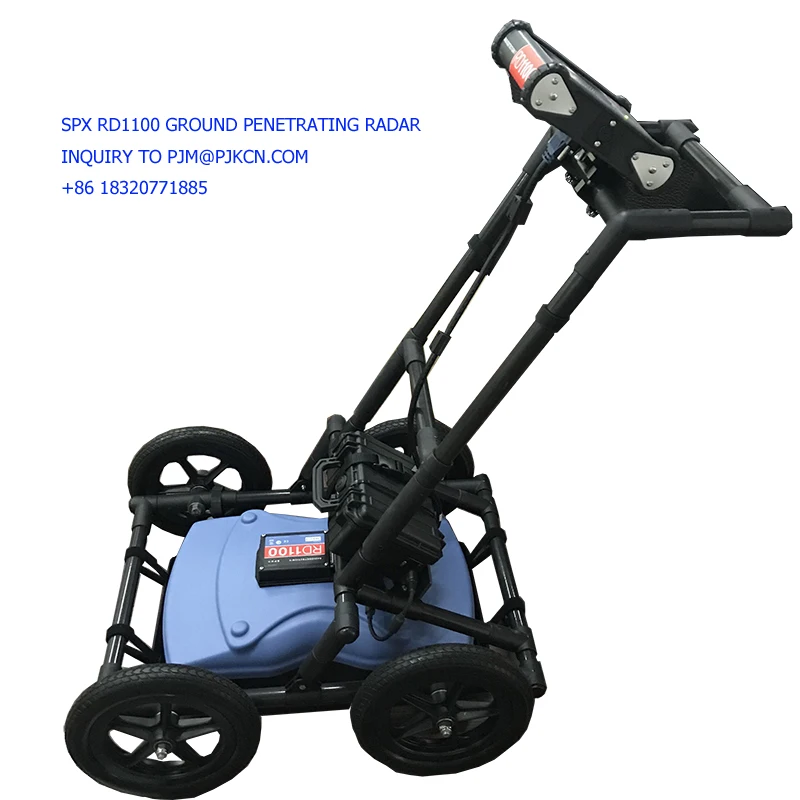

Name: RD1100&RD1500 ground penetrating radar
Brand: RADIO
Original: Germany
Display the position of your surveys in Google Earth™ and other geo-referencing programs.

Name: RD1100&RD1500 ground penetrating radar
Brand: RADIO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Name: RD1100&RD1500 ground penetrating radar
Brand: RADIO
Original: Germany
View horizontal slices at different depths to display cables, pipes and other utilities in unprecedented clarity.

Name: RD1100&RD1500 ground penetrating radar
Brand: RADIO
Original: Germany
View your identified features in plan map view using the optional external GPS.
* Inquiry and consulting support. .
* Visiting our company website.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 100 (L) * 70 (W) * 115 (D) | |
Weight | 22KG | |
Packaging Details | The normal package is catboard box(Size: L*W*H). Of course,we will use pe film for packing according to customers special request. | |
