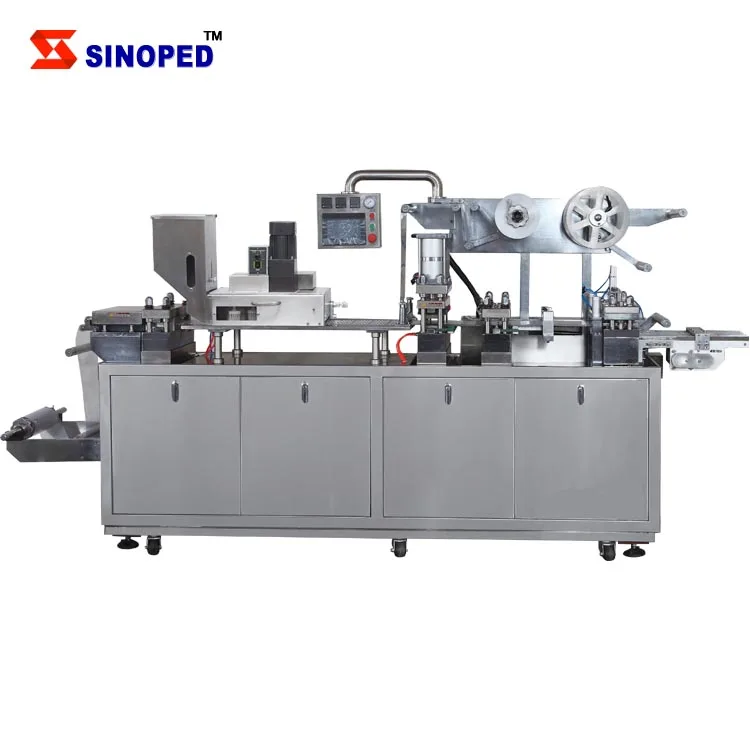

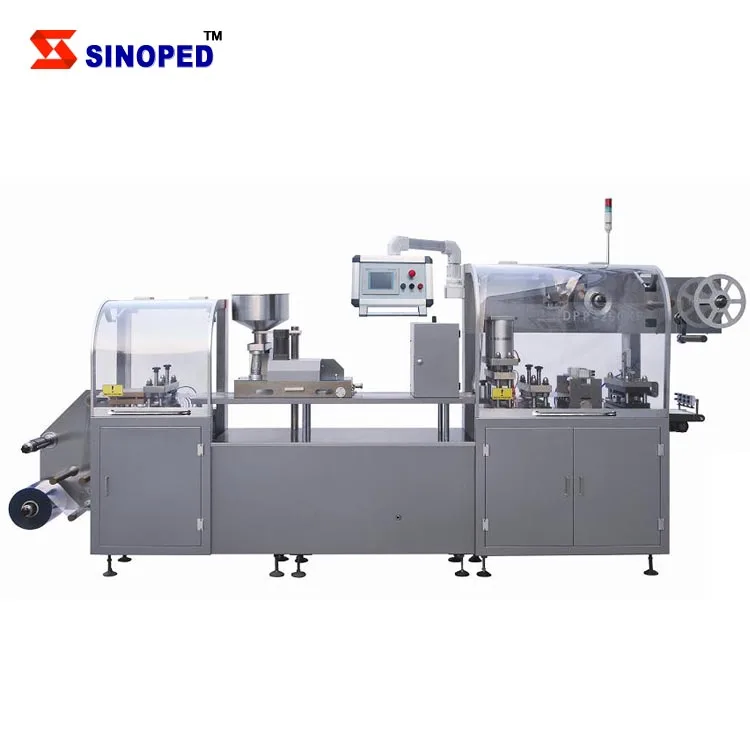

plastic blister packing machine full automatic tablet/pill/capsule alu pvc alu blister packing machine
- Category: Blister Packaging Machines >>>
- Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Share on (62356783408):
Product Overview
Description
Product Description
This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.

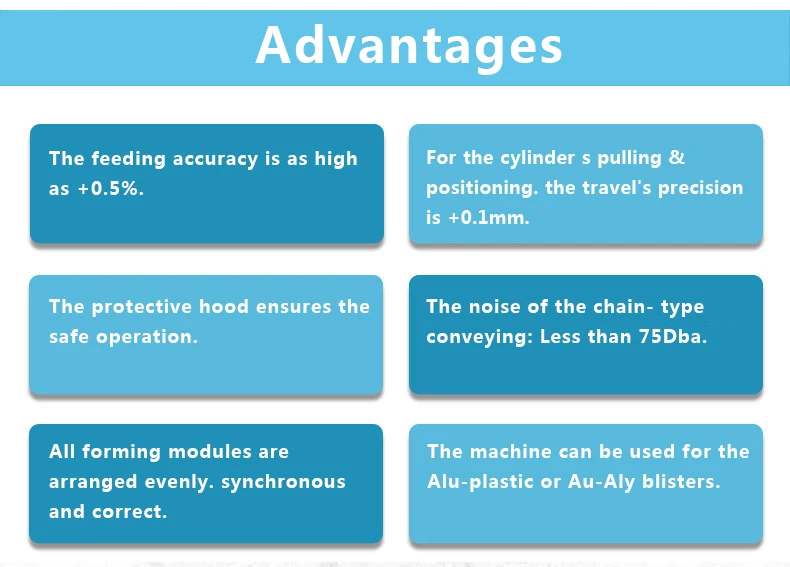

Feature:
1. Traction drive by servo motor (traction by precision leadscrew or rubber press roller), with precise synchronization. The length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.

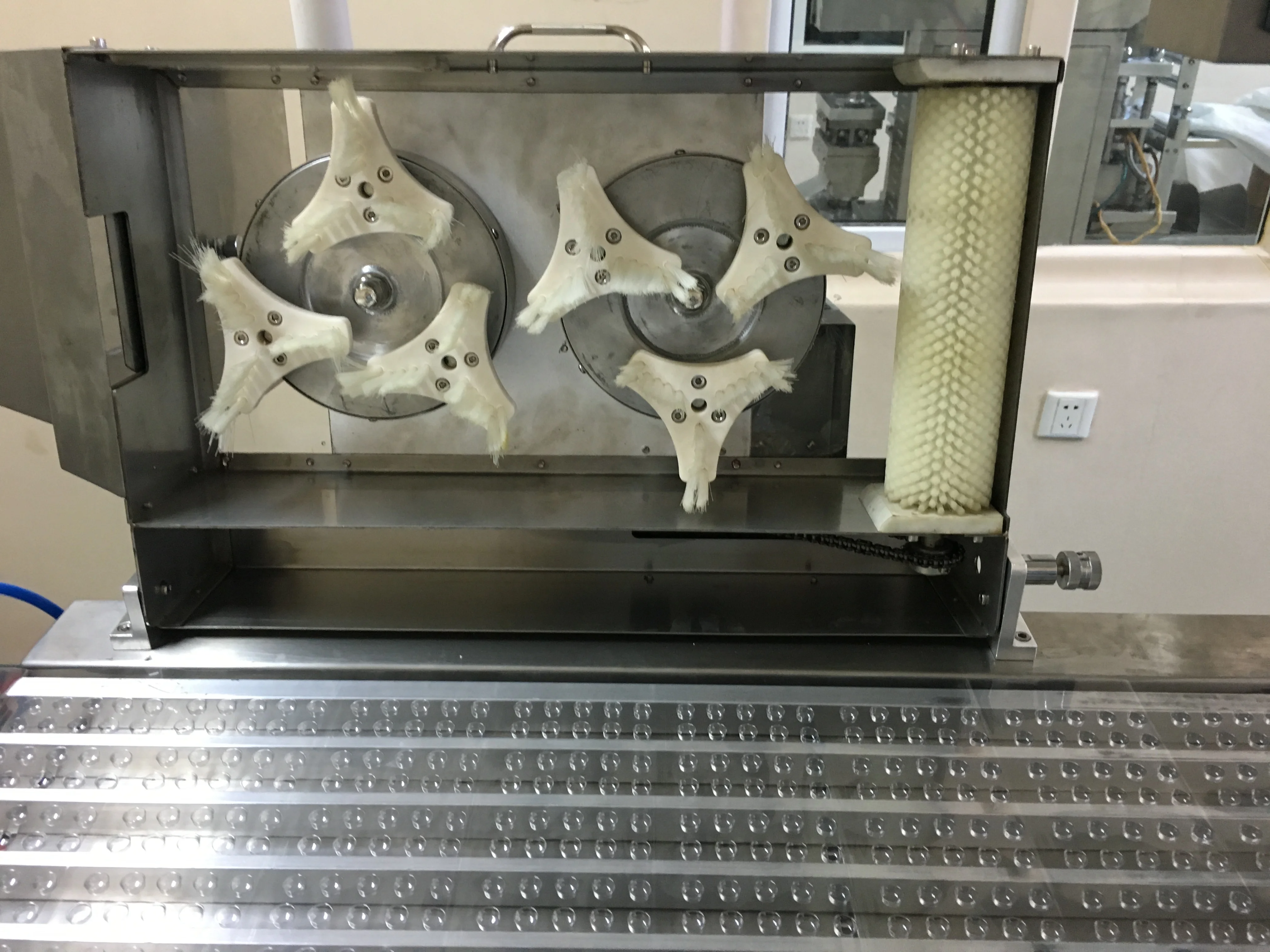

4. Various types of feeder solve the difficulty for irregular shape products packing.

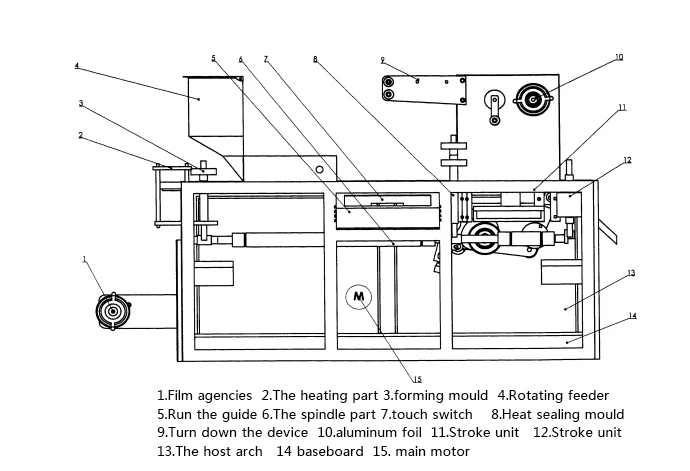

5. Five stations forming, heat-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.
6. Newly mould orientation device speed up the mould changing requirement.
7. Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean.
8. Apply online detection and ejection system, and the camera detection system can be chosen for option.
model | DPP-250 |
Cutting Frequency (Times/min) | 6-50 |
Production Capacity(pcs/h) | 35000-230000 |
Max. Forming Areas And Depth (mm) | 240×150×26 (standard 240×150×14) |
Travel Range (mm) | 40-160 (Can be lengthened to 180mm as user's requirements) |
Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Air Supply | ≥0.3m3/min |
Total Power | 380V/220V 50Hz 6.2kw |
Main Motor Power (kw) | 1.5 |
PVC Sheet (mm) | 0.15-0.5×250 |
PTP Aluminum Foil (mm) | 0.02-0.035×250 |
Dialysis Paper (mm) | 50-100g×250 |
Mould Cooling | Tap Water Or Circulating Water |
Overall Dimensions (mm) | 3000×730×1600 (L×W×H) |
Weight (kg) | 1600 |
There will no further notification if the appearance or parameters of our products are modified. Thanks.

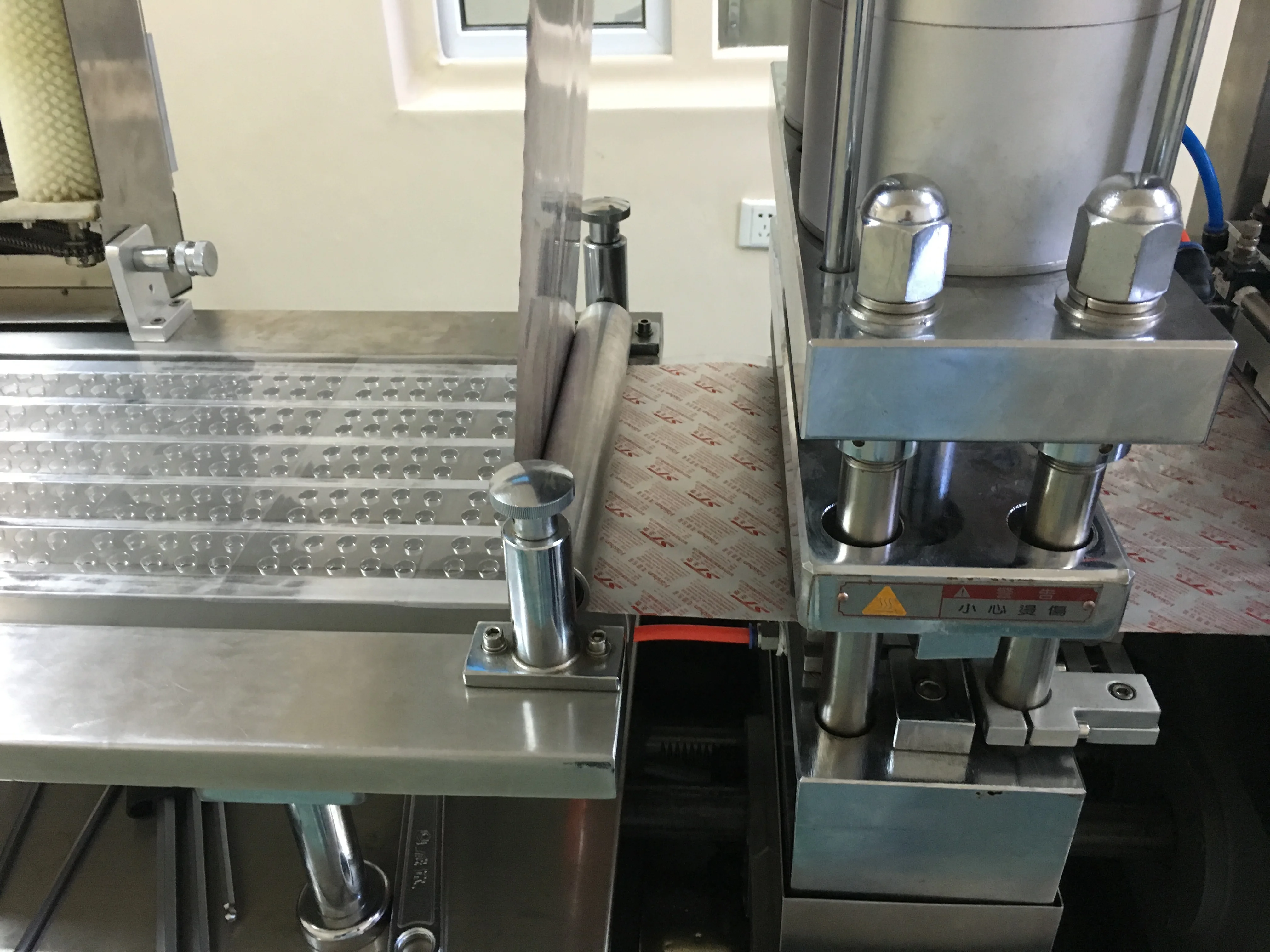

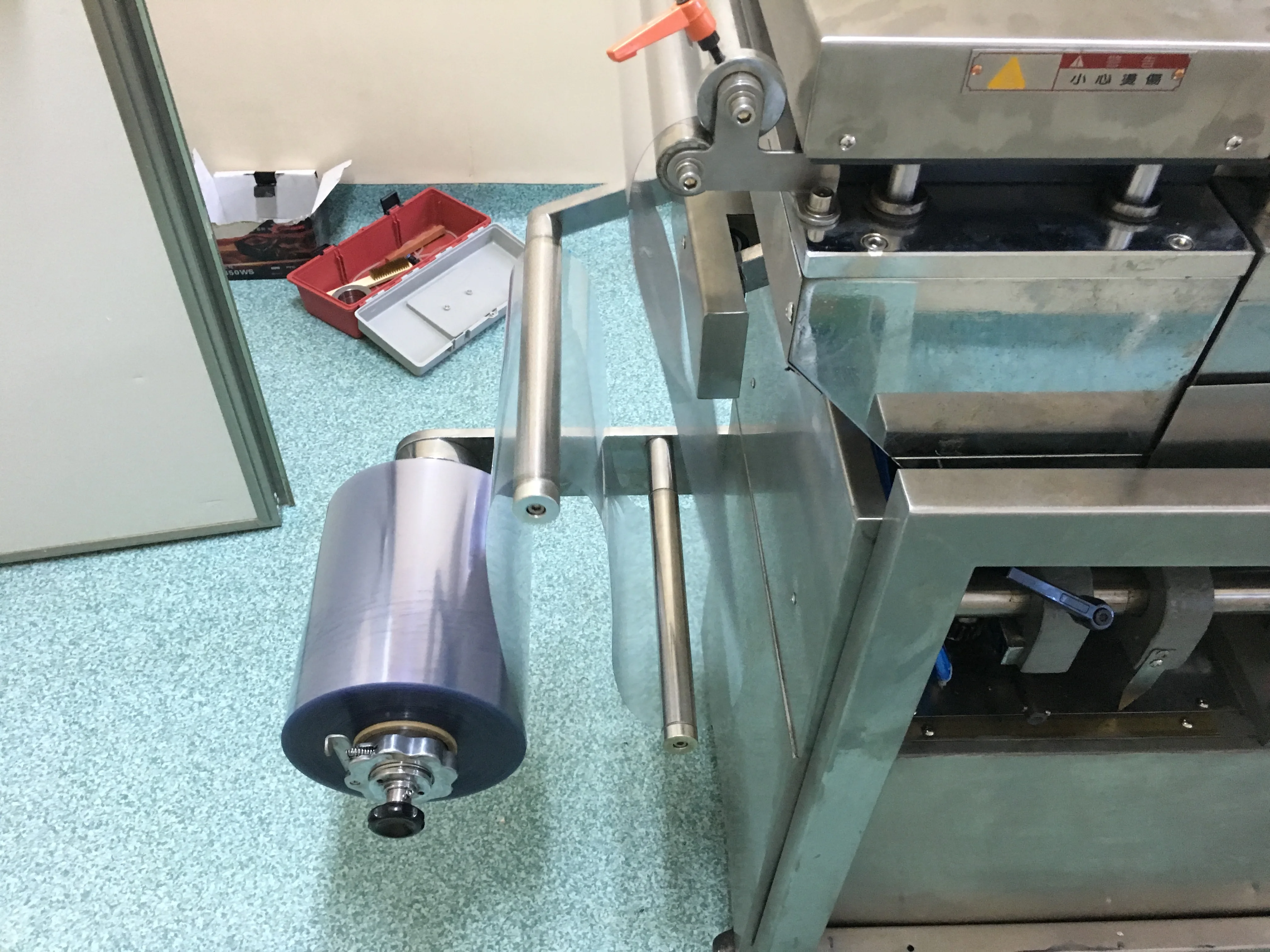

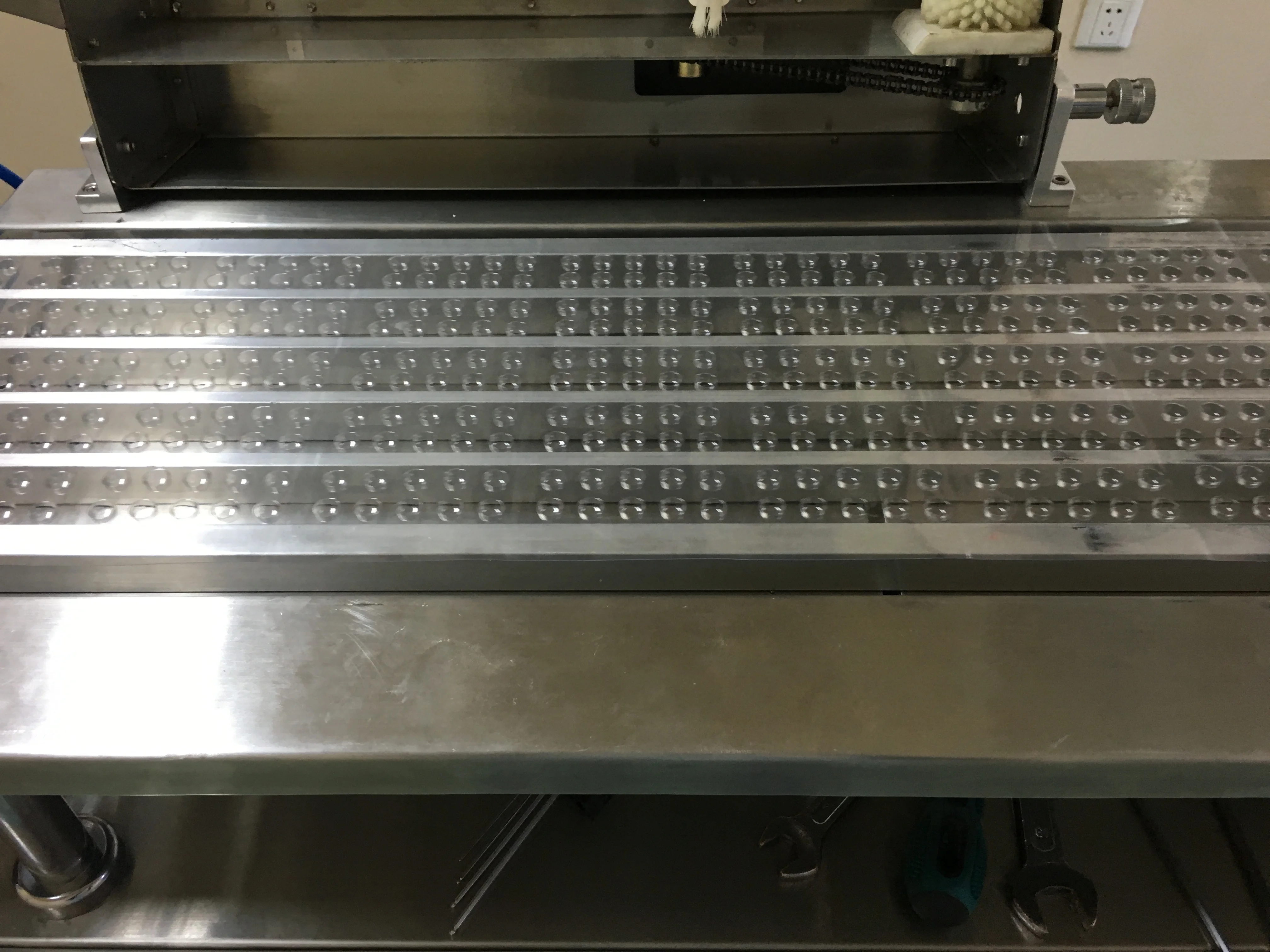

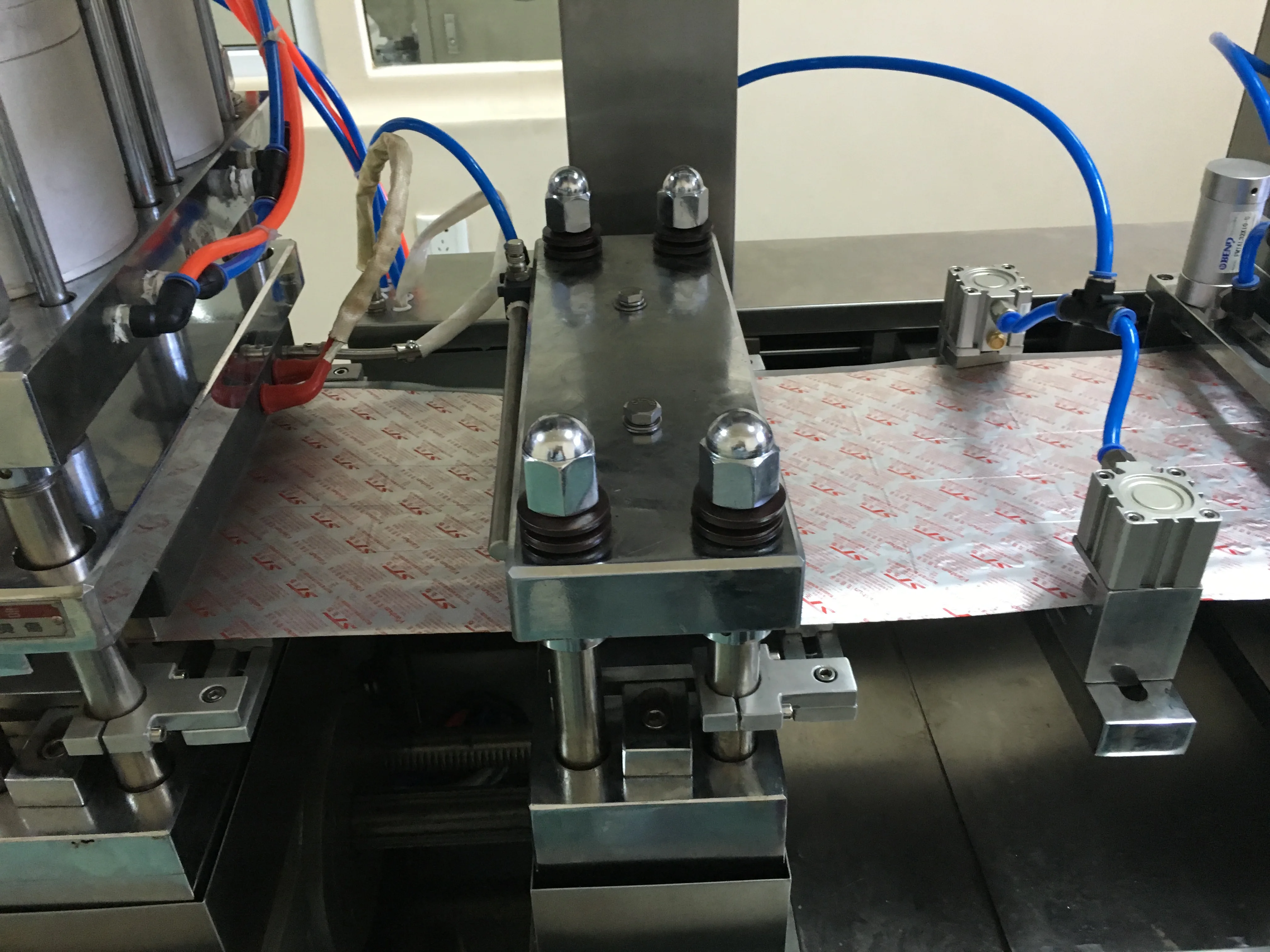

Detailed Images
Related products
Other Products
Why Choose Us
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date
when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours
technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
