We are professional and skilled for producing as well as selling in this kind of machine since we have been in this area for more than 10 years. Machines are upgraded year by year, we updated the components continully to improve the quality, at the same time reduce its cost, now we have a mature system to insure customers would absolutely purchase machines with best quality and competitive price.

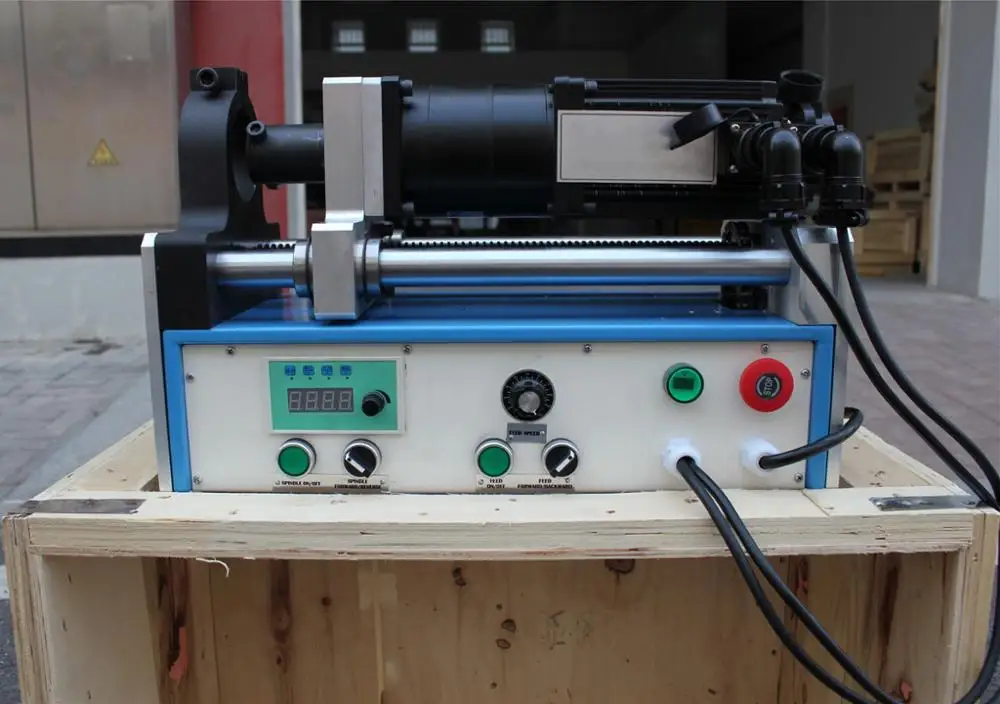

Model
DBQ40C
DBQ40
DBQ50C
DBQ50
DB50A
Boring bar diameter
40mm
50mm
Boring diameter range
φ45-φ180mm
φ45-φ200mm
φ55-φ250mm
φ55-φ280mm
Motor
Brushless DC motor 1.5Kw
Servo motor 1.8Kw
Brushless DC motor 1.5Kw
Servo motor 1.8Kw
Feeding speed
0-90mm/min
0-80mm/min
Spindle speed
0-200r/min
0-170r/min
Length of boring bar
1500mm(Standard) Could be customized
Max turning depth
2mm
Torque
61NM
76.4NM
Voltage
220V/380V

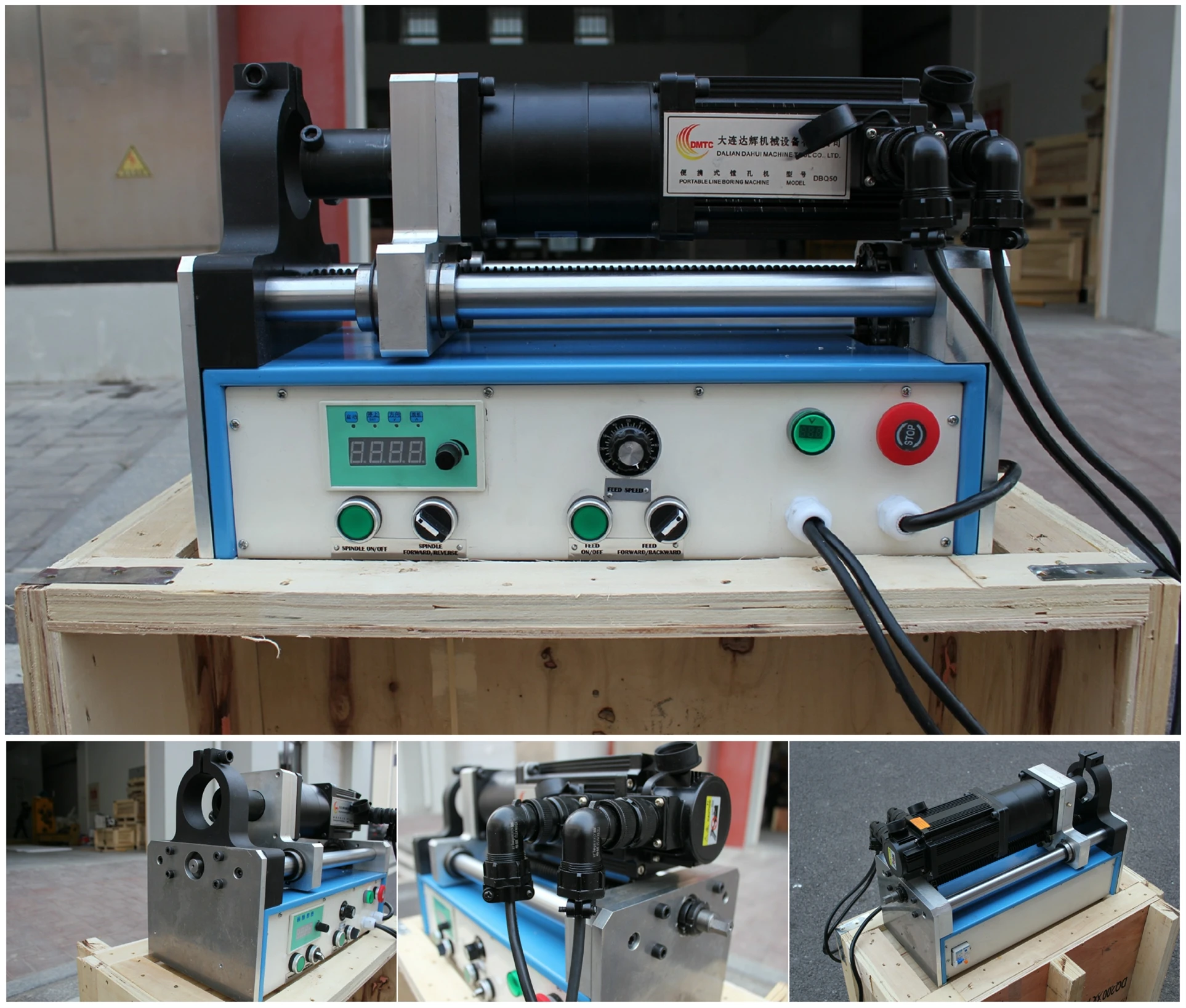

Detailed Images
Power Plugs
10A, 250V with CE standard.
Core parts
Oil-free lubrication,strong rigidity,small gap and long serve time.
Drive
Good heat dissipation, regular big brand, heavy weight, high quality, long life of parts, no problem when operating.
Motor selection
Servo motor: The main drive stability is good independent feed drive, the cutting is more stable and does not chatter the tools. Brushless DC motor: High torque, equipped with independent drive power protection for the motor has a good overload overheat protection.

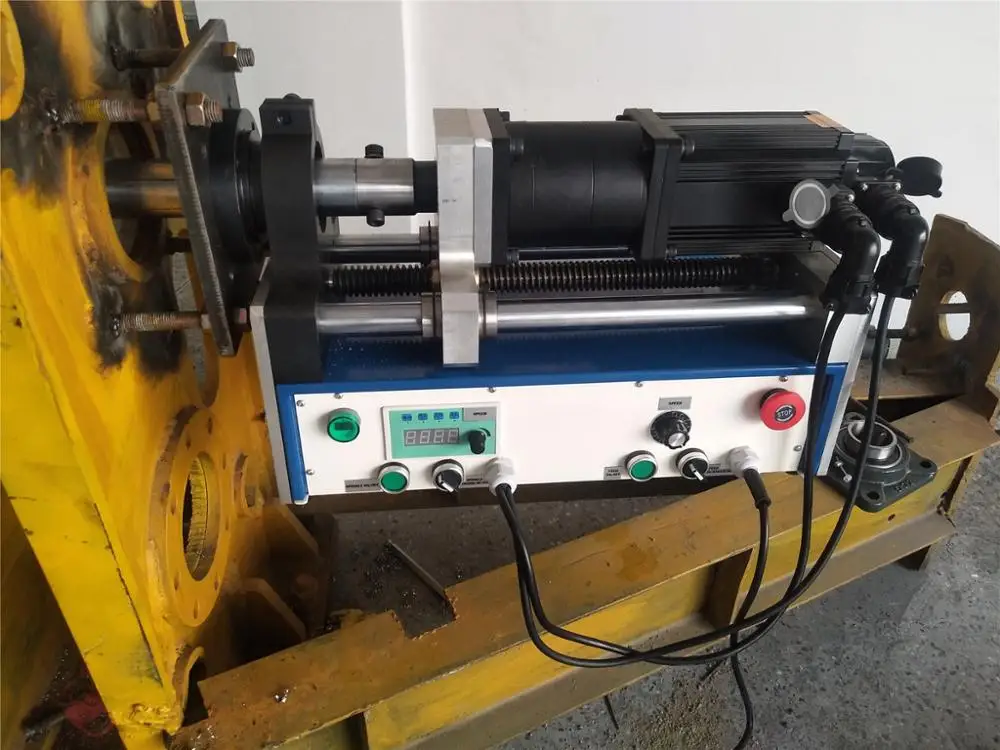

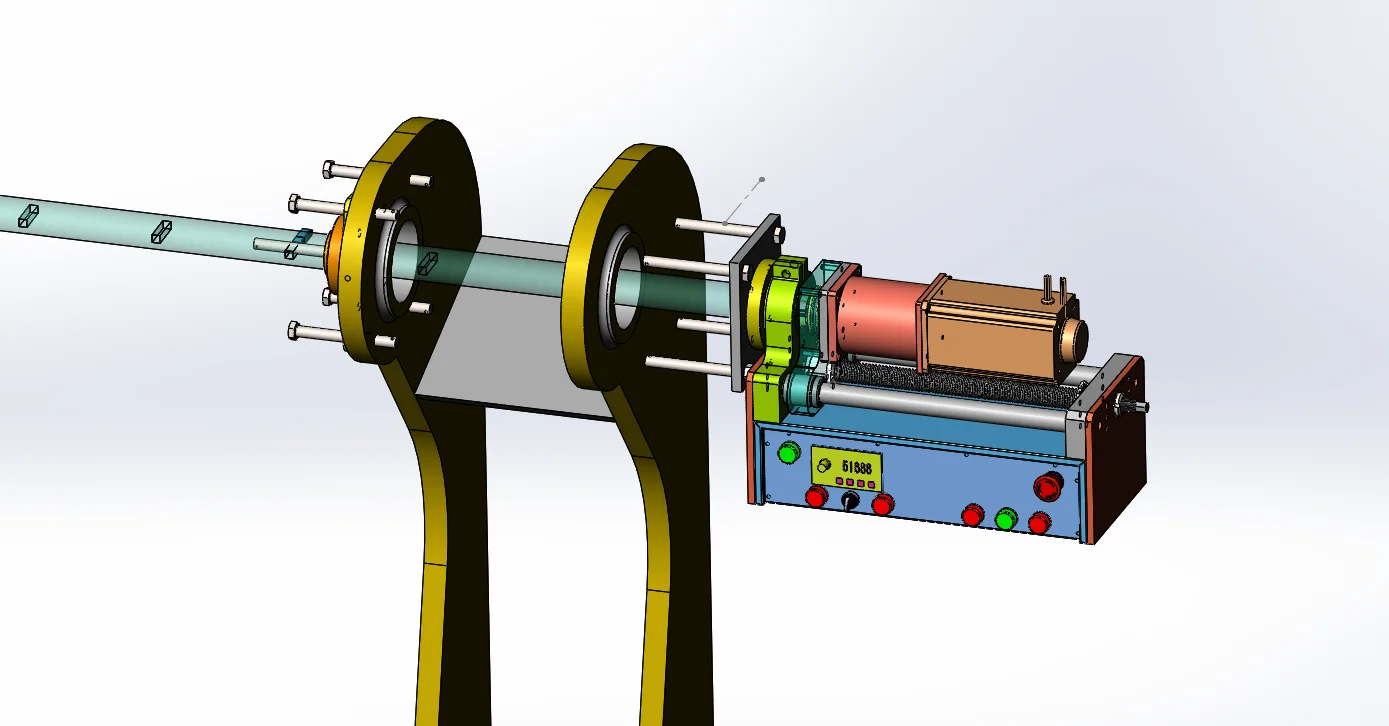

Installation Steps
Optional Accessories
AUTO-WELDING MACHINE&WELDING RESOURCE
Simple operation, perfect appearance, light volume, stable welding rotation, large welding stroke, intelligent brushless motor and intelligent drive.
Welding power supply (wire feeder + electric welding machine) can work in conjunction with automatic welding produced by our company. The changed welding power supply has stable output current, low cost and long life. It is recommended that customers choose a welding power source when purchasing automatic welding.

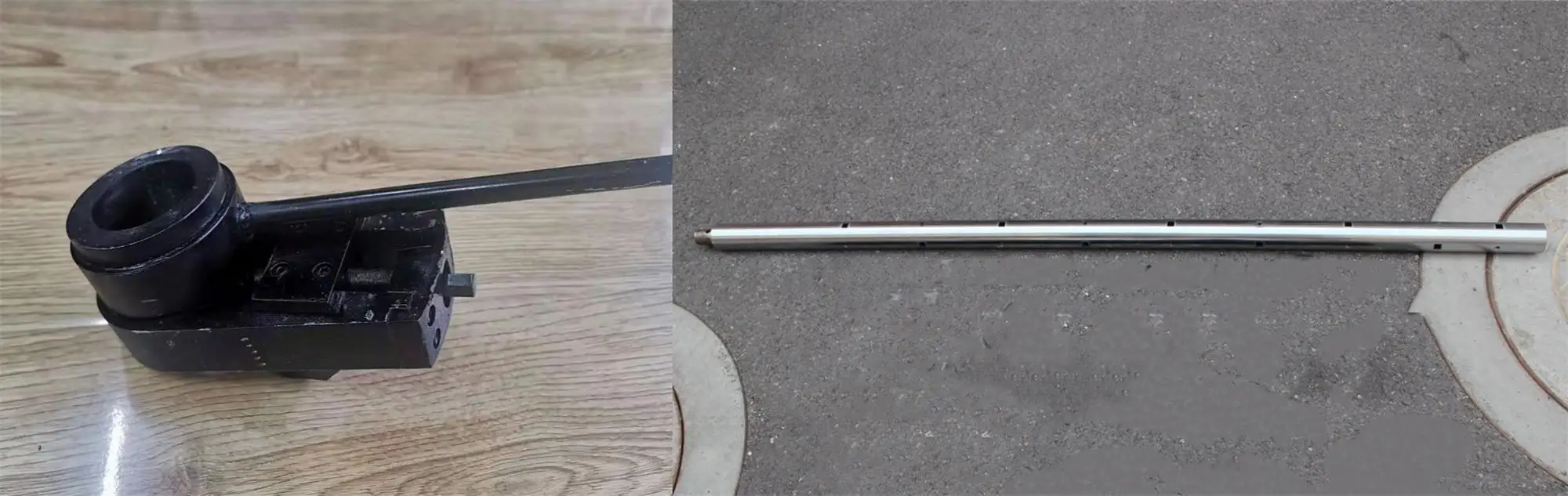

FACER&BORING BAR
The use of high-quality steel has the functions of smooth rotation, good processing and clean surface, and automatic feed. It is recommended that customers choose facer when purchasing boring machines.
The boring bar is made of high hardness material with smooth surface, even texture and very straight. The length and diameter of the boring bar can be customized according to the processing requirements, 40/50/60*1500-5000mm. In addition, can also be customized universal joint boring bar.
