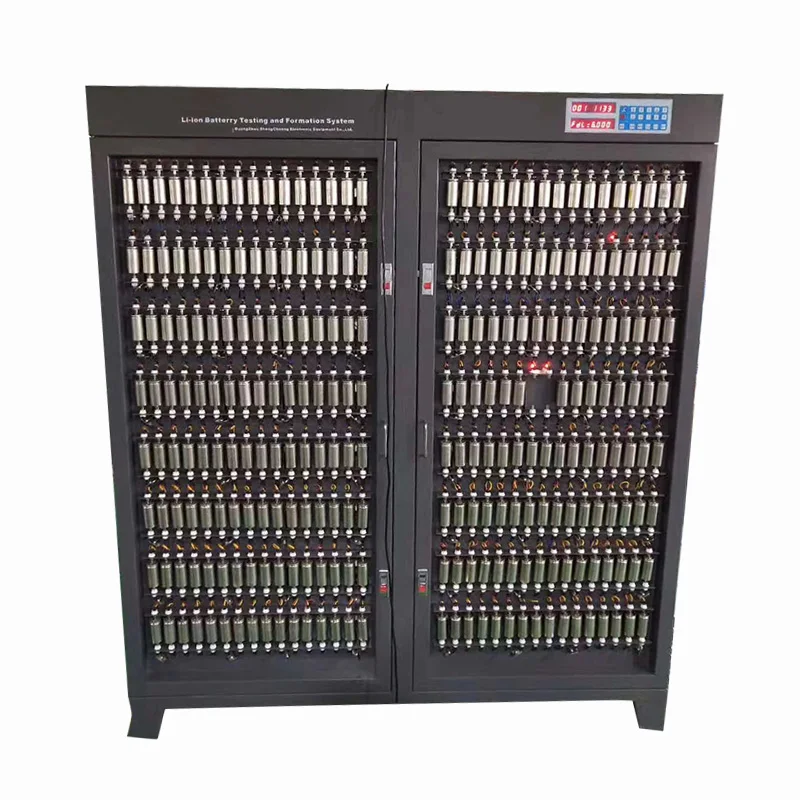

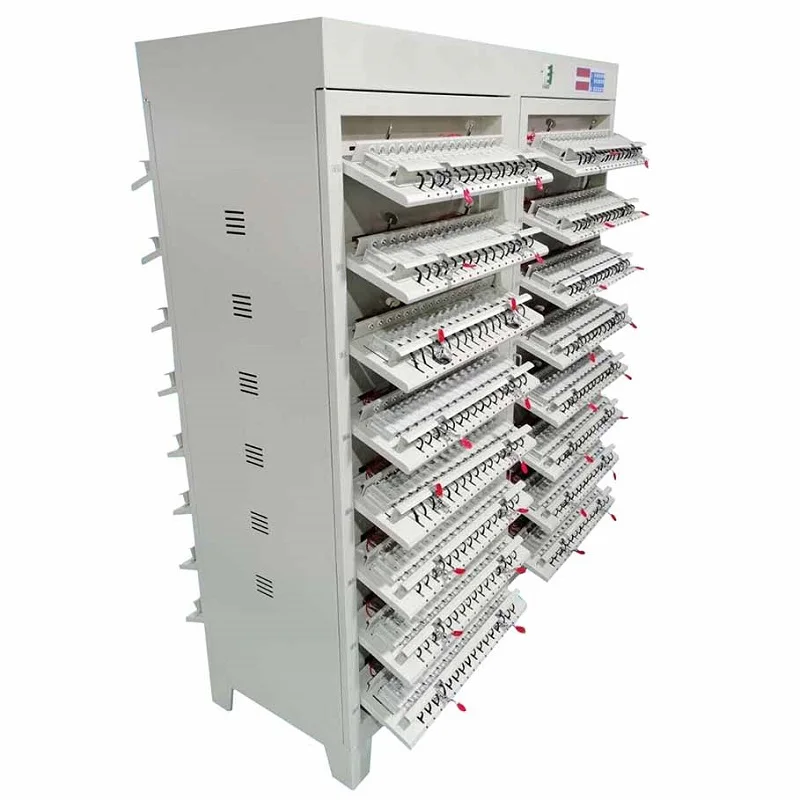

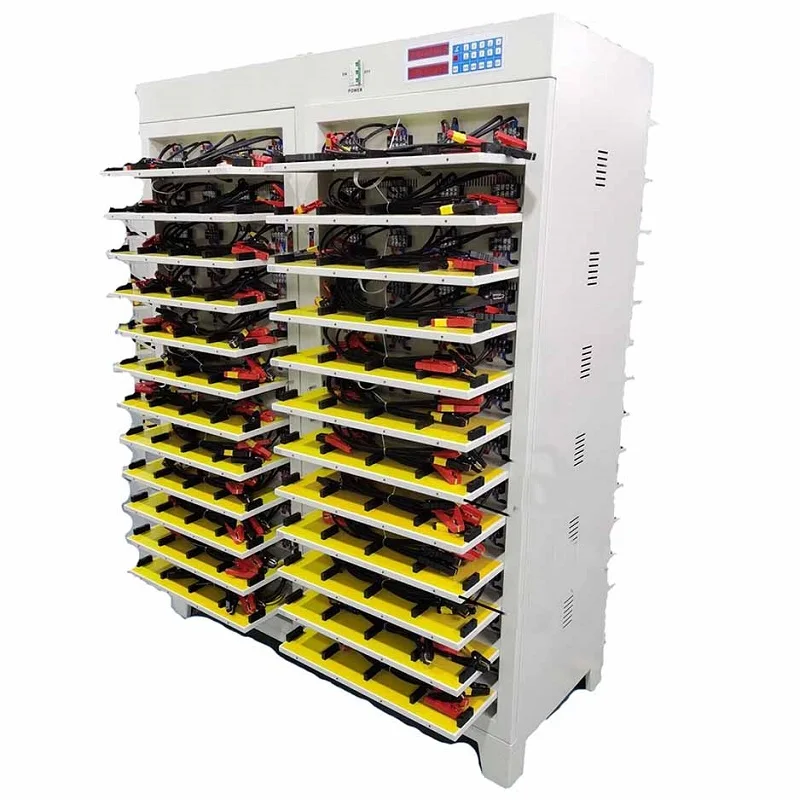

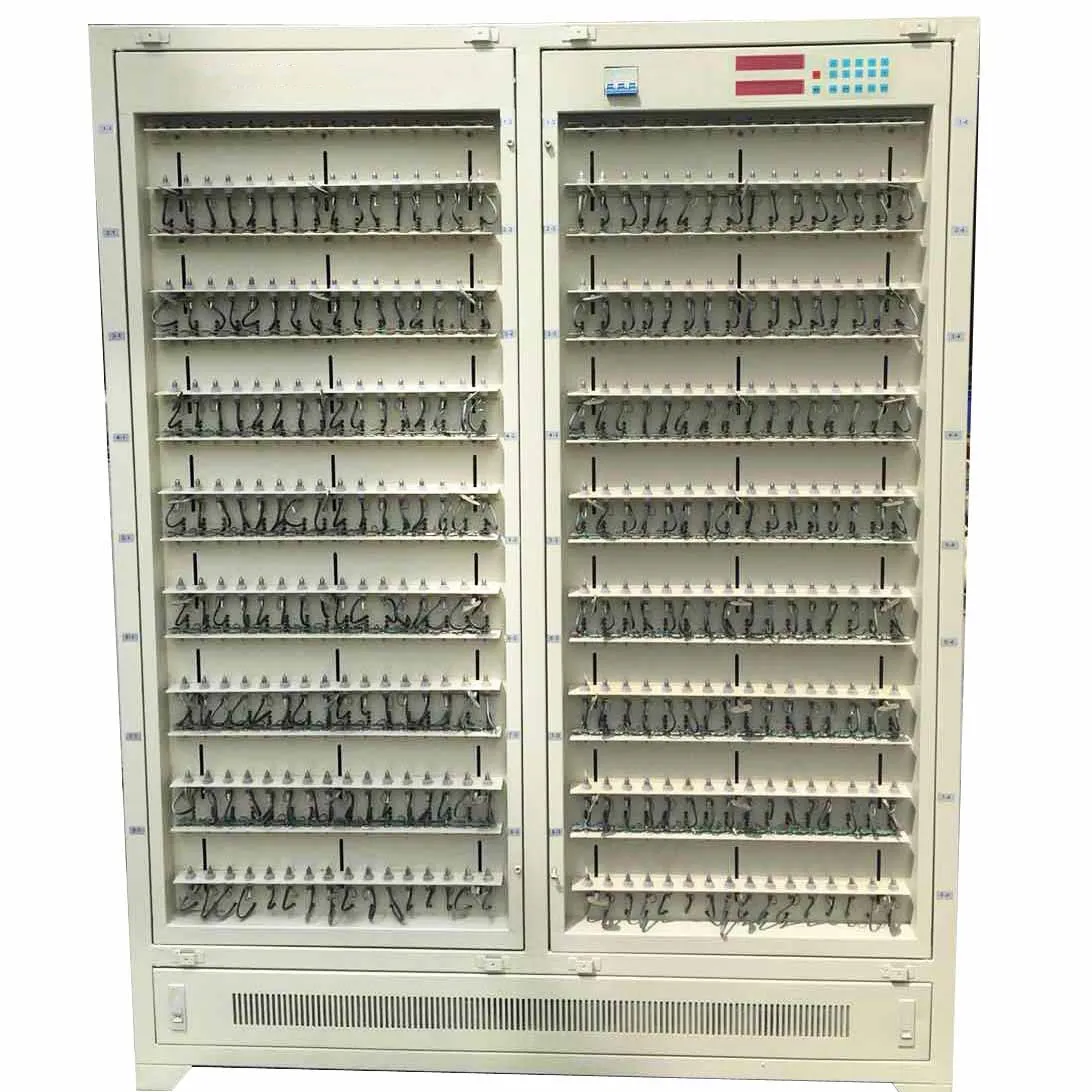

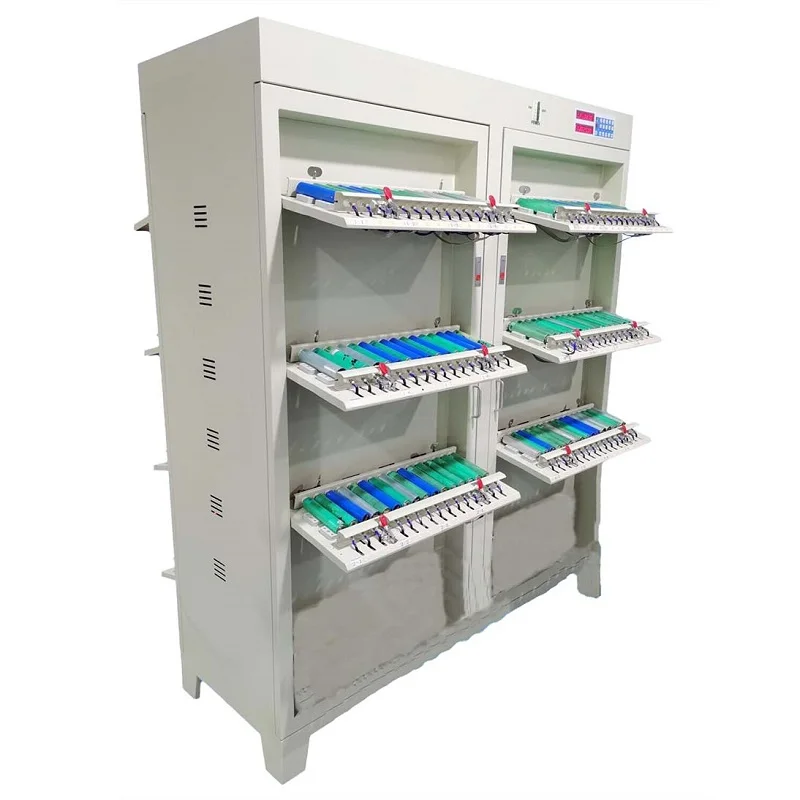

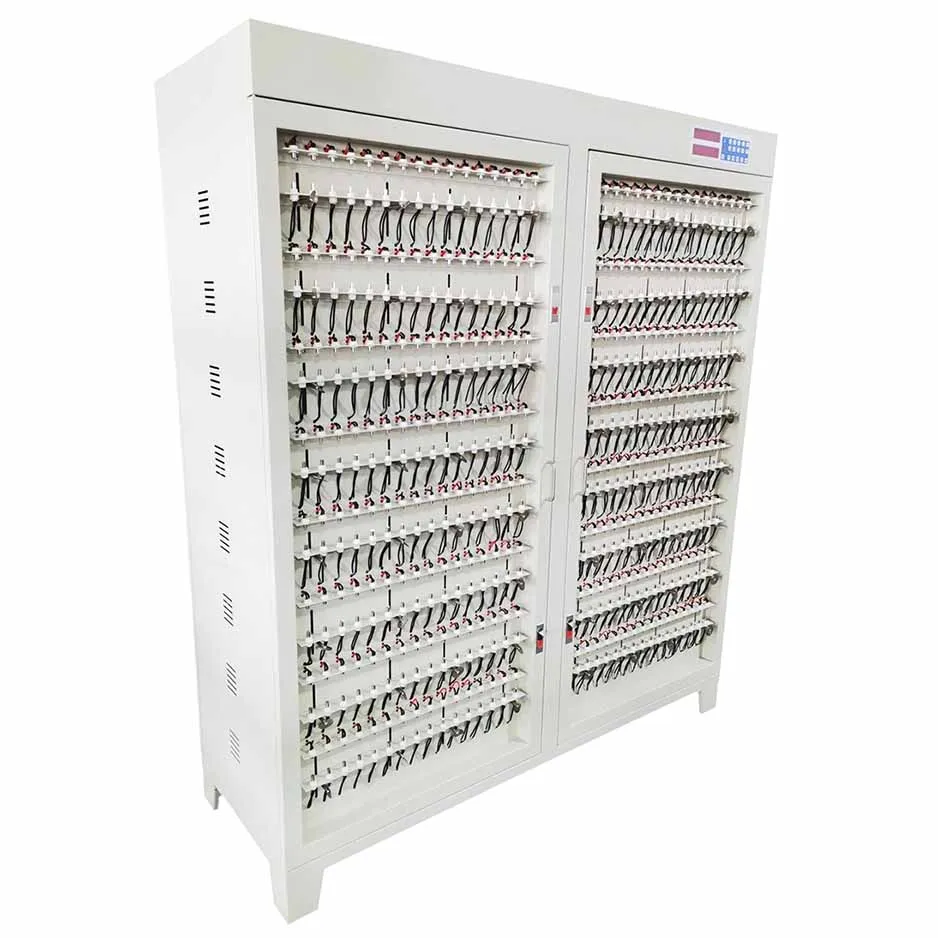

TMAX brand 512 Channels 5V 2A/3A/5A/6A Battery Testing Equipment Battery Tester for Li ion Cells

Number of Device Channels

The whole machine has 512 channels in total

Workflow Control Mode

Whole cabinet control

Charging Mode

Constant current and constant voltage

Charging Cut-off Conditions

Voltage, current, time, capacity

Discharge Mode

Constant current

Discharge Cut-off Conditions

Voltage, time and capacity

Sampling Inspection Cycle

≤10s

Voltage Measurement Range

0 ~ 5V,

Resolution 1mV

Battery Voltage Range

Charging: 0 ~ 4.5V,

Discharging: 4.5 ~ 2V

Constant Voltage Range

3~4.5V

Voltage Accuracy

±(0.05%RD+0.1%FS)

Current Range

Charge 0.025-6A,

Discharge 0.025-6A,

Resolution 1mA

Current Accuracy

±(0.1%RD+0.1%FS)

Time Frame

Any setting within 0 ~ 30000 minutes, time unit is min

Time Accuracy

≤±0.1%

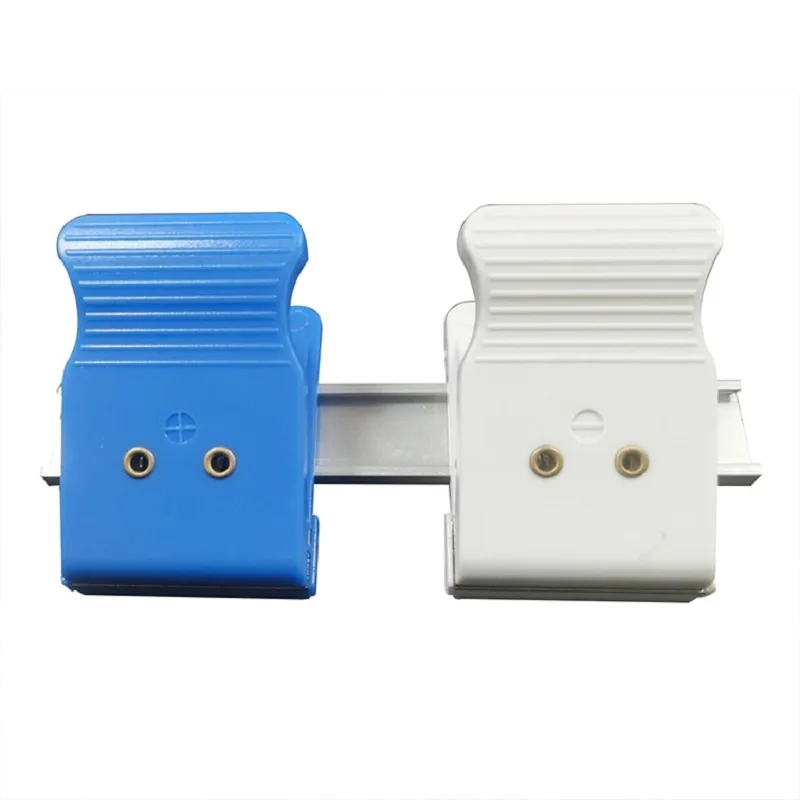

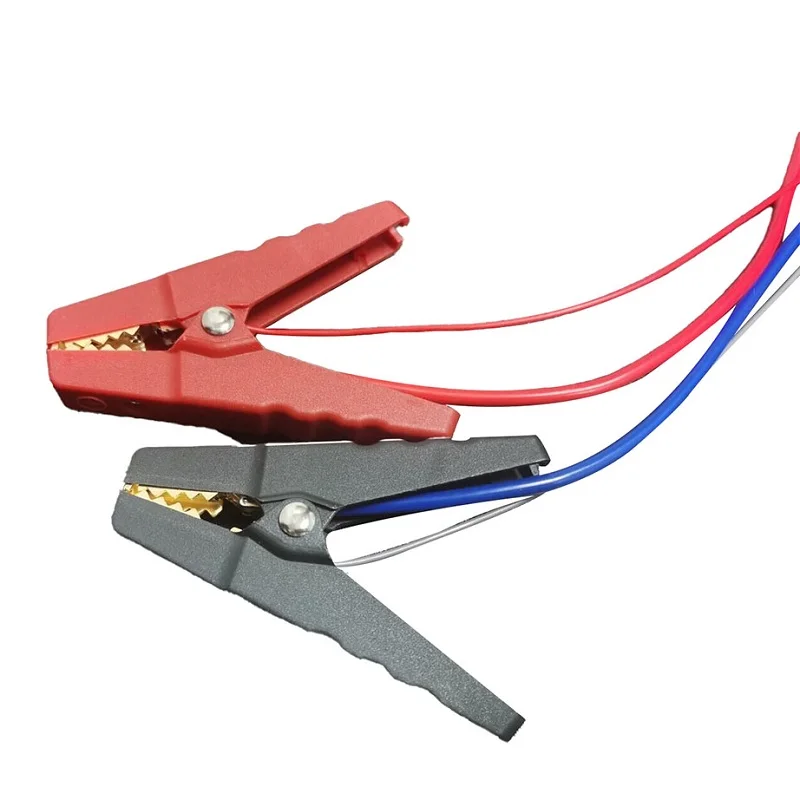

Fixture Type

Cylindrical four wire fixture

Fixture Spacing

35mm

Support Battery Height

0~90mm

Working Power Supply

Three phase four wire system, AC380V ± 5%, 50Hz, power consumption ≤ 28KW

Communication Mode

RS485,baud rate 57600

Overall Dimension

1440mm(Width)*500mm(Deep)*1840mm(High)

Work Environment

Temperature: 0-40 ℃, relative temperature ≤ 85%

Full Load Operating Current

he maximum phase line is 30A, and the maximum zero line is 3A

Equipment Starting Current

The closing moment of air switch is about 60A

Machine weight

About 250 kg
