Hot Sales Wood Jointer and Planer with Size 16 inch
- Category: >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (62356963208):
Product Overview
Description
Product Description
Jointer with spiral cutter head 12"/16"
Max. working width 300mm/400mm
Main technical data | MBZ503L | MBZ504L |
Max. working width | 300mm | 400mm |
Max. working depth | 5mm | 5mm |
Cutter& head cutting diameter | Φ100 | Φ100 |
Spindle speed | 5500r/min | 5500r/min |
Motor power | 2.2kw | 3kw |
Workbench dimension | 330*1850mm | 430*1850 |
Machine weight | 380kg | 480kg |
Detailed Images
MAIN FEATURES
• Precision-ground cast-iron tables
• Parallelogram table adjustment
• Shielded ball-bearing cutterhead with grease fittings
• Heavy-duty cast-iron cabinet stand with noise-dampening system
• Precision handwheel-controlled table elevation
• Stress-relieved infeed and outfeed tables
• Pedestal-mounted ON/OFF switch
• Spiral cutter head with TIGRA carbide tips made in Germany
• Precision-ground cast-iron tables
• Parallelogram table adjustment
• Shielded ball-bearing cutterhead with grease fittings
• Heavy-duty cast-iron cabinet stand with noise-dampening system
• Precision handwheel-controlled table elevation
• Stress-relieved infeed and outfeed tables
• Pedestal-mounted ON/OFF switch
• Spiral cutter head with TIGRA carbide tips made in Germany

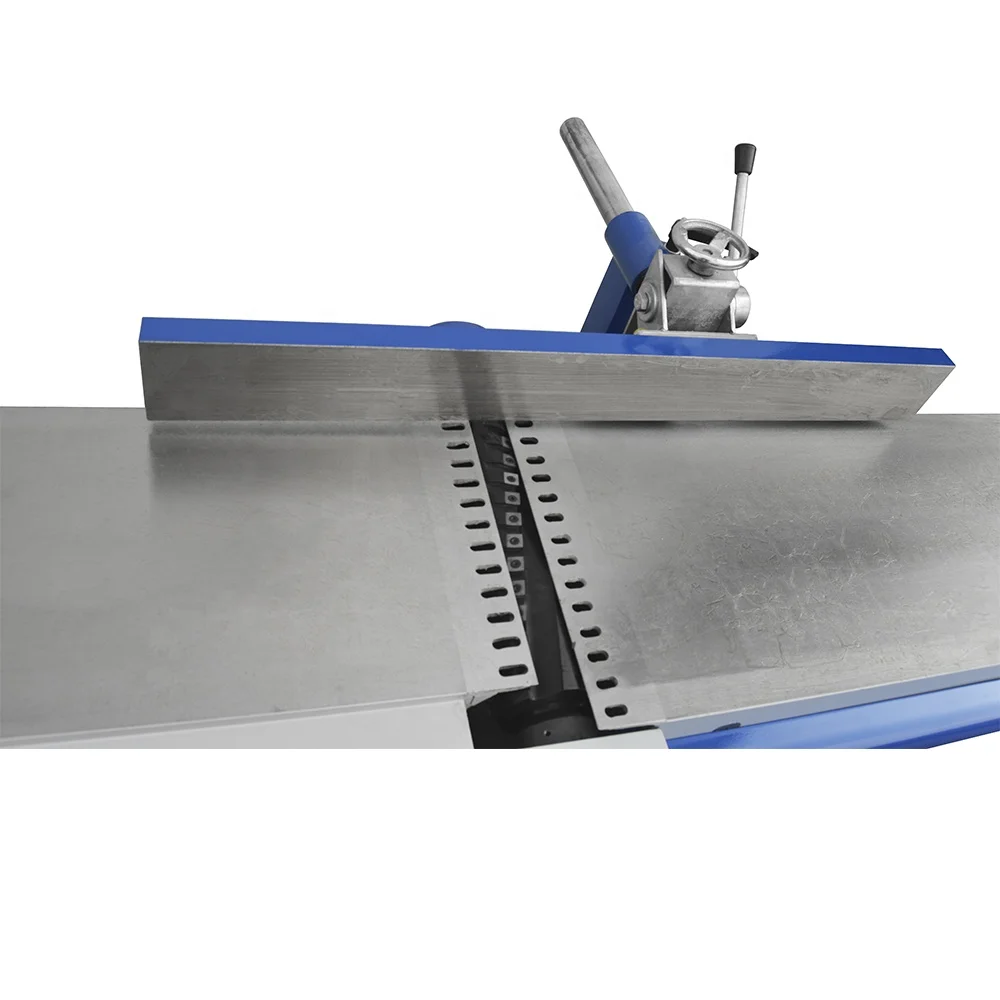

Working table
• Precision-ground cast-iron tables
• Heavy-duty cast-iron cabinet stand with noise-dampening system
• Parallelogram table adjustment
Easy operate
• Precision handwheel-controlled table elevation
• Shielded ball-bearing cutterhead with grease fittings

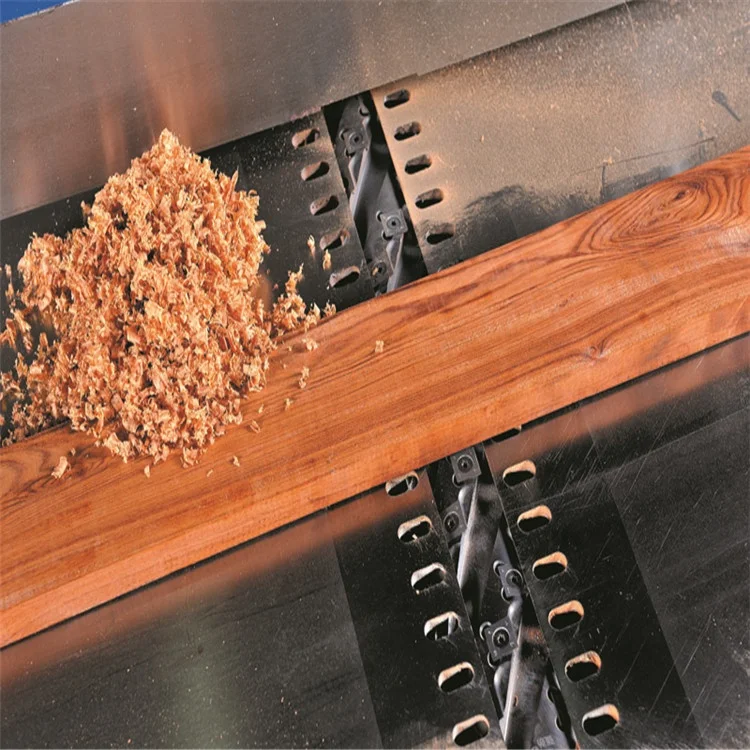

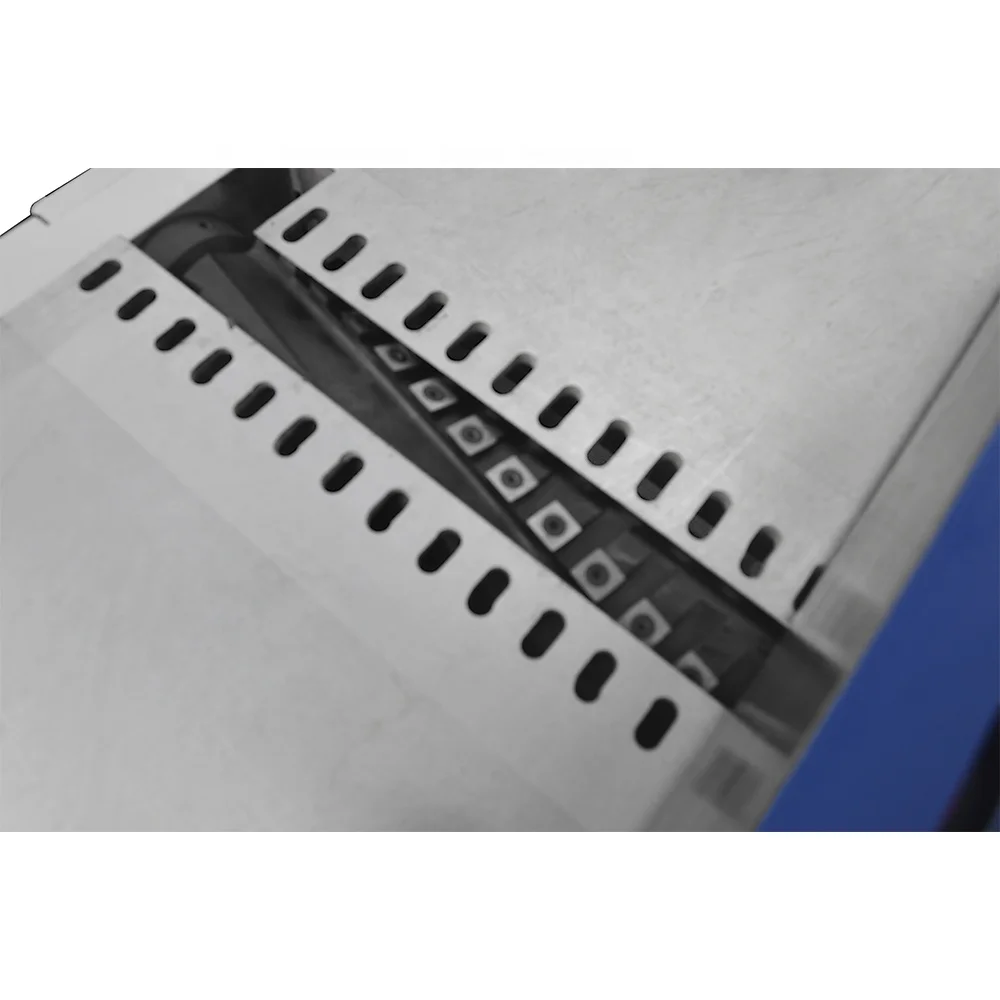

With Spiral cutter head
With Spiral cutter head
Related Products
Packing&Shipping
After Sales Service
WARRANTY
ONE YEAR WARRANTY EXCEPT WEARING PEARTS
We have a team for after service
If you have any questions,our after service would solve it
Our machines quality is high and stable
