NR200,8mm Aperture Portable Colorimeter
- Category: >>>
- Supplier: Xiamen Wellzion Electronics Technology Co. Ltd.
Share on (62357074026):
Product Overview
Description

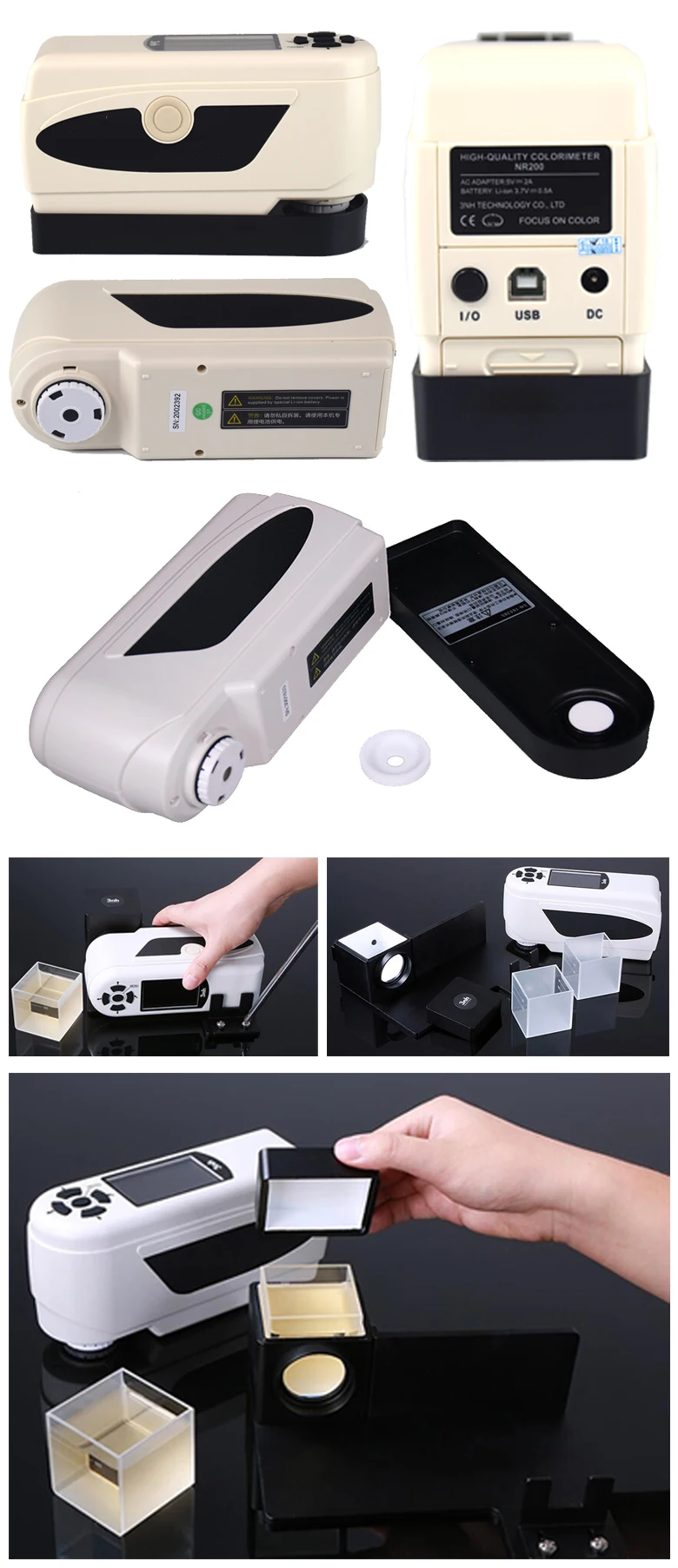

NR200,8mm Aperture Portable Colorimeter
Function & Benefits
- One-touch access to measurement interface
- Stable Measurement Performance with 0.08 repeatability delta E
- Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
- Advanced Power Management Design
Specifications
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm |
| Detector | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* |
| Color Difference Formula | delta E*ab delta L*a*b delta E*C*h |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.50 delta E*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 3 years, more than 1 million measurements |
| Charging Time | 2 hours (First time 8 hours--100% electricity) |
| Measurement Times Before Recharging | More than 3000 times |
| Operating Temperature/Humidity Range | -10~40°C, relative humidity 0~85% with no condensation |
| Data Interface | USB |
| Optional Accessory | Miniature thermal printer, Powder Test Box |
| Dimension | 205mm*70mm*100mm |
| Weight | 500g |
