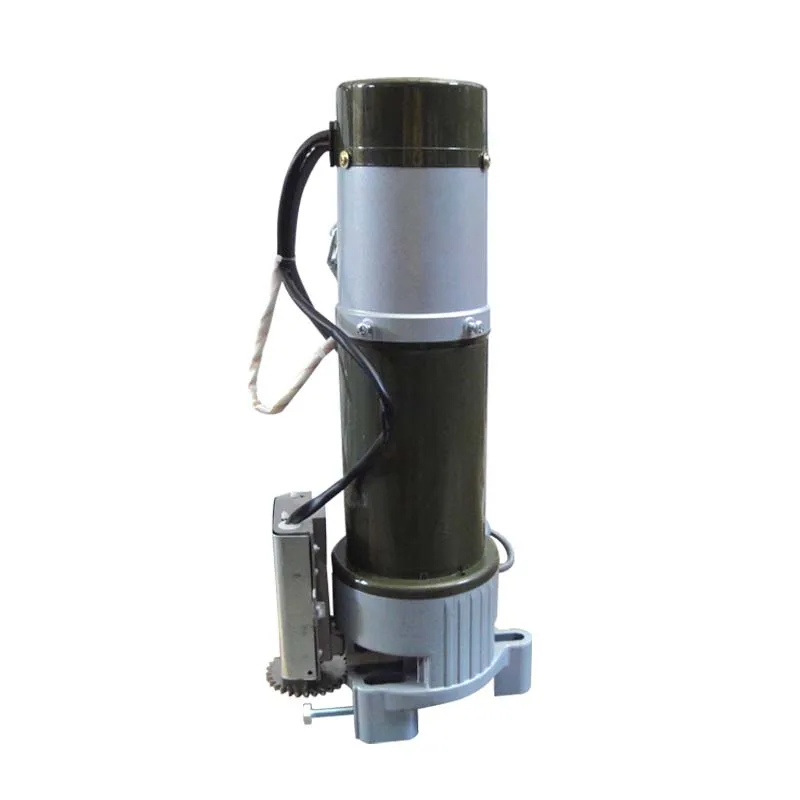

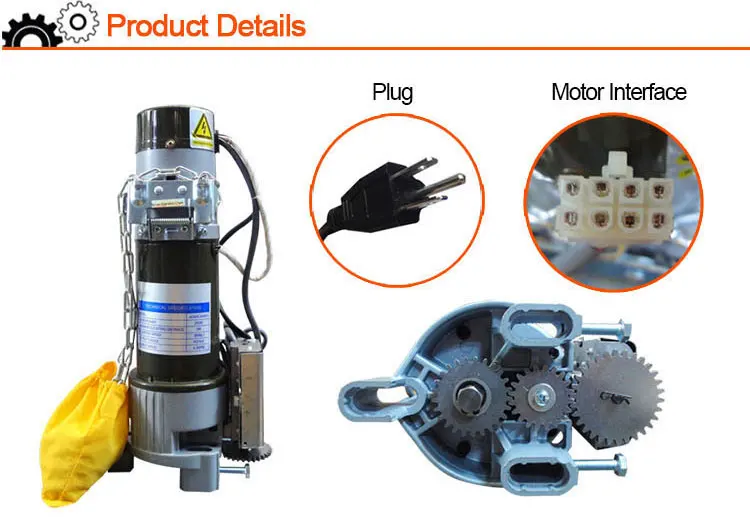

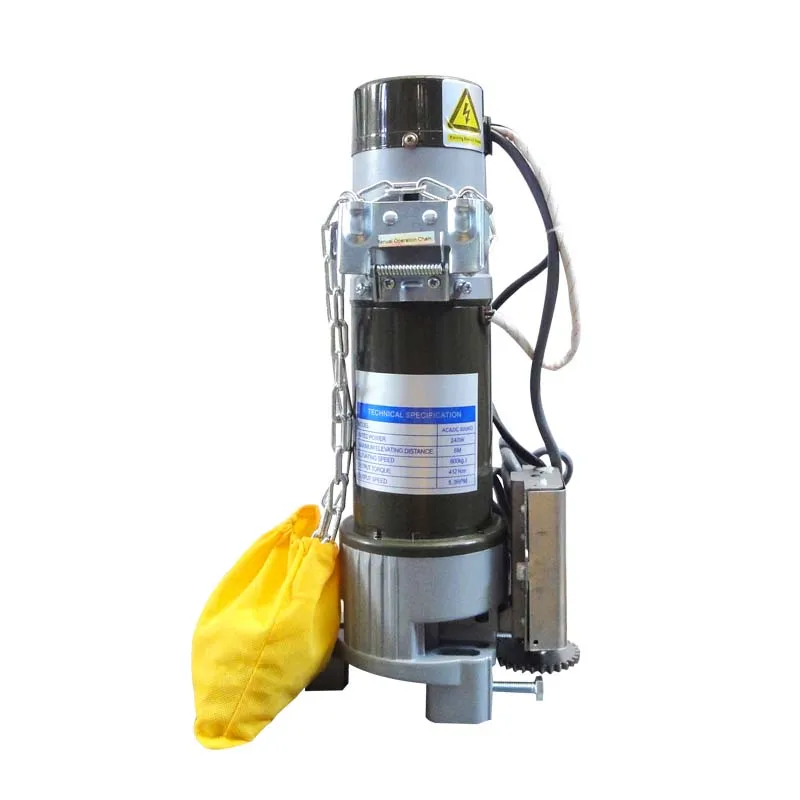

Mechanical Limit Automatic Sliding Garage Gate Rolling Door Shutter Motor for rolling door Remote Opener
- Category: >>>
- Supplier: Fujian Anlin Intelligent Science And Technology Co. Ltd.
Share on (62357076592):
Product Overview
Description
Product Description
Specification
Technical Specifications | ||||||||||||||||||
Model | Rated Voltage | Rated Frequency | Rated Power (W) | Rated Current (A) | Lifting Force (kg.f) | Output Torque (N.m) | Rated Output Speed (r/min) | Max Lifting Height (m) | Continued Working Time (min) | |||||||||
QL-200-1P(200kg) | 220V/110V | 50Hz | 180 | 2.8 | 200 | 84 | 5 | 4 | 7 | |||||||||
QL-300-1P(300kg) | 220V /110V | 50Hz | 250 | 1.9 | 300 | 168 | 5.4 | 6 | 7 | |||||||||
QL-400-1P(400kg) | 220V /110V | 50Hz | 300 | 3.2 | 400 | 225 | 5.4 | 6 | 7 | |||||||||
QL-500-1P(500kg) | 220V /110V | 50Hz | 370 | 3.3 | 500 | 343 | 5.7 | 6 | 7 | |||||||||
QL-600-1P(600kg) | 220V /110V | 50Hz | 370 | 3.3 | 600 | 412 | 5.3 | 6 | 7 | |||||||||
QL-700-1P(700kg) | 220V/110V | 50Hz | 370 | 3.9 | 700 | 509 | 5.3 | 6 | 7 | |||||||||
QL-800-1P(800kg) | 220V /110V | 50Hz | 400 | 4.5 | 800 | 647 | 4.6 | 9 | 7 | |||||||||
Fujian Anlin inteligent science andtechnology Co, Ltd,is a Fujian
province National High TechnologyEnterprises which is engaging
in researching, manufacturing.
province National High TechnologyEnterprises which is engaging
in researching, manufacturing.
Established in 1992, after 28 years, has more than 100 patents, including .more than 30 invention patents, the annual sales performance of nearly .200 million, with 310 employees, the factory covers an area of 50 acres.with the whole automation production line equipment, the company is the main editor unit of the rolling door motor standard .
Anlin rolling door motor
Fujian Anlin intelligent science andtechnology Co , Ltd ( Zhangzhou Kylin electronics co , td ) is a Fujian province National High TechnologyEnterprises which is engaging in researching , manufacturing , selling and offering service of intelligentelectric doors and windows Have import and export right .
Anlin rolling door motor
The ANLIN-Customized leading the whole industry with innovation and has developed customized motors for the UK, South Korea,Dubai, Vietnam, Malaysia and other countries .
Anlin rolling door motor
Every year we take part in many exhibition of door and window industry & R+T and Canton Fair.(Beijing)International Construction , Decoration and Materials .exhibition.Canton Window and Shading exhibition .
Anlin rolling door motor
It has the strict product inspecting system ,our company’s motor’s service life use the.standard of 10000 working times instead of the 8000 times.of the ordinary standard of the.roller door motor industry , The New Product-All aluminum shell motor, warranty for three years, the motor has the thermal protection,when the shell temperature is not higher than 78 degrees and the outdoor temperature is 28 degree,after the thermal protection works, the waiting time for the motor restart is 2-3 minutes.
An lin rolling door motor
Our products are exported to more than 60 countries, and has cooperated with more than 10 overseas Listed companies for more than five years.
