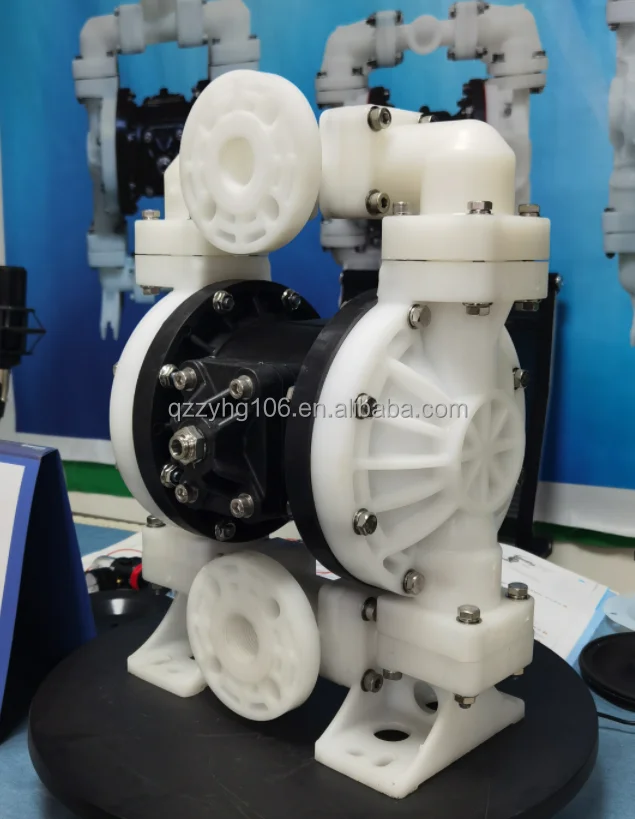

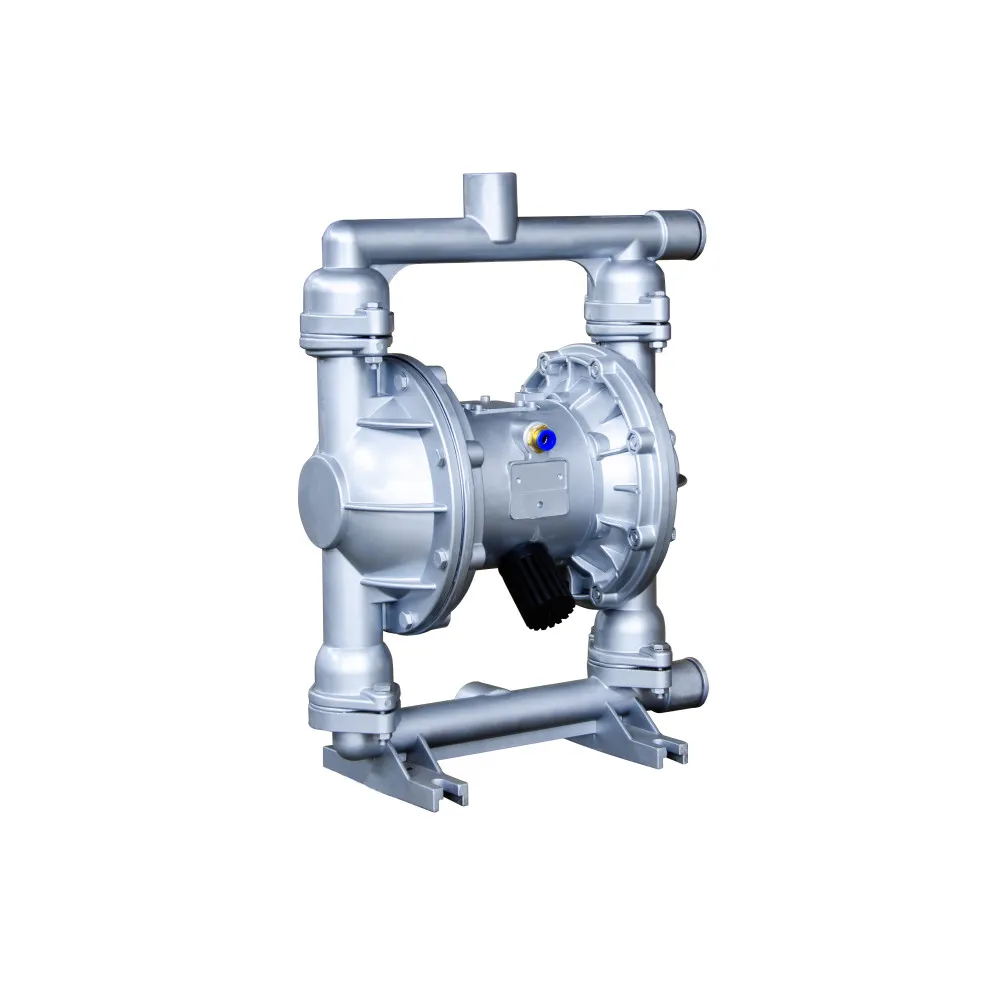

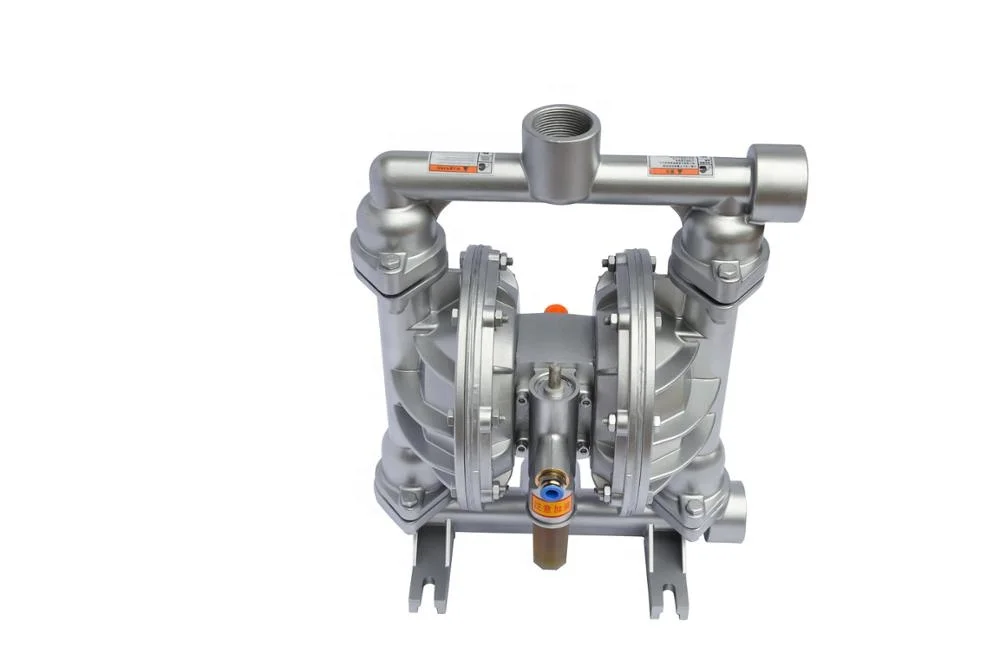

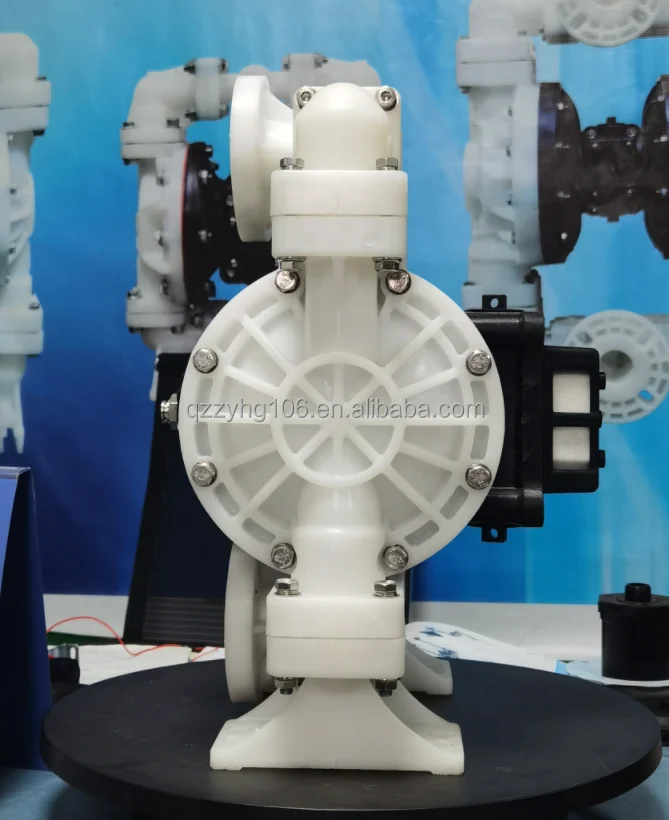

QBY 15 Plastic material Pneumatic Diaphragm Pumps Quality can be referred AODD pumps air diaphragm pump

Product Overview

Description

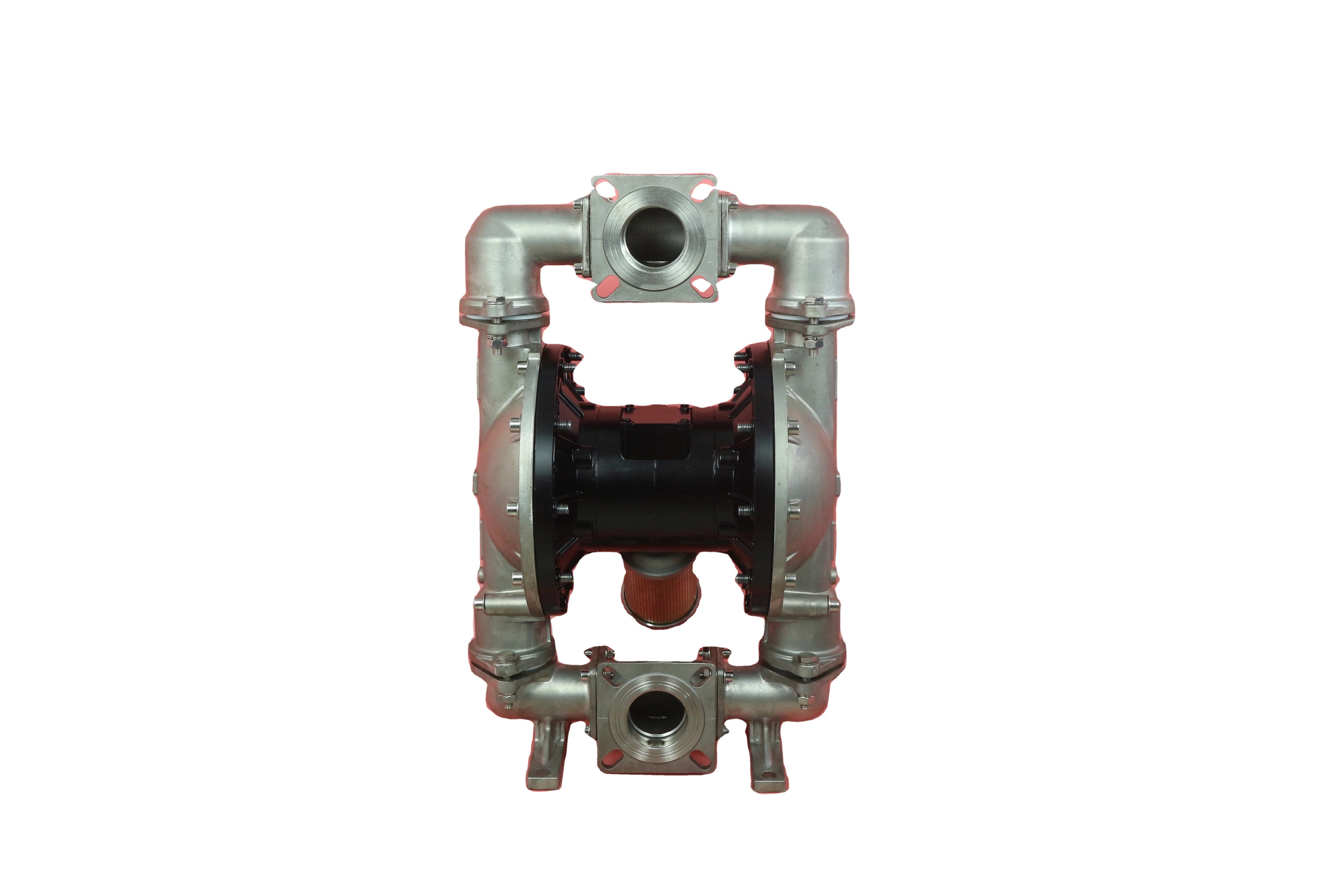

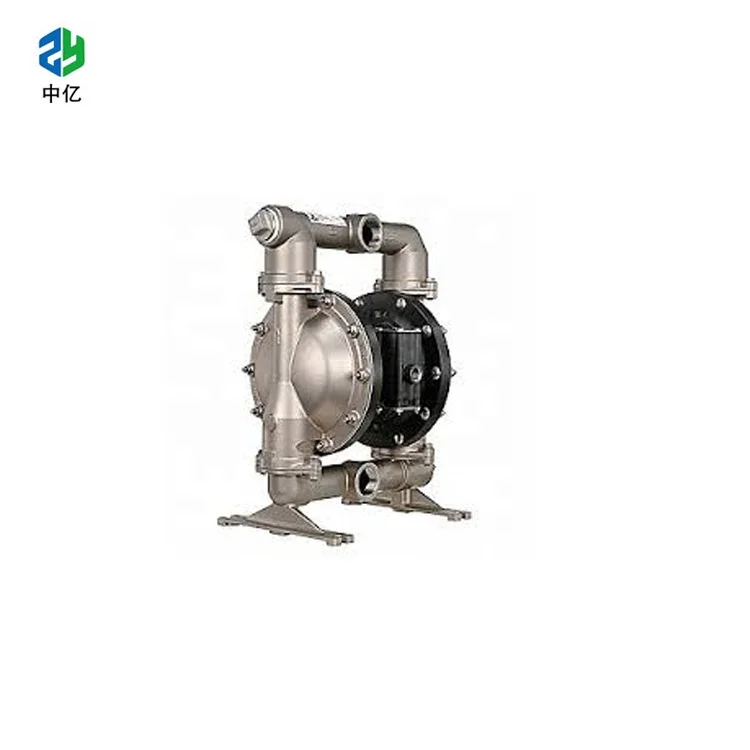

Stainless steel  Air Operated Diaphragm Pump



Mode	Max.Suction Lift (dry\\wet,m)	Max. particle diameter (mm)	Suction and discharge size (inch)	Air inlet size (inch)	Max. flow rate (L/min)	Max. air consumption (m3/min)
QBY-15/20	4 \\ 7.6	2.5	1/2  3/4	1/4	57	0.672
QBY-25	4 \\ 8	4	1	1/2	157	1.7
QBY-40	5 \\ 8	5	1½	1/2	358	3.5
QBY-50	5 \\ 8	6	2	1/2	587	4.9
QBY-80	5 \\ 8	9.4	3	3/4	1060	9.1

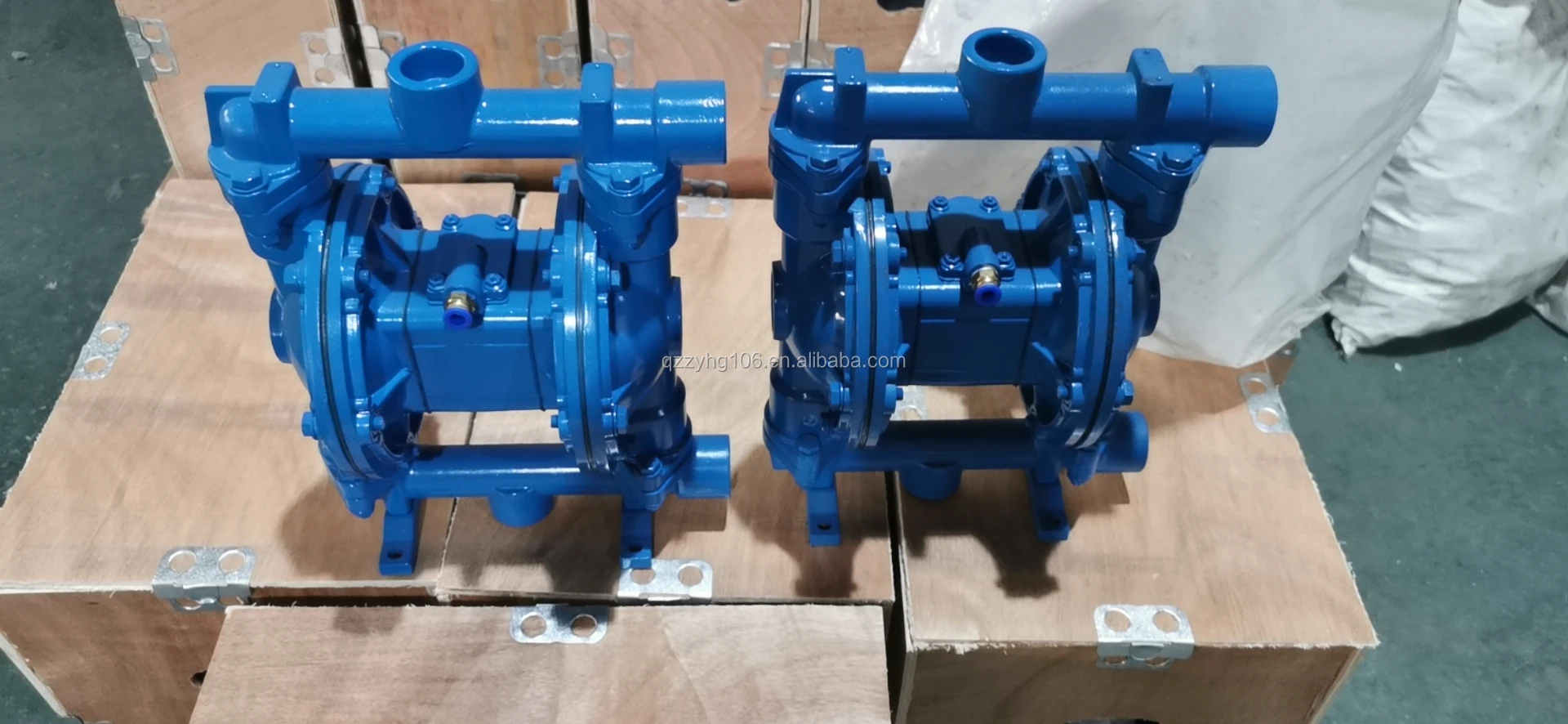

air diaphragm pump size on 25mm ,material on Aluminum sale to UZ













Pneumatic Diaphragm Pump Advantages:

1. Explosion-proof, zero leak, simple operation.

2. Idling capability,Self suction, No complex control.

3. Diversity of material,no rotating parts,applicable to various erosive situations.

4. Diaphragm, ball and ball seat adopt imported materials with longer service life.

5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.

Packing:
