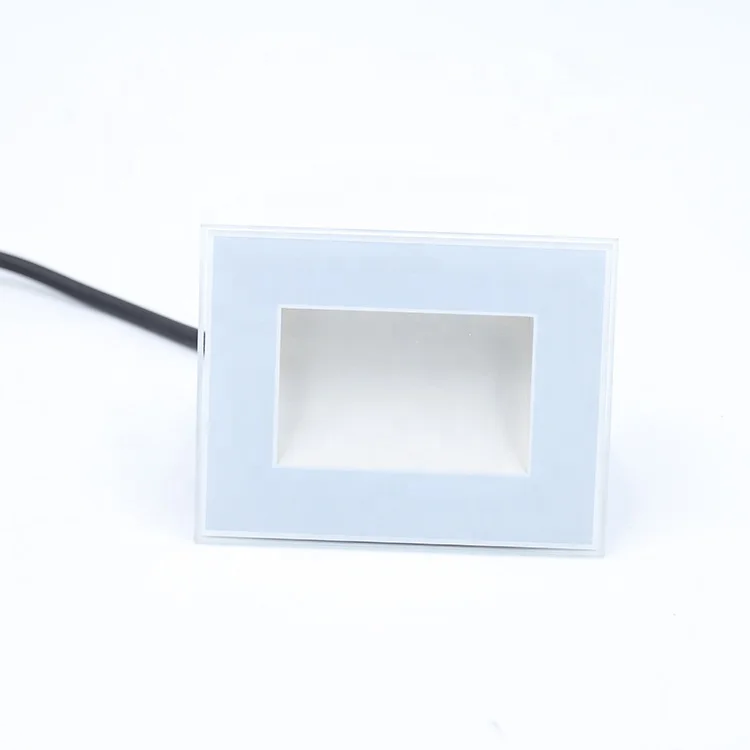

IP65 LED stair light wall step light led stair light
- Category: >>>
- Supplier: Puyuan Electronic Illumination Co. Ltd.
Share on (62357292350):
Product Overview
Description
Product Description
Product Description:
. 15 PCS 2835SMD LED with high lumen and beautiful light output.
. tempered glass with high loading capacity.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.Asymmetricdownward 45°x120° (Tilt x Pan) beam angle as options
.160-180 l m luminous flux output
.IP65 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you
Data sheet:
General Data | |
Item No. | SP-001-0300-BH |
Power | 3 Watts |
LED type | 15 PCS 2835SMD LED |
Luminous flux | 160-180 lm |
CCT | 2700K,3000K,4000K,6000K |
CRI | 80+ |
Beam angle | Asymmetric downward 45° x 120° (Tilt x Pan) |

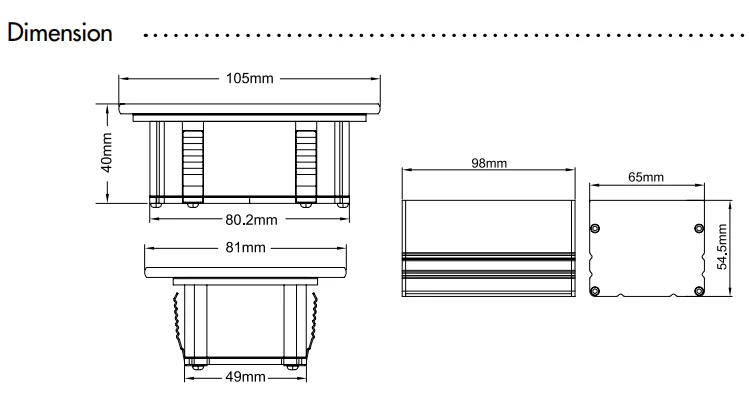

Dimension | 105x81x40 mm (Length x Wide x Height) |
Cut out | 98x65x54.5 mm |
Net weight | 0.371 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | AC 100-265V |
Insulation class | Class I |
Cable | 1 x cable 0.3 M H05RN-F 3x0.75mm square to open wires |
Driver | Built-in high voltage constant current driver with transformer |
Construction Data | |
IP rating | IP65 Waterproof |
Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
Protection finishing | 20~25μm thickness anodized film for housing .Dark grey |
Trim | Tempered glass painted in milky white |
Glass | Step tempered Glass.T=4mm. |
Loading capacity | 320 kgs |
Cable Gland | PG7 IP67 |
Gasket | Flat PMQ silicone seal |
Accessories | |
Mounting box | Aluminum |

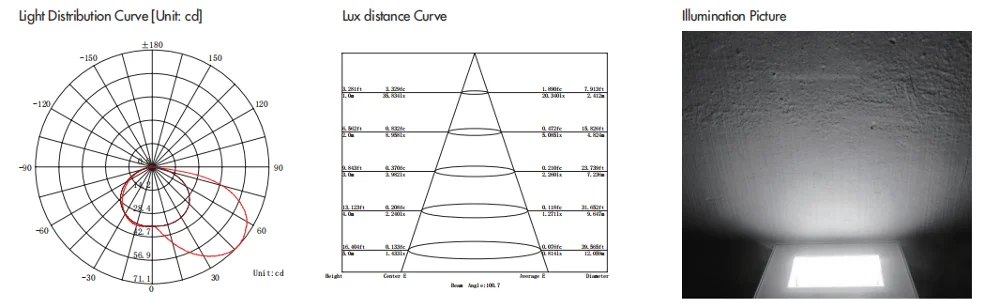

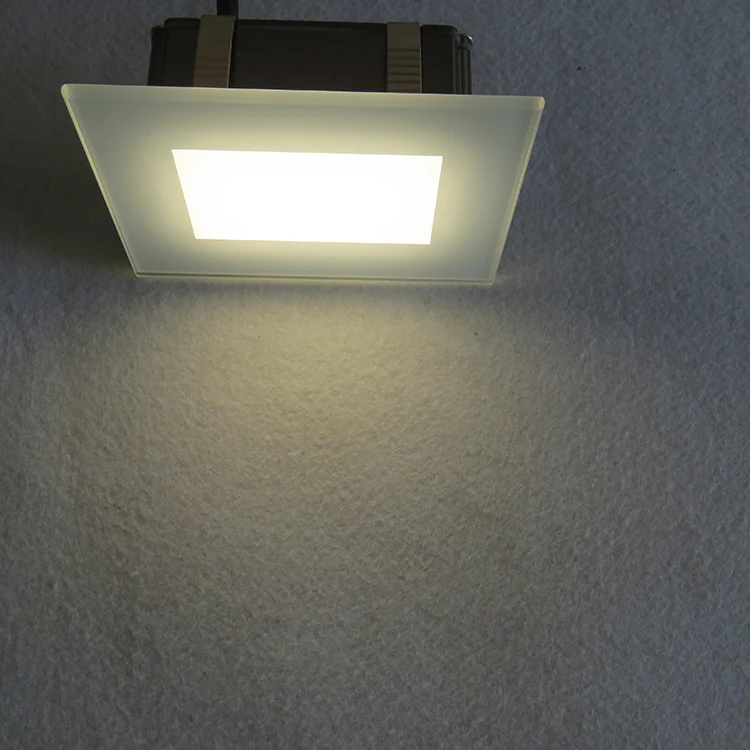

Photometric Data (3000K, 2x100°) & Illumination Picture

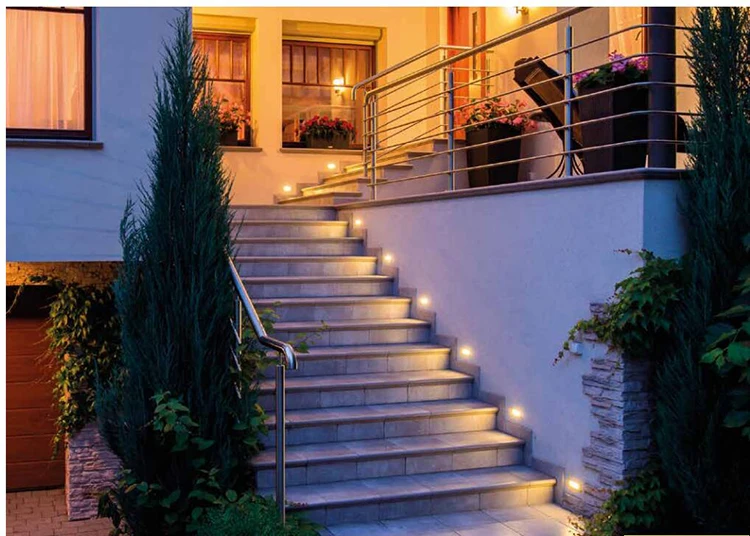

Application Pictures
Company Information
Packaging & Shipping
Our Services
1.Are you a trade company or a manufacturer?
We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.
2.What is your delivery date?
The delivery date is around 7-15 days for samples,and 15~25 days for regular orders after receipt of payment.
3.What is your payment terms?
For samples: 100% deposit.
For regular order:30% deposit in advance and 70% balance before shipment.
The payment method can be Paypal,western union bank, bank for TT .
4.What's your delivery terms ?
We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.
5.What's your warranty ?
We are confident on our quality of design,and the warranty is 3 years.
6.Can I buy the quantity below MOQ ?
Yes, please contact us for the detailed prices based on your detailed quantity requirement.
7. How many years are you producing exterior LED lighting ?
12 years since 2007.
