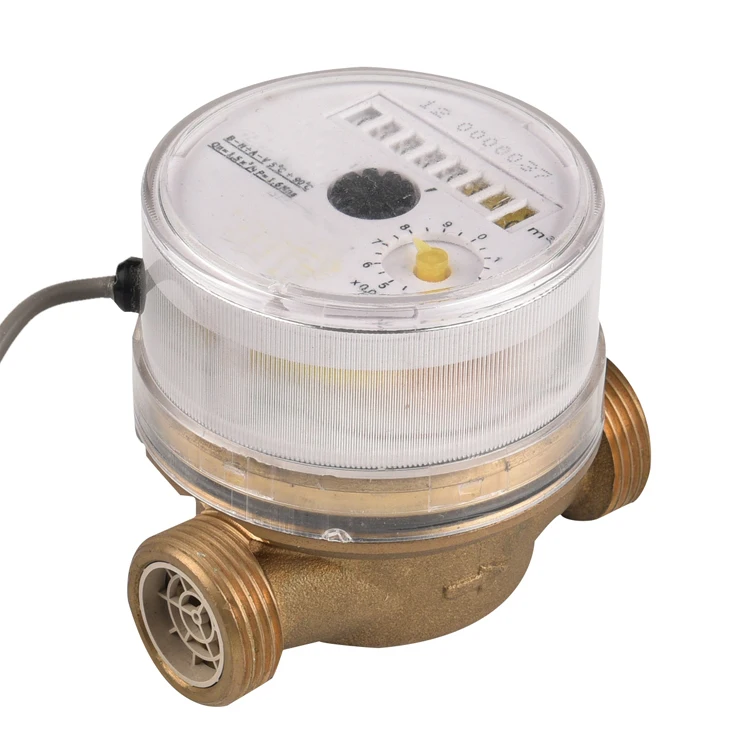

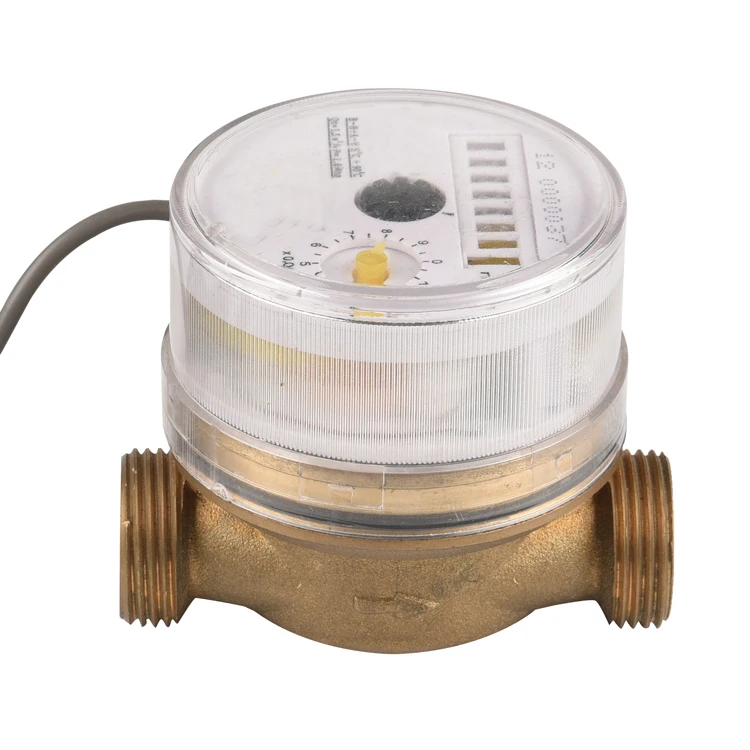

LXSC 15E Single Jet Dry Type Water Meter

Product Overview

Description

Application:

--Measuring the total volume of cold potable water passing through the pipeline.



Feature:

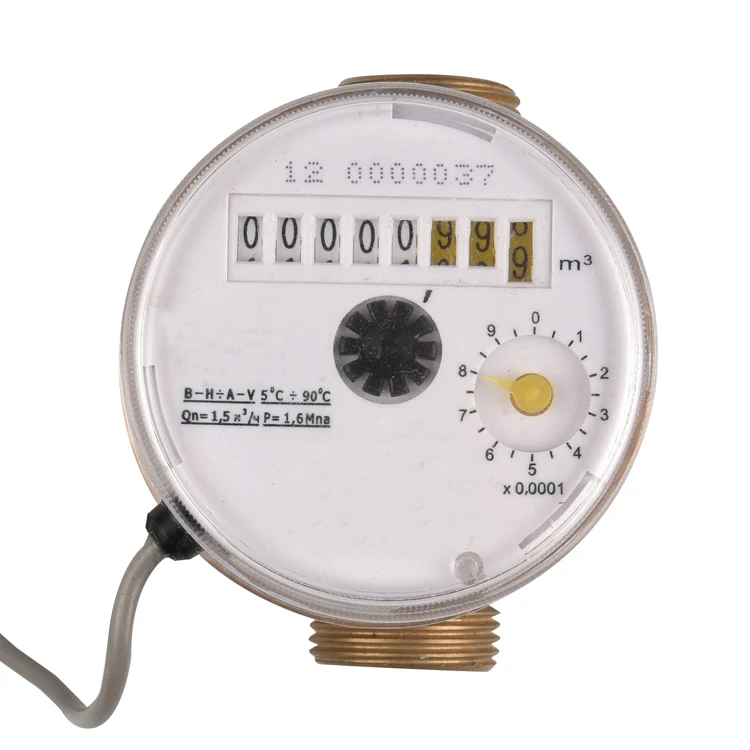

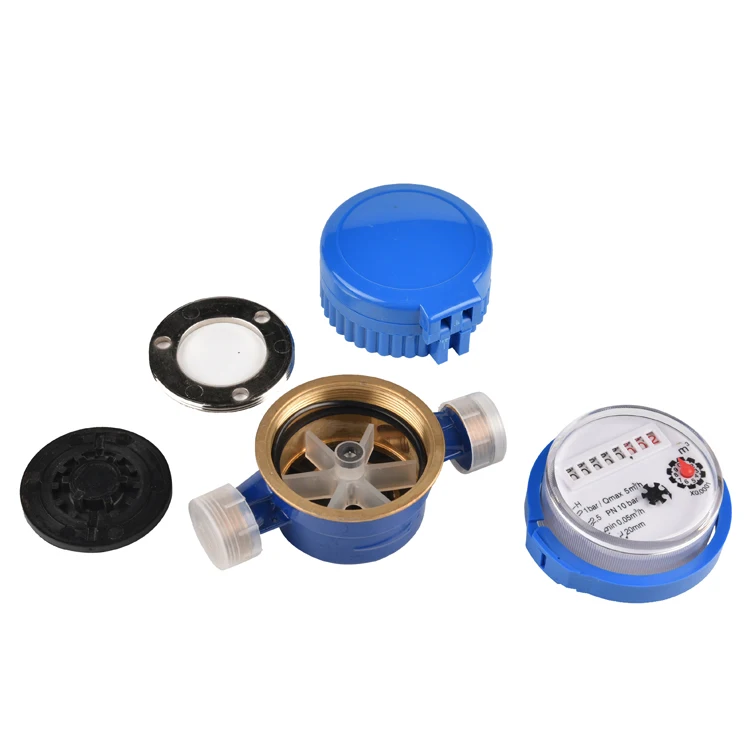

--Dry type, small, light, magnetic drive, free rotating register, easy and long term clear reading etc. Magnet resistance.
-- Technical data conform to international standard ISO4064 Class B ,R80.

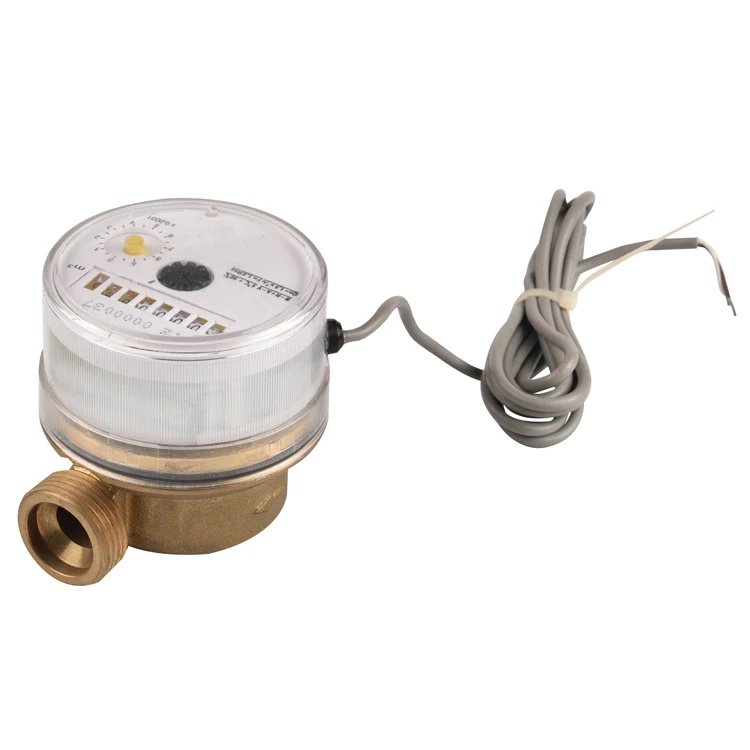

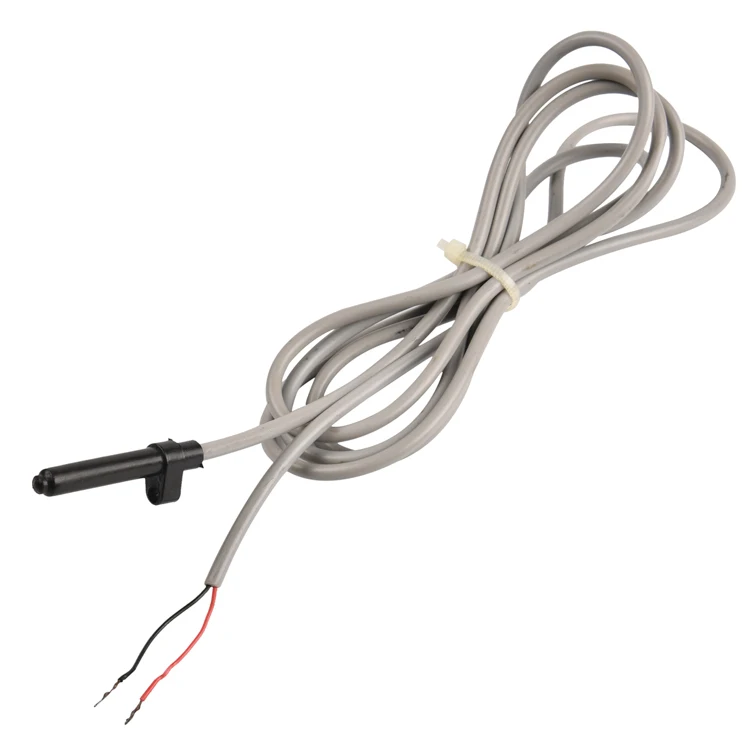

--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse.



Working condition:
Water temperature: 0.1°C~50°C for cold water meter .
                                  0.1°C~90°C for hot water meter.
Water pressure   : ≤1Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

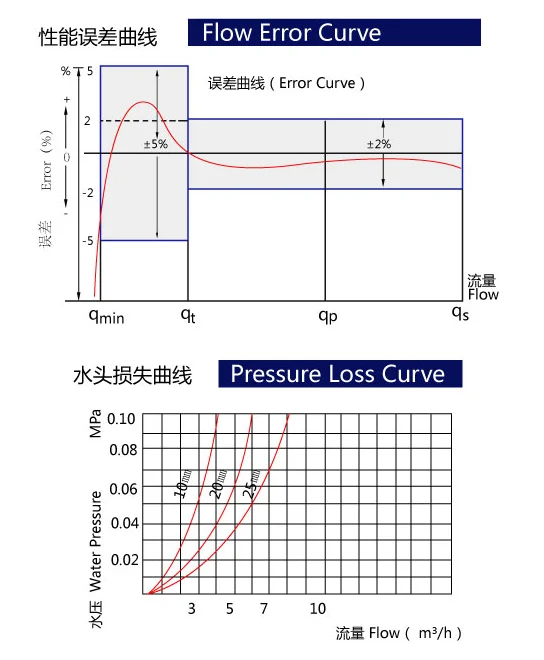

Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)



Main Technical Data:
According ISO4064(GB/T778.1-1996) standard

Type	Size   (mm)	Class	Qs Overload  Flow	Qp Permanent Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSC-15E	15	B	3	1.5	120	30	0.0001	99,999
LXSC-20E	20	B	5	2.5	200	50	0.0001	99,999
LXSC-25E	25	B	7	3.5	280	70	0.0001	99,999



According ISO4064(GB/T778.1-2007) standard

Type	Size	Q3/Q1					Minimum	Maximum
	(mm)		Q4	Q3	Q2	Q1	Reading	Reading
			Overload                Flow	Permanent          Flow	Transitional	Minimum
					Flow	Flow
			m3/h		L/h		m3
LXSC-15E	15	80	3.125	2.5	50	31.25	0.0001	99,999
LXSC-20E	20	80	5	4	80	50	0.0001	99,999
LXSC-25E	25	80	7.875	6.3	126	78.75	0.0001	99,999



Dimensions and Weight

	Meter Size	Length	Width	Height	Connecting		Weight
Type					Thread
	mm	mm			D	d	kg
LXSC-15E	15	110/80	77	85	G3/4B	R1/2	0.8
LXSC-20E	20	130	77	85	G1B	R3/4	0.9
LXSC-25E	25	160	77	92	G11/4B	R1	1.47
