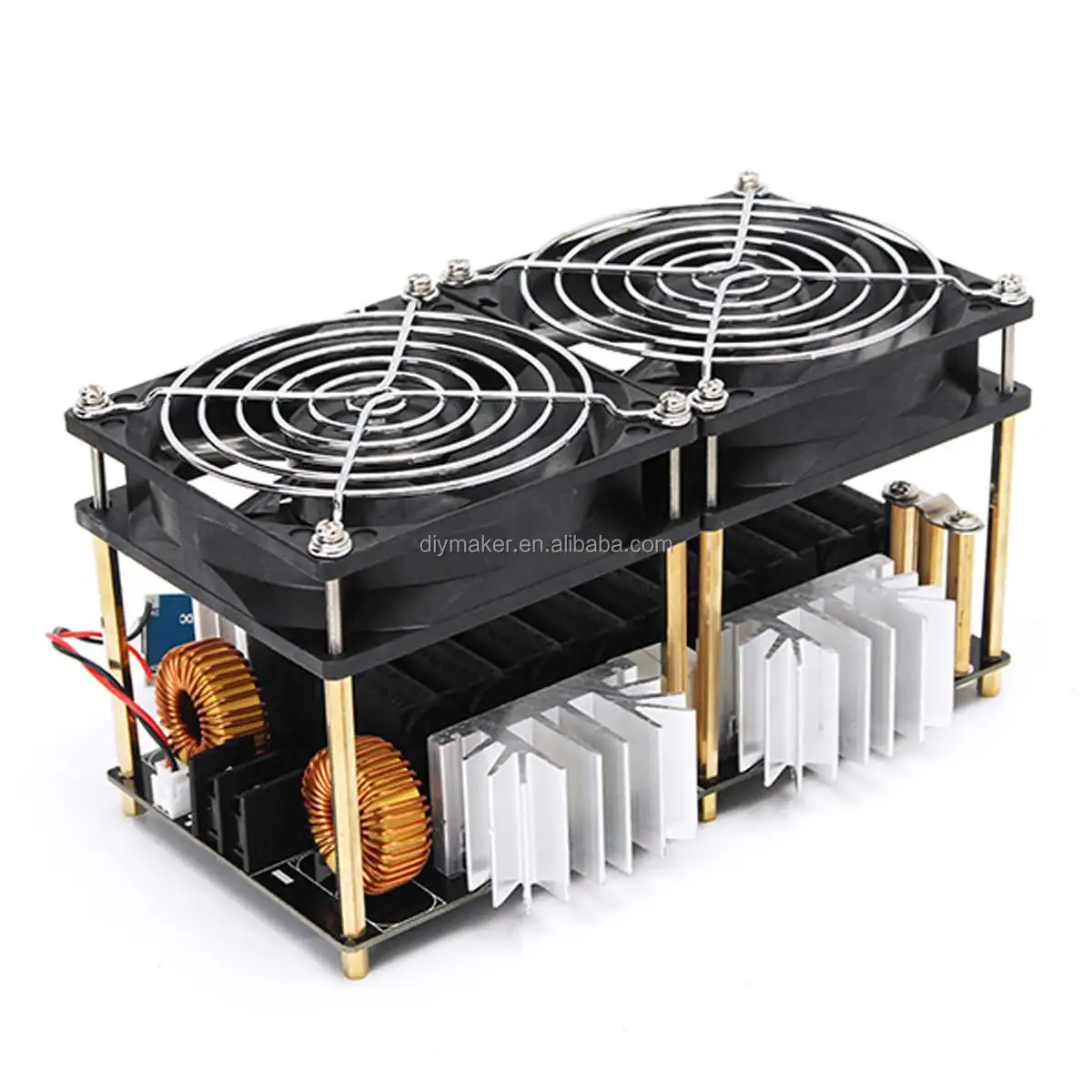

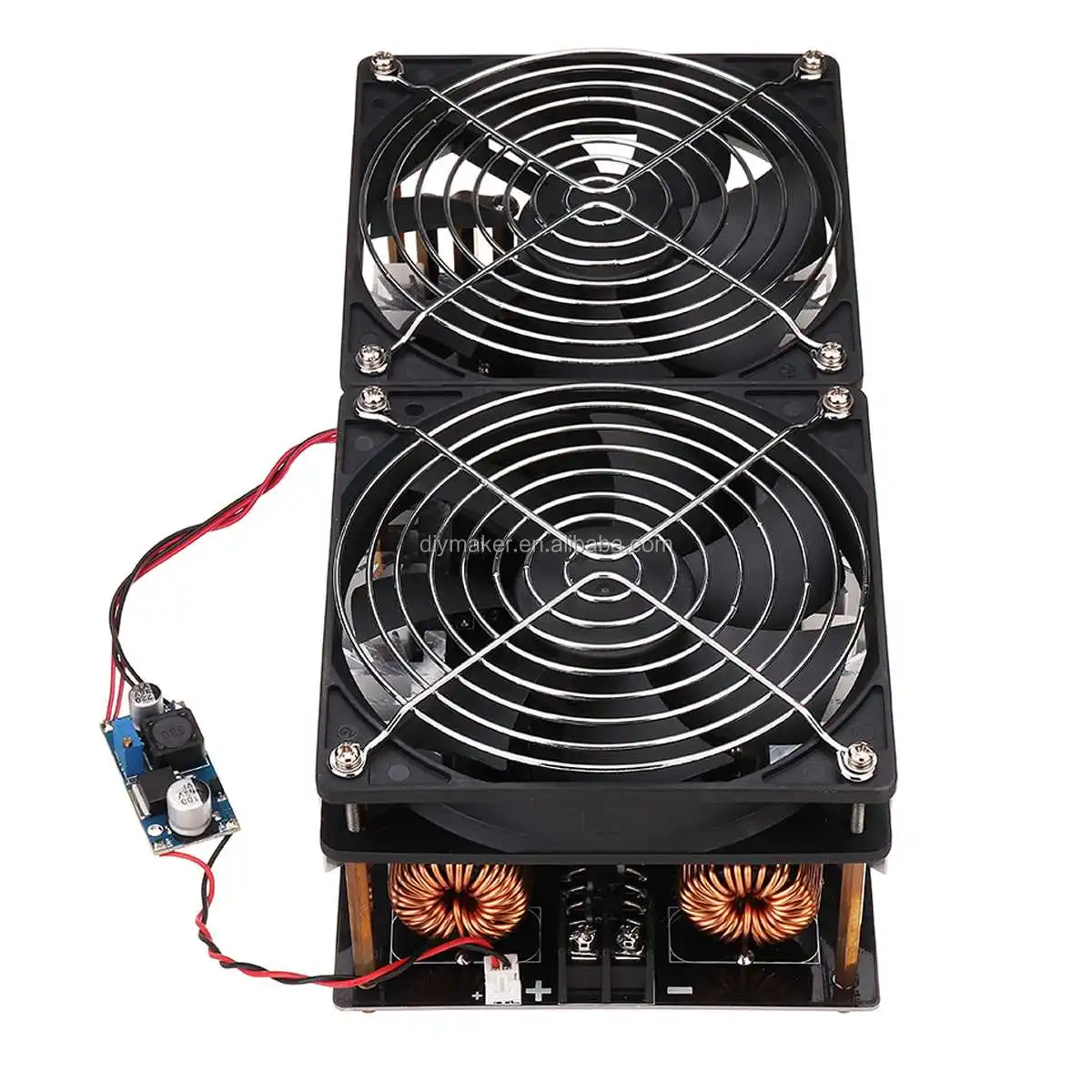

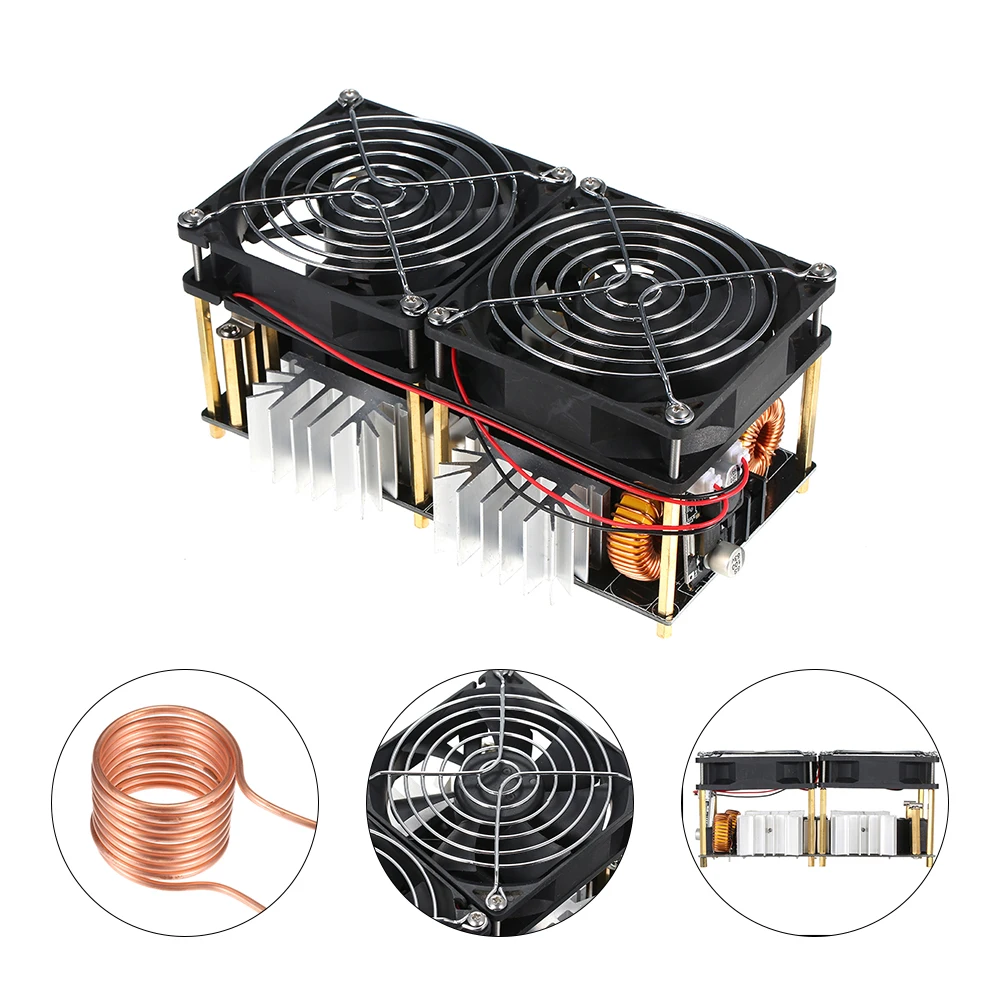

1800W 40A ZVS Induction Heating Board Module Heater DIY Flyback Driver Heater Tesla Coil Fan

Specification:

Name: ZVS Induction Heating Board Module

Product size: 180mm x 90mm x 80mm (Manual measurement, error about 3mm, please understand)

Heater ring inner: 70mm (Recommended crucible + quartz suit, maximum support of 58mm crucible)

Power supply:

New style :AC 100-220V Adapter

Old  style: Mainboard Input voltage: 12V-48V recommend: 36V above

Power requirements: less than 12V≥10A , 15V above≥15A

Maximum power: 1800W

Maximum current: 40A

Package List:
1 * PCB Board
1 * Copper Tube

NOTE:

New style and Old  style shipped  by randomly!!!

It doesn‘t affect the performance of product.!!!

1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.
