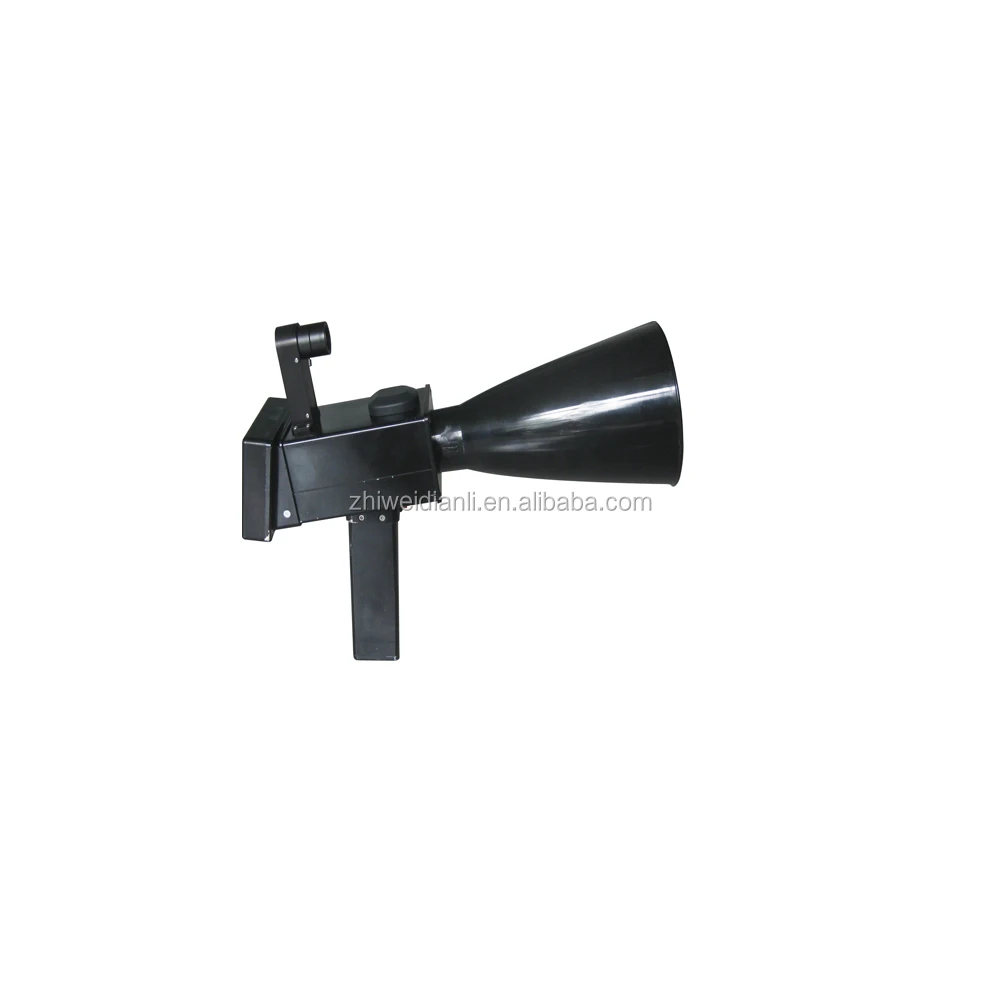

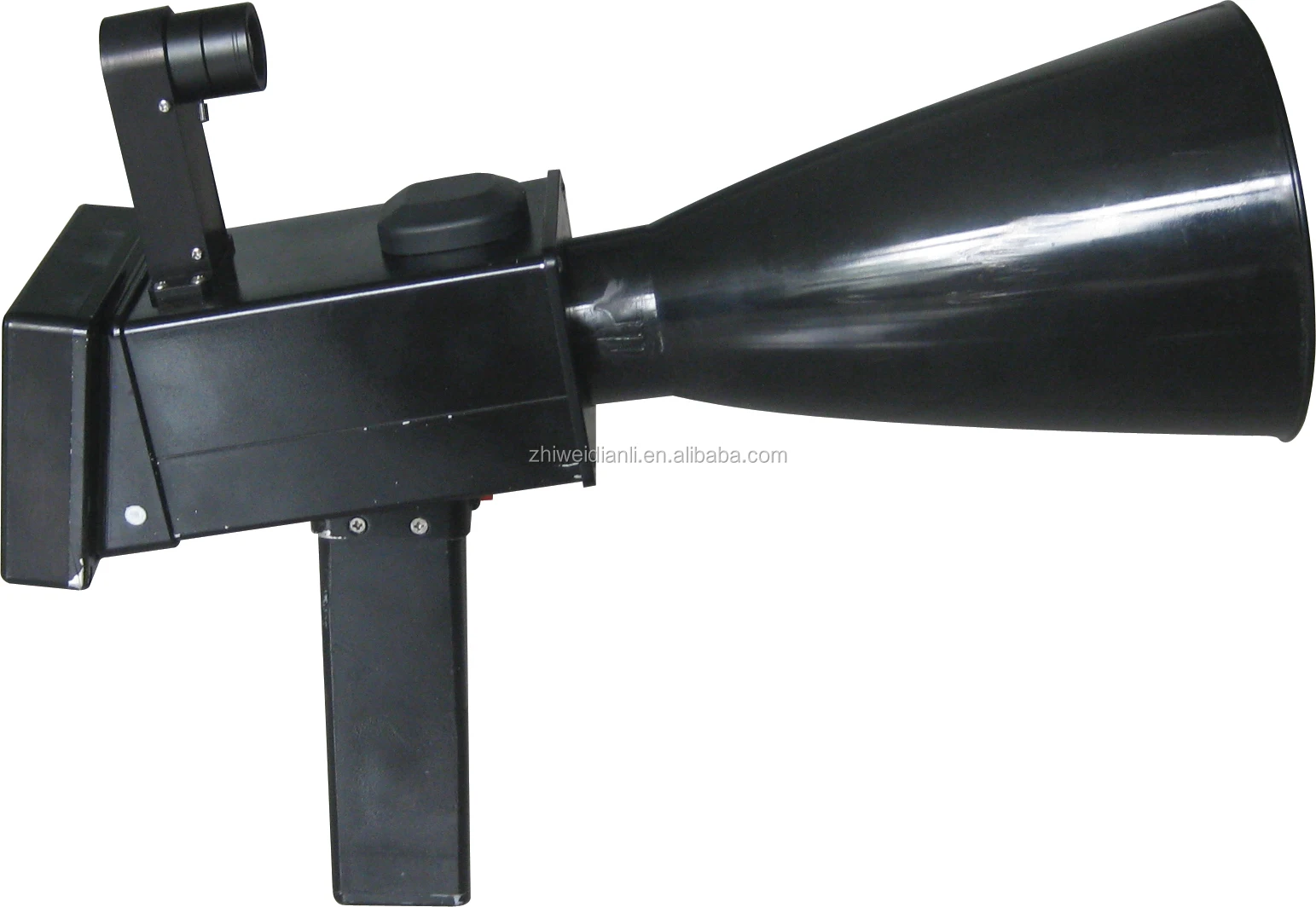

Portable Integrated Ultrasonic Partial Discharge Detector PD Analyzer
- Category: >>>
- Supplier: Baoding Zhiwei Electric Power Technology Co. Limited
Share on (62357652706):
Product Overview
Description
Product Description
Portable Integrated Ultrasonic Partial Discharge Detector PD Analyzer

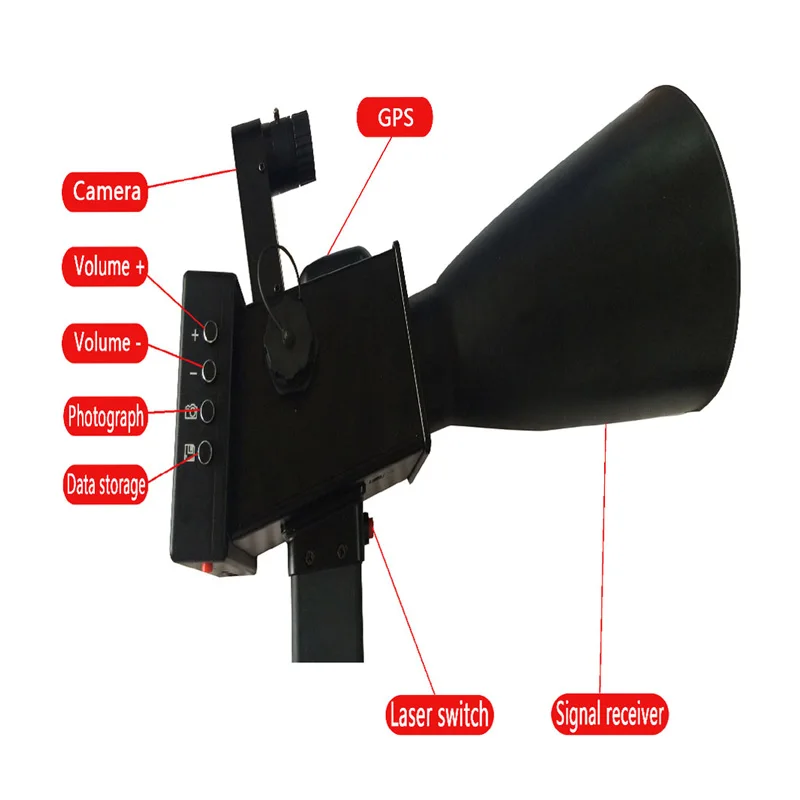

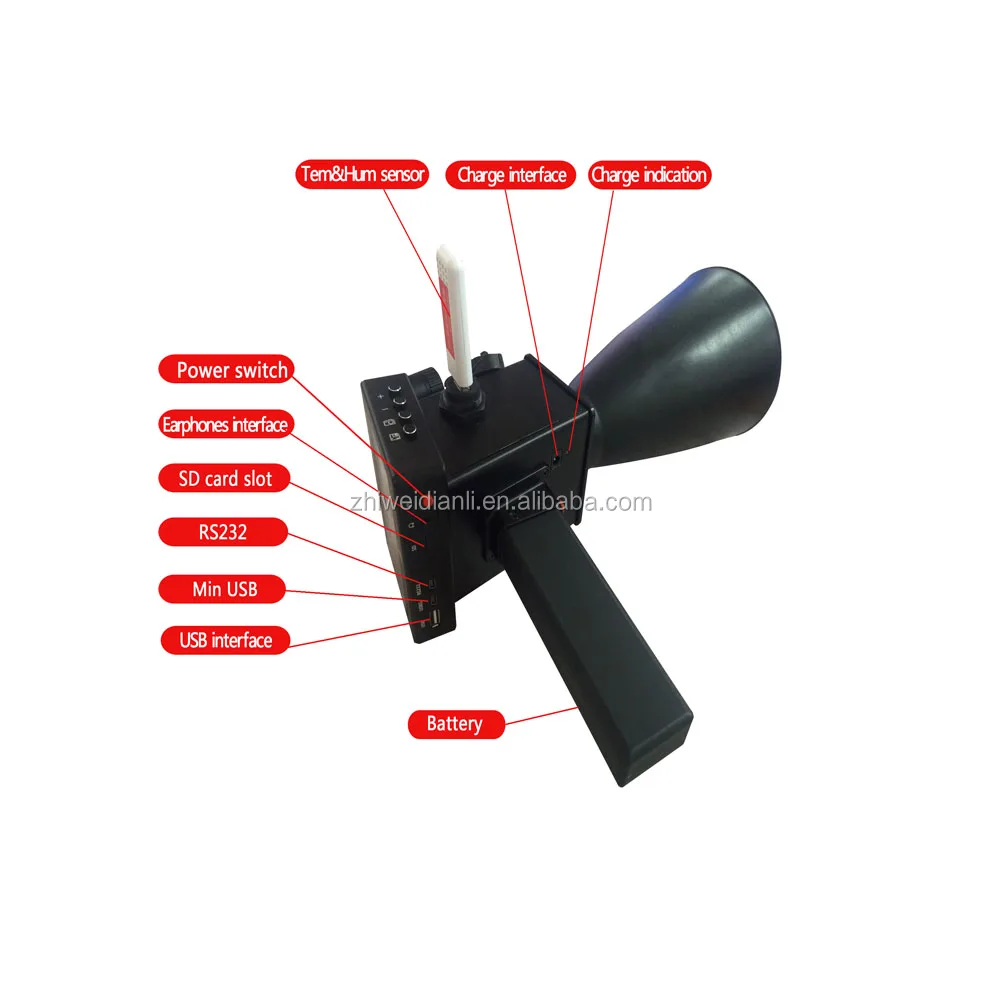

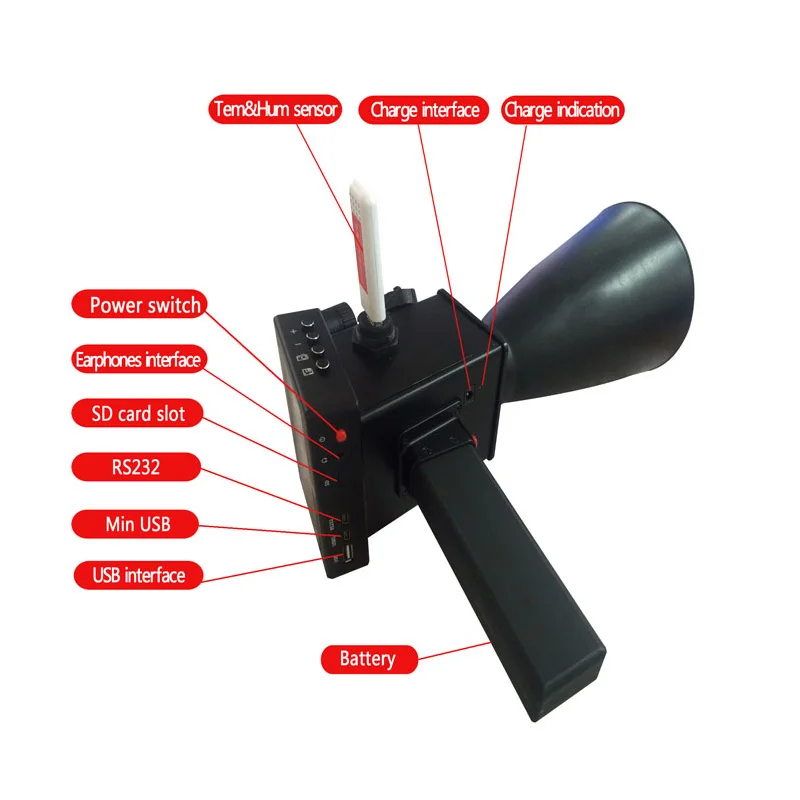

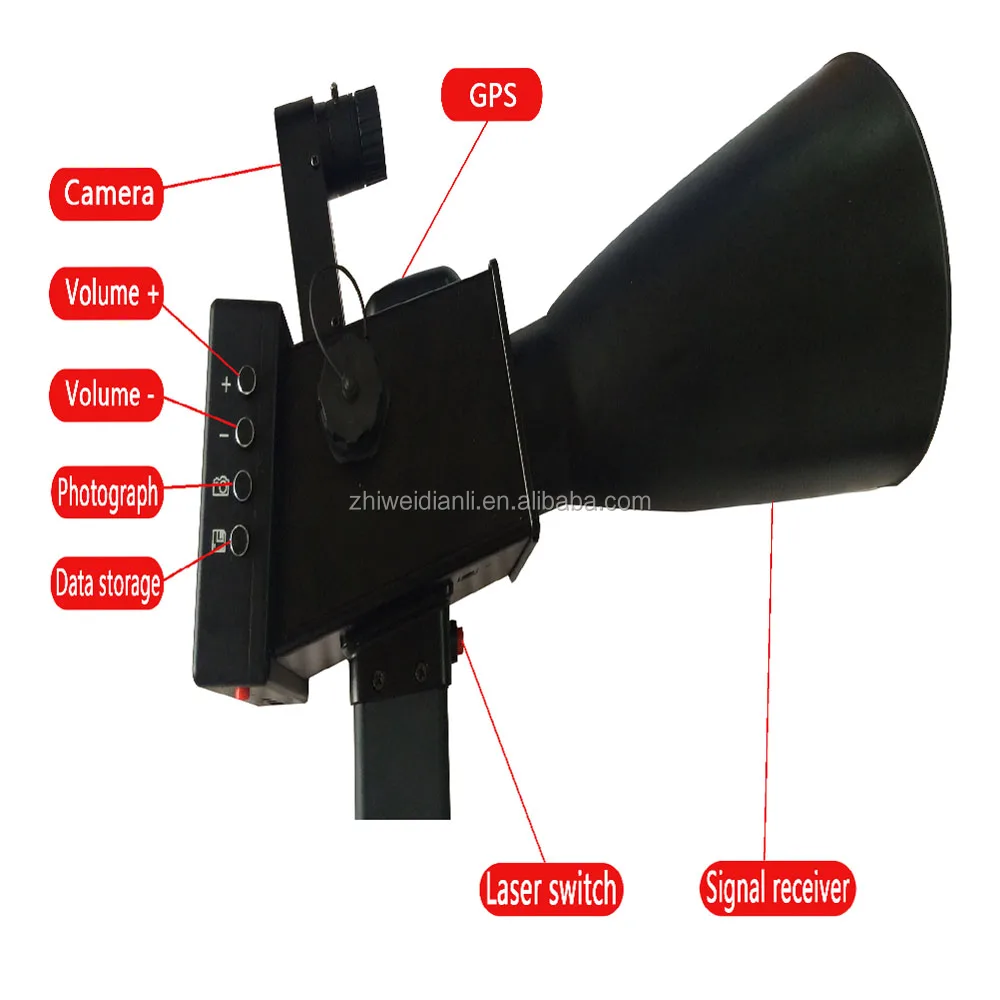

Function features
* Portable design, small size, light weight, and easy to carry , so that one person can operate.
* High brightness laser transmitter can realize fault location.
* 3 mega-pixel high-definition cameracan easily focus detection point of failure and take photos of tower identification and faulty equipment.
* Convert the abnormal ultrasonic signalsdetected by the instrument to audible sine signal and intuitive waveform, from which inspection personnel can clearly identify the discharge intensity.
* Embedded GPS receiver automatically stores the coordinate data and provides GPS navigation, which convenient for query and save detection path.
* With the function of testing temperature and humidity to test environmental temperature and humidity in real time.
* With data storage capability to realize data playback.

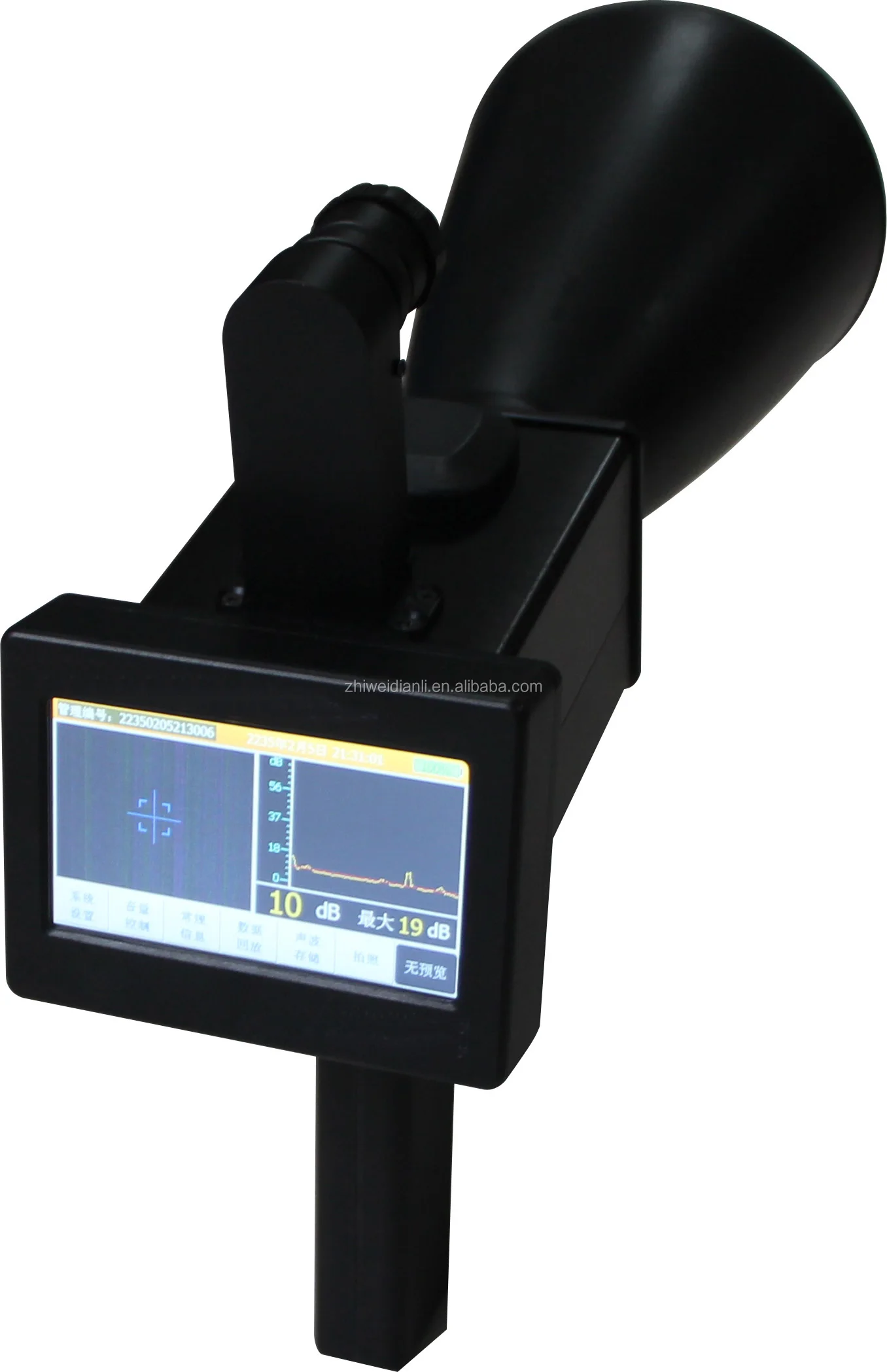

* The display is color touchscreen which is convenient for detection personnel to test and use.
* High sensitivity and directivity can accurately locate the line fault.
* Light weight, easy to carry, easy to operate make the test be carried out in a vehicle with a speed of 30km / h.
* Ultrasonic test can be applied to a noisy environment, which can not be influenced by surrounding sound.
* No-contact test whose effective testing distance is up to 30 meters makes test safe and reliable.
* Live test does not affect the power grid’s normal operation.
* The use of “HC-ADMIN ” patrol background software can easily conduct data management and evaluation.
* Portable design, small size, light weight, and easy to carry , so that one person can operate.
* High brightness laser transmitter can realize fault location.
* 3 mega-pixel high-definition cameracan easily focus detection point of failure and take photos of tower identification and faulty equipment.
* Convert the abnormal ultrasonic signalsdetected by the instrument to audible sine signal and intuitive waveform, from which inspection personnel can clearly identify the discharge intensity.
* Embedded GPS receiver automatically stores the coordinate data and provides GPS navigation, which convenient for query and save detection path.
* With the function of testing temperature and humidity to test environmental temperature and humidity in real time.
* With data storage capability to realize data playback.
* The display is color touchscreen which is convenient for detection personnel to test and use.
* High sensitivity and directivity can accurately locate the line fault.
* Light weight, easy to carry, easy to operate make the test be carried out in a vehicle with a speed of 30km / h.
* Ultrasonic test can be applied to a noisy environment, which can not be influenced by surrounding sound.
* No-contact test whose effective testing distance is up to 30 meters makes test safe and reliable.
* Live test does not affect the power grid’s normal operation.
* The use of “HC-ADMIN ” patrol background software can easily conduct data management and evaluation.

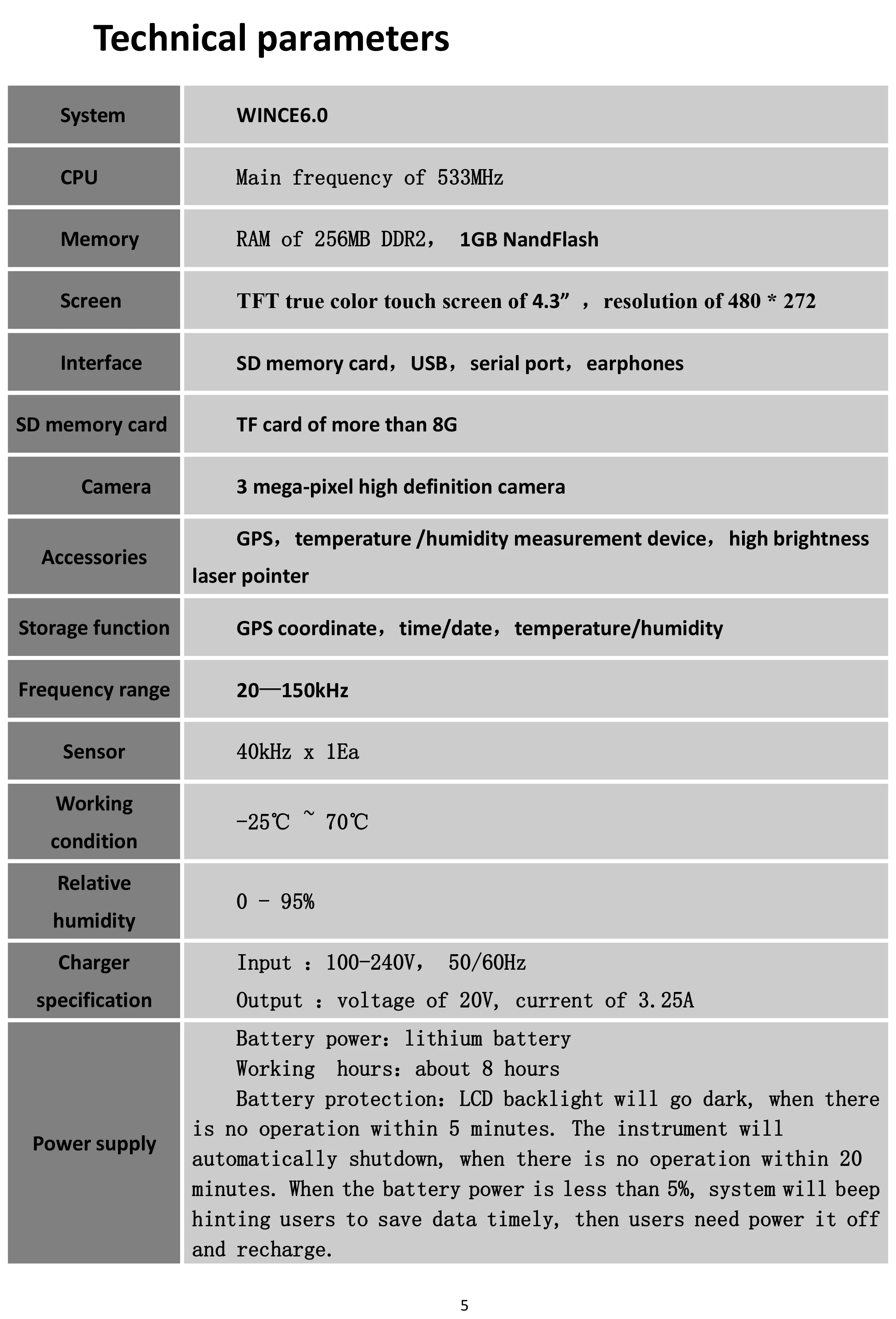

Specification
item | value |
Warranty | 18months |
Certification | CE |
Customized support | OEM |
Place of Origin | China |
Hebei | |
Brand Name | Zhiwei Electric |
Model Number | ZWPD-2000 |
Power | Electronic |
Packing & Delivery
PD inspection Detector
Packaging: Wooden Box
Packaging: Wooden Box
