UCR T2000A Conveyorized Automatic Turntable Pallet Stretch Wrapping Machine
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62357666465):
Product Overview
Description
Product Description
Conveyorized Automatic Pallet Stretch Wrapping Machine is Designed to be Installed with Existing Product Flow for a Continuous Stream of Pallets or Stand-alone Using that be Operated from the Forklift with a Remote.

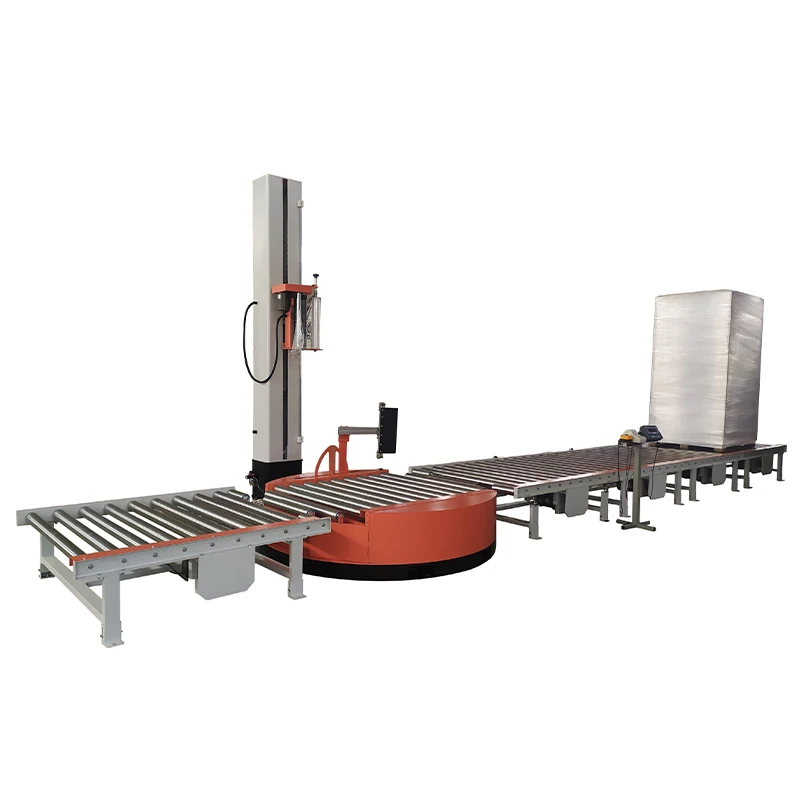

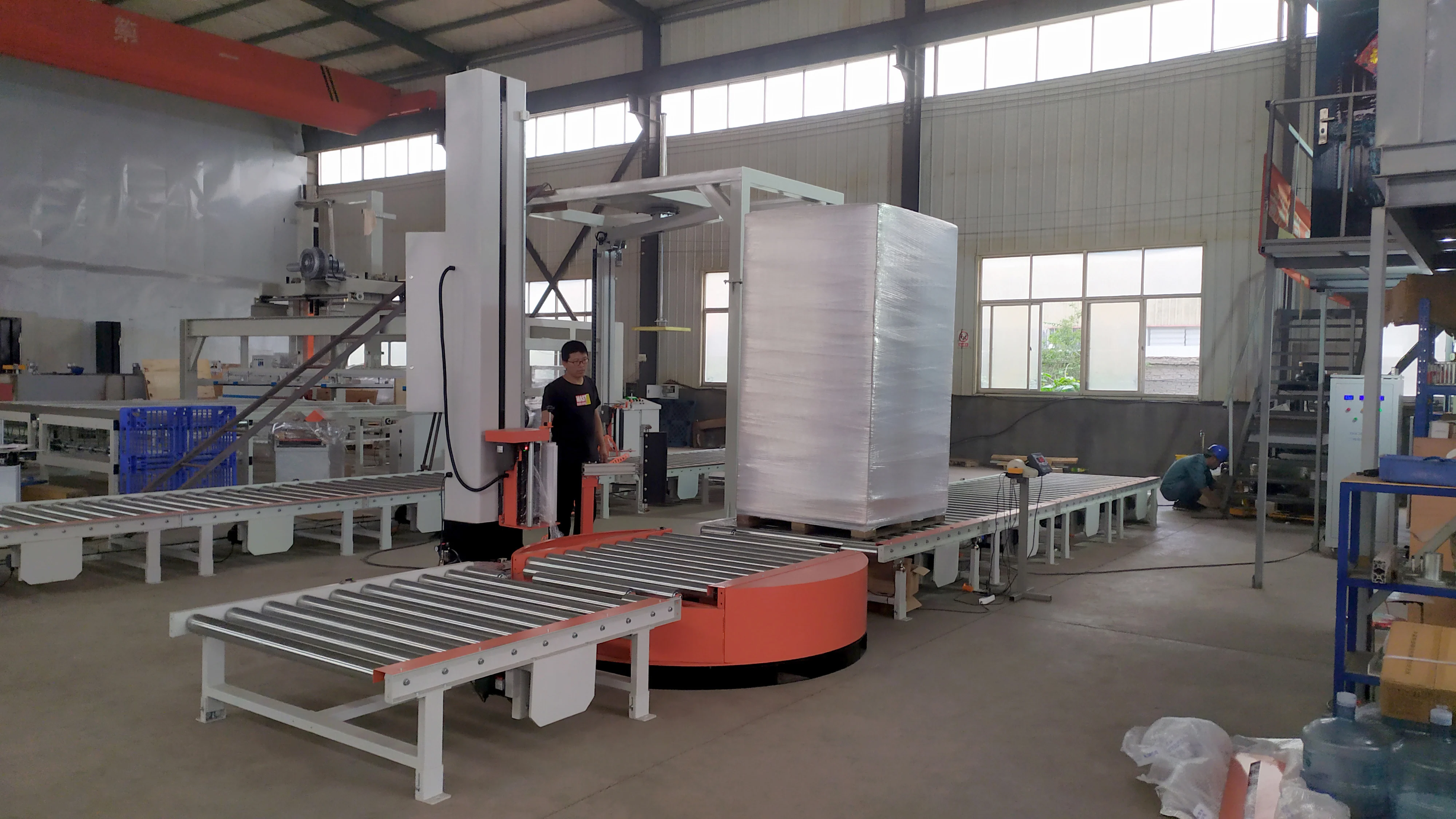

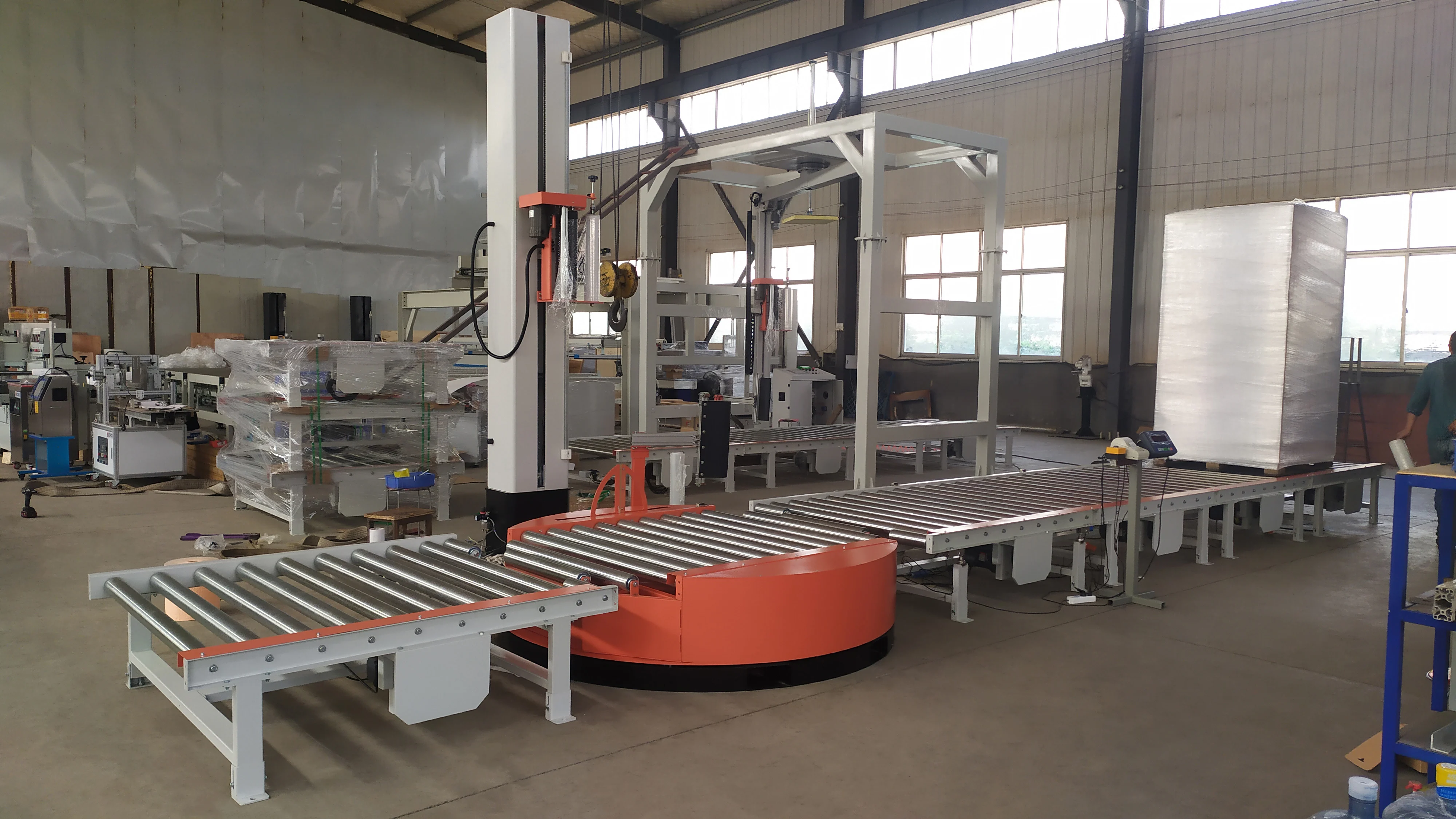

UCR-T2000A Conveyorized Automatic Turntable Pallet Stretch Wrapping Machine
UCR-T2000A Conveyorized Automatic Turntable Pallet Stretch Wrapping Machine Comes Standard with a Dia. 2000 mm x 12 RPM Variable Speed Conveyorized Roller Turntable, Auto Load Height Detector, Auto Film Clamper and Cutter as well as a Powered Roller Pre-Stretch Film Delivery System Up to 250 - 300%. And is Suitable for Max. L 1200 mm x W 1200 mm Pallet with Max. 2000 mm Packging Height and Max. 2000 kg Load Capacity.
Specifications
Model | UCR-T2000A |
Packing Size Max. | W 1200 mm × L 1200 mm |
Wrapping Height Max. | 2000 mm |
Turntable Diameter | 2000 mm |
Load Capacity | 2000 kg |
Efficiency | 40 - 60 loads/h |
Turntable Height | 470 mm |
Turntable Rotation Speed | 0 - 12 rpm, variable |
Roller Table Width (BF) | 1300 mm |
Conveyor Speed | 12 m/min, constant |
Automatic Film Clamper and Cutter | Std. |
Film Delivery System | Powered Roller Pre-Stretch System Up to 250 - 300% |
Stretch Film | LLDPE Stretch Film in 500 mm width × 15 - 35 um thickness; Film Reel in 76 mm core diameter × Max. 250 mm OD |
Air Supply | 6 - 8 kg/cm2 |
Voltage | 380 VAC 3 ph 50/60 Hz |
Power | 3.0 kw |
Machine Size | L 2950 mm × W 2000 mm × H 2950 mm |
Machine Weight | 1000 kg |
Features

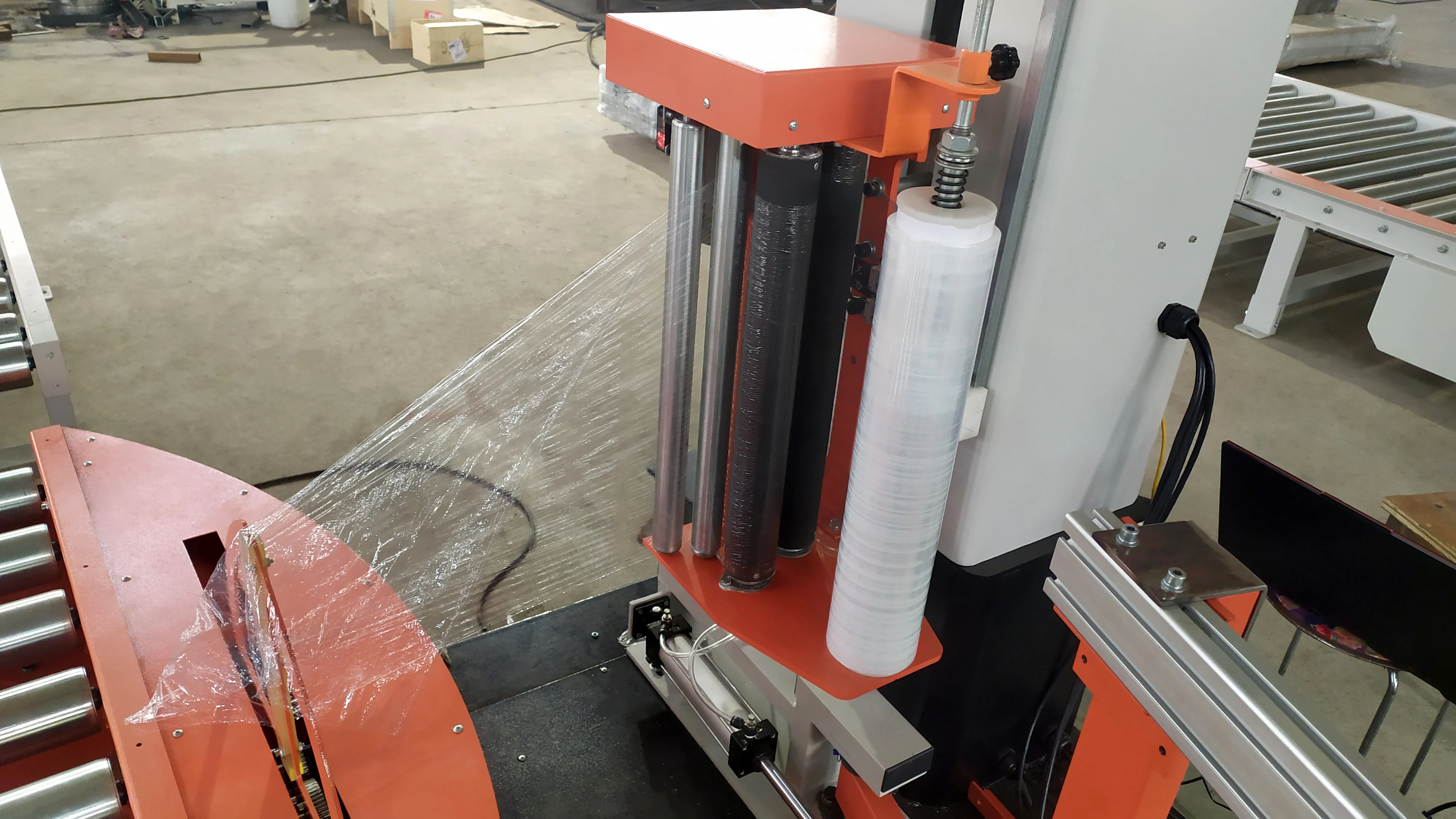

Pre-Stretch Up to 250 - 300%
Film Carriage with Powered Rollers Pre-Stretch System (DC Motor) Pre-Stretch Film Up to 250 - 300%;
Electronic Film Tension (Wrap Force) Adjustment;
Auto Load Height Detector
Photoelectric Sensor Automatically Senses Pallet Height in Auto Mode with Safety Trip Switch for Extra Security Assurance;
2000 mm Max. Packing Height
Std. Packing Height 500 mm to 2000 mm;
Increased Wrapping Height Customizable;

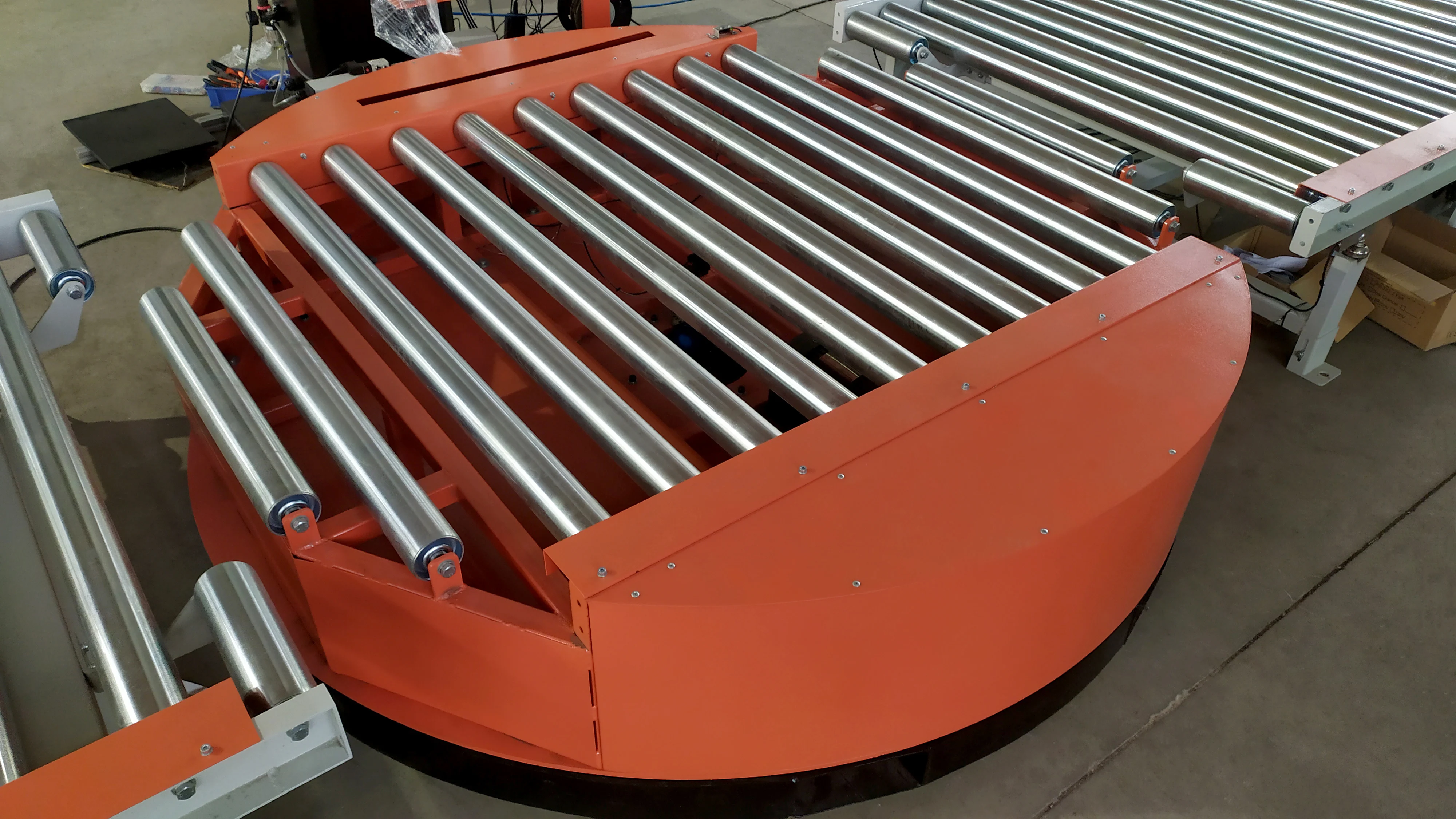

Dia. 2000 mm x 12 RPM Variable Speed Conveyorized Turntable
Conveyorized Turntable Dia. 2000 mm;
Between Frame Width 1300 mm;
Rotation Speed 0 - 12 RPM, Varibale;
Soft Start and Stop;
Conveyor Speed 12 m/min, Constant;
Load Capacity 2000 kg;
Apply to Max. L 1200 mm x W 1200 mm Pallet;
Enlarged Pallet Size as well as Higher Load Capacity Customizable;

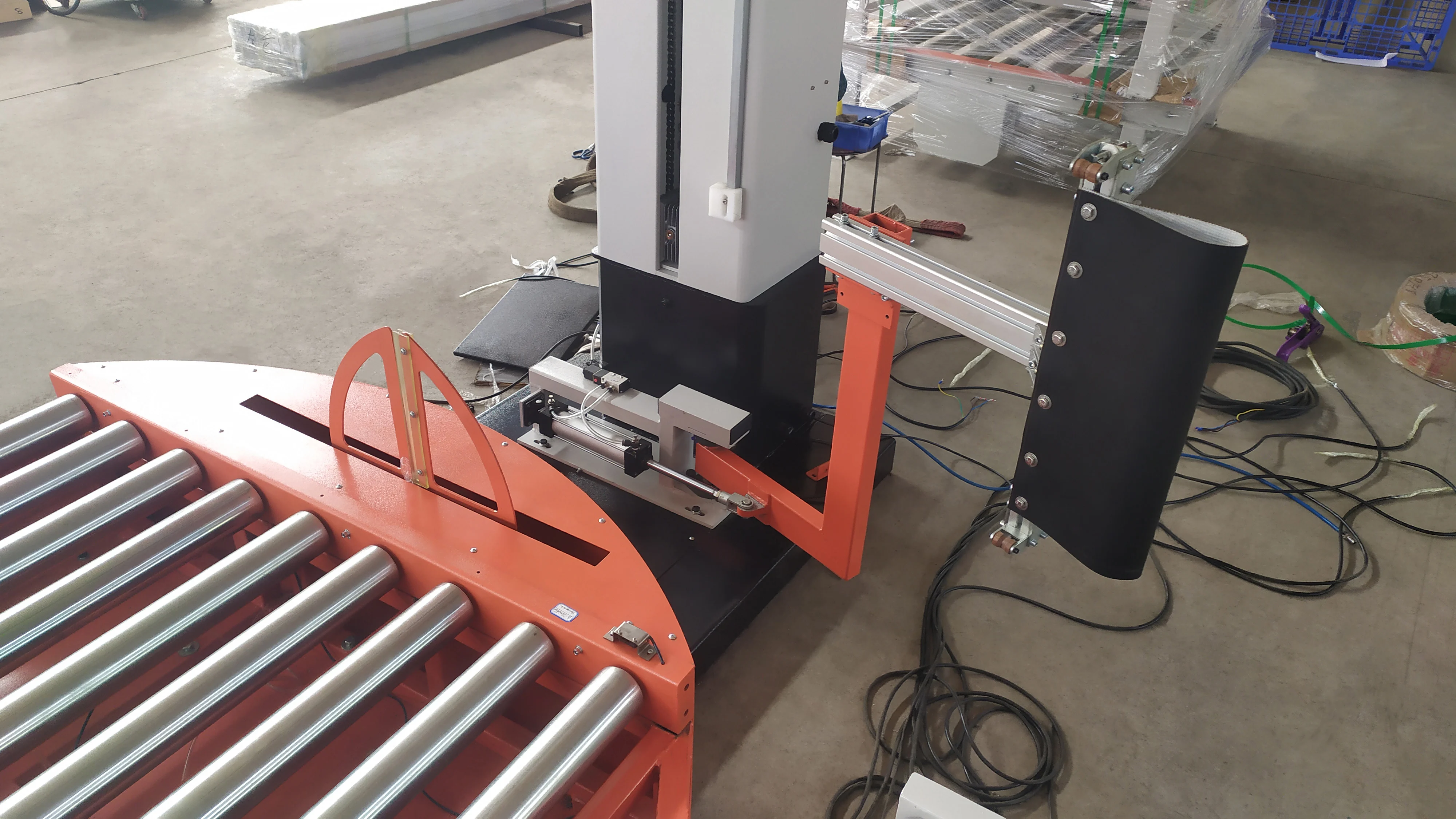

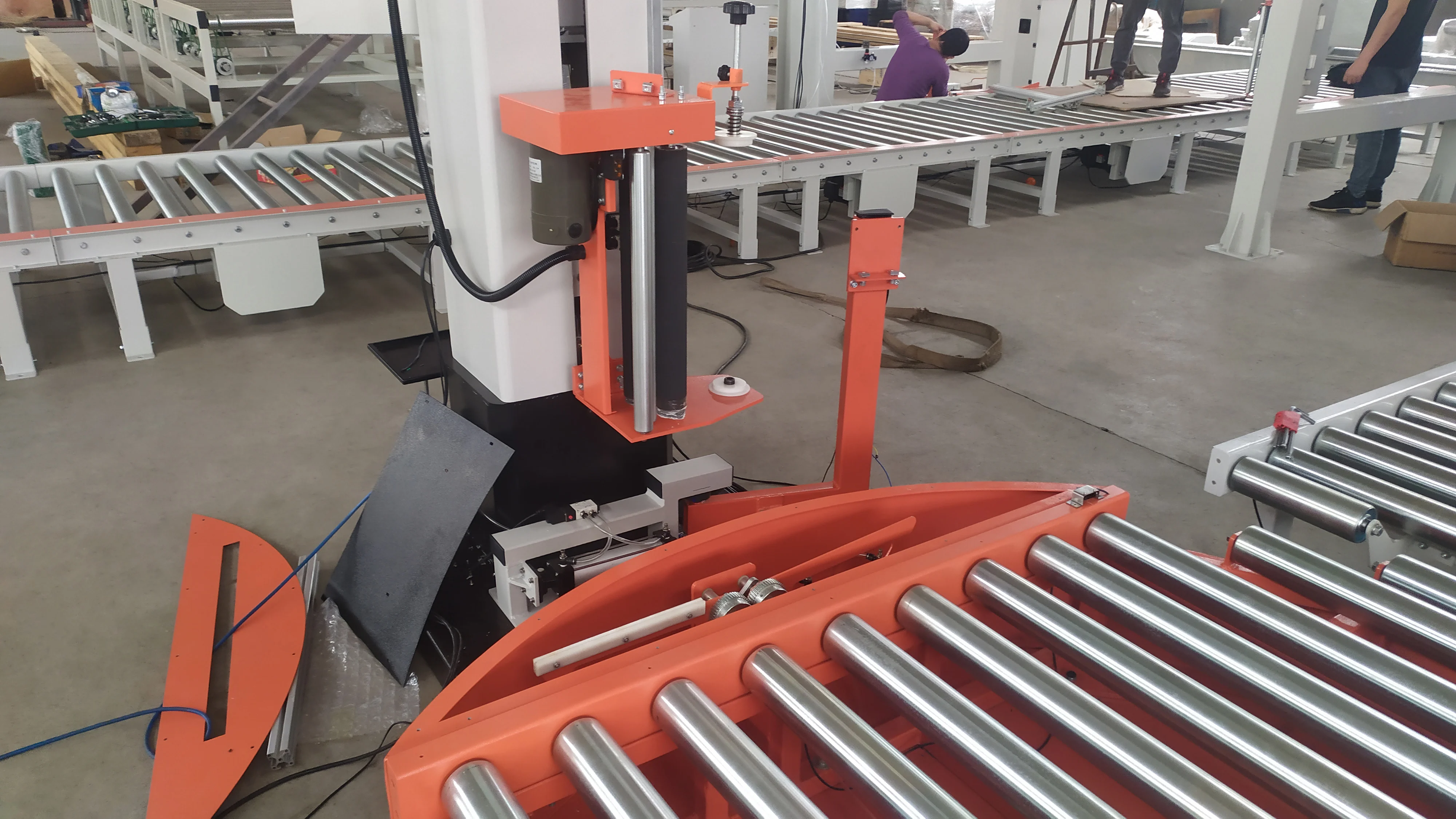

Auto Film Clamper and Cutter
Automatically Cut the Film after Wrapping and Grip the Film for the Next Wrap.

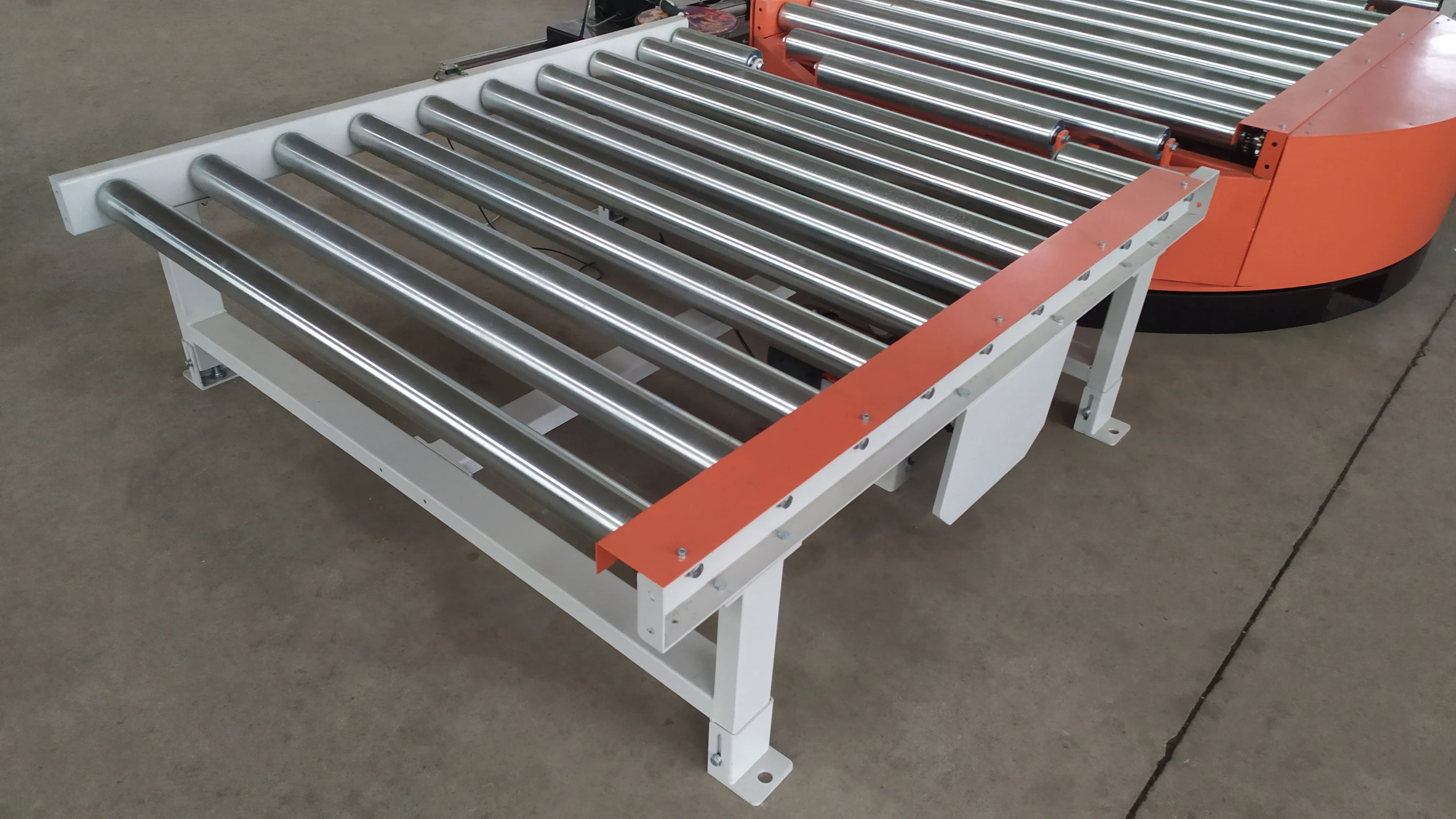

Optional Infeed and Outlet Heavy Duty Chain Driven Powered Roller Conveyor
Std. 1750 mm Length x 1300 mm Between Frame Width;
Using with Dia. 76 mm x 3.0mm Wall Thickness Galvanized Steel Rollers;
Max. 2000 kg Load Capacity;
Conveyor Speed 12 m/min, Constant;
Soft Start and Stop;
Enlarged Conveyor Size Customizable;

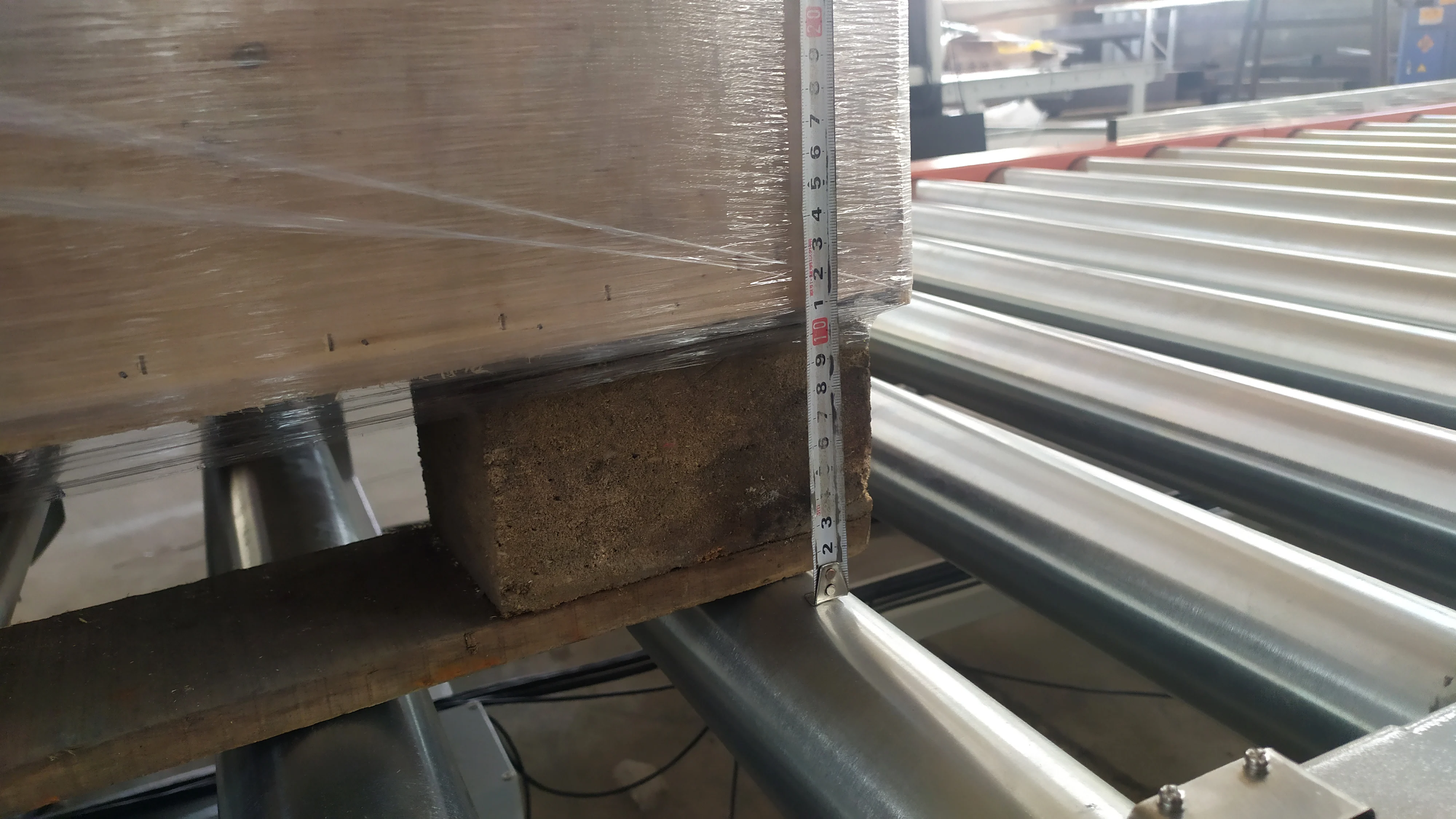

Lock Loads onto Pallet
Lock the Loads onto Pallet Down to 100mm Height;

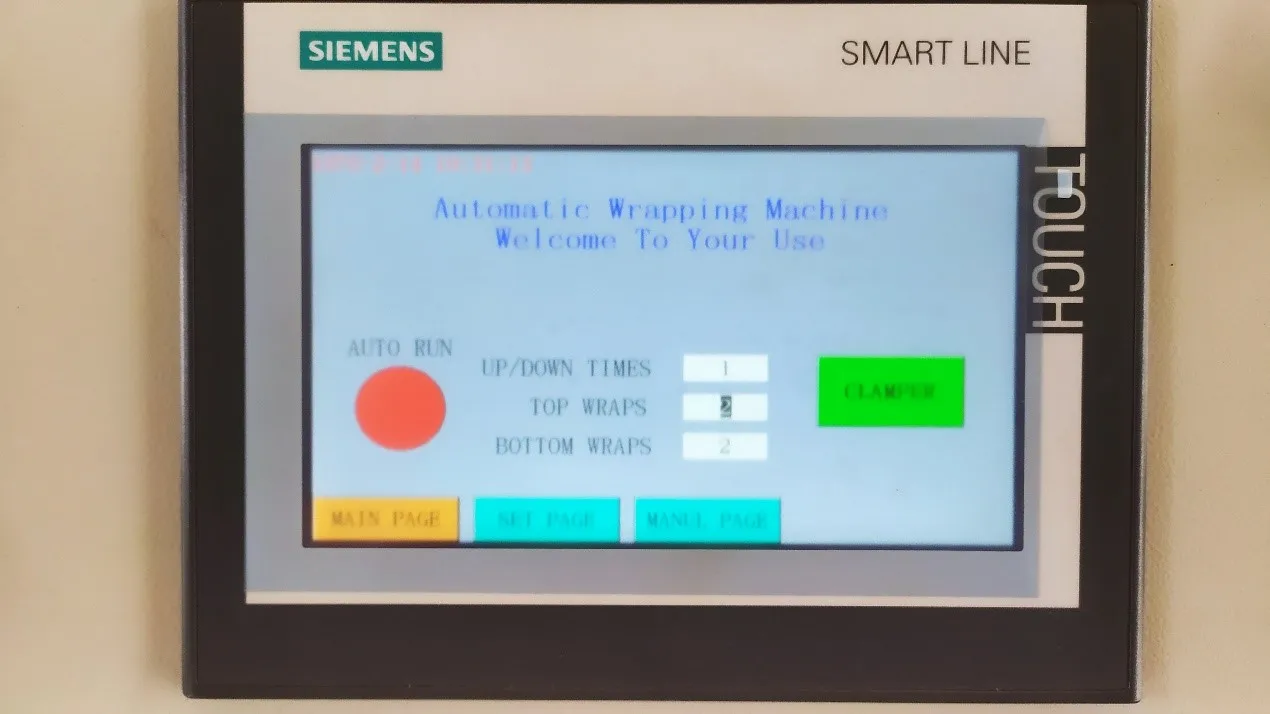

PLC + HMI Control
PLC + HMI Totally Controlled;
Film Carriage Up/Down Times, Top and Bottom Reinforce Wraps with Individually Programmable;
Turntable Rotation Speed, Film Carriage Up/Down Speed and Film Tension Force Adjustment;
Options
* Infeed and Outlet Conveyor;
* Increased Wrapping Height;
* Enlarged Pallet Size;
* Power Supply Based on Country of Destination;
* Electrical Configurations;
* Safety Fence, Interlock and Light Curtain;
* Top Press;
* Increased Wrapping Height;
* Enlarged Pallet Size;
* Power Supply Based on Country of Destination;
* Electrical Configurations;
* Safety Fence, Interlock and Light Curtain;
* Top Press;
* Scale + Display / Scale + Display + Printer;
* Remote Control;
* Remote Control;

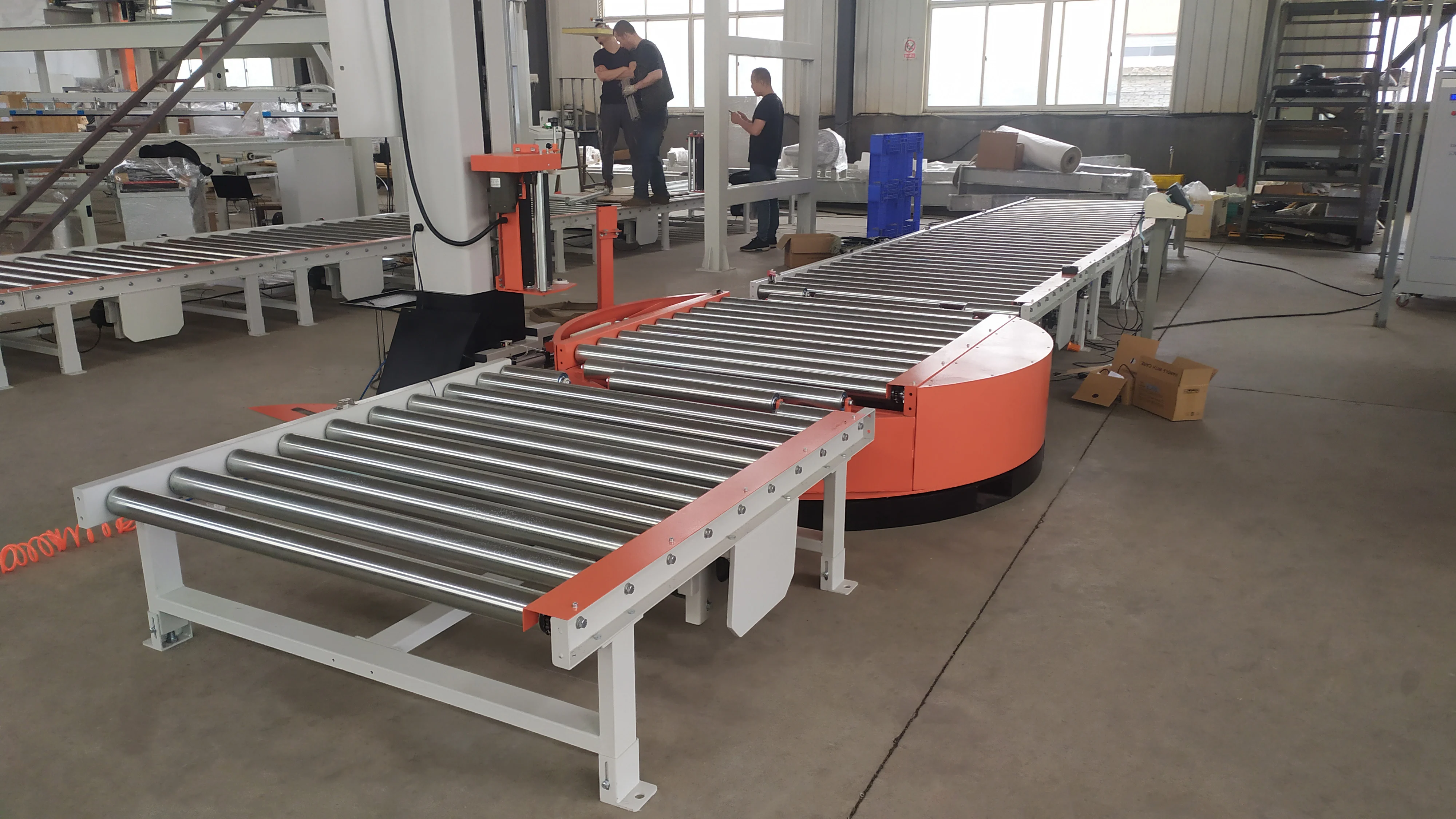

Gallery
Packaging & Shipping
Plywood Seaworthy Wooden Case for LCL;
Stretch Wrapping and PET Strap Reinforce for FLC;
Certifications
1. Source Factory with More Than 10 Years of Manufacturing and Solution Experience;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;

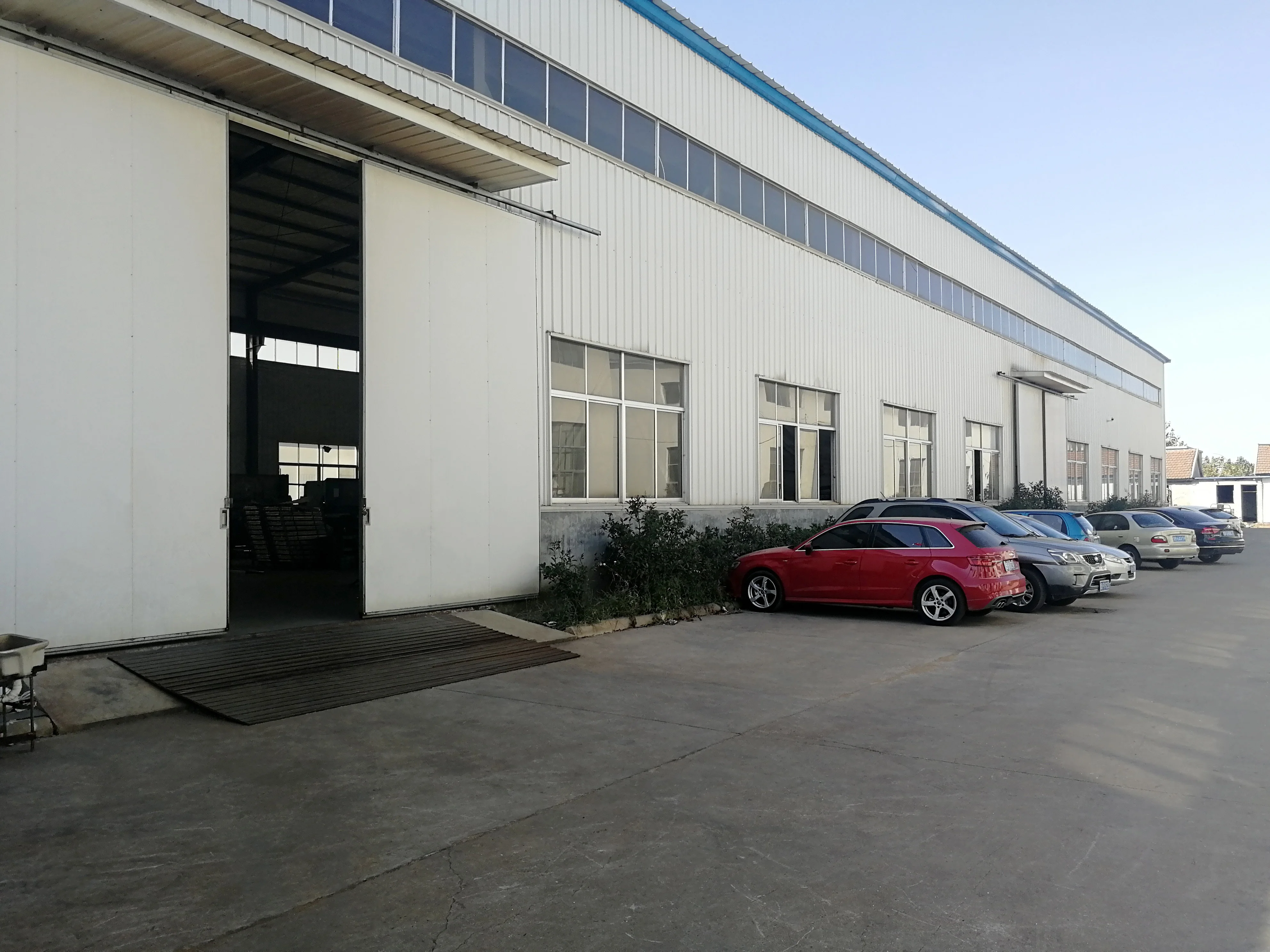

About Us
Established in 2015 and located in seaside city of Qingdao, Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions.
With the continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
From the beginning of our company, we believe People Make the Difference, and without our highly trained sale team and experienced engineer team we would not be able to provide you with the excellent service which we are known for in the past years.
Commit to the highest standards in both our product and our staff, we are eager to please, so please let us know how we can help.
