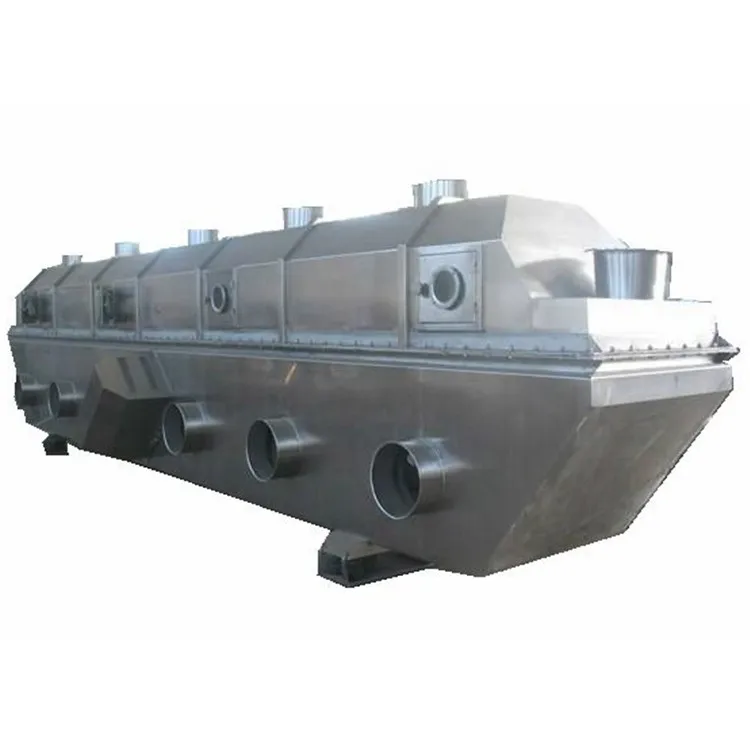

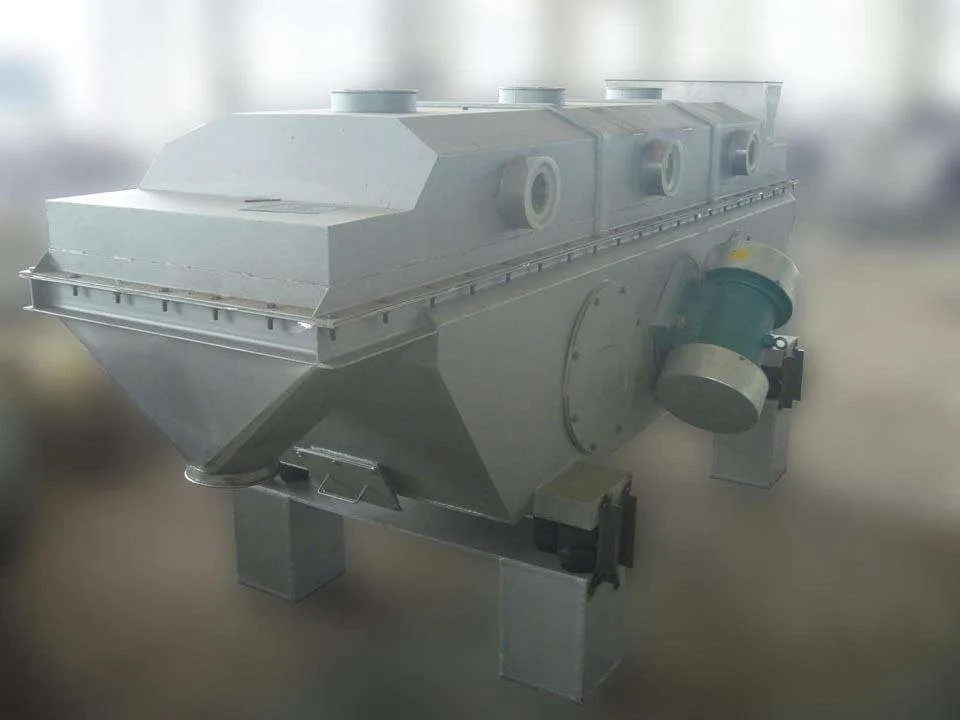

ZLG stable operation vibrating fluid bed drier

Product Overview

Description

ZLG stable operation vibrating fluid bed drier



Applications:

Our ZLG stable operation vibrating fluid bed drier is suitablity in chemical industry,light industry, pharmaceutical,

food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.

Features:
 1.The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
 2.High effection, raw material is heates evenly and heated evenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
 3.It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
 4.It is small for danaging the are surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
 5.A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
 6.You can string multi-set to raised capacity of raw materials, such as polyacrylamide.



Model	Fluidized bed area m2	Temperature of air in °C	Temperature of air out °C	Capacity of vaporize moisture Kg/h	Vibration motor
					Model	Power(Kw)
ZLG3×0.30	0.9	70~140	40~70	20~35	NYS8-6	0.75×2
ZLG4.5×0.30	1.35			35~50	NYS10-6	0.75×2
ZLG4.5×0.45	2.025			50~70	NYS15-6	1.1×2
ZLG4.5×0.60	2.7			70~90	YZS15-6	1.1×2
ZLG6×0.45	2.7			80~100	NYS15-6	1.1×2
ZLG6×0.60	3.6			100~130	NYS20-6	1.5×2
ZLG6×0.75	4.5			120~170	NYS20-6	2.5×2
ZLG6×0.90	5.4			140~170	NYS30-6	2.2×2
ZLG7.5×6.0	4.5			130~150	NYS30-6	2.2×2
ZLG7.5×0.75	5.625			150~180	NYS40-6	3.0×2
ZLG7.5×0.9	6.75			160~210	NYS-6	3.0×2
ZLG7.5×1.2	9			200~280	NYS50-6	3.7×2
ZLG7.5×1.5	11.25			230~330	NYS50-6	3.7×2
ZLG8×1.8	14.4			290~420	NYS75-6	5.5×2
