PQG 200XP Petrography Metallurgical Thin Sectioning Machine

Product Overview

Description

PQG-200XP

Petrography Metallurgical Thin Sectioning Machine



1.Applications:

PQG-200XP Petrography Metallurgical Thin Sectioning Machine adopts man-machine interface

and PLC control, intuitive interface, simple operation and convenient parameter setting.

The spindle adopts closed loop control of servo motor and overload protection.

There is a circulating water cooling device.

Enclosed transparent shield and safety switch provide protection for the operator.



2.Main Specification:

Model	PQG-200XP
Max. Cutting Diameter	Φ60 mm
Cutting Disc Specification	Φ200*0.9*Φ32 mm
Spindle Rotating Speed	500~5000 r/min
Feeding Speed	0.01~3 mm/s
Manual Feeding Speed	0~15 mm/s
Reverse Speed	0~15 mm/s
Cutting Mode Selection	Direct Cutting and Impact Cutting
Impact Cutting Distance	0.1~2 mm
Cutting Stroke (Y Axle)	200 mm
Max. Length Of Worktable Clamping	150 mm
Max. Width Of Worktable Clamping	200 mm

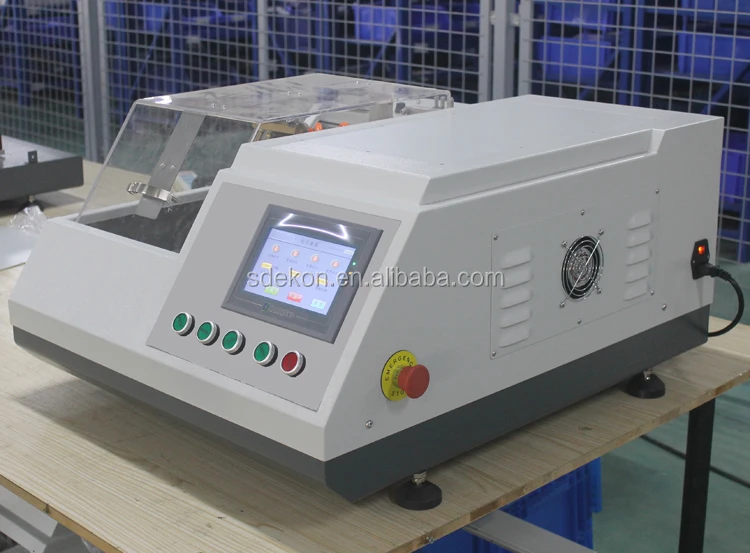

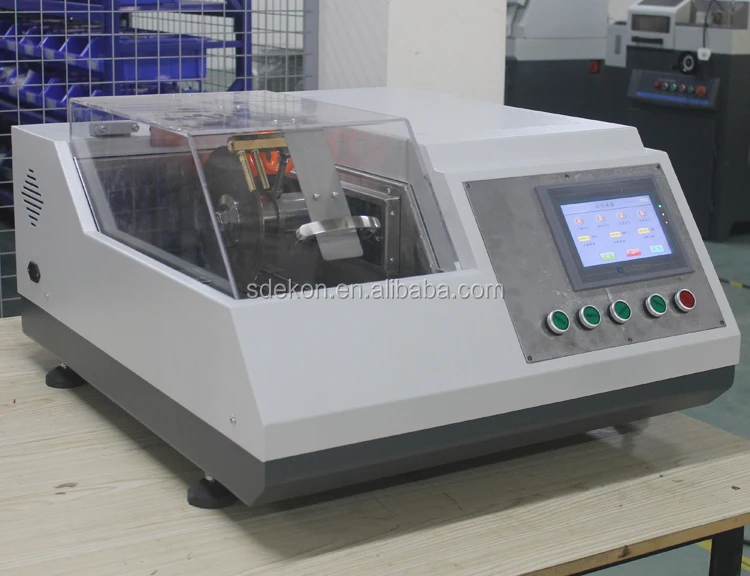

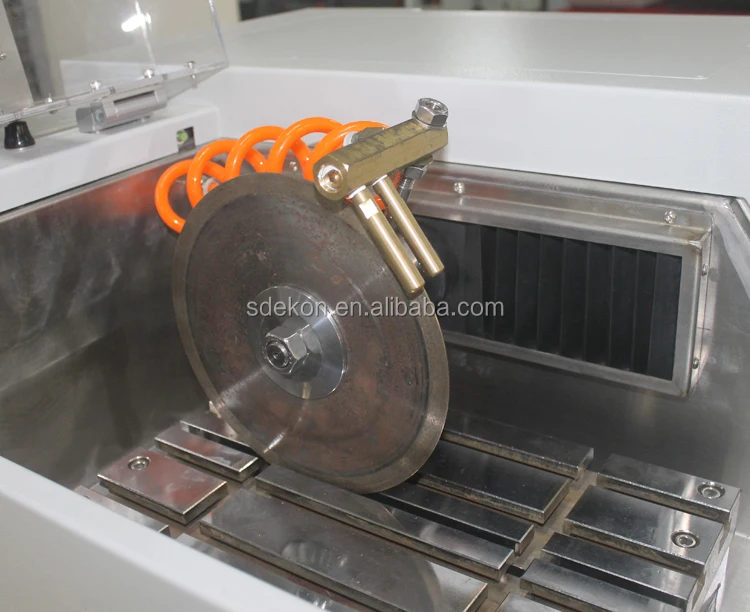

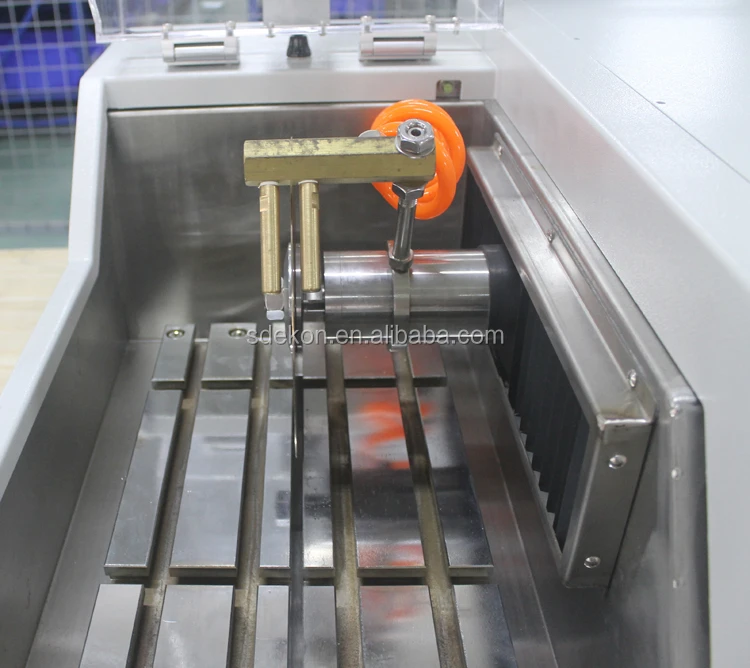

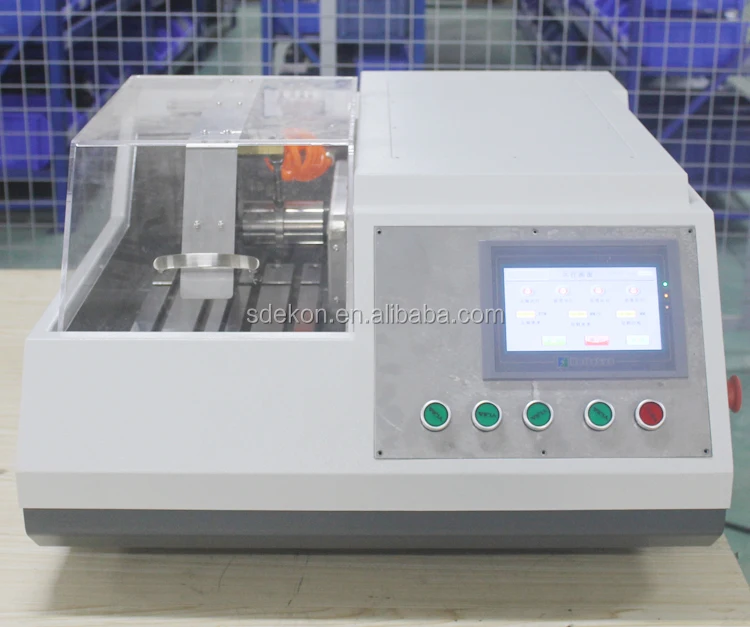

3.Product Physical Pictures:
