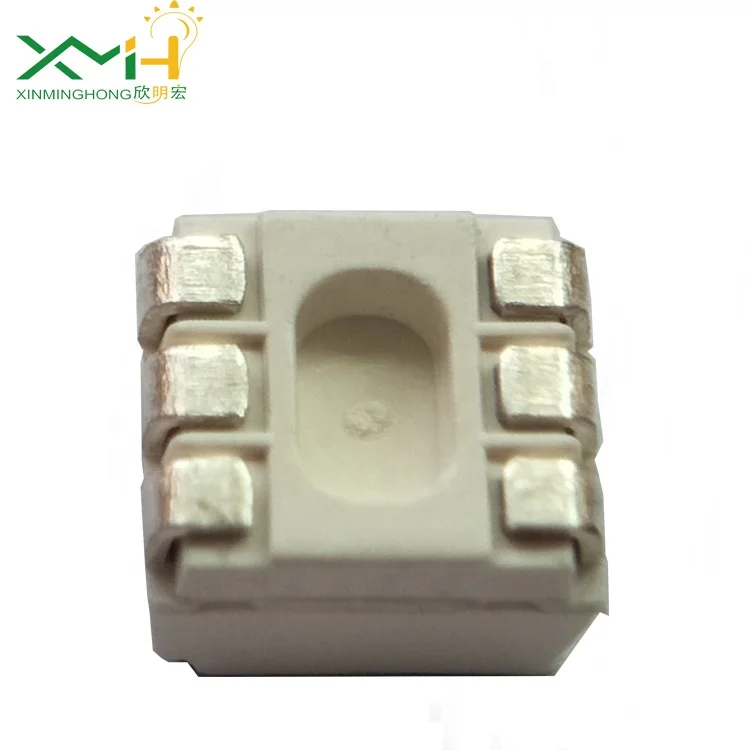

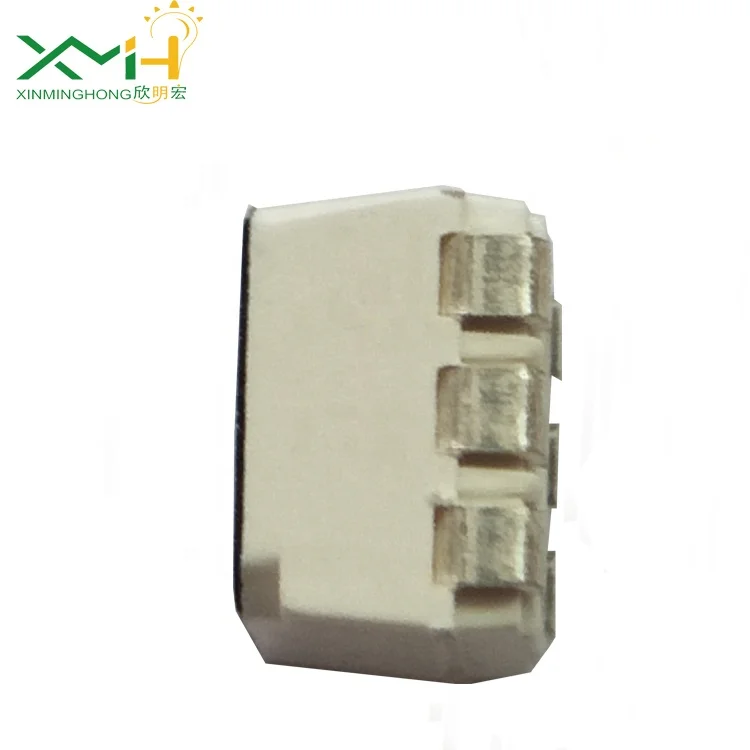

3535 rgb smd led
- Category: >>>
- Supplier: Shenzhen Xinminghong Electronic Co. Limited
Share on (62358046151):
Product Overview
Description
Product Category
Outline dimension:
Product Category
Product Description
Feature:
3.5mmx3.5mm SMD LED
Low power consumption
Wide view angle
Long lifespan
Package:2000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | |||
| Min | Typ | Max | |||||
| Dominant wavelength | If=20mA | λd | red | 620 | 625 | nm | |
| green | 515 | 520 | |||||
| blue | 465 | 470 | |||||
| Forward voltage | If=20mA | Vf | red | 2.0 | 2.2 | v | |
| green | 3.0 | 3.2 | |||||
| blue | 3.0 | 3.2 | |||||
| Luminous intensity | If=20mA | Iv | red | 600 | 800 | mcd | |
| green | 1400 | 1600 | |||||
| blue | 300 | 500 | |||||
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 120 | Deg | |||
| Resverse current | Vr=5v | Ir | 10 | mA | |||
Related Products
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
