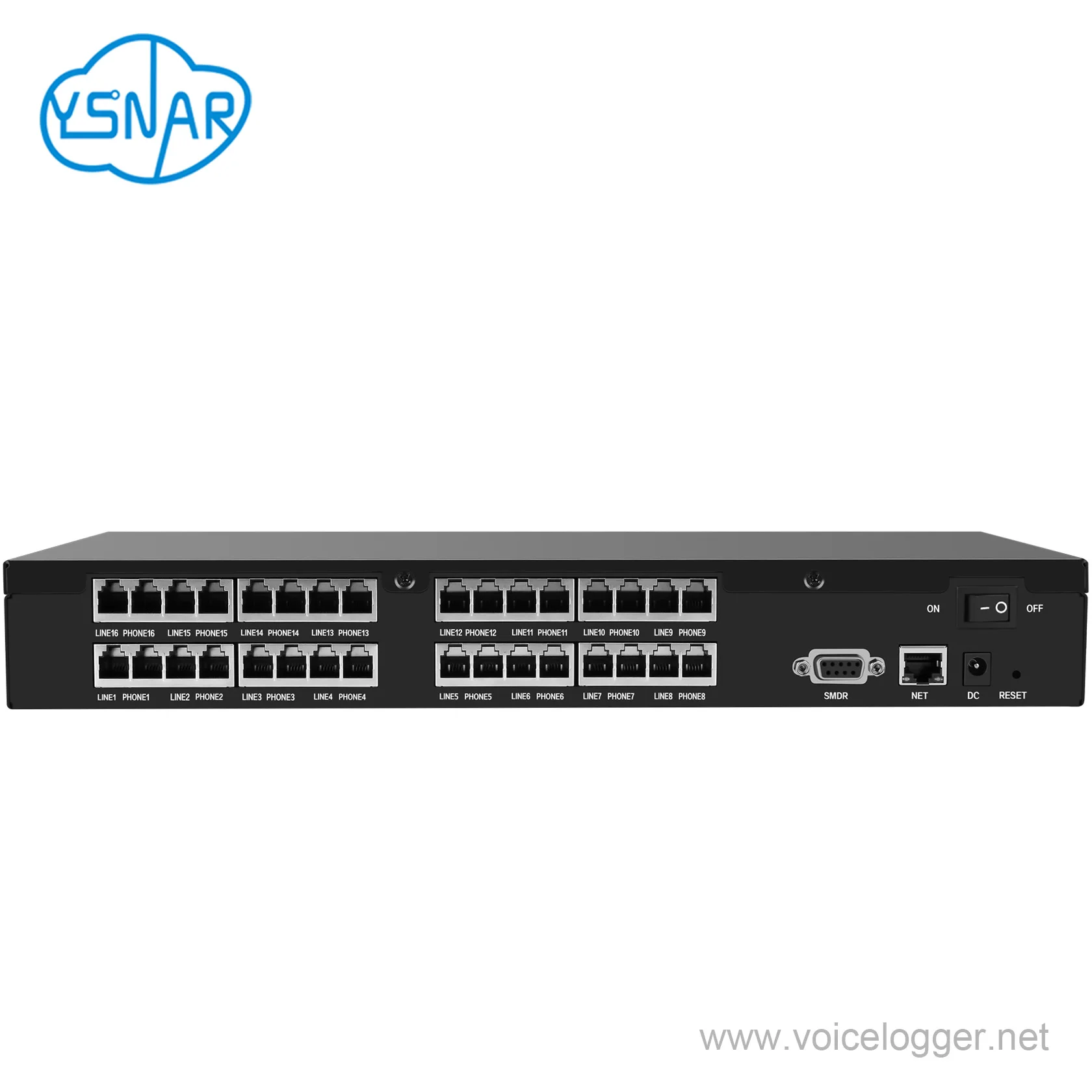

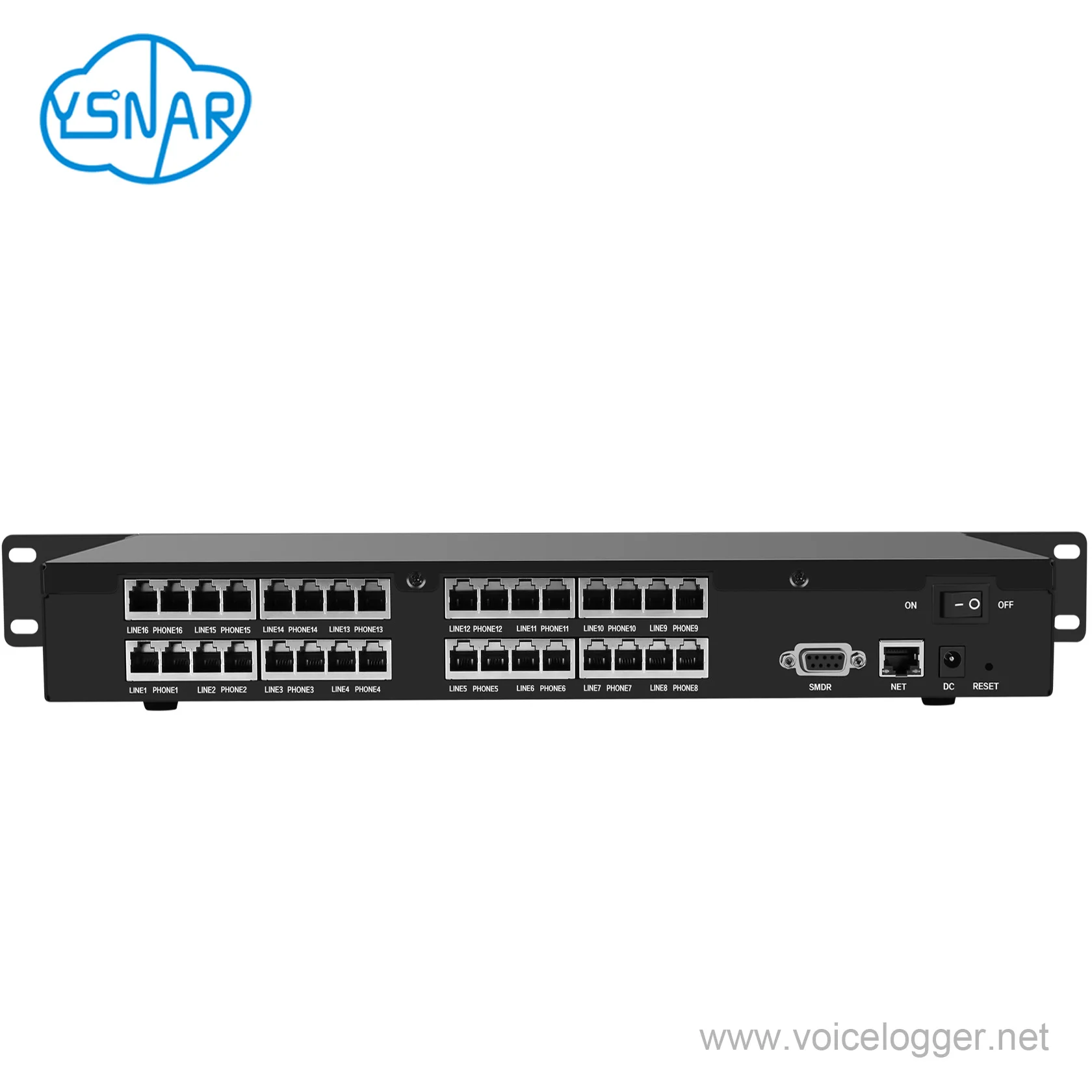

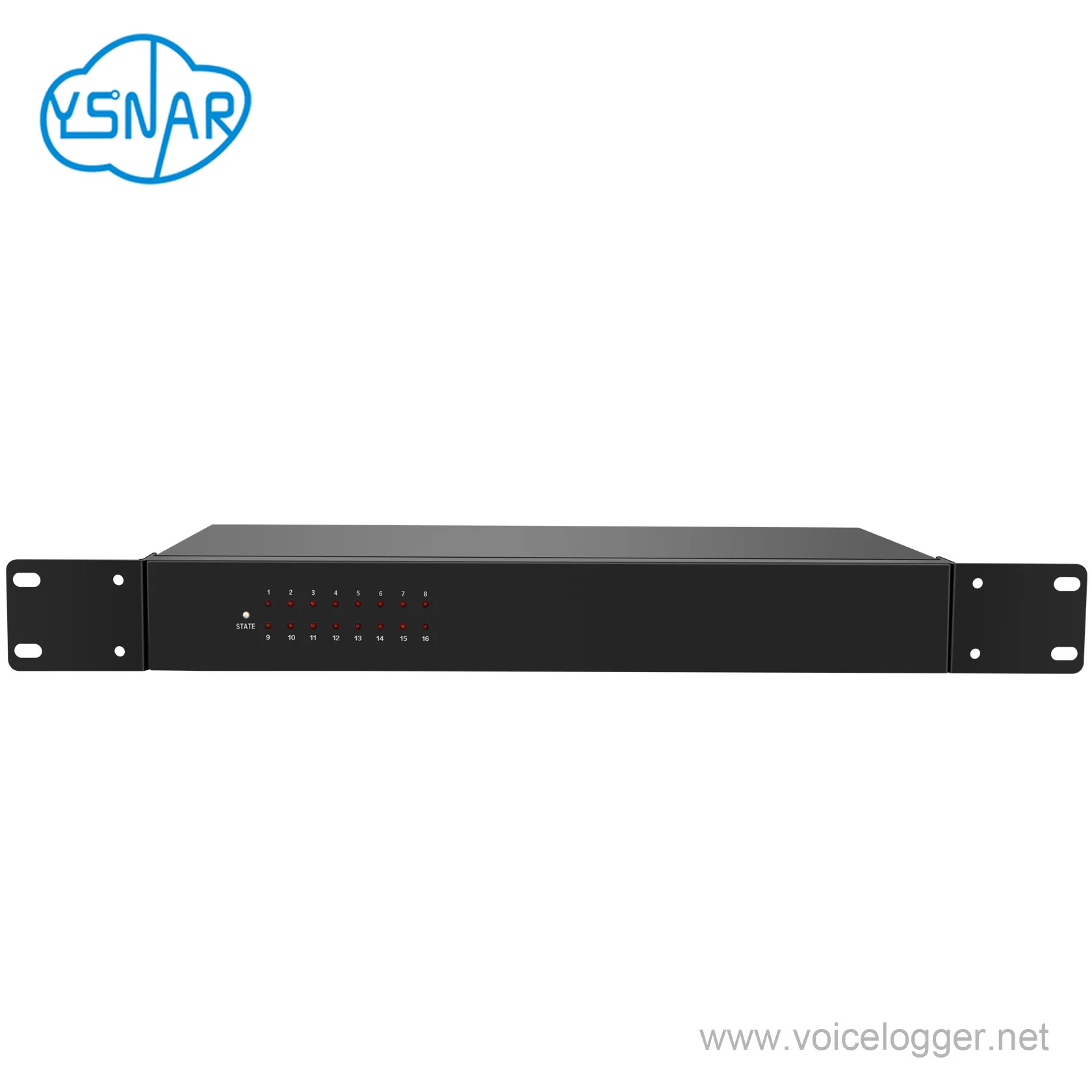

16CH 1U Rack Mount Standalone P2P Cloud Network Analog Telephone Call Recorder Voice Logger with Open Source API/SDK and 1TB HDD

NAR6100 is consisted by 72-168MHZ CPU, latest ARM chip and innovative hardware frame and specific call recording software. It is a fully independent recording device that does not depend on a computer. The device supports 1, 2, 4,8,16,32,48,64 lines and 1 network interface. The user can complete all operations through the PC software like: the real-time monitoring on line, record query, audio playback, real-time monitoring and so on, which is convenient for construction, installation, debugging and make it a really worthwhile embedded telephone recorder.

Features:

1.       Booting speed: 5 seconds to enter the system.

2.       SD card / Hard Disk versions can be selected, and 2.5" HDD can support max 8TB.

3.       Support 1, 2, 4, 8, 16, 24, 32, 48, 64 lines analog recording at the same time, and various combinations can be done via network.

4.       It owns network card itself, which is convenient for networking building and remote monitoring.

5.       Total automatically recording without computer supporting, fully embedded-in (standalone) devices.

6.       Low power consumption, small heat, and it can run 24/7 without fan.

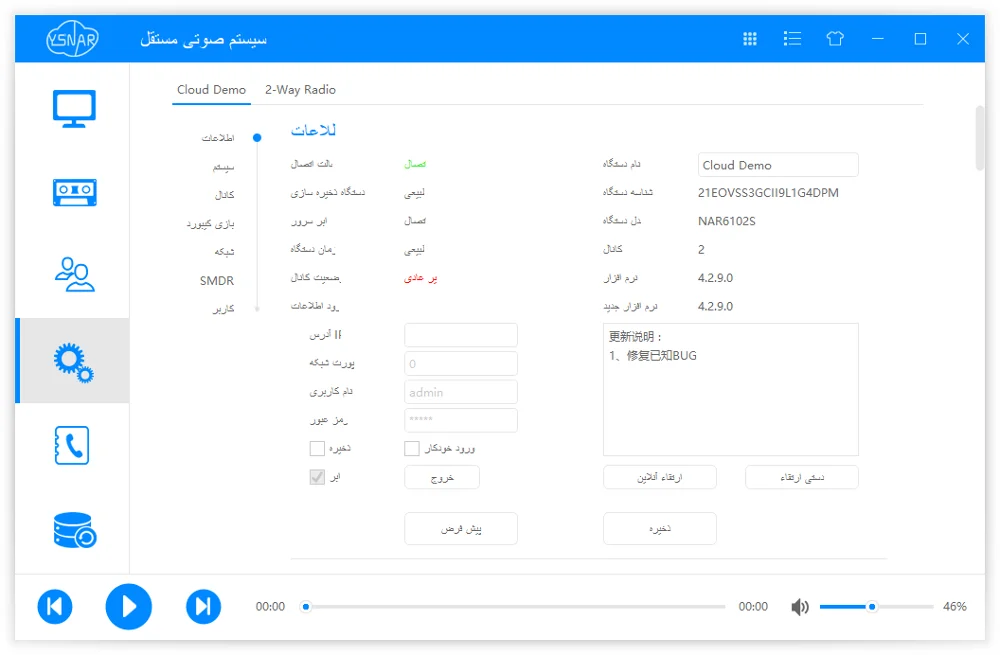

CMS(Central Management System) for Multi Devices in one comupter:

Voice Announcement:

After the agent answers the call, NAR-6100 will play a pre-recorded voice file to announce this call is been recorded.

Answering Machine:

Programmed timer to turn On/Off this feature.

While this feature is ON, NAR-6100 answers the call, play greeting message and take caller’s message.

When no one answer the call, the answering machine will be triggered automatically.

Pre-Recorded TC Verification(Music On Hold via the different DTMF key groups):

 Music on hold (MOH) is the business practice of playing recorded music to fill the silence that would be heard by telephone callers who have been placed on hold. It is especially common in situations involving customer service.

Recording Interfaces:

l  PSTN lines and analog phones;

l  PBX and Ext;

l  Radio Voice Lines:;

l  Live Recording(meeting);

l  Intercom Audio Lines;

l  Fixed Wireless Telephone.

PABX SMDR:

User needs to analyze original data of PABX channel number, extension number from followed main parameters and input them to program setting.

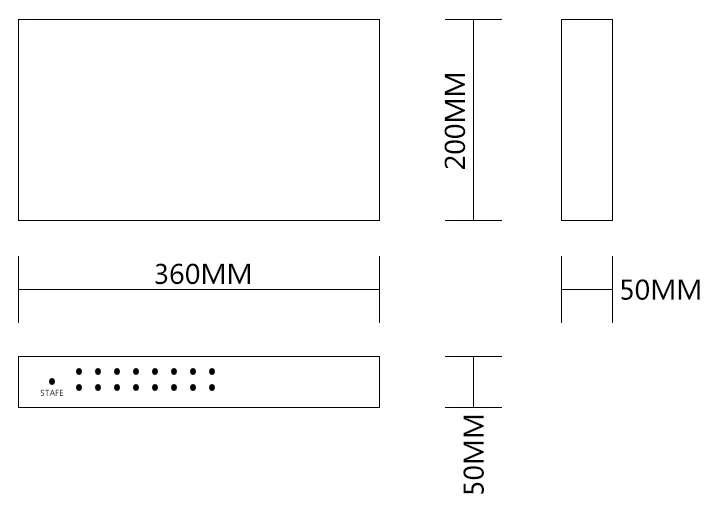

NAR6108/6116 Specification:

       NAR6100 8CH and 16CH Standalone P2P Cloud Voice Logger Data Sheet

Software Interaces:

OEM, Customizable Software, SDK and API for the 2nd development.
One year quality warranty and Life-long repair.

I don't want to exagerate but we are the one of the top 3 manufacturers of "Telephone Recorders / Voice Logger" in China.

Q: What kind of product you make?

A:The main products: Voice Logger / Telephone Recorder, Standalone Type and PC on based Type, P2P Cloud Network Voice Logger.

Q: Are you really manufacturer or trading company?

A: We have our own factory and engineer team. The service including  offering  the technology and support of Telephone voice recorder, PCBs and so on oversea.

Q: What is your MOQ?

There are different standard of MOQ for different goods. If you want to customize but your quantity is small, the price will be higher than the normal one. Because we give the quotation according to the cost of production.

Q: How long will be the lead time for samples and production?

A: Generally, we have the goods in stock when your order quantity is less than 1000pcs, and 2-3 weeks for customize products. As if volume order, pls check with our sales.

Q: What Payment term you are running?

TT, Western Union, Paypal
