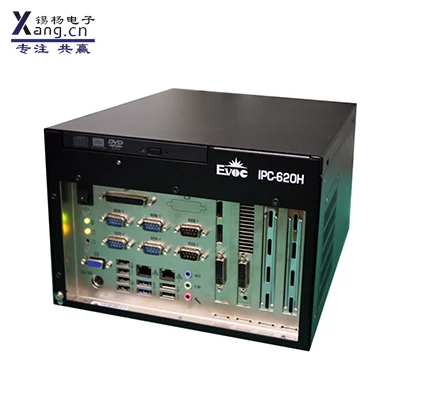

The IPC-620H is a compact wall mount with H81 desktop motherboard with compact size, high performance, and cost-effective features. Fourth-generation I3/I5/I7 Core LGA Processor, Intel ®Pentium ®Processor, Intel ®Celeron ®Processor series processors that support I3/I5/I7 Core ®LGA 1150 pins to provide ultra-high computing power and display performance. The expansion slot on the single board can be used to directly expand the full-height and half-length application card, without the need for an adapter board, and still has good expansion performance in a small volume. The chassis is miniaturized and can meet the needs of installation in a small space.Main application fields: highway, self-help terminal, automatic production and testing, etc.
Product specification
Adaptation motherboard
With Flex ATX size industrial motherboard
Adapt to CPU
Depending on the motherboard configuration: If the H81 platform motherboard is installed, the fourth generation of I3/I5/I7 Core LGA Processor, Intel ®Pentium ®Processor, Intel ®Celeron ®Processor series processors with Intel ®LGA 1150 pins are supported.
Adaptive memory
Depending on the motherboard configuration: H81 platform: 2 DDR3 DIMM slots, 8G on a single strip, up to 16G
I interface
Depending on the motherboard configuration: ECS-1829:6*COM (2 more via LPC bus pins), 2 USB 3.0, 8 USB 2.0, 2 GeB, 1 VGA, 1 DVI, 1 LPT, 1 audio, 1 PS2. ECS-1830:6*COM (2 more via LPC bus pins), 2 USB 3.0, 8 USB 2.0, 2 GeB, 1 VGA, 1 DVI, 1 LPT, 1 audio, 1 PS2
Memory
Support for 1 x 2.5 "hard drive installation, optical drive optional
Bus extension
Depending on the motherboard configuration: ECS-1829 (H81): 4*PCI. ECS-1830 (H81): 2*PCI+1*PCIE × 4+1*PCIE × 16
Working temperature
0 ℃ ~ 50 ℃; 5% ±90% (non-condensed state)
Storage environment
-20 ℃ ~ 60 ℃; 5% 90% (non-condensed state)
Power supply
Mini ATX industrial grade power supply, standard 300W ATX power supplyV
Operating system
Support for WIN7, WIN8, WIN 8.1, WIN XP, LINUX
Outline dimension. (W × H × D)
280mm*165mm*238mm
