Hotmelt adhesive polyurethane TPU film

Product Overview

Description

                              Hotmelt adhesive polyurethane TPU film



 Product Description

a. specification

Product Name	TPU Hotmelt Adhesive Film
Color	Transparent & Clear
Liner	Release paper or Glassine release paper
Thickness	0.05 ~ 0.2mm
Width	1000 ~ 1500 mm
Length	100 yard per roll
Main Composition	Polyurethane
Density	1.18+/-0.02 g/cm3
Melt Flow Index	25+/-5g/10min; Condition: ASTMD1238-04
Rheology Temperature	90~100℃
Operating Temperature	90~165°C
MOQ	100 yard
Delivery time	5-15 Days

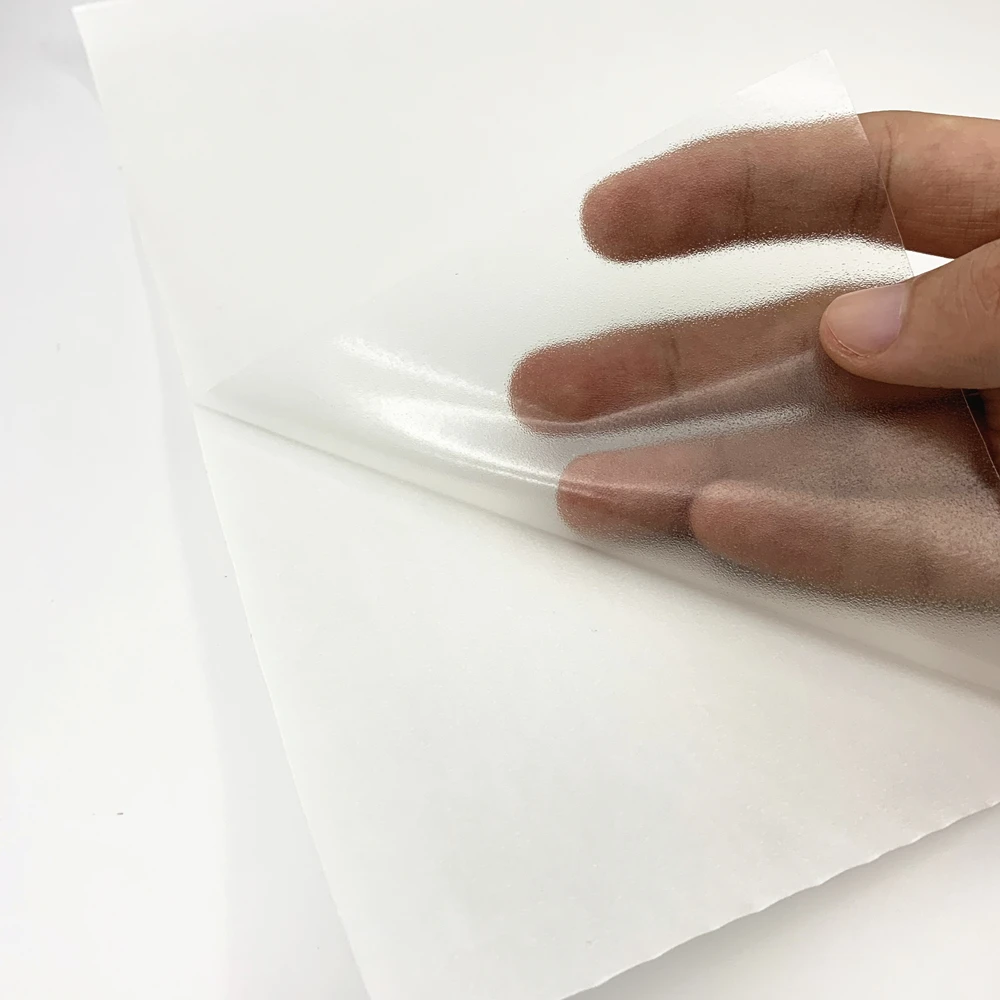

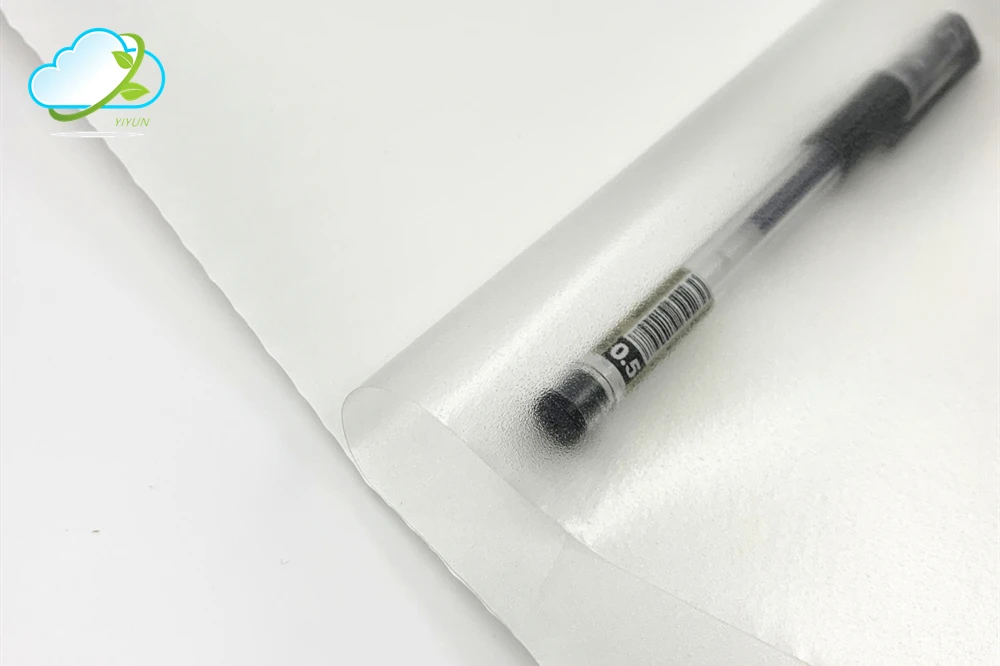

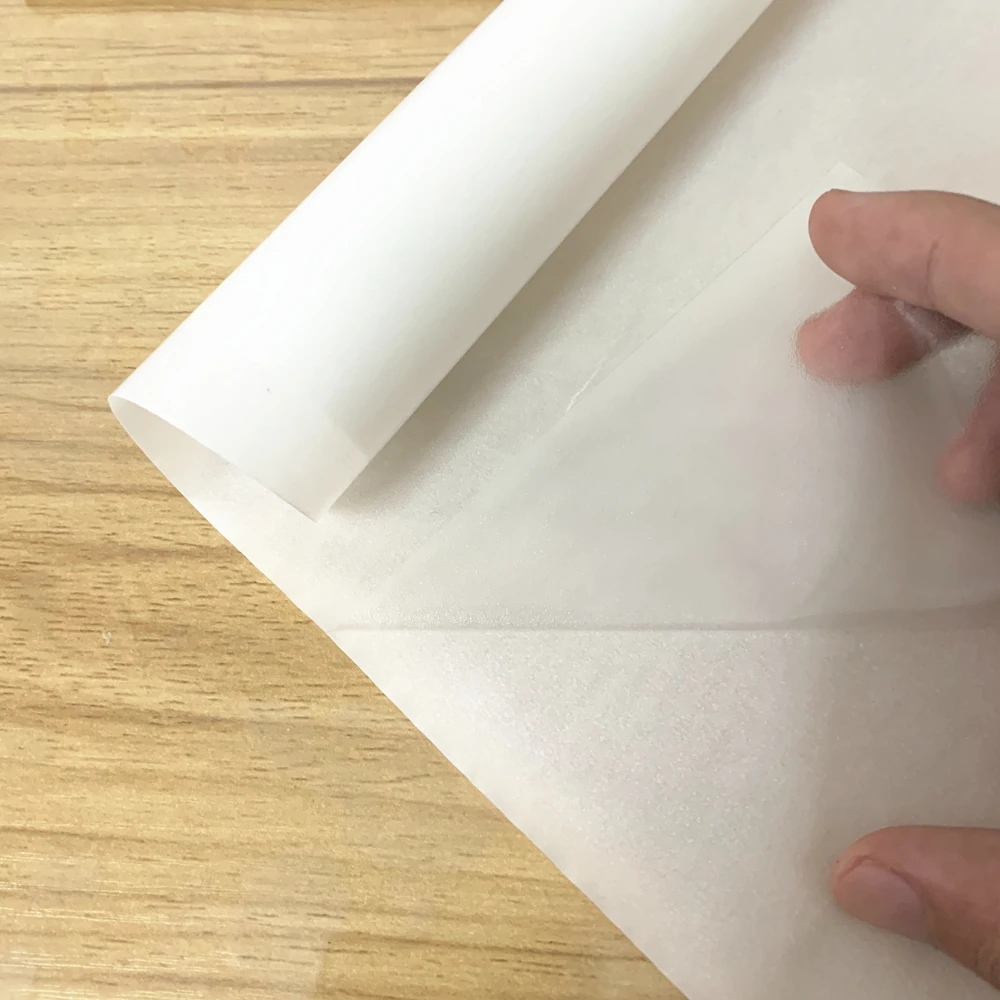

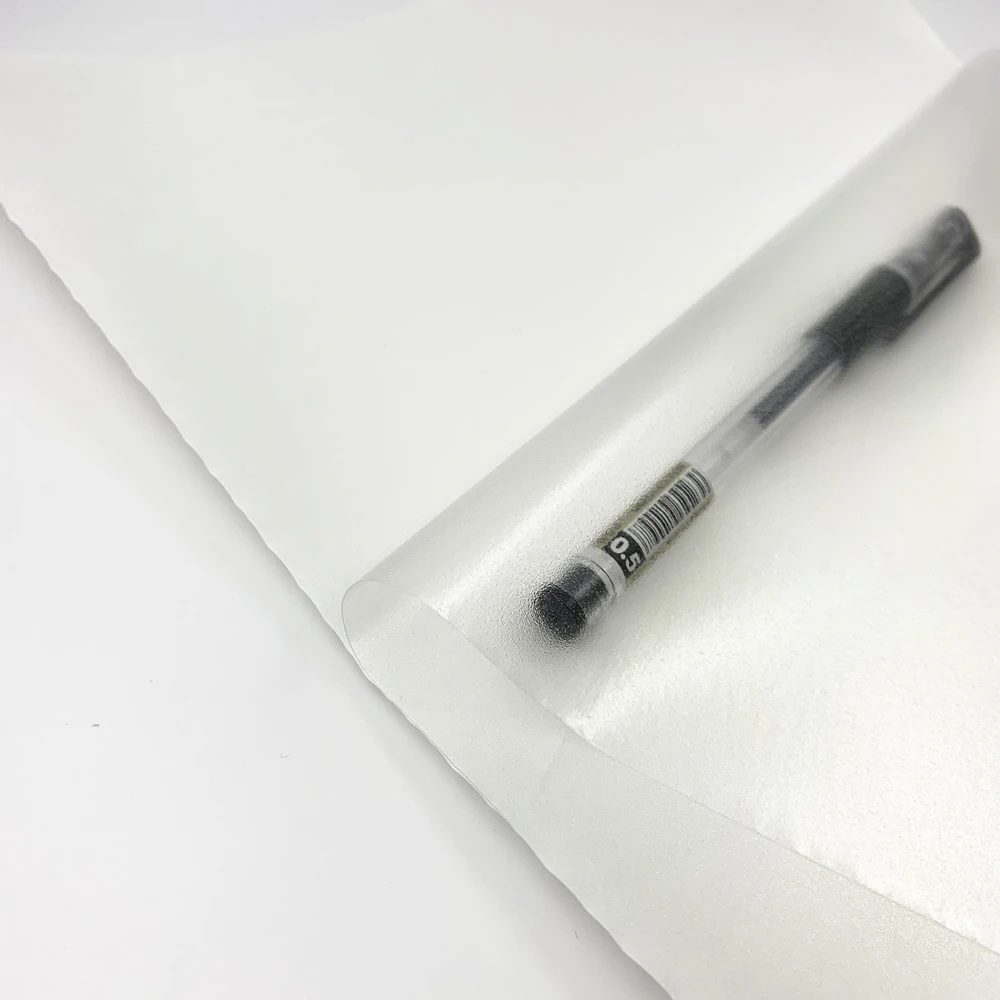

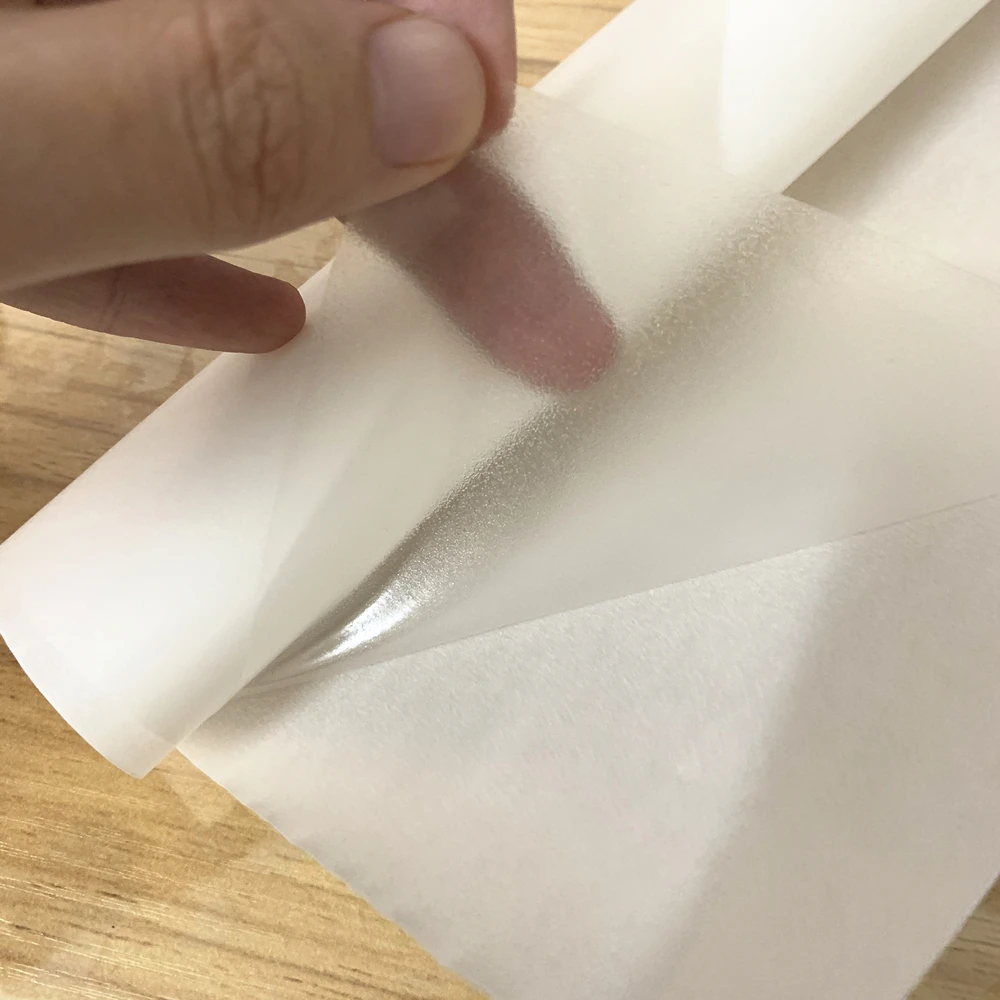

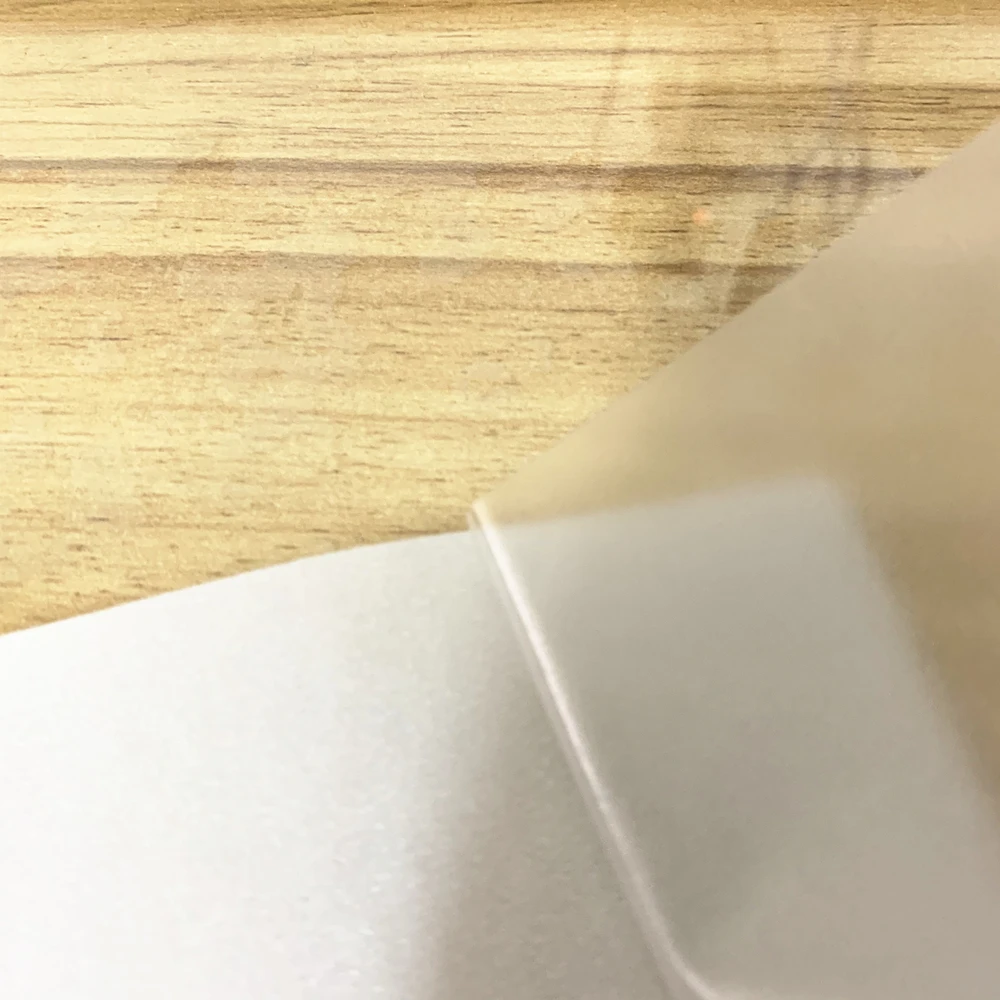

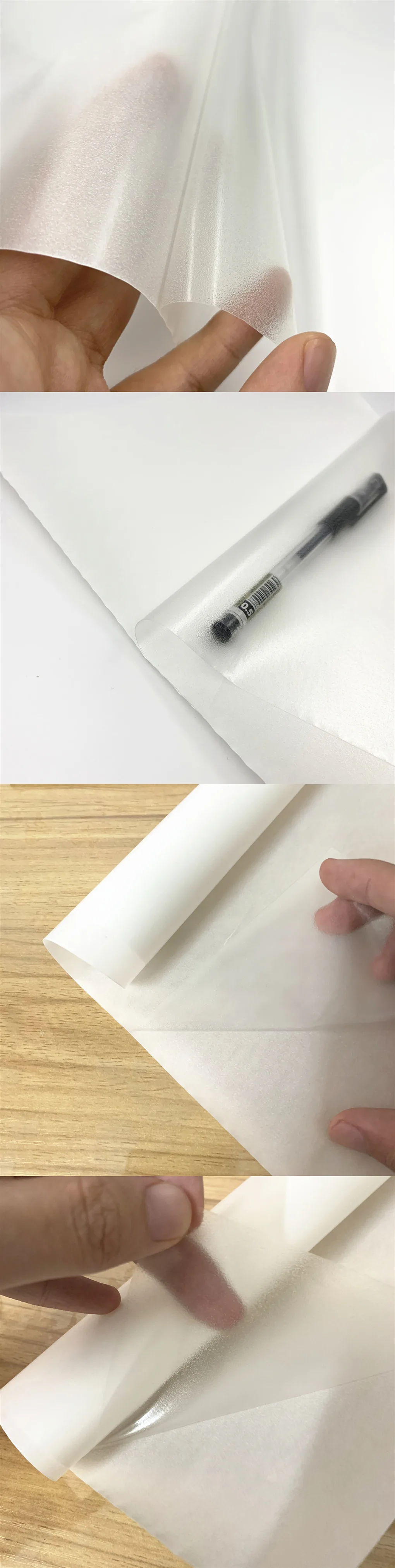

b. pictures



c. recommended bonding conditions



Flat press	Second Flat press
Machine setting: 110℃-130℃	Machine setting: 120℃-150℃
Dwell time: 5-15 seconds	Dwell time: 8-25 seconds
Pressure: 0.3-0.6mpa	Pressure: 0.3-0.6mpa
Notice:                                                                                                                                                                                         1. Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close  to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.             2. In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.



d. advantage

 TPU hotmelt film is mainly used in clothing, shoes, textile accessories, luggage and other materials bonding.

 1.  Clean and eco-friendly;
 2.  High efficiency. The fast bonding speed could make the process done in several seconds.
 3.  Safety. This product is non-solvent and it could not make any hidden trouble in production.
 4.  It has good fastness performance than other glue which could be widely used to laminate many materials.
 5.  Automatic production can be realized.
 6.  Portable and easily operated.
 7.  Reusable. It used for 1st time can be heated up and spun off for the 2nd time usage by heating and melting again.
 8.  Functional features. Good at dry cleaning, washable, low-temperature resistance, high-temperature resistance.
 9.  Can be used as both adhesives and sealants.



 About Us

Shenzhen Yi Yun Eco-Technologies Co., Ltd. is a specialized TPU film research and development, production and sales of professional manufacturers which located in Shenzhen, Guangdong Province. Committed to providing the best product price, quality, delivery time, to meet customer needs.



We provide multi-series TPU film, include normal TPU film, hotmelt adhesive TPU film, medical TPU film, printing TPU film, inflatable TPU film electroplating TPU film etc.



- Transparent, foggy, other any colors can be customized
- 85A, 90A, 95A hardness
- 0.01 mm-2.5 mm thickness range.
- Polyester TPU or Polyether TPU



TPU film has good elasticity, good physical properties, environmental protection and degradation properties, and is widely used in clothing, shoes, medical, luggage, handbags, outdoor products, inflatable products etc.





 Certification



 Exhibition





 Packing & Shipping

a. packing

 - Paper Tube: Use 3 inches diameter tube, G.W have around 2-3kgs.

 - Inner packing: TPU film + soft white foam film + black waterproof film + woven bag or carton.

 - External packing : 25-45 kgs per roll, 15 or 20 rolls per pallet normally.

 - Customized: All package can depend customer's requirements.

b. shipping

 - Contact forwarder and booking.

 - Arrange driver send the tpu film to the warehouse or airport.

 - Make export customs declaration documents.

 - TPU film will be shipped by boat/plane/train/express after export declaration procedure.



 FAQ

Are you a trading company or a manufacturer ?

We are a manufacturer located in Guangdong, China.

What's your minimum order quantity ?

Different types are different MOQ. If we have in stock, there is no MOQ.

What's your price ?

Please advise your quantity and application, we will quote a best price for you.

What's your payment terms ?

T/T, L/C at sight normally, and paypal for small amount.

What's your delivery time ?

7-15days after receipt of your deposit.

If you can provide the sample ?

Yes, sample can be provided with freely.
