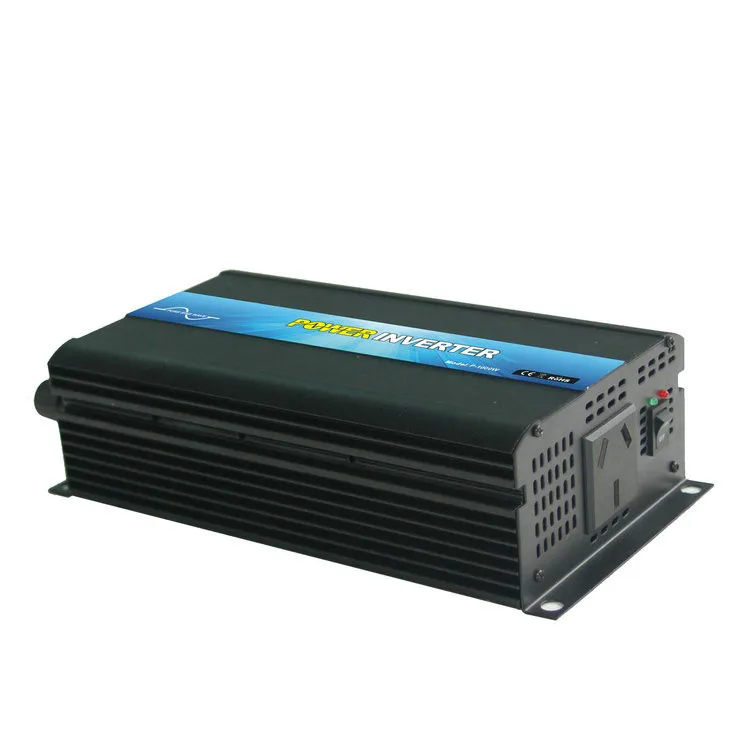

CE&RoHS off grid DC12v/24v/48v AC100v 120v/220v 240v 1000w 1000 watt pure sine wave solar inverter for solar power system
- Category: >>>
- Supplier: Suzhou Maili Electrical Appliance Co. Ltd.
Share on (62358358208):
Product Overview
Description
Main Advantages of dc 24v 230v ac 1000 watt inverter .
<1>Pure sine wave (Very small disturbed THD<3%))
<2>High efficiency >88%~95%
<3>Saving-energy
<4>Small size and portable
<5>Beautiful appearance
<6>Import electrical components from Japan
<7>High quality (CE RoHS SGS ISO approved)
Technical Data
| Product Features : | ||||||
| High transform efficiency ,fast start; | ||||||
| Pure sine wave output waveform; | ||||||
| Softstart function; | ||||||
| Strong adaptability and stability ; | ||||||
| With automatic over-current and output short circuit protection to avoid damage the equipment; | ||||||
| 1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of socket are available). | ||||||
| Function details: | ||||||
| Model | P1000-12A | P1000-24A | P1000-48A | P1000-12B | P1000-24B | P1000-48B |
| Rated Power | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W |
| Peak power | 2000W(wihin 5 millisecond) | |||||
| DC input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| AC output voltage | 110VAC±10% | 220VAC±5% | ||||
| No-load current | <1.05A(DC13V) | <0.85A(DC26V) | <0.48A(DC52) | <1.05A(DC13V) | <0.85A(DC26V) | <0.48A(DC52) |
| AC output frequency | 50HZ±1%/60HZ±1% | |||||
| AC Output wavaform | Pure sine wave | |||||
| Waveform distortion | THD<3% | |||||
| Full load efficiency | >86%(DC13V) | >88%(DC13V) | >90%(DC13V) | >86%(DC13V) | >88%(DC13V) | >90%(DC13V) |
| DC input voltage range | 10.6V~15.5V | 21.6V~30V | 43.2V~63V | 10.6V~15.5V | 21.6V~30V | 43.2V~63V |
| Low voltage alarm | 10.5±0.3V | 21±0.6V | 41.8±1.2V | 10.5±0.3V | 21±0.6V | 41.8±1.2V |
| Low voltage shutout | 9.5±0.2V | 19±0.3V | 38±0.4V | 9.5±0.2V | 19±0.3V | 38±0.4V |
| Over voltage protection | 16±0.5V | 31±1V | 65±2V | 16±0.5V | 31±1V | 65±2V |
| Low volatge recovery | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V |
| Over voltage recover | 15.7±0.3V | 31.8±0.4V | 63±1V | 15.7±0.3V | 31.8±0.4V | 63±1V |
| Over-load protection | 120%~130% | |||||
| Protection function | Low voltage:LED red light turn on,buzzer warning, automatic recovery | |||||
| Over voltage:LED red light turn on ,automatic recovery | ||||||
| Over-load: LED red light on,machine locked, need to be rebooted | ||||||
| Over temperature:LED red light turn on,buzzer warning, automatic recovery | ||||||
| Short circuit(within 2 seconds):automatic recovery | ||||||
| positive and nagetive reversed :fuse burn-out | ||||||
| Work temperature | –10°C- +50°C | |||||
| Storage temperature | –30- +70°C | |||||
| Humidity | 20%~90%RH without condensation | |||||
| working-height | <1200m | |||||
| Size | 295*139*73mm | |||||
| Net weight | 2.57±0.02kg | |||||
| Package size | 380*195*280mm(2pieces) | |||||
| Gross weight | 3.4±0.05kg/1piece; 6.5±0.1kg/2pieces, | |||||
Basic Technical Date (We can produce according to your detail specifications)
<1> Model No: MLP300W~MLP8000W solar invertor
<2> Output Waveform: Pure sine wave
<3> Input Voltage: DC11~16V/DC22~32V/44V~64V
<4> Out Voltage: AC100-~120V/AV220~240V
<5> Output Frequency: 60Hz/50Hz
<6> Full load Efficiency: 90%-95%
<7> Output Harmonic Content: <3%
<8> Phase: Single
<9> Warranty: One year
<10> Export Market: Global
2. Products Features: dc 24v 230v ac 1000 watt inverter
<1> They are featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
<2> Input & output fully insolated.
<3> Soft start: Smooth start-up of the appliances.
<4> pure sine wave output waveform: Clean power for sensitive loads.
<5> Two LED indicators on the front panel shows the working and failure state.
<6> protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
<7> small and light: With the technology of CPU centralized control and SMD inside, the product is very small and light.
<8> intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
<9> Low noise but high efficiency while working.
3. Applications: dc 24v 230v ac 1000 watt inverter
<1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
<2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
<3> Kitchen utensils series: Microwave ovens, Refrigerators, Freezers, Coffee machines, Blenders, Oven, induction cooker, etc.
<4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
<5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.

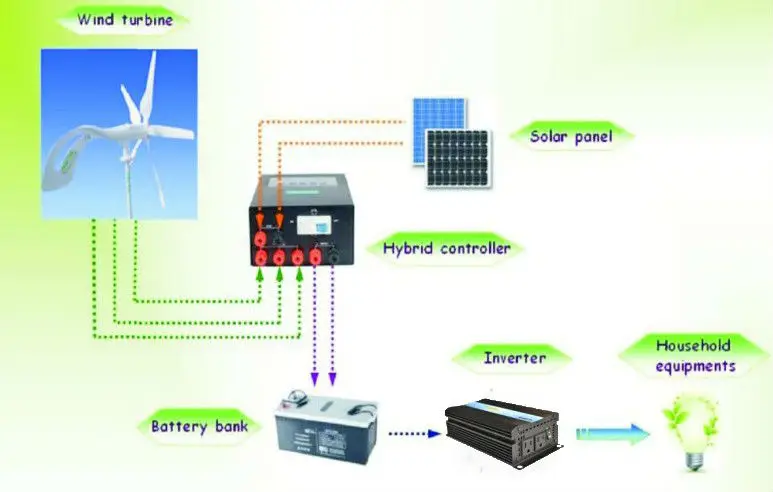

<6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
<7> Power tool series: Electric saw, drilling machine, punching machines, air compressor etc.
4. Detail Pictures :dc 24v 230v ac 1000 watt inverter

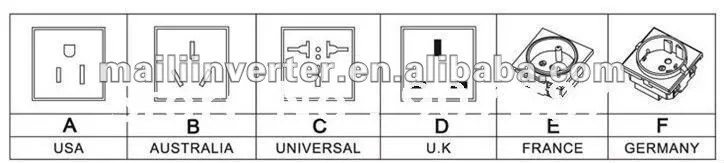

Many kinds of sockets can be chioce (British-style sockets, socket German, French sockets, O-type socket, universal socket, socket GB, American and other outlets. )

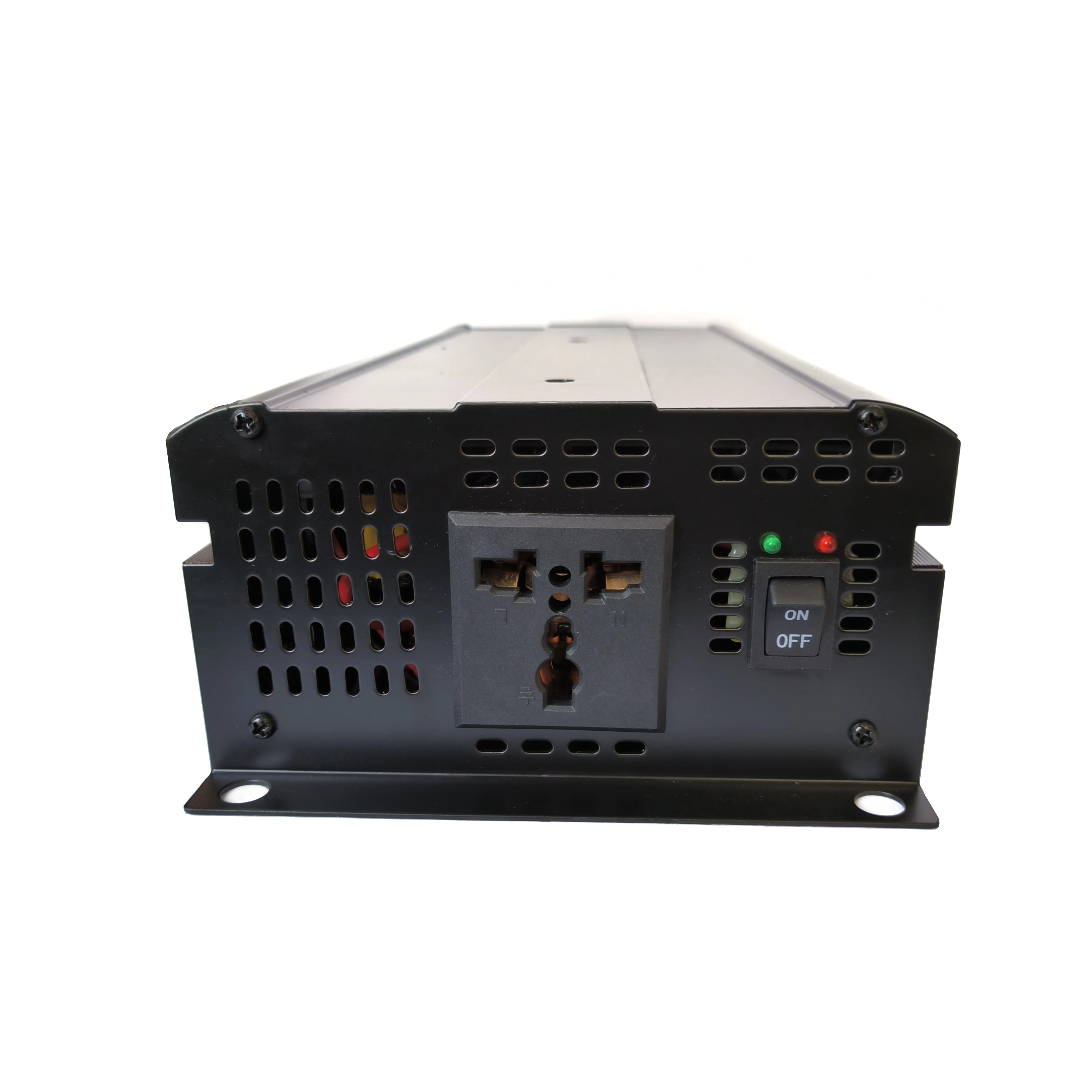

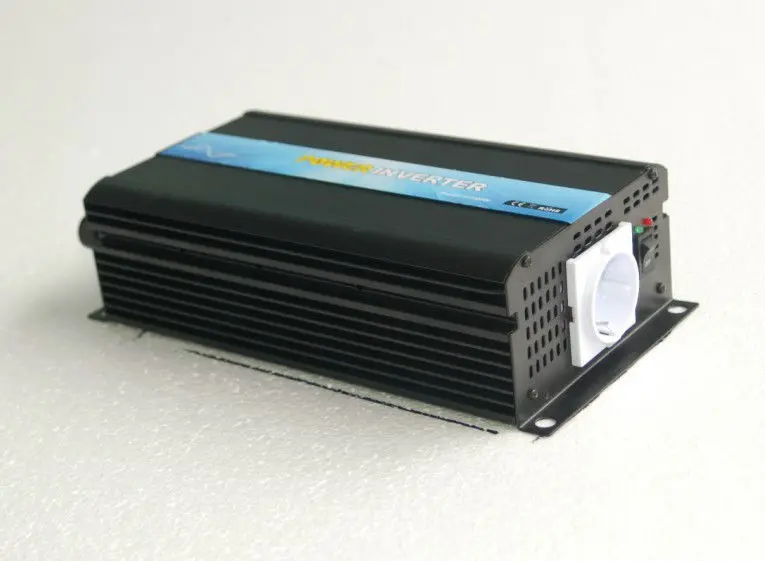

1> Euro socket:dc 24v 230v ac 1000 watt inverter

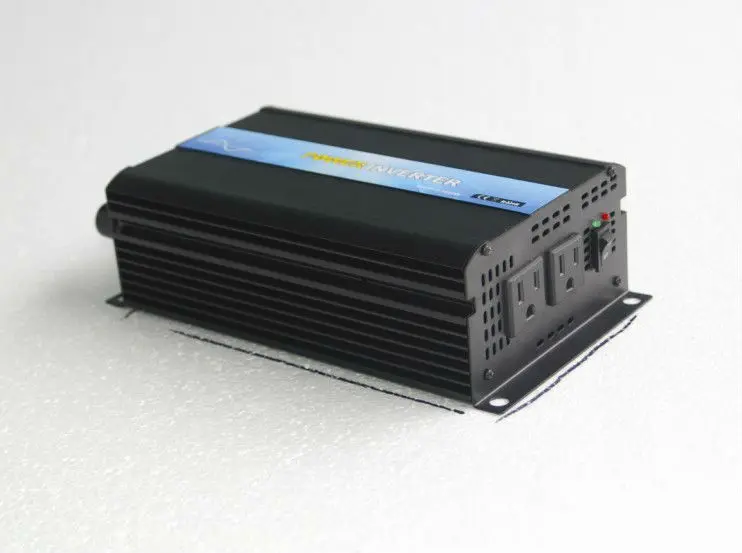

US /JP plug:dc 24v 230v ac 1000 watt inverter

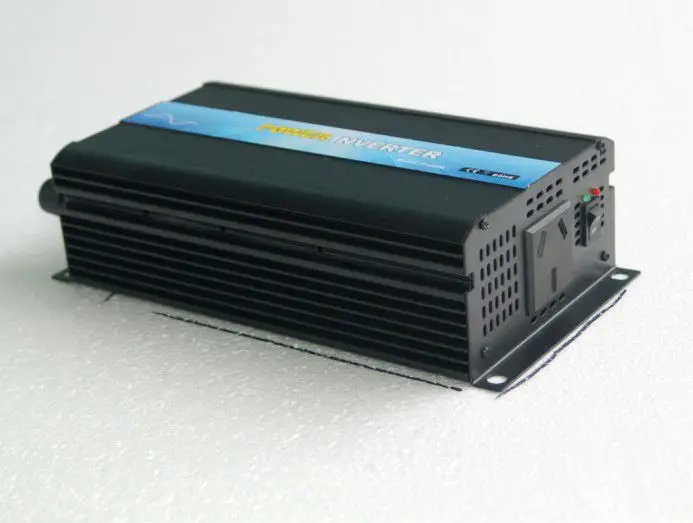

AU socket:dc 24v 230v ac 1000 watt inverter

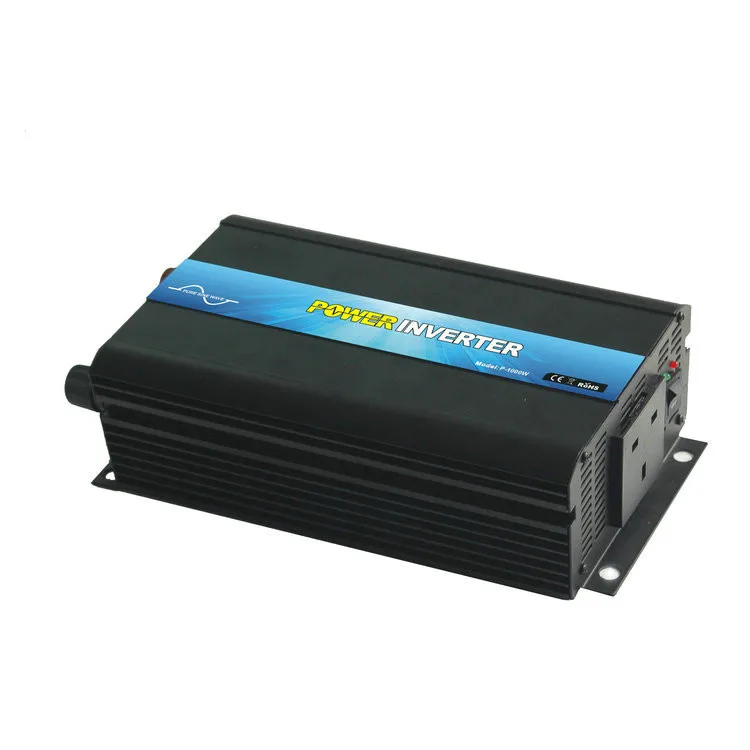

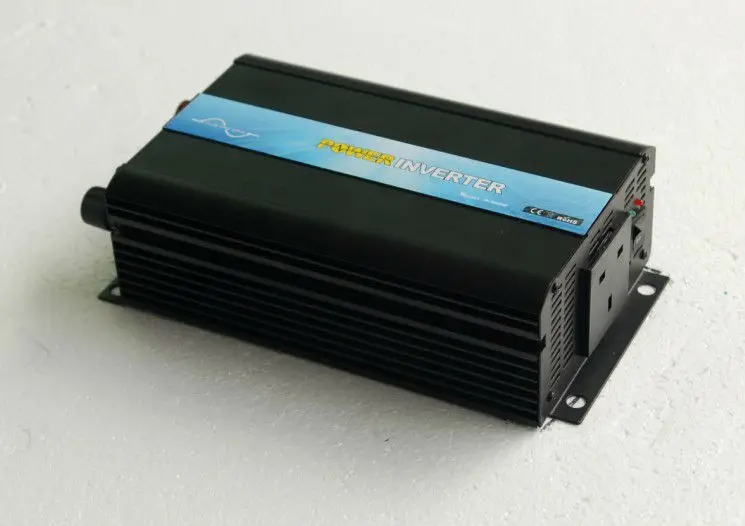

UK socket:dc 24v 230v ac 1000 watt inverter

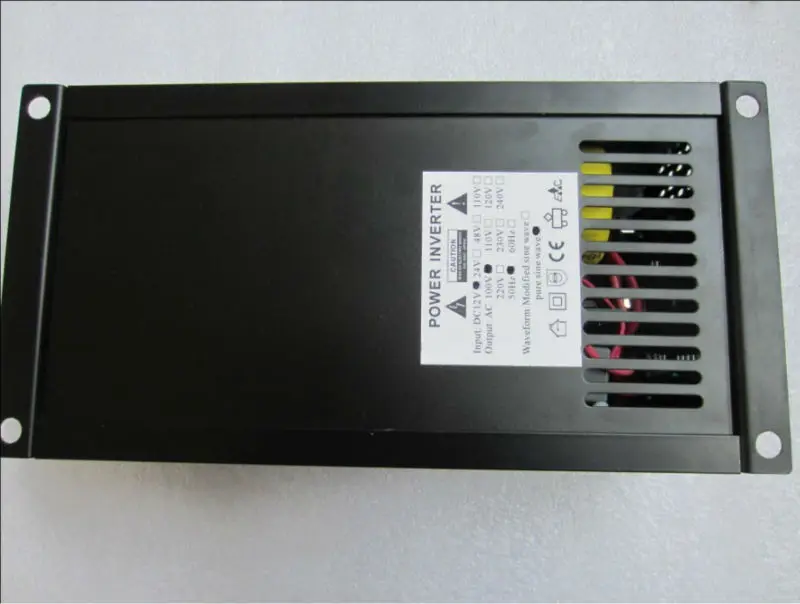

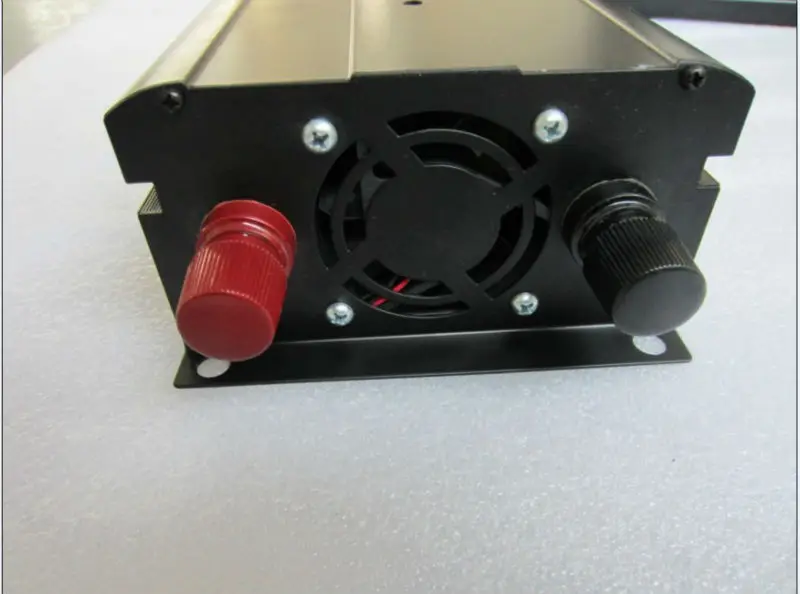

2> Side and Bottom:dc 24v 230v ac 1000 watt inverter

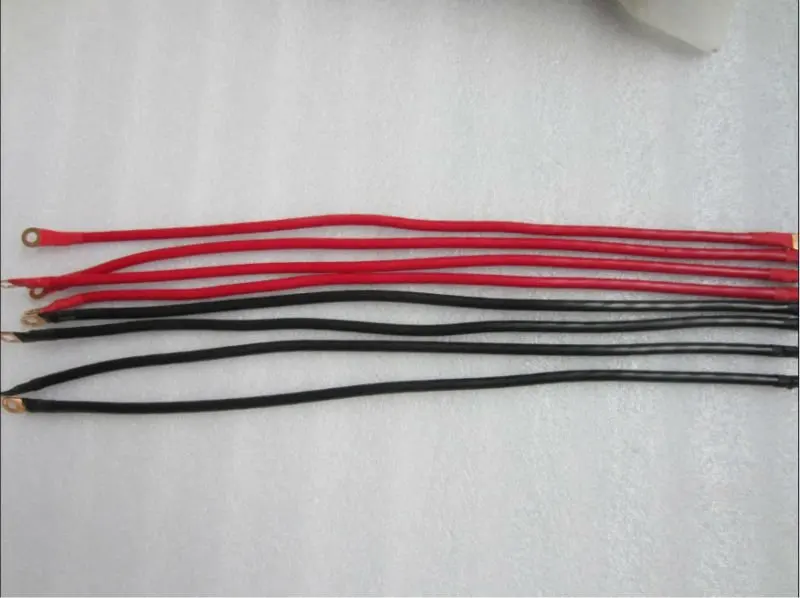

Connecting Cable:dc 24v 230v ac 1000 watt inverter

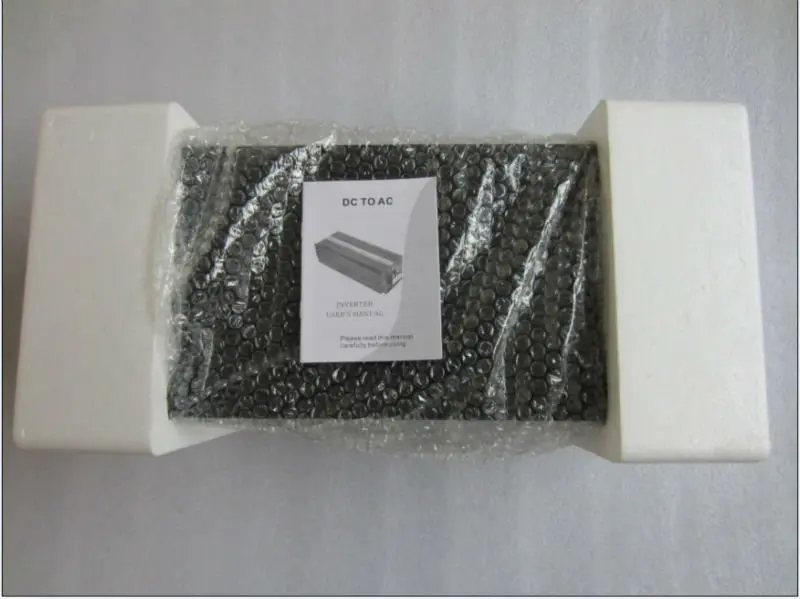

3> Packaging:dc 24v 230v ac 1000 watt inverter
4>Certification:dc 24v 230v ac 1000 watt inverter

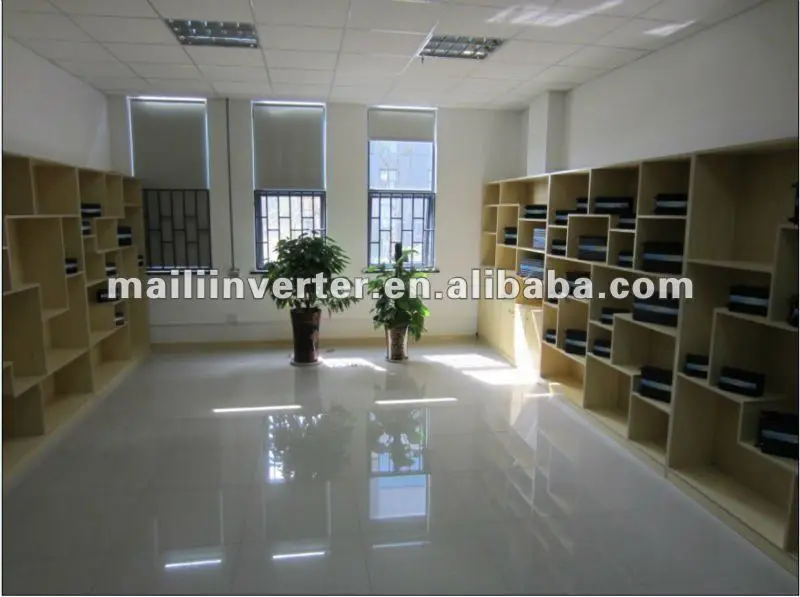

5>Showroom

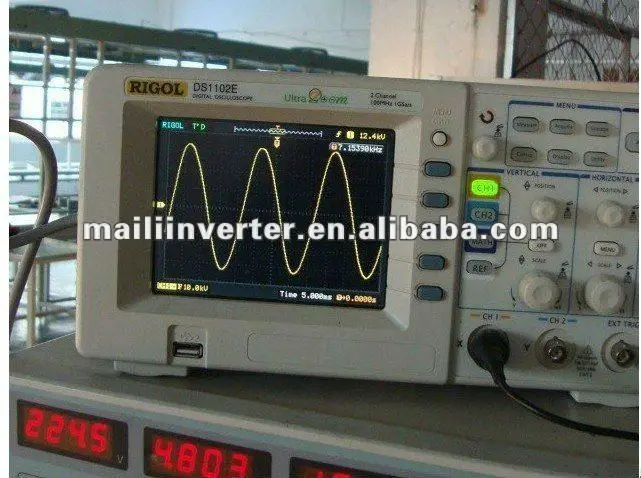

6>Pure sine waveform
