Mppt controlador де карга Солнечный mppt 20A
- Category: Solar Charger Controllers >>>
- Supplier: Jiaxing Solarway New Energy Co. Ltd.
Share on (62358367317):
Product Overview
Description

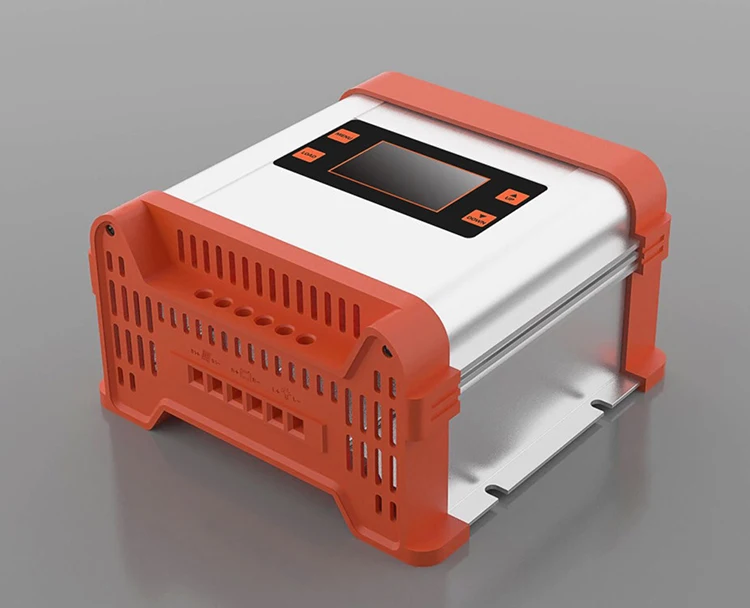

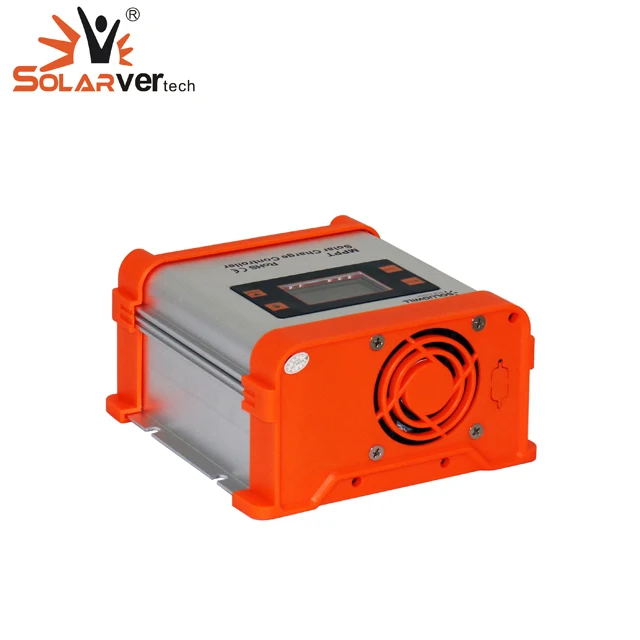

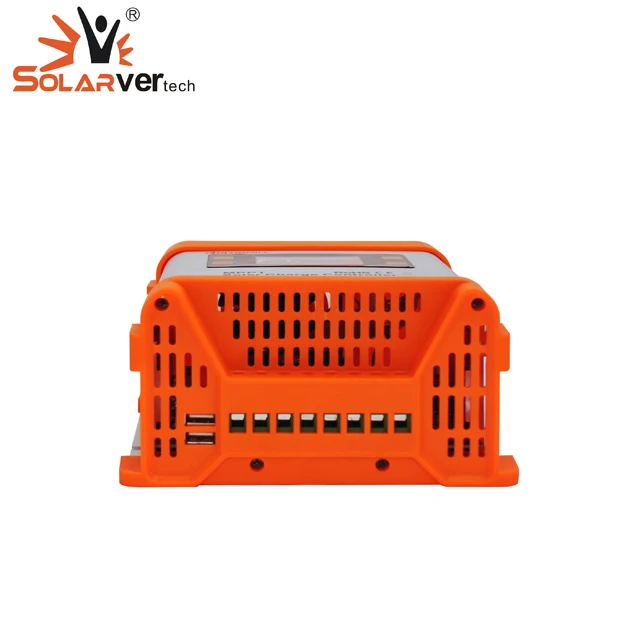

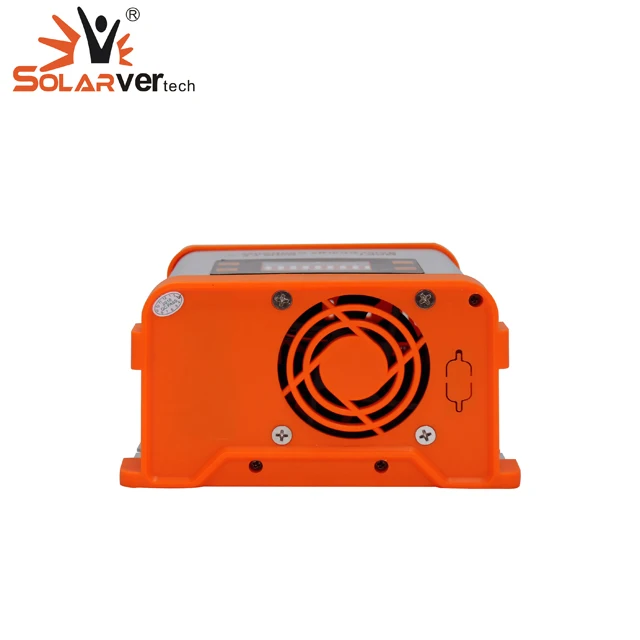

mppt controlador de carga solar mppt 20A
Company Information
Solarway is a professional off-grid power inverter supplier, is a sino-german joint venture, mainly engaged in off-grid power inverter/MPPT and PWM controller, research and development, manufacturing and sales, we can provide customers with off-grid power INVERTER OEM and ODM. The factory is located in Jiaxing, Zhejiang Province, China. We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany.
Product Description
Description:
MPPT solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%.
Protection Features:
It adopts latest MPPT technology (MaximumPowerPointTracking)and advanced tracking algorithm
Peak conversion efficiency of 97%
High Tracking efficiency of 99%
Sealed, Gel and Flooded battery option
Nature convection cooling
Temperature compensation
Fully electronic protection
Multi-stage charging optimizes battery performance
LCD display, system information intuitively
Comprehensive protection
Excellent heatsink cooling design, quiet operation

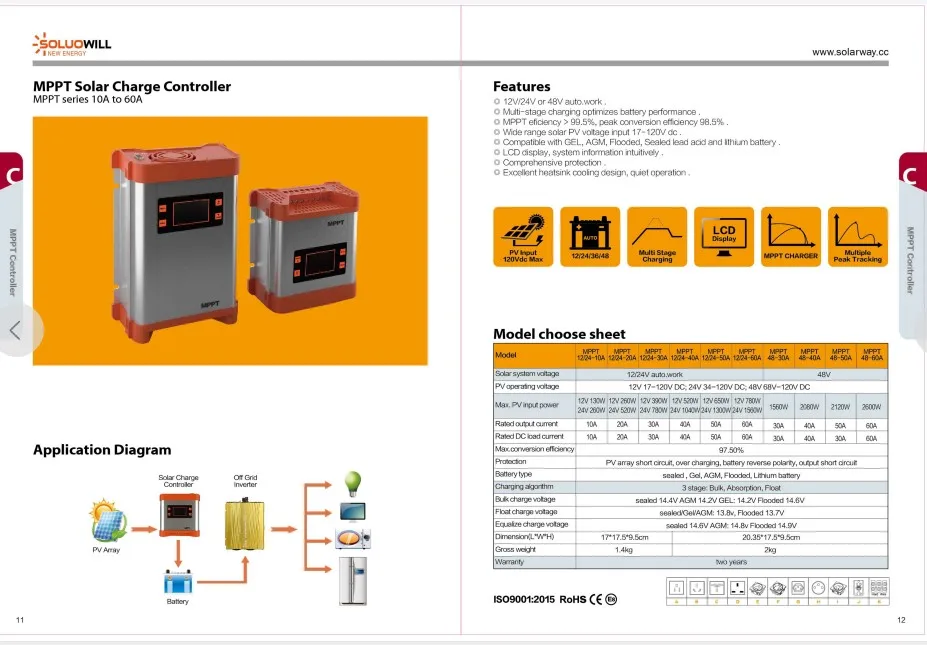

Product details
| Model | MPPT12/24-20D |
| Solar system voltage | 12/24V aoto.work |
| PV operating voltage | 12V 17-120V dc; 24V 34-120V dc; 48V 68V-120V dc |
| Max. PV input power | 12V 260W 24V 520W |
| Rated output current | 20A |
| Max.conversion efficiency | 97.50% |
| Protection | PV array short circuit, over charging, battery reverse polarity, output short circuit |
| Battery type | sealed , Gel, AGM, Flooded, Lithium battery |
| Charging algorithm | 3 stage: Bulk, Absorption, Float |
| Bulk charge voltage | sealed 14.4V AGM 14.2V GEL: 14.2V Flooded 14.6V |
| Float charge voltage | sealed/Gel/AGM: 13.8v, Flooded 13.7V |
| Equalize charge voltage | sealed 14.6V AGM: 14.8v Flooded 14.9V |
| Warranty | two years |
Technical Parameters
Hot Sale

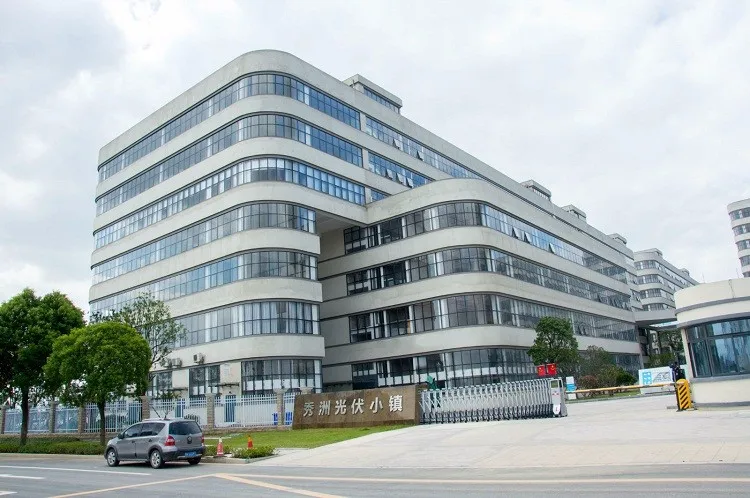

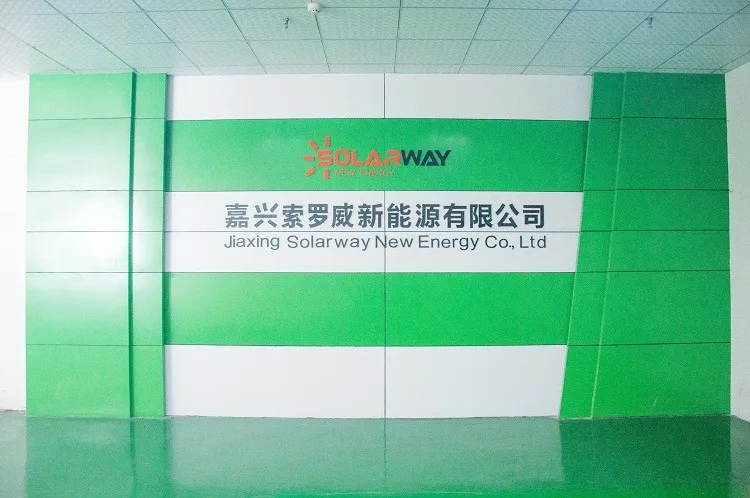

Our company
SOLARWAY NEW ENERGY CO., LTD- a Germany funded enterprise. We dealing with the designing, development and manufacturing of products that suit for the global solar energy market. At present, we mainly produce and selling the products used for off-grid power system in all over the world.
We focusing on the effective functioning of off-grid power system, providing them with high quality, highly reliable and cost efficient energy storage technology and system components.
The Company is dedicated to the R&D, and production of DC TO AC power inverters, solar charge controller, battery chargers, inverter with charger, DC to DC converters, portable solar power system and other related parts for off-grid power systems.
We have branches mainly in Asia and Europe, at present including 2 production bases and 2 R&D centers in china. And we has established a technical service center in Germany, which can providing the European customers with convenient services and technical supporting.
Exhibition
Packaging & Shipping
Service
FAQ
