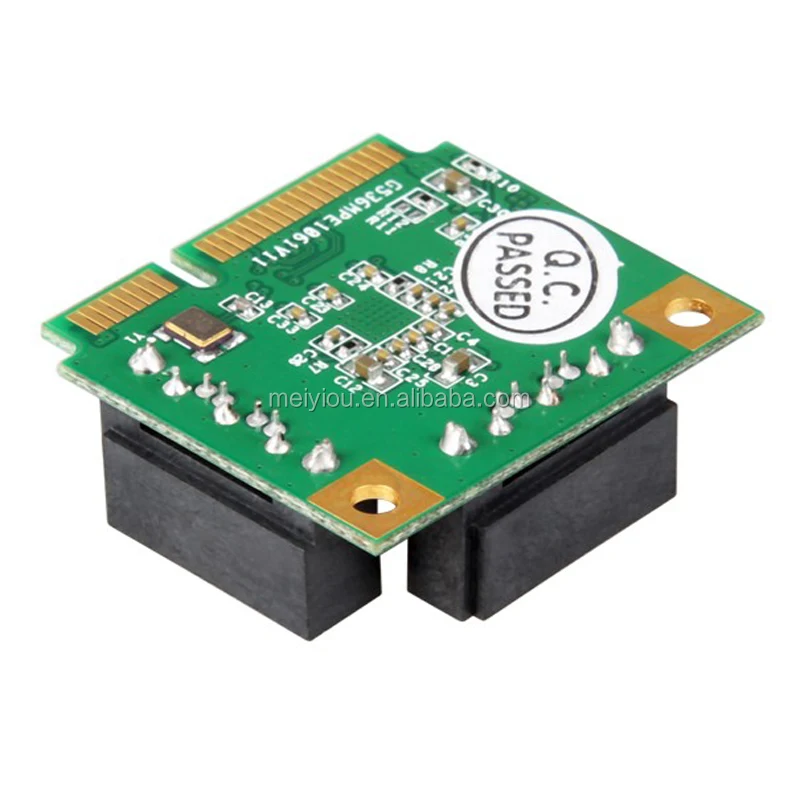

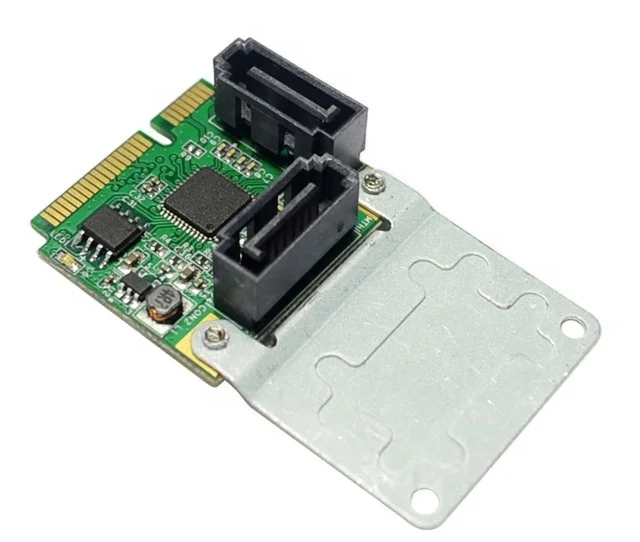

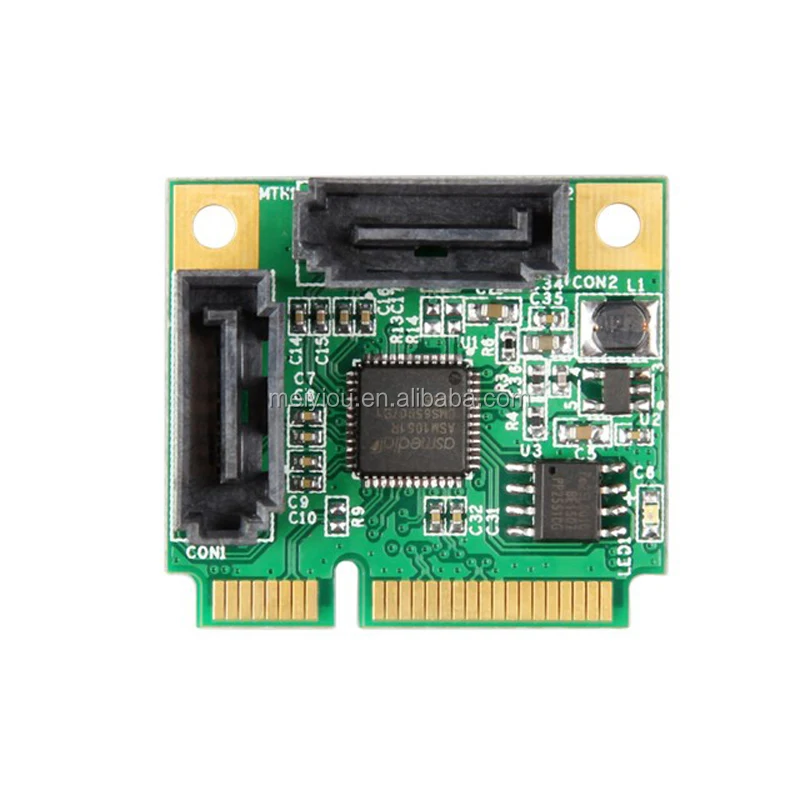

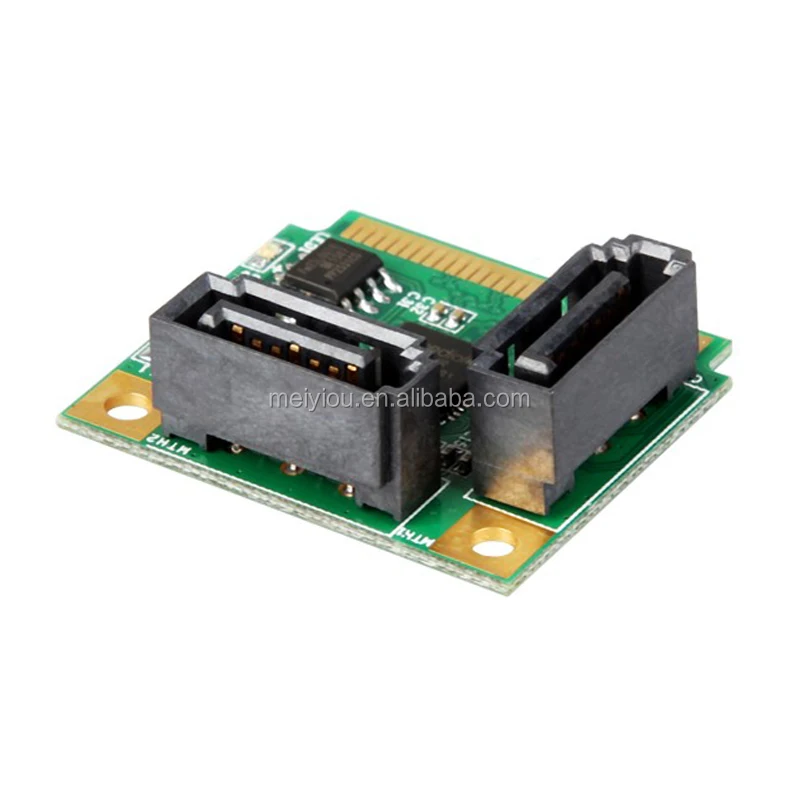

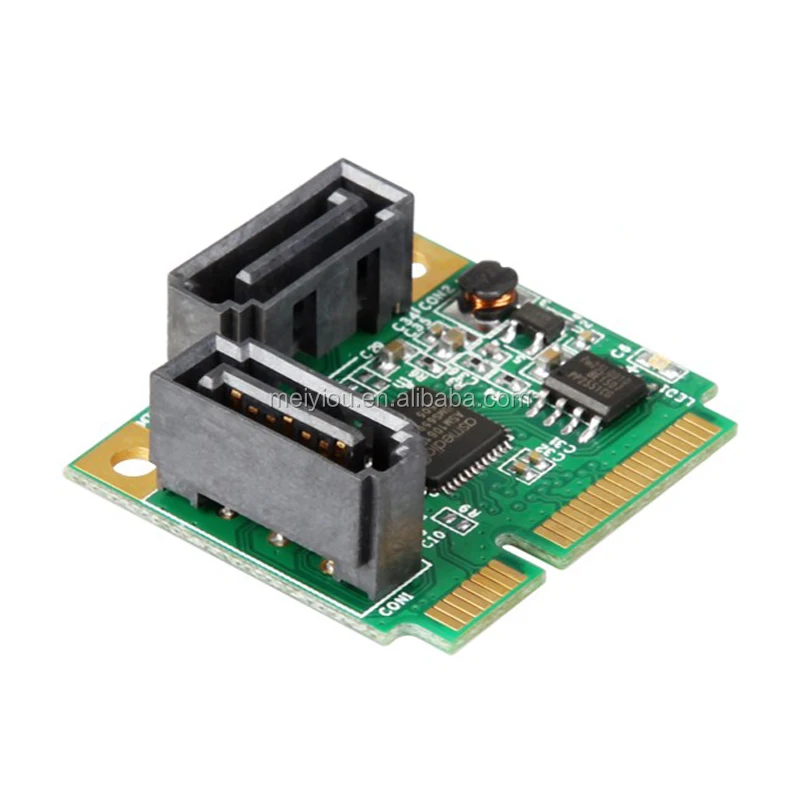

RAID 2 Ports SATA 3.0 mini PCIe Controller Card mini PCI e to Dual SATA III 6Gb converter RAID0 RAID1 JOBD bracket

Product Overview

Description

The Mini PCI-Express SATA controller card enables Serial ATA PHY up to 6.0Gbps high speed interface utilizing a native 1-Lane PCI Express 2.0 interface. The card supports SATA 6Gbps devices compliant with Serial-ATA Revision 3.0 specification. It is also backward compatible with SATA 1.5Gbps and 3.0Gbps devices

Industry Specifications Compliance:

Compatible with PCI-E Mini Card Electromechanical specification revision 1.2

Serial ATA AHCI Spec. Rev.1.3

Serial ATA Revision 3.2

Serial ATA Features

Supports 2 ports Serial ATA PHY

1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation

SATA PHY 1i/1m/2i/2m/3i

Supports AHCI and IDE programming interface

Supports Native Command Queue (NCQ)

Supports Port Multiplier command based switching

Embedded hardware RAID engine

Supports RAID0, RAID1, SPAN

RAID mode changeable, controlled via the setting by two GPIOs or GUI utility

RAID0 high performance for the data transmission

Supports S.M.A.R.T feature

Supports automatic rebuild

Supports high performance off-line rebuild

Supports background rebuild

System Requirement
Computer system with one Mini PCI-Express slot available

Windows® 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

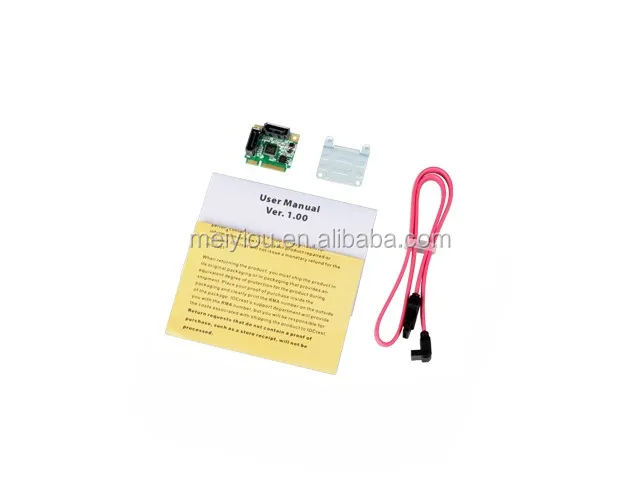

Package Contents:
