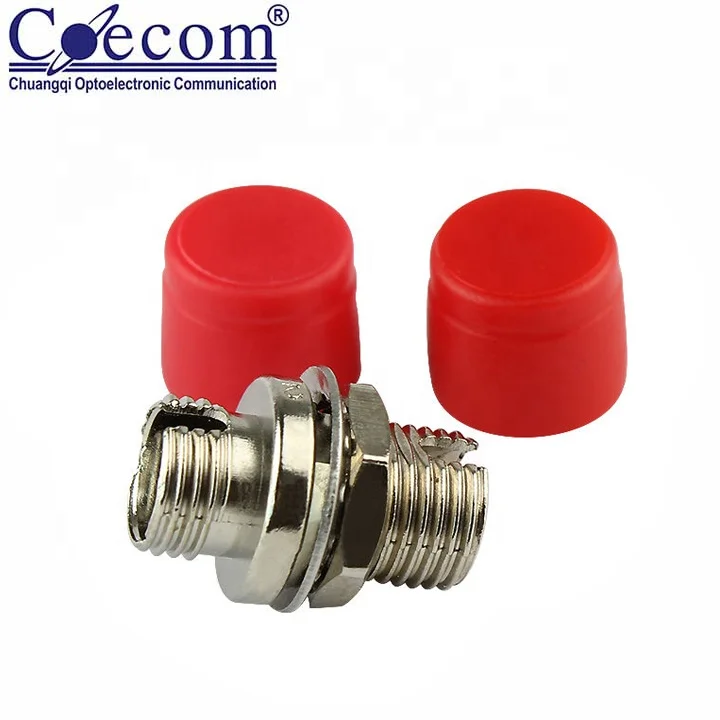

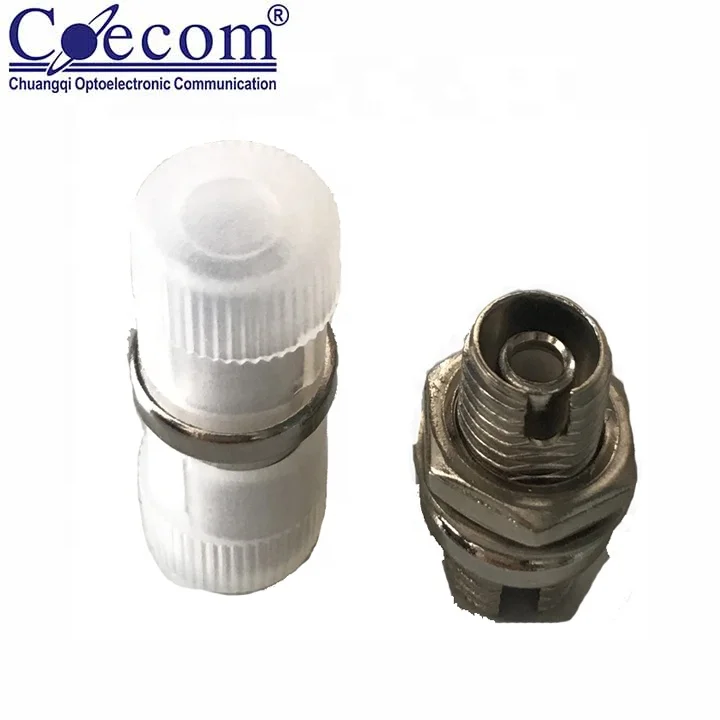

Cheap Price Metal FC Fiber Adapter Fiber Optic Coupler FC Fiber Optical Adapter to SC LC ST for Communication Equipment
Function & application

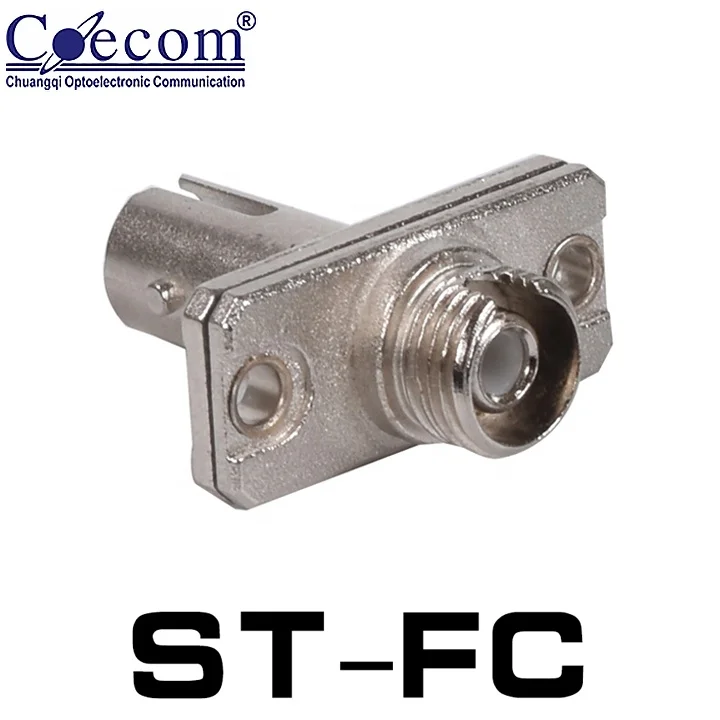

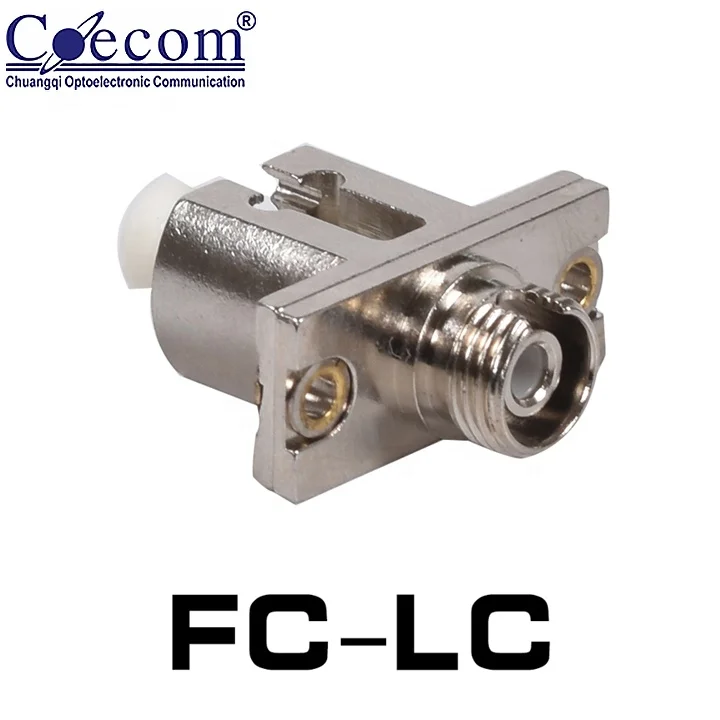

Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc.Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
- Fiber optic transmission system
- Fiber optic sensing
- Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Main features
Low insertion loss
- High return loss
Easy to be installed
Various specifications
Good environmental stability
Product parameters
Cheap Price Metal FC Fiber Adapter Fiber Optic Coupler FC Fiber Optical Adapter to SC LC ST for Communication Equipment
| Product name | FC Fiber Adapter Fiber Optic Coupler FC Fiber Optical Adapter | |||||||||

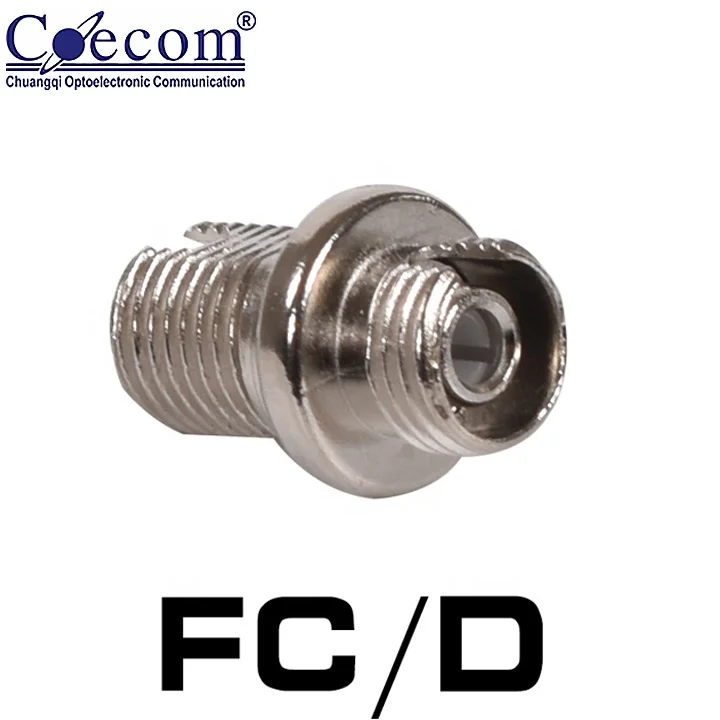

| Product Type | FC or FC/D | ST | SC | LC | SMA | ST/SC | FC/SC | FC/ST | Utralow insertion loss (FC SC ST) | |
| Insertion loss | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.5 | ≤0.4 | ≤0.5 | ≤0.1 | MM≤0.05 | SM≤0.1 |
| Repeated mating | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.05 | |
| Sleeve material | Mainly zirconia ceramic, phosphor bronze can be optional | |||||||||
| Plug and unplug | ≥500 (times) | |||||||||
| Insertion force | 300-600(g) | |||||||||
| Operating temperature | -40~+70(°C) | |||||||||
| Storage temperature | -55~+85(°C) | |||||||||
| According standard | BelicoreTA-NWT-001209 | |||||||||
| Note | 1. Optical jumper connectors are similar to wire plugs,adpters are similar to outlets. 2. The key indicators of adapter are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3. The performance of ceramic sleeve is better than phosphorus bronze sleeve. | |||||||||
