Tool Sensor 3D Cnc Wood Carving Machine Prices In Sri Lanka

Product Application

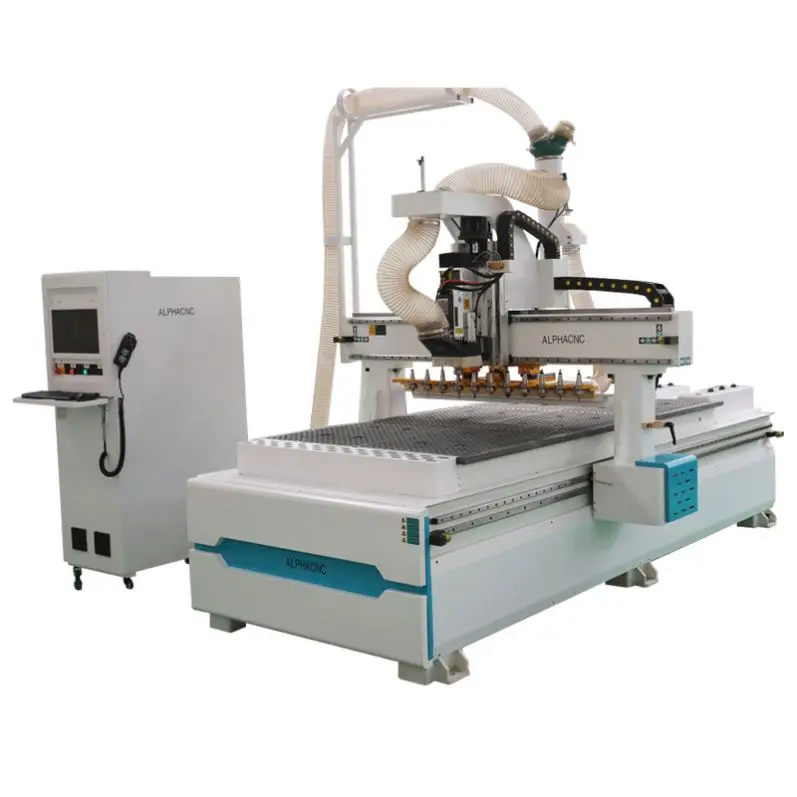

Alpha APS CNC Router is manufactured using global state-of-the-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 9KW(12HP) high frequency automatic tool changer spindle with 8-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes Servo motors and controls with a Taiwan industrial LNC controller.
The main advantage of the machine is the tool rack moving together with the machine gantry, which will save the tool change time.
The machine can cut about 50 pcs of wood board per 8 hour.

It can process wood, MDF, chipboard, plywood. It is widely used in the cabinet making industry. And it also can process acrylic, plastic, soft metal and many other different materials.

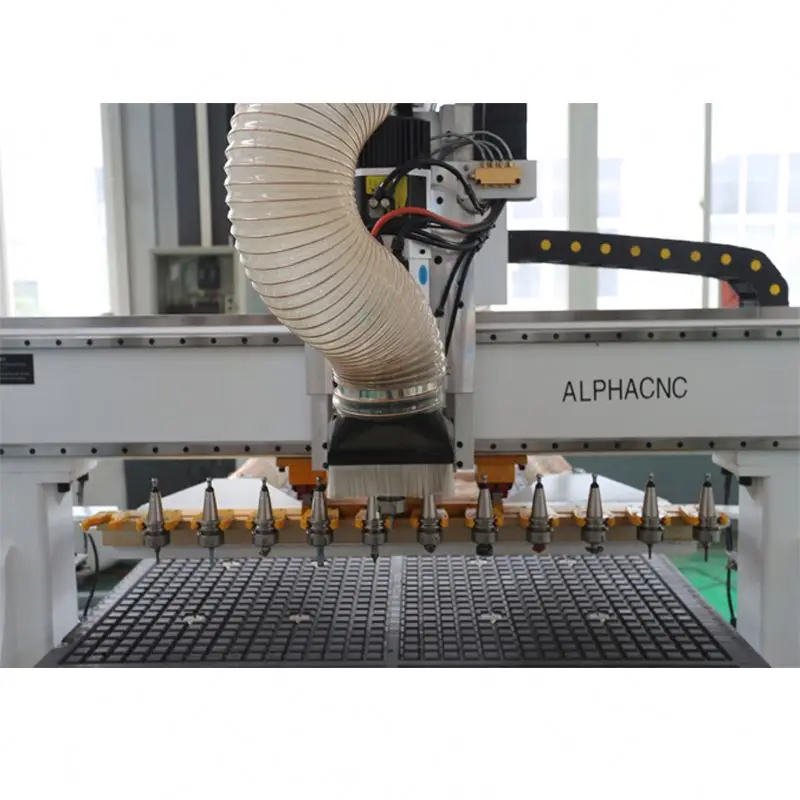

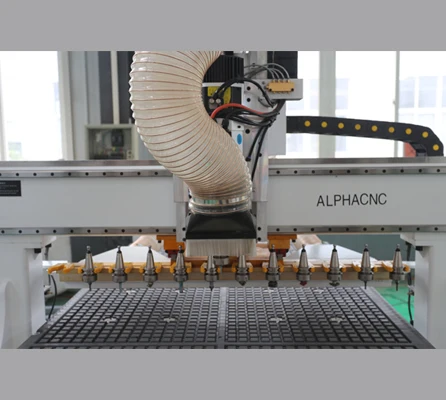

8-position Tool Rack

The Alpha APS CNC Series machine includes an 8-position tool rack. The tool rack move together with the machine gantry, which will save the tool change time.

When changing the tool, the cylinder will punch the tool rack out and then change the tool. After the tool change is finished, the tool rack go back and then the spindle start to work.

Thick Steel Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

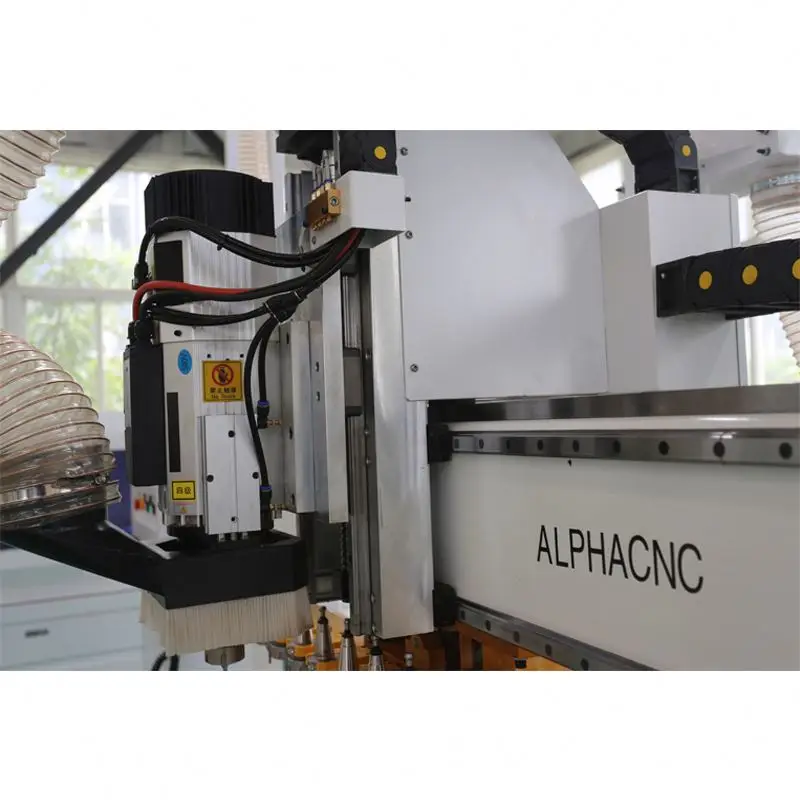

9KW High Frequency Automatic Tool Changer Spindle(Italy HSD spindle is for optional)

The Alpha ATC CNC Router machine comes standard with a 9kw HQD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

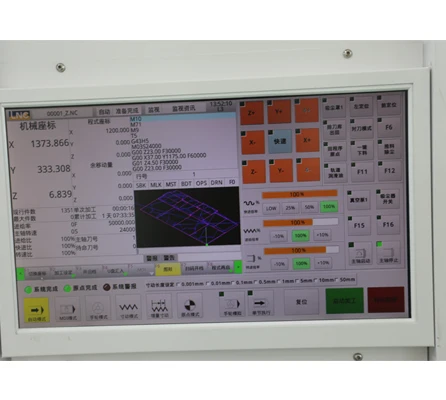

Taiwan LNC 4 axis Controller with big screen

# With Big screen
# Use keyboard + mouse operation
# Controllable single path 4 axis
# Support all kinds of pulse type drivers
# Interpolation is available for a variety of wood processing needs
# Support a variety of woodworking machine standard features
# Woodworking machine exclusive operation interface
# Support U disk

Leadshine Servo Drive Motors

Composed of: servo drives and the servos move in all axes.
With this motor, the machine can realize high-precision machining at high speed.

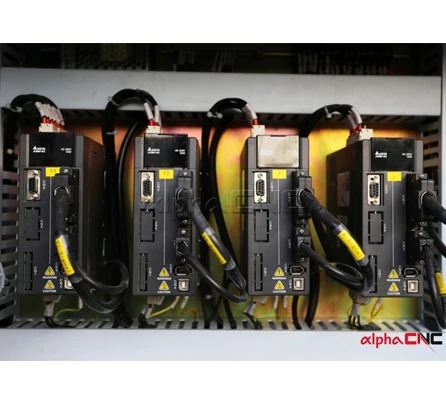

Leadshine Servo Motor Driver

Composed of: servo drives and the servos move in all axes. With this motor, the machine can realize high-precision machining at high speed.

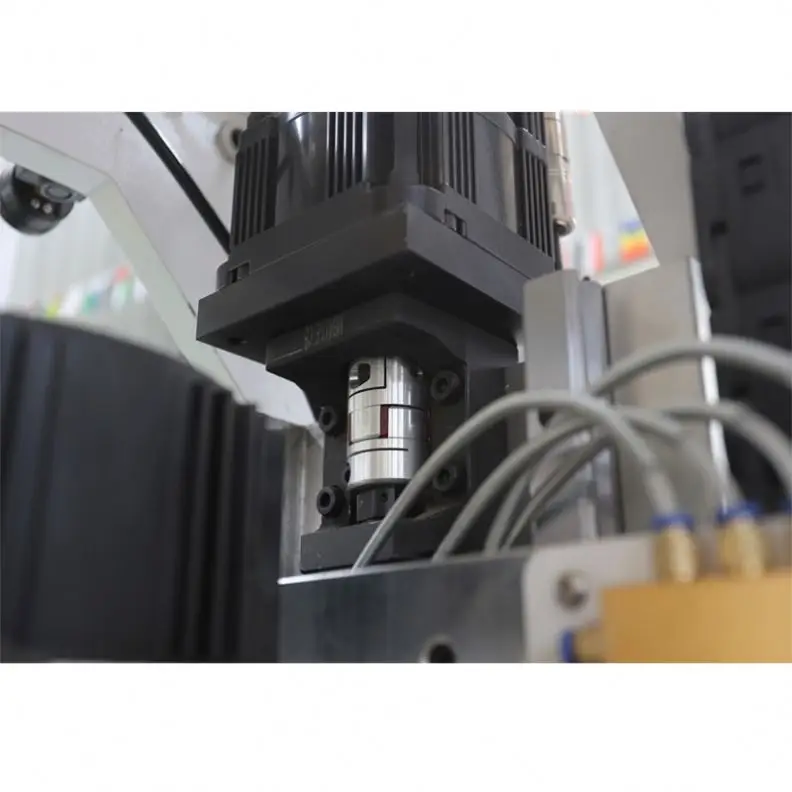

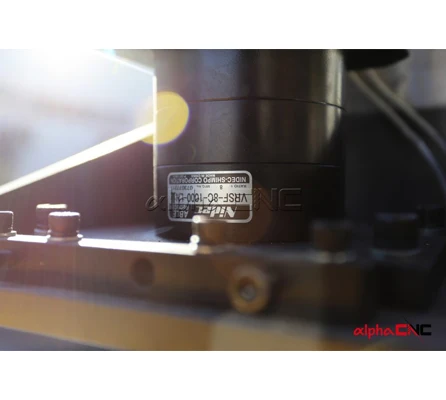

Japan Shimpo gear reducer

The Alpha APS Series CNC Router utilizes Japan Shimpo gear reducer. These gear reducers are with high precision, and it can increase torque, therefore make the motor more powerful.

Hiwin/TBI Square Rail on XYZ Axis

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

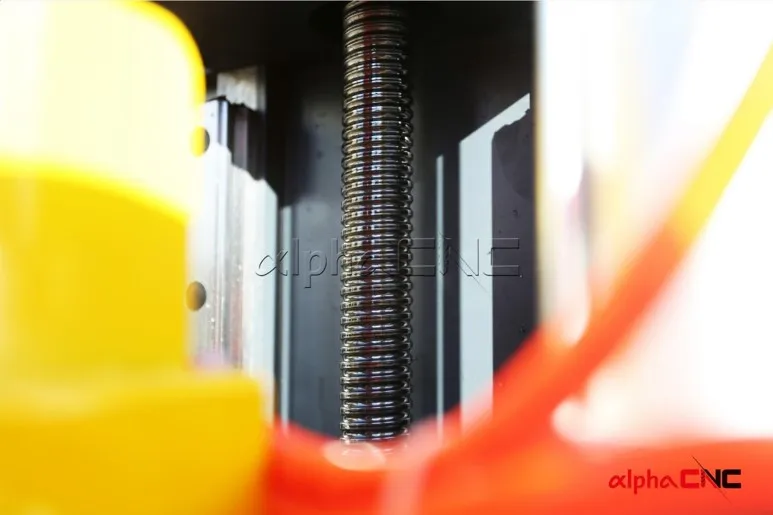

Z Axis High precision TBI ballscrew

The machine uses high precision TBI Ballscrew on Z axis to ensure the machine with higher precision and longer service life.
The TBI Ballscrew has the following advantages:
* High Reliability
* Smooth Operation
* High Rigidity and Preload
* High Durability

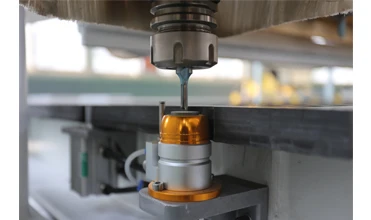

CNC Tool Calibration

The Tool holder support mounting plate is milled by the CNC machining center. To make sure the tool holder is high precision.

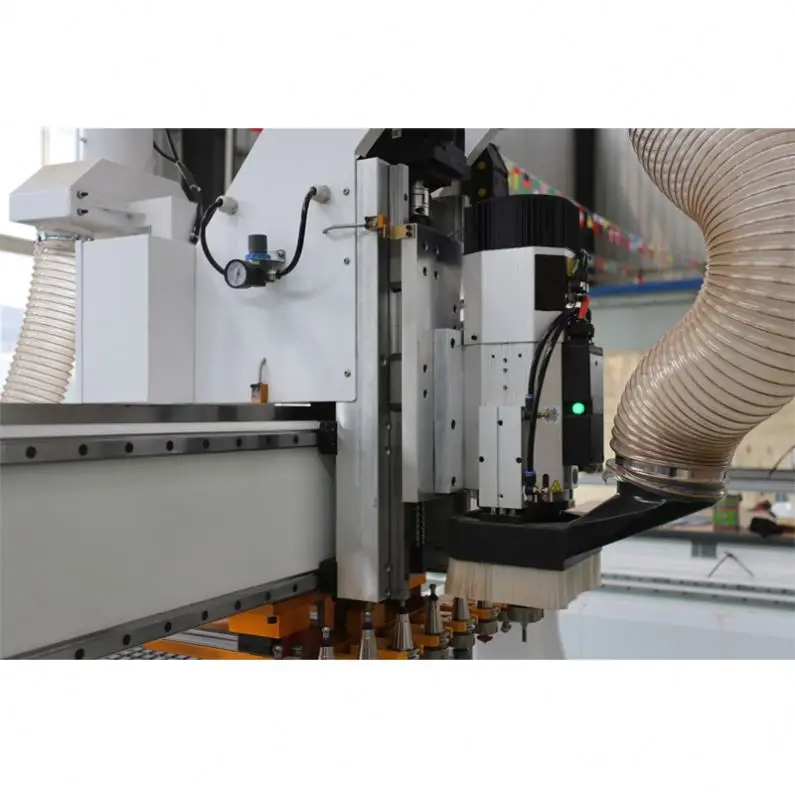

Double Vacuum brush

The machine comes with a vacuum brush at the back of the machine beam. The function of the vacuum brush is to absorbs the small wood chips that have just been cut. Prevents the scum from affecting the vacuum sucking function. It will make the machine vacuum suck the material more firmly.

Hybrid Vacuum and T-slot table

The APS CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported.
The vacuum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing, (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

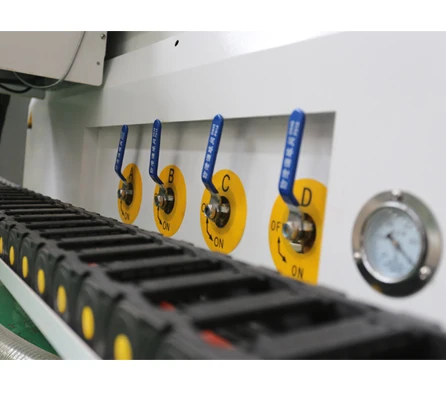

Vacuum function switch

The APS Series Machine also includes a heavy-duty aluminum T-Slot profile in multiple locations across the table surface. This T-Slot accepts Alpha’s square M6 T-nuts.

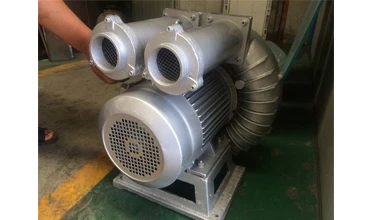

7.5kw Vacuum Pumps

7.5kw dry Rotary Vane Vacuum Pump Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router.

Pneumatic Material Alignment Stops

The Alpha AIS ATC Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.
Figure on the right illustrates the CNC Router material alignment pins pop open and close for easy sheet alignment

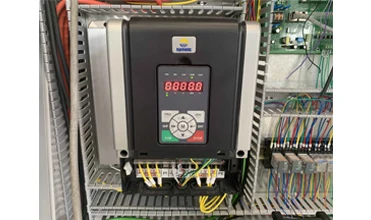

Hpmont inverter

High performance, small size
High-performance SVC control with high precision
Small size, about 70% of general machinery, saving installation space
Flexible digital input signal
Programmable bipolar signal input, compatible with AC and DC signal inputs.
- DC input voltage range 15-56VDC, compatible with 24, 36, 48VDC
- AC input voltage range 12-54VAC, compatible with 36, 48VAC

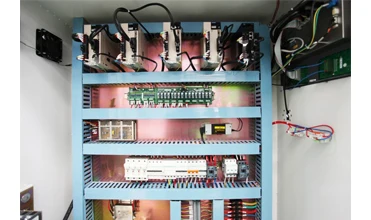

Independent big Control cabinet

All the electrical components are housed and wired in a independent electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

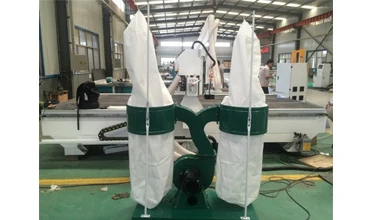

Dust collector

The Alpha ATC CNC Machine comes with a 3.5kw dust collector, which is powerful enough for collect the. It will make your workshop without dust.
