4x4 Video Processing HDMI/VGA/AV Mixed inputs 4x4 matrix switcher

Product Overview

Description

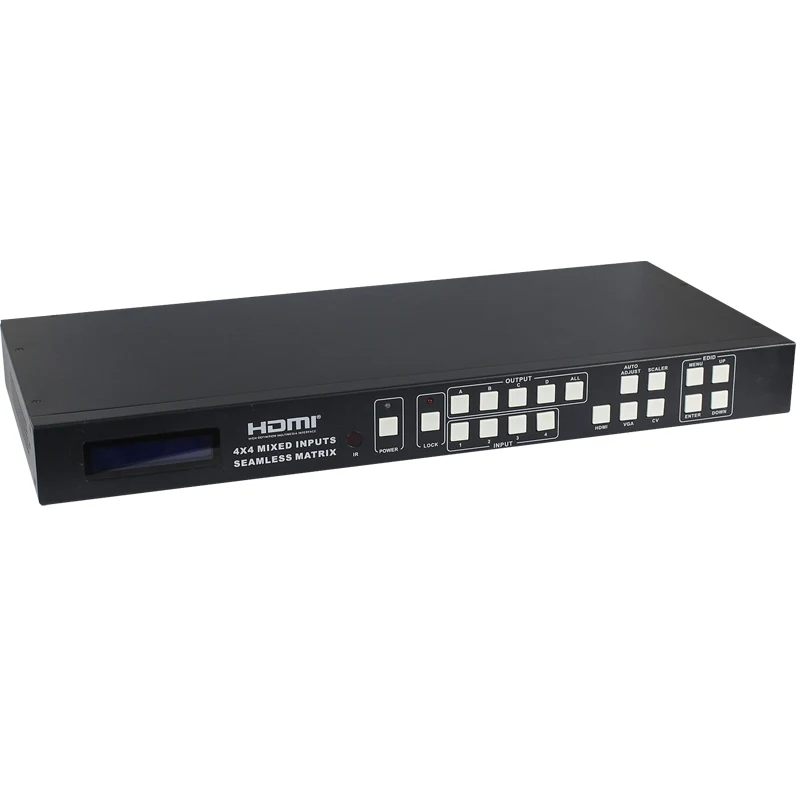

4x4 Video Processing HDMI/VGA/AV Mixed inputs 4x4 matrix switcher



The matrix switcher is a high-performance with seamless switching output and mixed input 4x4 matrix switcher,4 mixed input to support digital video signals and analog video signal, and 4 outputs with seamless switching function, seamless switching mode: fast switching, fade in/fade out, blinds and so on; the mixing matrix switcher adopts the advanced digital technology, with scaler function, and achieve a variety of formats to achieve a unified output signal, switching seamlessly perfect visual effects. At the same time it with infrared matrix function, analog video signal input with embedded audio function. Flexible control mode diversity, through the front panel button, remote control,RS-232 and TCP/IP control.

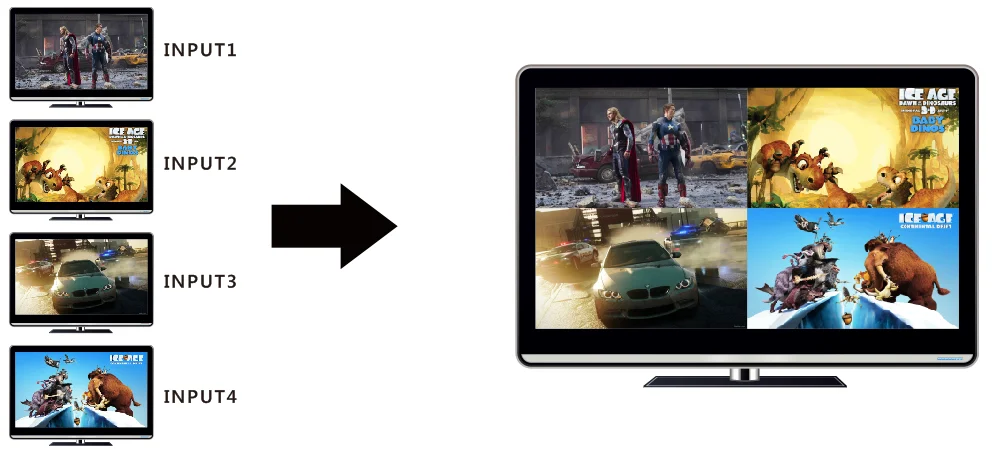

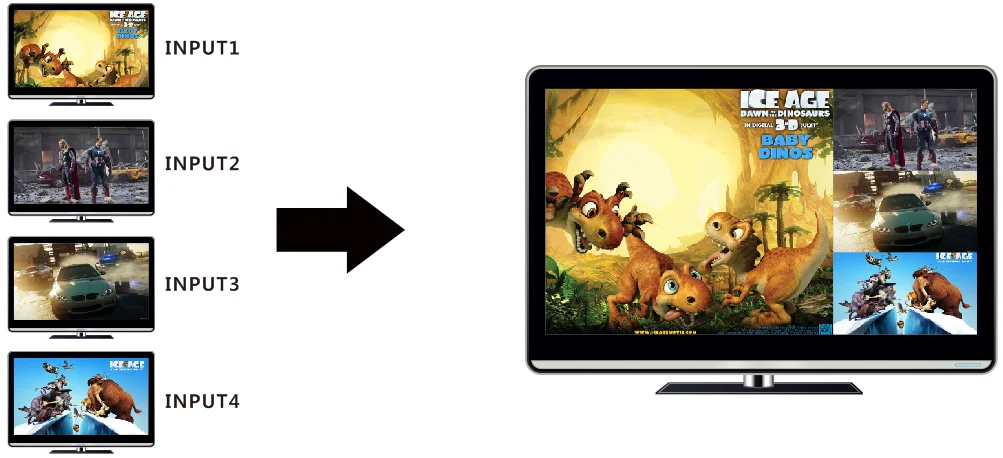

As a video wall processor, the matrix switcher is able to zoom in one input image four times to the outputs. And as a Multi-viewer processor, the matrix switcher can mix inputs with any combos to one image, and then transfer to all the outputs.



2. Features

1)Compliant HDMI1.3, HDCP1.3 and DVI1.0

2)Input video supports HDMI, VGA and C-video

3)Supports input resolutions :

    HDMI: 480i to 1080p  VGA:1920 x 1080P@60Hz, 1360 x 768P@60Hz,1280 x 1024P@60Hz,

    1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz, 800 x 600@60Hz,640 x 480P@60Hz

CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats

4)Supports output resolutions :1920x1080P@60Hz

5)Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and so on

6)The RS-232 for the firmware update

7)Supports RS-232, remote control, on-panel control and TCP/IP Control

8)Supports smart EDID management

9)Picture Adjustment Settings

10)Automatically adjust the VGA input video

11)Supports power-off memory

3. Package Contents

1)HDMI 4 x4 mixed inputs seamless matrix switcher  1pcs

2)12V/2.5A DC power adaptor          1pcs

3)Operation Manual                1pcs

4)Wideband IR Tx cable             4pcs

5)Wideband IR Rx cable             5pcs

6)Video Processing Mixed Matrix IR Remote            1pcs

7)Mounting ears                   2pcs

8)RS232 cable                     1pcs



4. Specifications

Input Ports	4×HDMI, 4xVGA, 4xRCA, 1×RS-232, 1xRJ-45(Control), 5×IR INPUT, 4xAudio
Output Ports	4×HDMI, 4xIR OUTPUT
Input Resolutions Support	Up to 1920x1080P@60Hz
Output Resolutions Support	Up to 1920x1080P@60Hz
Control	IR , RS-232 , TCP/TP , Buttons
ESD Protection	Human-body Model:± 8kV (Air-gap discharge)                        ± 4kV (Contact discharge)
Power Supply	12 V/2.5 A DC (US/EU standards,CE/FCC/UL certified)
Dimensions	440mm (W)×200mm (D)×44.5mm (H)
Chassis Material	Metal
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	13.5 W(Max)/1.2W(Standby)

5.Operation Controls and Functions

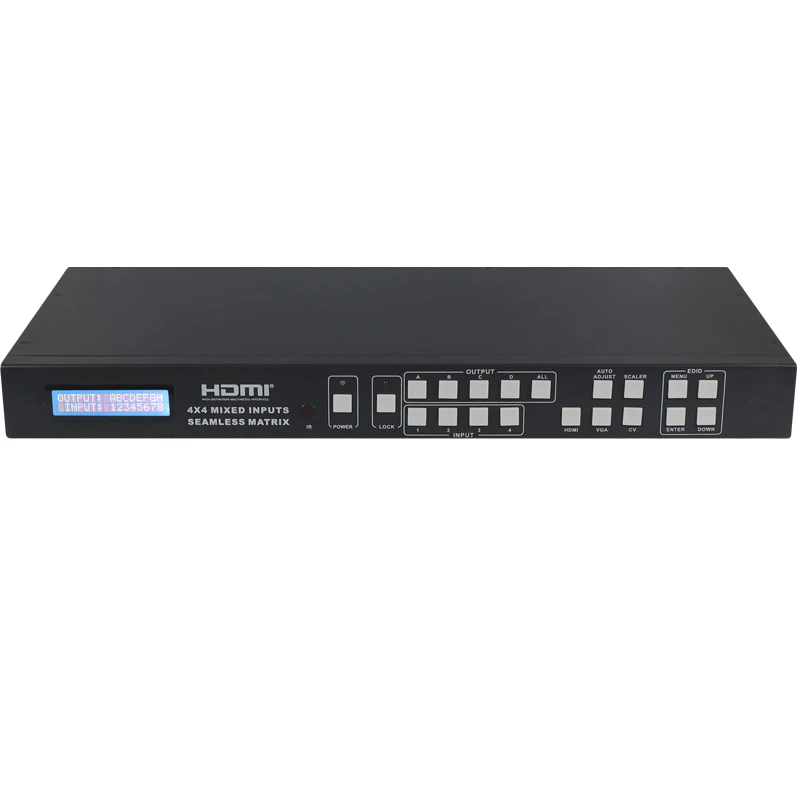

5.1Front Panel

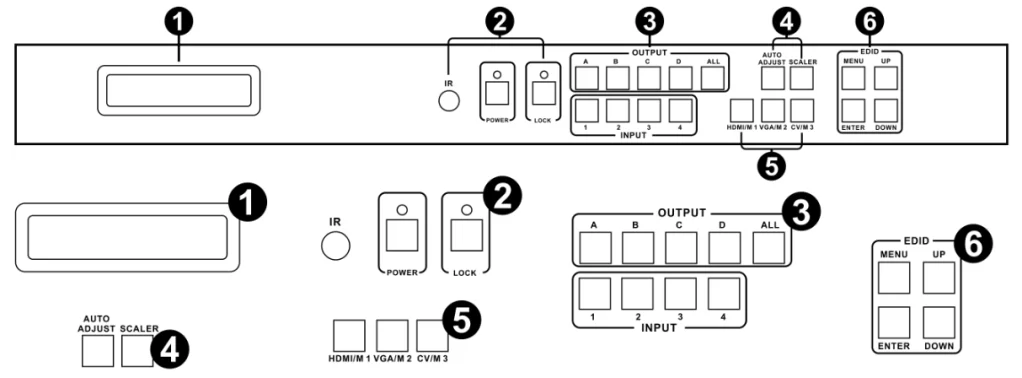

1)LCM: 2). IR  POWERLOCK 3) OUTPUT/INPUT 4)Picture adjust   5)Sources input select and mode select: 6)EDID

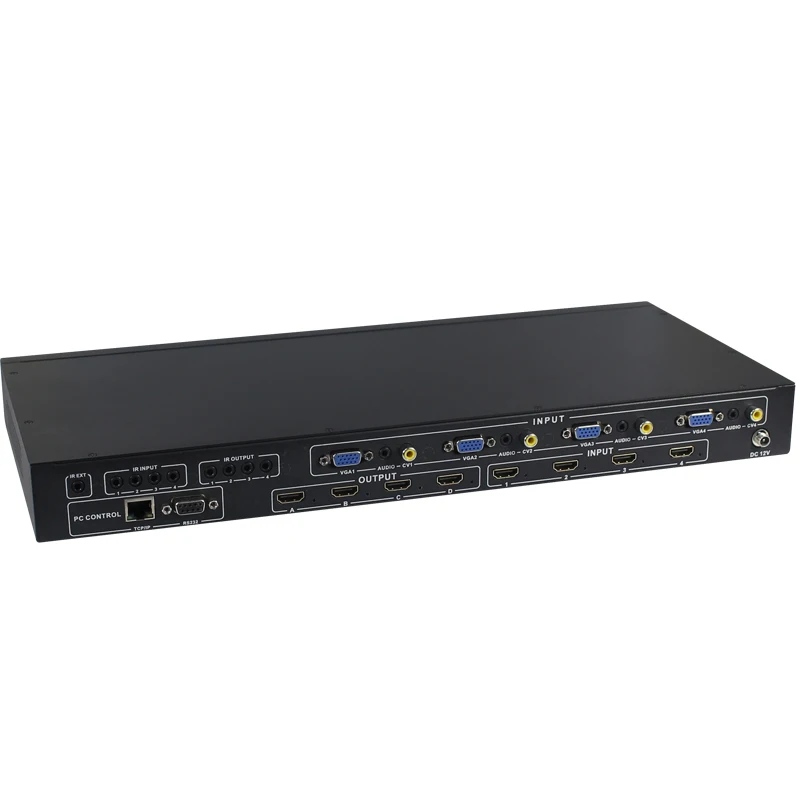

 5.2 Rear Panel

1)IR Channel



2) VGA CV AND AUDIO INPUT

3): PC CONTROL



4)OUTPUT

5)HDMI INPUT

6)DC POWER INPUT



6.Connection Diagram
