Factory Price Liquid Transparent Electronic Potting Compound Silicone Rubber for PCB

DESCRIPTION

DC-E Series Silicone Potting Component is a newly silicone rubber material of sealing compounds. It cures with no heat, no corrosion and very low shrinkage. It can be applied to the sealing and pouring of various electronic components, and then forming insulation system.

APPLICATION

DC-E Series RTV-2 Silicone Potting Component is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.

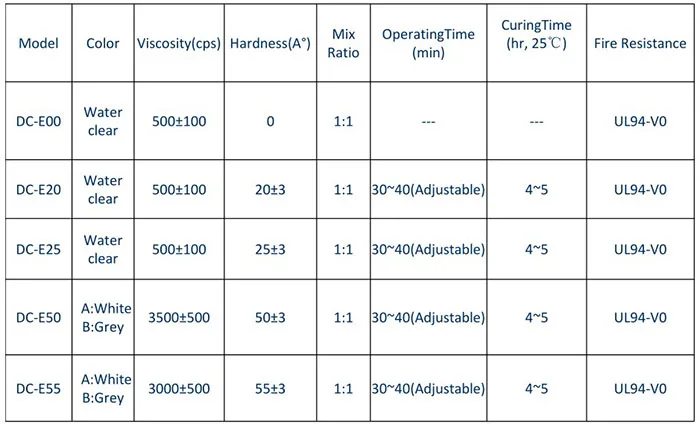

TECHNICAL PARAMETER OF ELECTRONIC POTTING SILICONE

OPERATION INSTRUCTION
1, Pls put part A and part B in separate container and stir evenly before mixing the two part together.
2, Weight Ratio: part A: part B = 1:1
3, Deaeration the mixture under 0.08 MPa for 3 minutes.
4, The temperature influences the curing time: When in too low temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization.

WARM TIPS
1.The following material may hinder the curing of the product, So pls apply after summary experiment. When necessary, pls clean the application areas.
Condensation silicone which not completely cured or organic tin compounds Sulphur, sulfide and sulfur rubber materials. Amine compounds as well as contains the amine materials. Pewters solder flux.
2. Should be sealed storage.The mixture should be used up at once, avoid causing waste.
3. Silicone belongs to non-dangerous goods, but keep away from mouth and eyes.
4. When it gets stratified after a period of storage, Please mix 9301 evenly before using, it does not affect the performance.

PACKAGE
20KG/drum vacuum packing for part A + 20KG/drum vacuum packing for part B
200KG/drum packing for part A +200KG/drum packing for part B

SHELF LIFE
1. Eighteen(18) months from date of shipment when stored at 25C in original unopened packages.
2. This kind of product is non-dangerous product, it can be transported as general chemicals.
3. Products exceed the storage life should be confirmed normal before using.

SHELT LIFE

Twelve(12) months when stored under dry and cool place by original package under 25℃

PACKAGING

1. 1:1 mix ratio:  20KG/drum + 20KG/drum with vacuum packing;

                             200KG/drum + 200KG/drum packing

 2. 10:1 mix ratio: 20KG/drum + 1KG/bottle with vacuum packing

                               200KG/drum + 20KG/drum with vacuum packing

SHIPPING

1. By Express: DHL, FEDEX, UPS & EMS (3~5 days to arrival)

2. By Air: 6~10 days to arrival (determined by your destination)

3. By Sea: 15~30 days to arrival (determined by your destination)

Q: Do you have a factory?
A:We have factory in Shenzhen. As a leading manufacturer of silicone rubber in China, we are standing in silicone field for nearly 10 years, depends on our high quality products and best service.

Q:How can I get the samples?

A:1,We are honored to offer you samples. Testing is believing. So we can provide you 1kg free sample by air. The silicone sample is free for you, and you should only pay the small part of shipping cost by air. But when we have a successful cooperation in the future we will return the air shipping cost you paid before.

Q: How about the lead time?
A: Within10-20 days after getting the prepayment.

Q: How can we pay?
A: For small sample shipping cost, you can pay either by paypal or western union or by T/T.

Q: Can you do CO, Form E, Form F, Form A etc?
A: Yes, we can do them for you without extra cost. We are always finding ways to save cost for you.

1. Specialized in rtv2 silicone since 2008

2. Advanced production and R&D equipment, we have two separated production line and equipment

3. Professional R&D team

4. Experienced QC team

5. Professional sales team, fastest response 24 hours full-time service

6. On time delivery, monthly production reaches 200 tons

7. Free sample before order

8. Quality assurance. Each order will be inspected strictly before shipment. We guarantee to our customers: you would get a full refund if there is any quality problem.

9. Professional technical support, both in rtv2 silicone and mould making technology

10. Face- face business talking. We would fly to talk with you only if you have the willing of long termbusiness cooperation.

11. Factory visiting anytime

12. All kinds of certificates, such as MSDS, RoHS etc.

13. Highest performance cost ratio - best quality and reasonable price.

14. Experienced purchasing team to guarantee sufficient raw material

15. DIY service: various size of packages and customized labels

16. Sharing latest industry information

17.Marketing assistance to help you expand your local business
