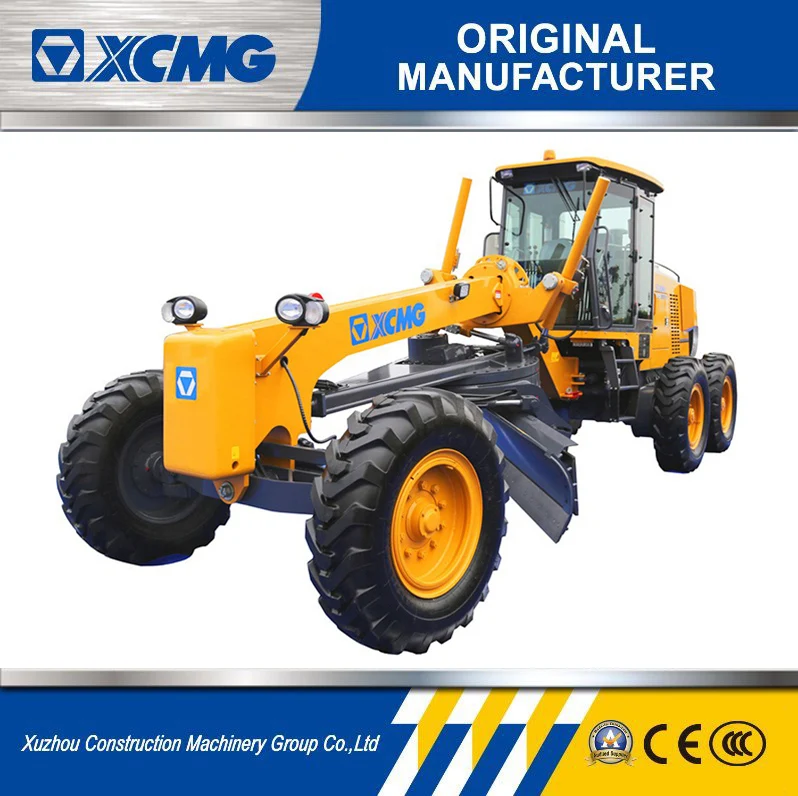

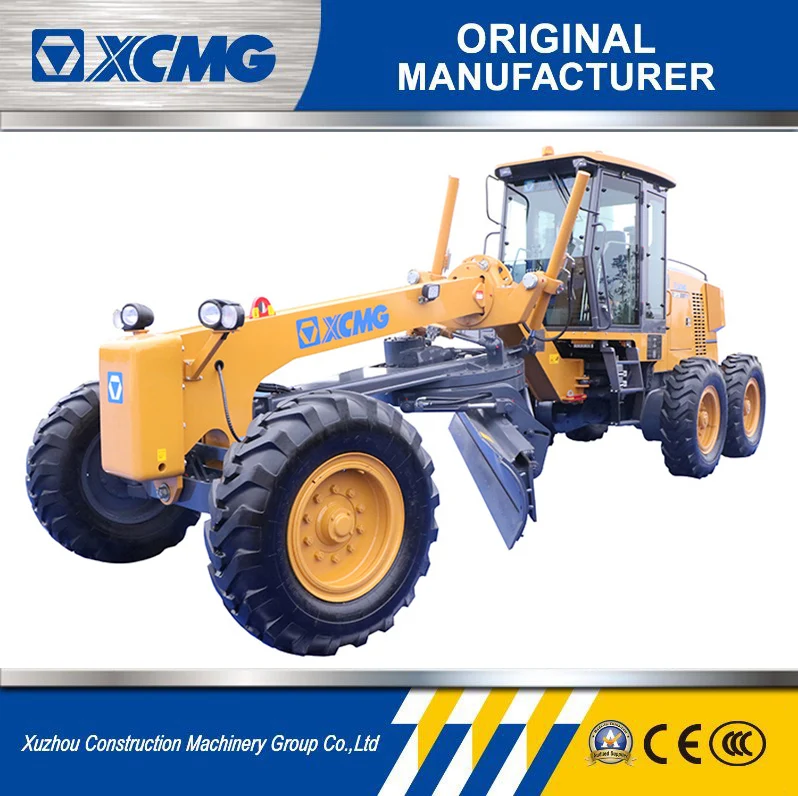

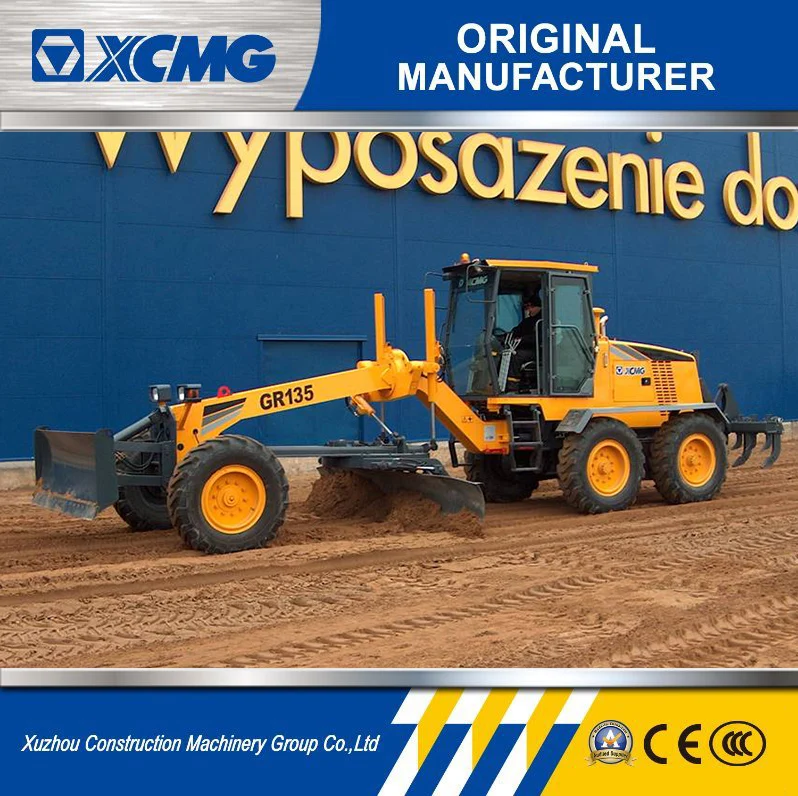

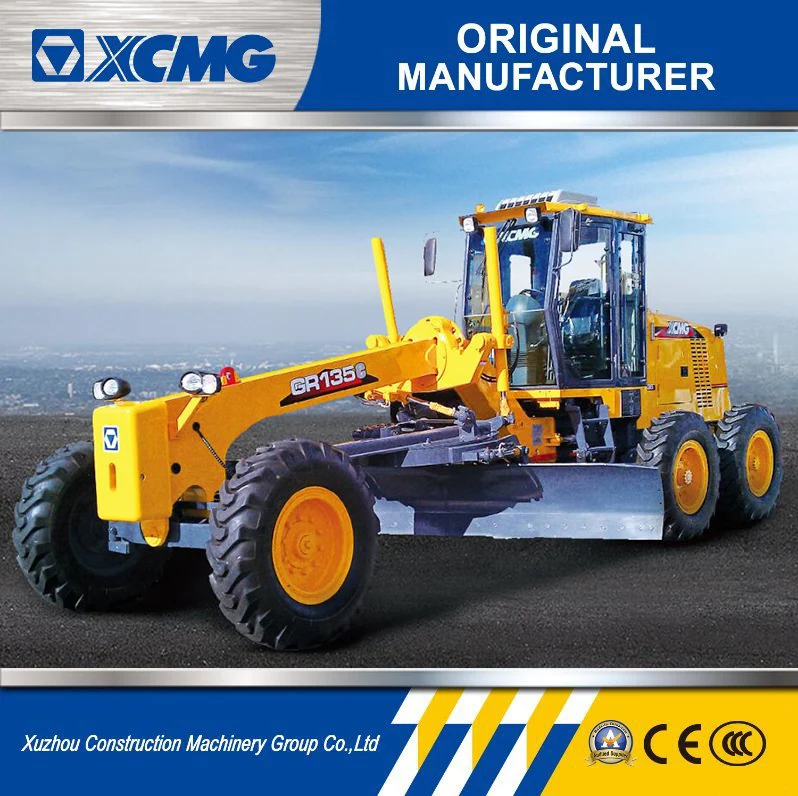

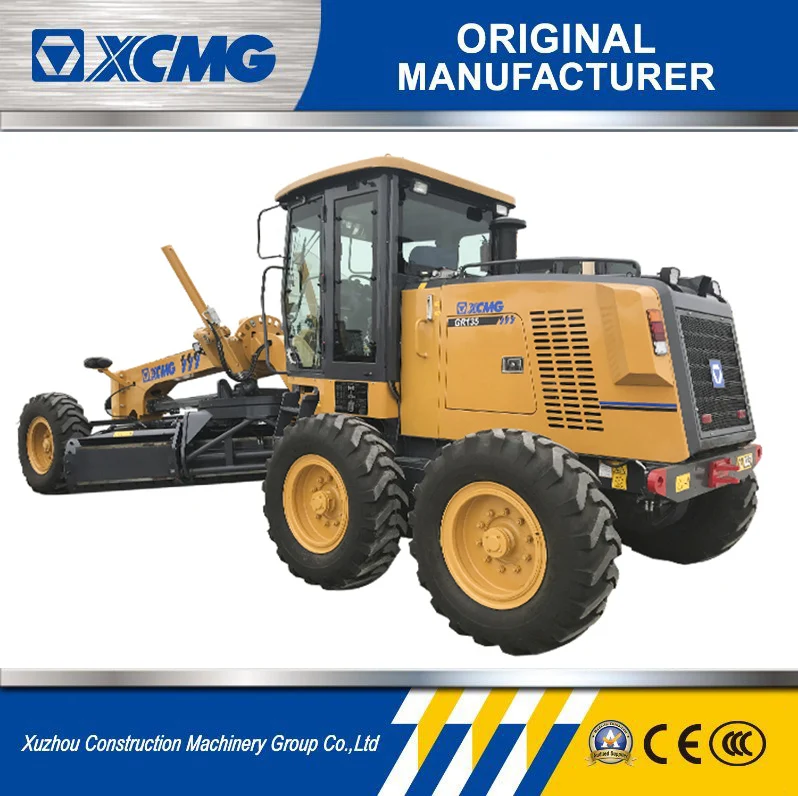

Brand new xcmg gr135 135hp rc motor grader price

Share on (62358669899):


Price:$10,000.00 - $1,000,000.00

Quantity:


Product Overview

Description


Product Description

Brand new xcmg gr135 135hp rc motor grader price

1.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2.The drive axle is a dedicated XCMG axle.
3.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

Specification



Basic specification
Engine model
6BT5.9
Rated power/speed
100/2200kw/rpm
Dimension(LxWxH)
8015×2380×3050mm
Operating weight(Standard)
11200kg
Performance specification
Travelling speed ,forward
5,8,13,20,30,42km/h
Travelling speed ,reverse
5,13,30km/h
Tractive force(f=0.75)
61.3KN
Max. gradeability
30%
Tire inflation pressure
300kPa
Working hydraulic pressure
16MPa
Transmission pressure
1.3~1.8MPa
