vegetabletaned leather cord cutting machine

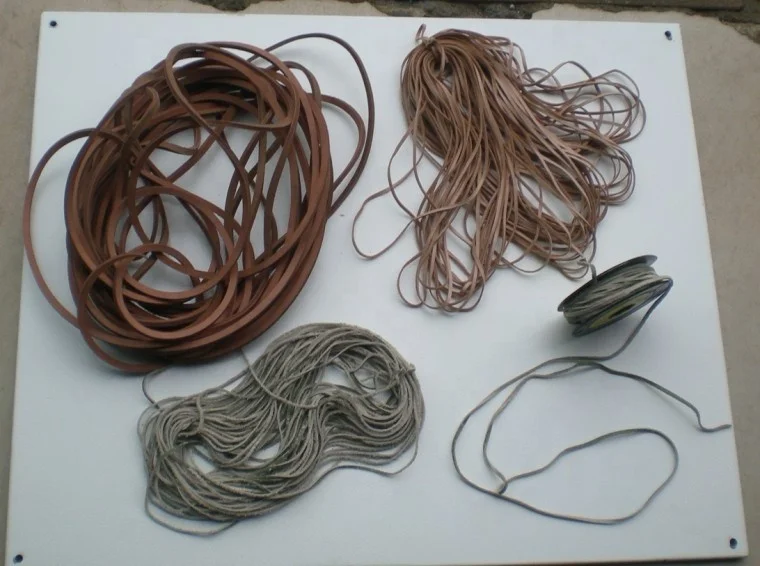

This machine is suitable to cut big piece leather, and save material efficiently. It allows to cut leather skins into long continuous precise laces in the desired width. Setting cutting width by touch screen, it's very easy to operate.You can get lace with any width you want when leather skin goes through round knife/straight knife.



1.easy to operate,setting working width by touch screen in stead of changing gears.

2.you can get laces with any width you want, no matter what thickness of leather skin.

3.it supplies round knife carrier,straight knife carrier and floating system, for hard or soft leather.

4.there is a counter, in order to count length of laces.

5.working with high speed, top to 200m/min.

6.precisely, allowed difference can be 0.1mm.

Model	TOP831
Dimension (packing)	1320*1220*1300MM
Voltage	220V
Working area	1200*1200mm
Power	1KW
speed	0-200m/min
G.W	200KGS
H.S code	8453800000
Packing style	Wooden case(no solid wood)

Detailed Images

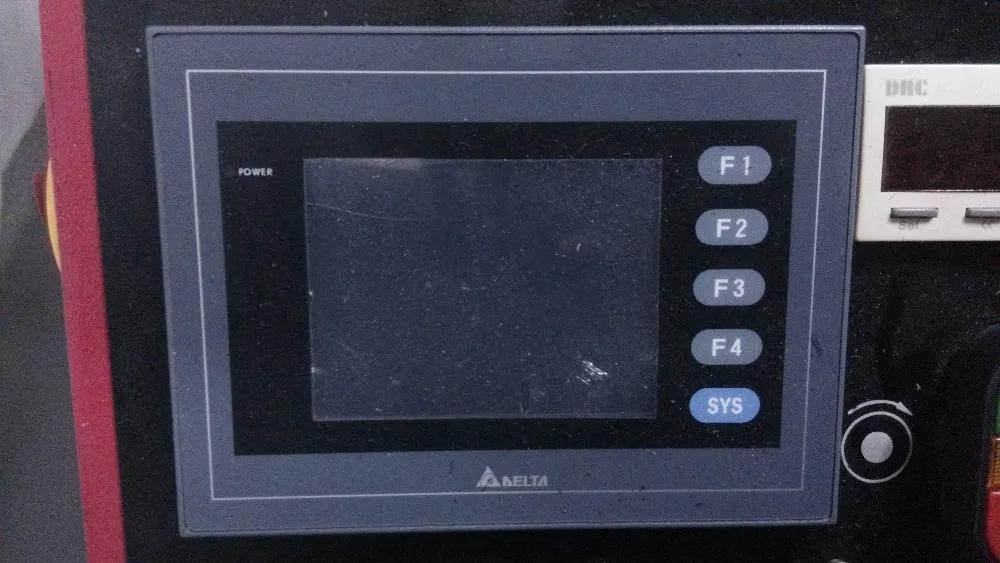

Touch screen

1.easy to input cutting width and other values by touch screen.

2.counting meter for lenghth of cutting.

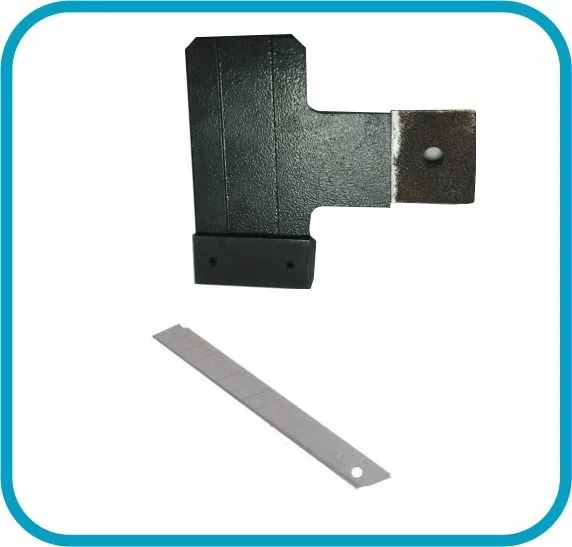

Straight blade

1.for cutting hard leather,you can use straight blade.

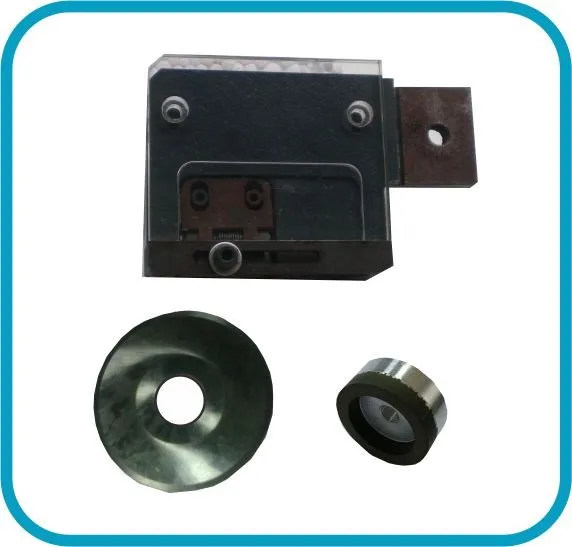

Round blade

1.For soft leather ,you can use round blade.

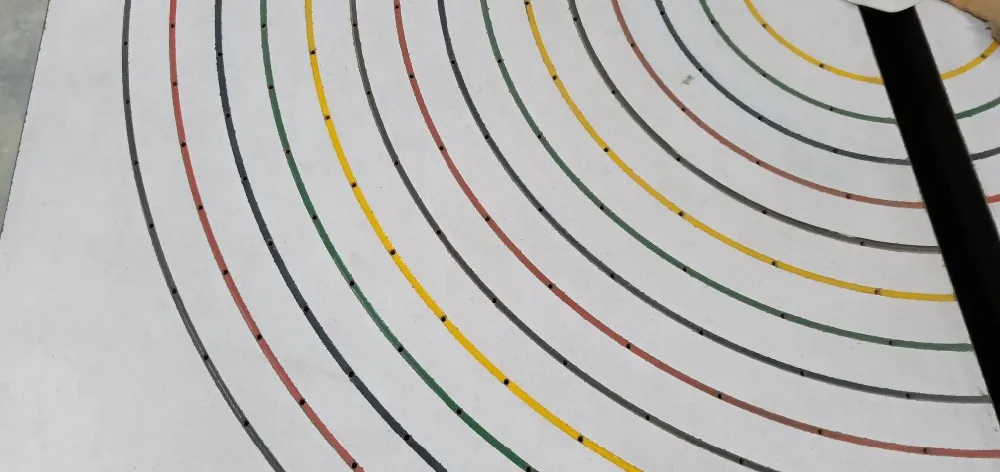

Blowing function

1.table with holes for blowing,better for soft leather.

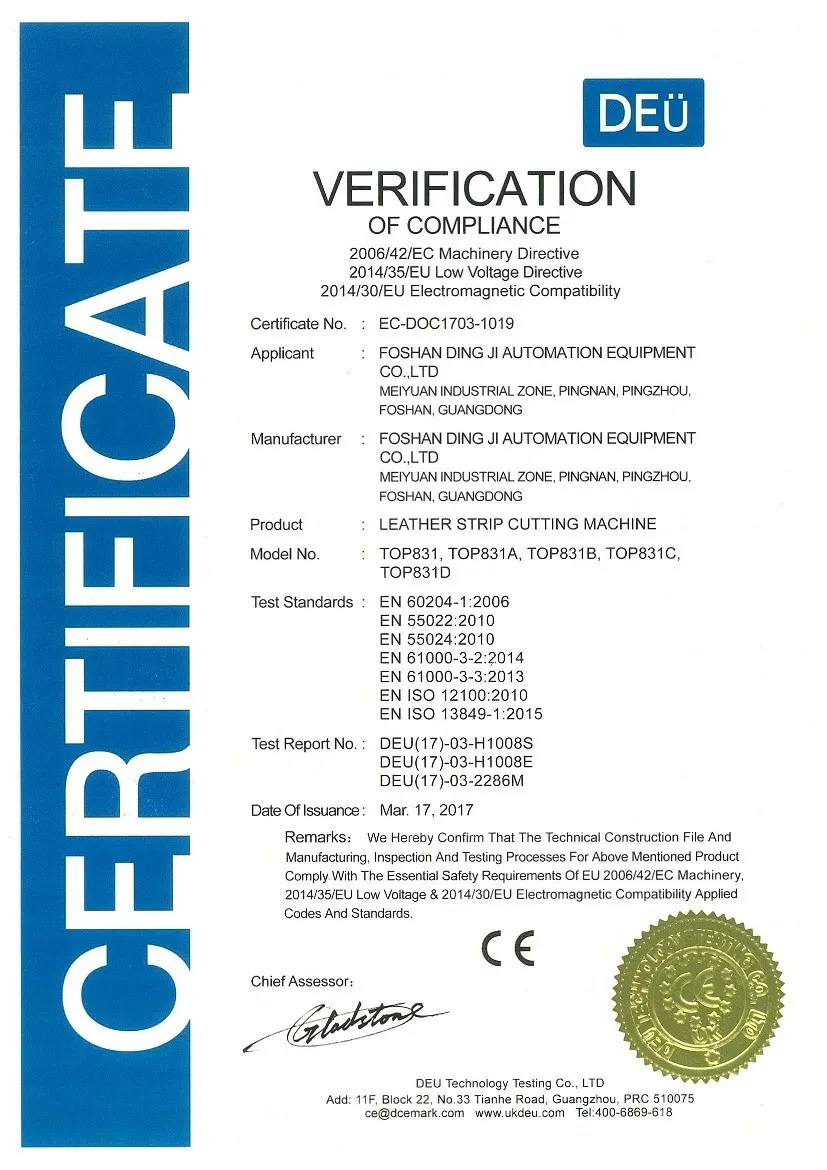

Certifications

Packing & Delivery

1350Packaging
Size	1350*1220*1350mm
Weight	220kg
Packaging Details	we all use non-solid wood case packing
