Automatic Plastic Rubber Block Haul Off Machine plastic pipe tractor machine

Product Overview

Description

 Fully Automatic High Speed Plastic Rubber Block Pipe Haul Off Machinery

Application:

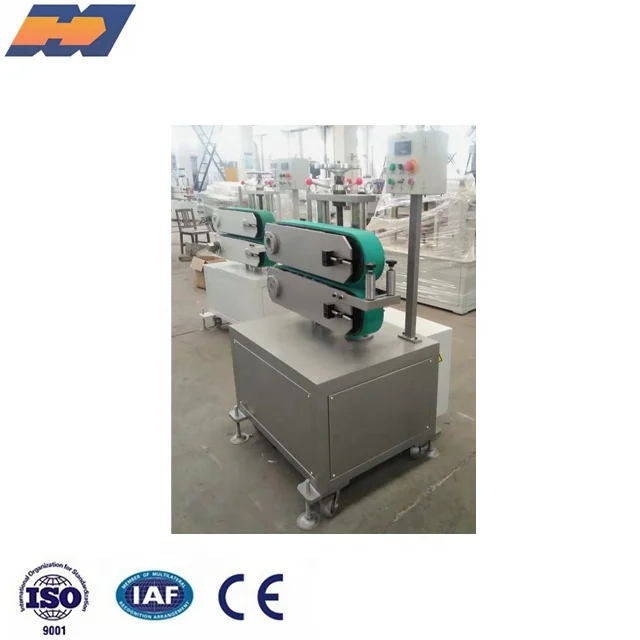

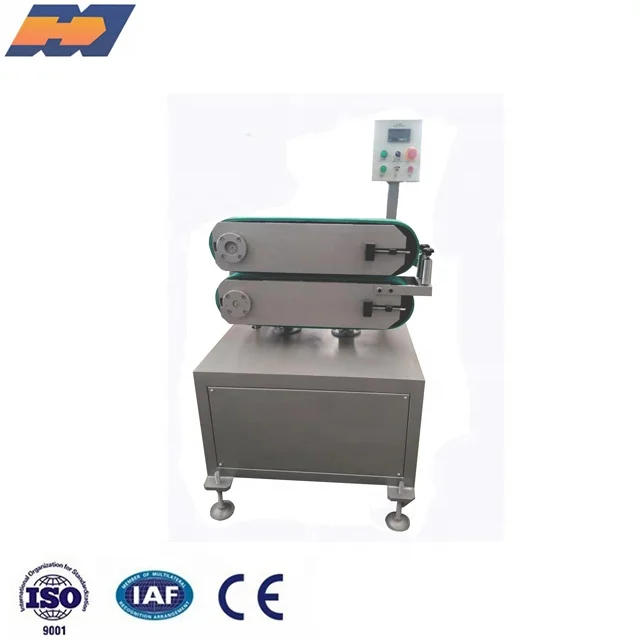

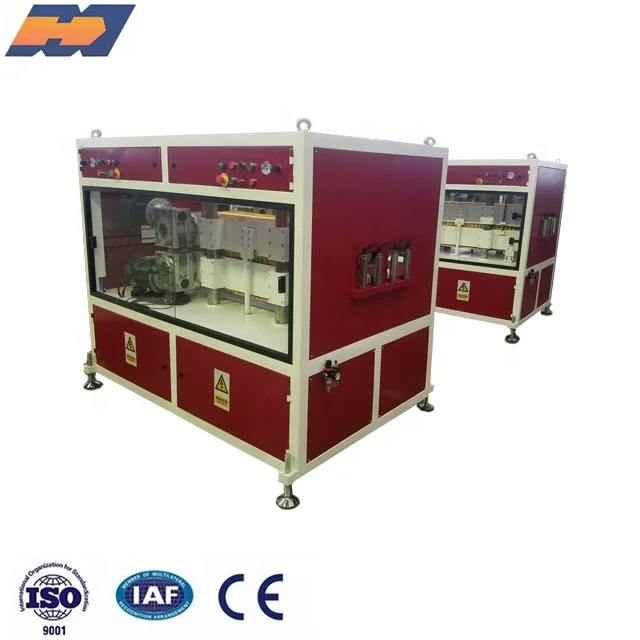

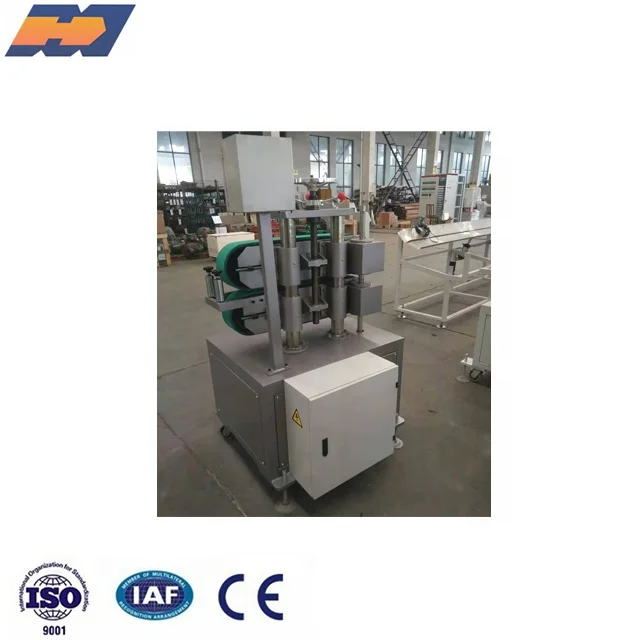

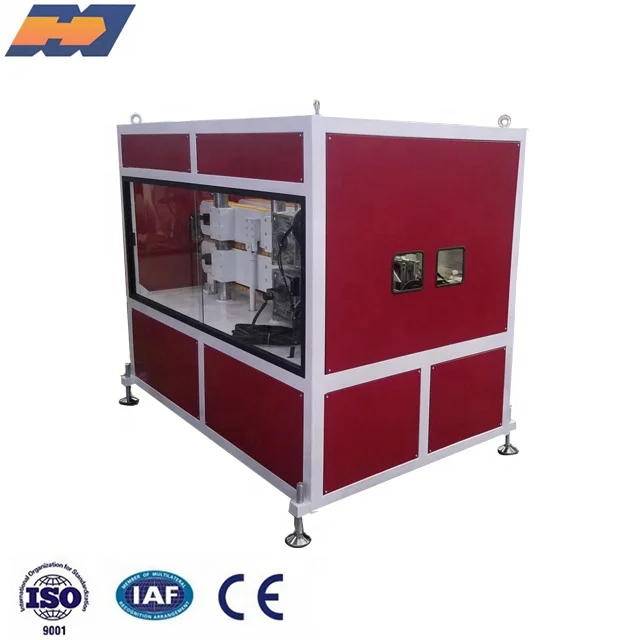

DY series tractor is rubber block caterpillar type which adopts double caterpillar hauling mode. DY-D series tractor is rubber belt type for plastic profile. It adopts twin rubber belt hauling mode. Both of these two series are used together with plastic extruder for hauling the plastic pipes, plastic flexible pipes and kinds of plastic profiles. The application range is wide and operation is easy. Our tractors can be driven in many different ways to meet almost all the requirements for extruding products. It is an necessary auxiliary machine for plastic extruding & processing.
Charasteristic:

1.Double caterpillar hauling mode is used for wide range application;
2.The speed regulation range is wide as stepless speed regulation is adopted;
3.Uniformly hauling speed;
4.Low noise;
5.Compact structure & beautiful appearance;
6.Coding length-counting device is selectable for precisely measuring.Main Techinical Standards:

Main Techinical Standards:

Model	DYC1	DYC2	DYC3
Drawing speed: m/min	1-10	0.5-0.5	0.5-2
Drawing height	950-1100	950-1100	950-1100
Drawing power	2.2	4	5.5
Appearance size	1800x885x1720	2800x1015x1720	3200x1300x1750



Model	DY-600D	DY-1	DY-2	DY-3	DY-3A
Drawing speed (m/min)	0.3-10(customize)			0.4-5	0.3-5
Max. drawing size(mm)	80*80	120*120	150*150	210*160	210*160
Max. drawing height(mm)	800-1000	800-1000	1000-1100	950-1050	800-4000
Drawing power (k w)	0.75	1.5	3	4	5.5
Appearance size(mm)	1000*550*1500	1250*650*1600	1550*800*1750	2740*1200*1800	2200*1000*1750
Weight(kg)	400	500	700	1200	300



We can also manufacture  various plastic haul off machines according to customers requirement.

Any futher information you want to know, contact me or send inquiry!
