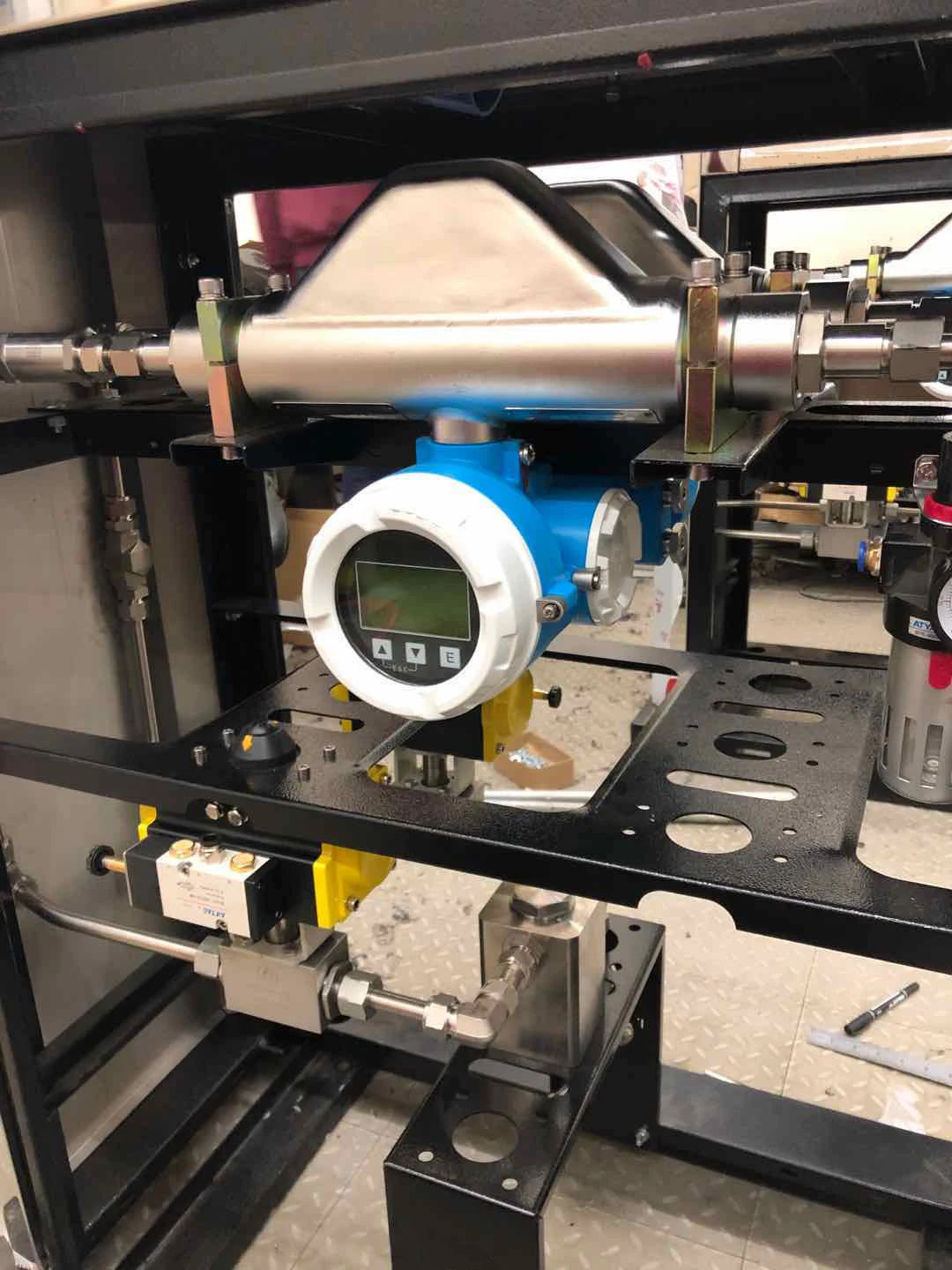

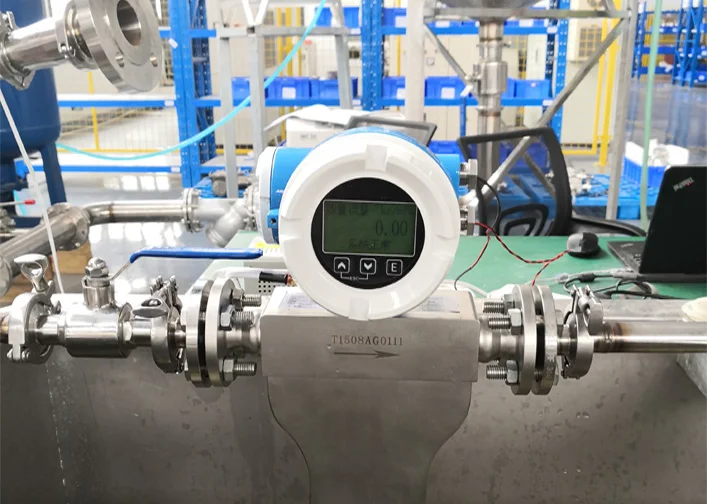

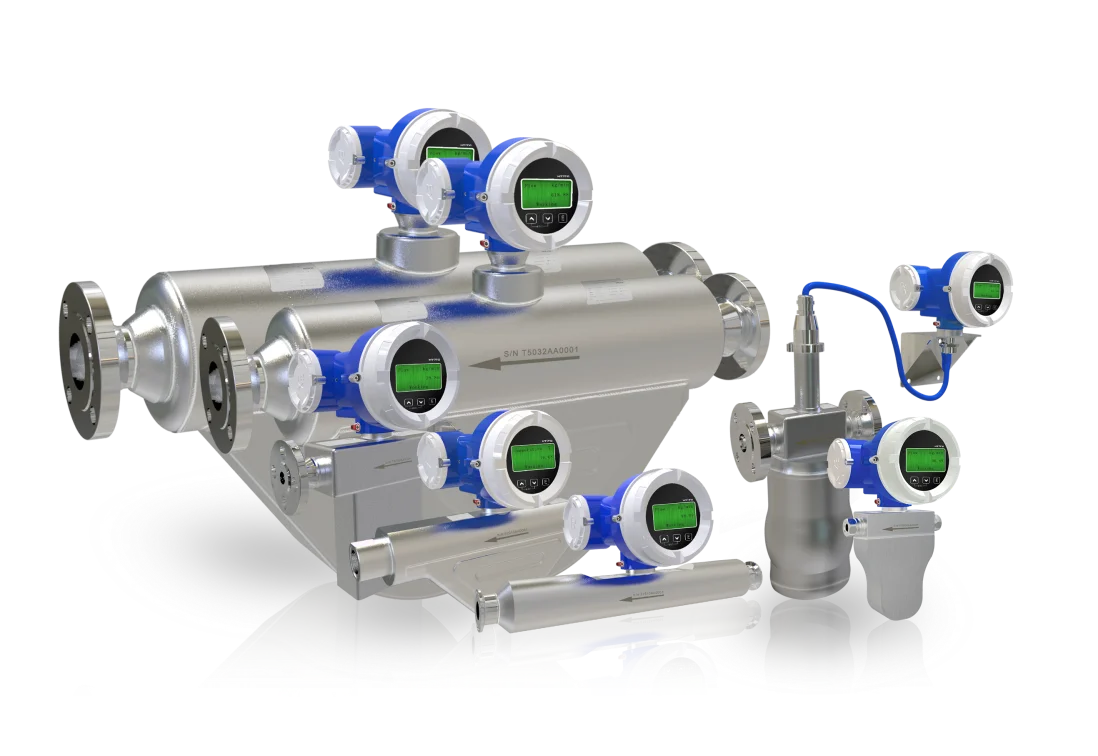

0.15 Grade high accuracy coriolis mass flow meter for Gas Liquid and Multi-phase flow



Coriolis mass flow meter can be widely used for the process detecting and custody transfer/fiscal unit in many industries such as petroleum, petroleum and chemical, chemical industry, pharmacy, paper making, food and energy, and so on. As a fairly advanced kind of flow measurement instrument, it has been paid attention by the circle of measurement and accepted by many customers home and abroad.



Features

1. Enable to measure directly mass flow rate of fluid in the pipeline without changing any parameters, which avoids the some measurement error of intermediate links. Its mass flowrate can be high accuracy and good repeatability within bigger range of turndown ratio.


2. Fluid measured can be more extensive, such as the steady uniform flow of common viscosity fluid, the high viscosity fluid, non-Newtonian fluid, slurry containing some solid components and the liquid containing some trace of gas.


3. Due to the small vibration, its measuring tube can be regards as non-moving parts, which will reduce the maintenance of flowmeter, enhance the stability and lifetime.


4. Besides the mass flow measurement, the density and temperature and even consistency can also be picked up and output.



Product Paramenters


Accurcy
Grade 0.15, Grade0.2, Grade0.5, Grade1.0……
Repeatability
0.075％、0.1％、0.25％、0.5％
Density
±0.001g/cm3
Temp.
±1℃
Ambient temp.
-40℃～+55℃
Relative humidity
≤95%
Measuring medium
Gas,Liquid and Multi-phase flow
Housing material
304 stainless steel, ZL401(Transmitter)
Meter tube material
316L、Hastelloy


Flow range




Standard caliber
Rated flow
Max. flow
Model
inch
mm
kg/min
lb/min
kg/min
RCF-P300-04
1/8”
DN04
6
13
8
RCF-P300-08
1/4”
DN08
15
33
18
RCF-P300-15
1/2”
DN15
50
110
55
RCF-L50-08
1/4”
DN08
15
33
18
RCF-L50-25
1”
DN25
200
440
220
RCF-T200-04
1/8”
DN04
6
13
8
RCF-T200-08
1/4”
DN08
15
33
18
RCF-T200-15
1/2”
DN15
72
158
80
RCF-T200-25
1”
DN25
200
440
220
RCF-TR200-50
2”
DN50
720
1587
750

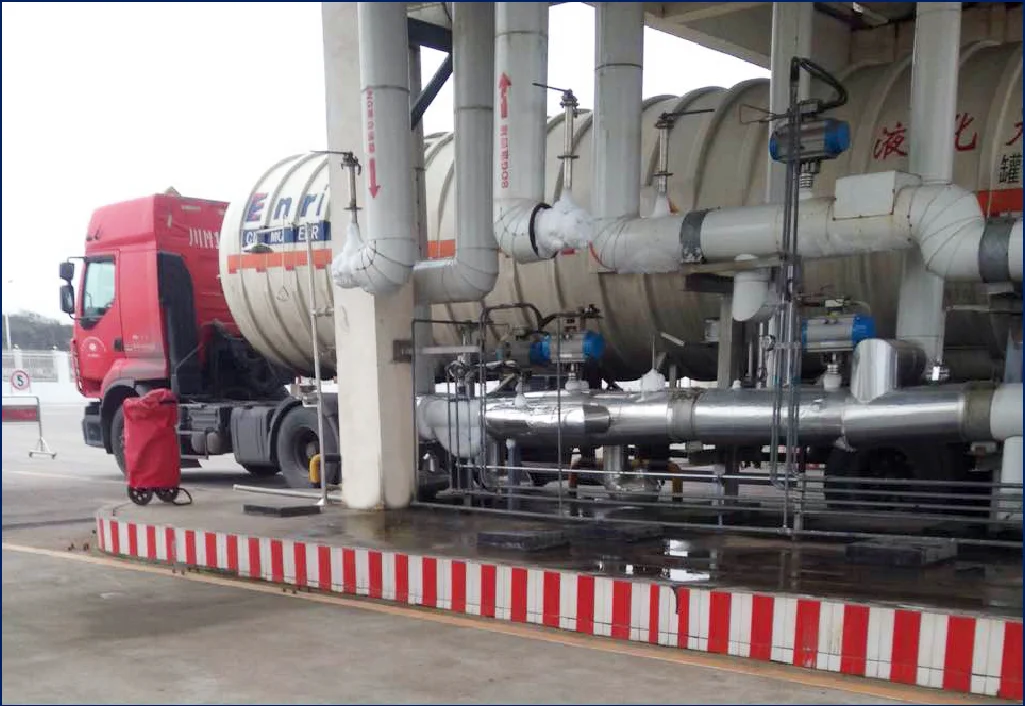

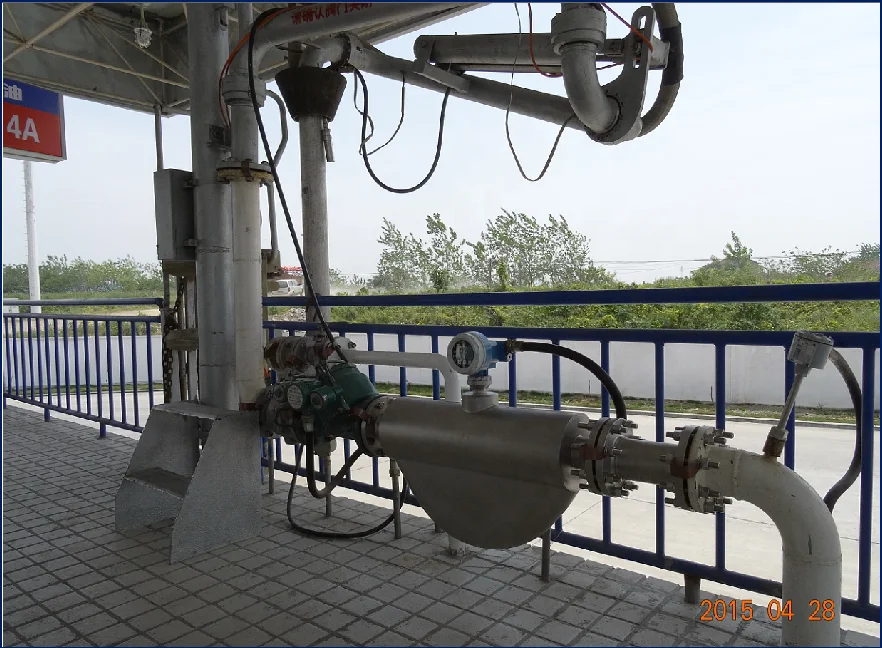

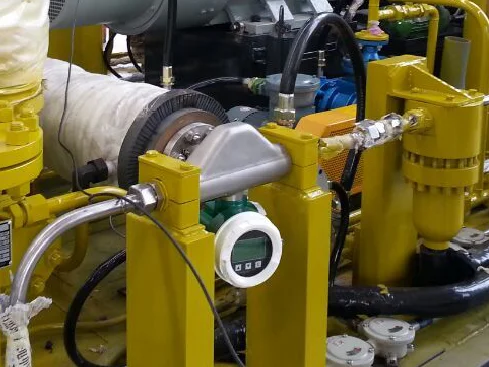

Application










All-Instruments International Trading (Shanghai) Co.,Ltd widely supports pressure tansmitter,pressure sensors, fowmeters,
analyzers and other agent instuments for world wide clients in Middle East, North America, South America, Southeast Asia, Europe,
South Africa etc. countries and regions clients.










Russia, South Korea, the United States, Italy, Germany, the Netherlands, Singapore, Malaysia, India, Morocco, etc. Overseas sales
accounted for approximately 40% of total sales revenue。
