Product Overview
Description
All Hikvsion, Dahua and Uniview products can be supported ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!

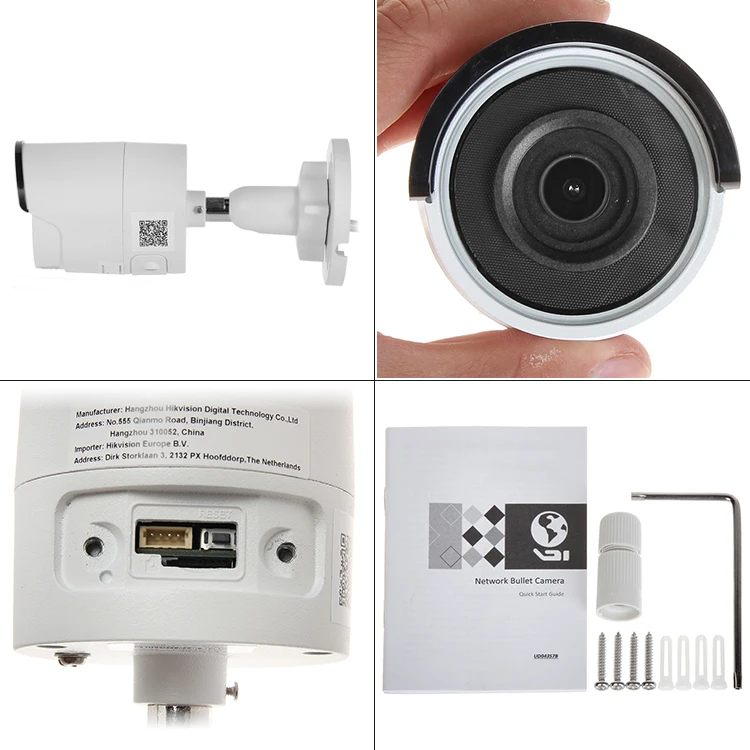

Details Images

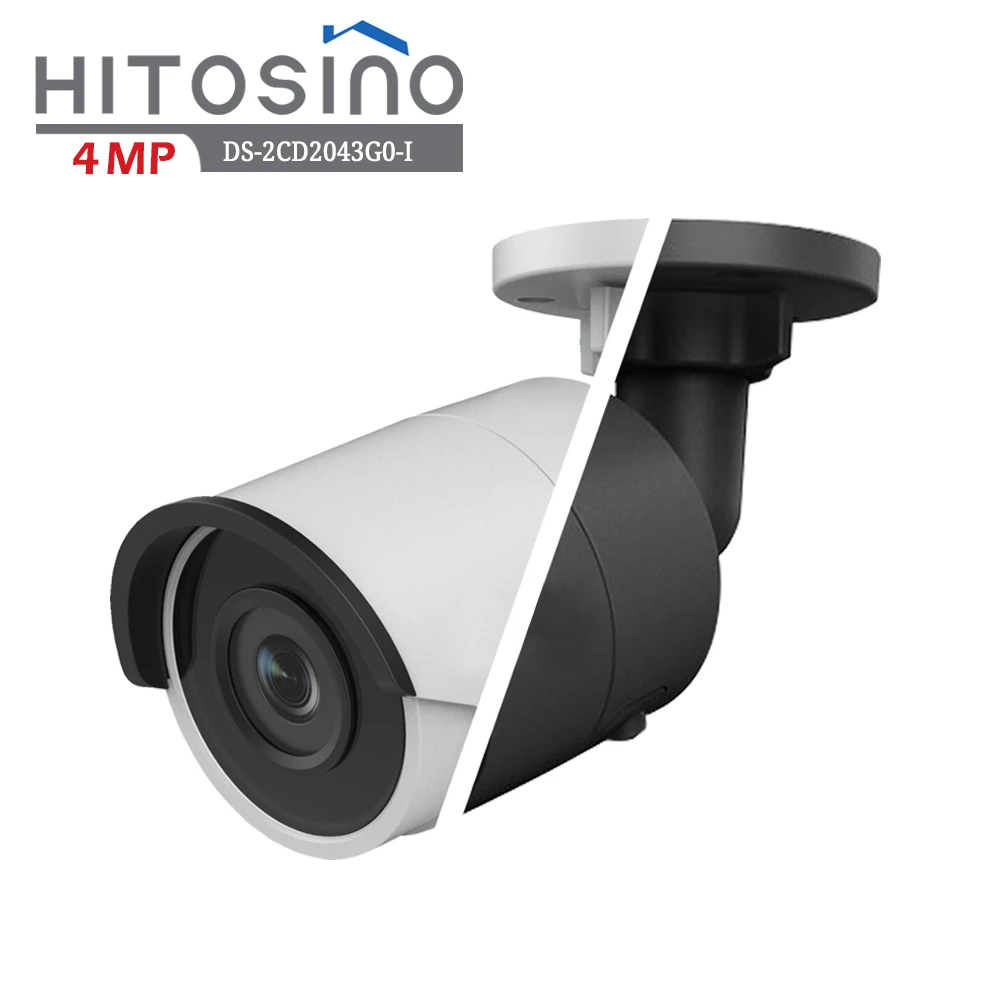

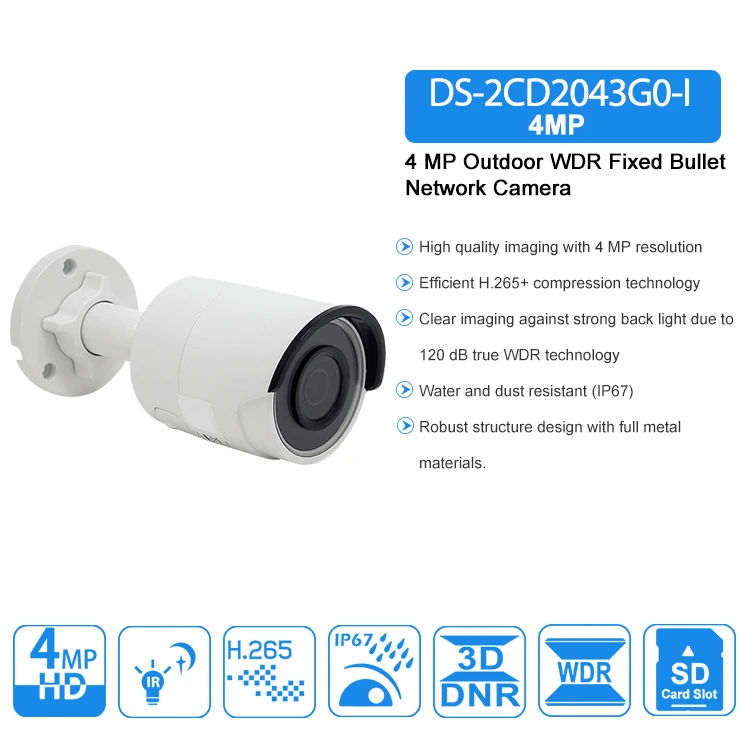

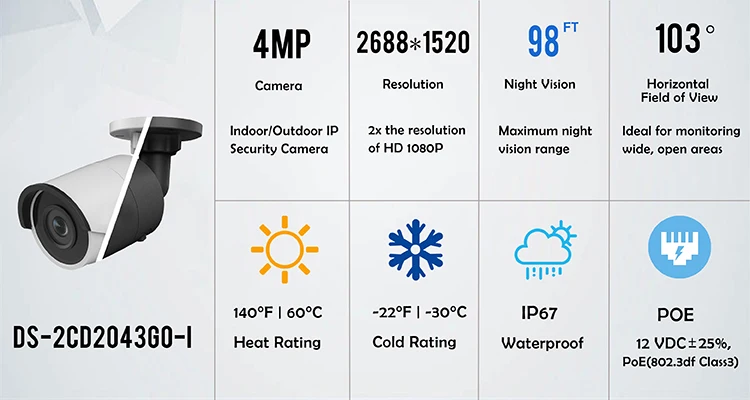

4MP HD resolution IP Network Camera
This 4MP resolution security camera contains 2× the amount of pixels as a 1080p security camera. This 4MP camera can record at a pixel ratio of 2688 x 1520.

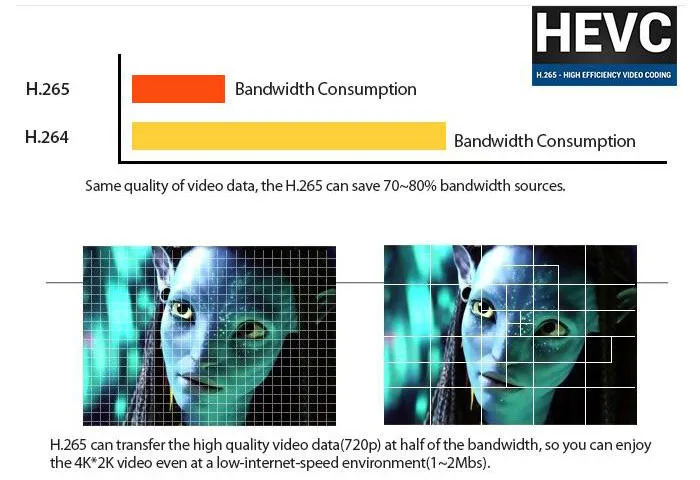

Innovative codec Hik H.265 +
H.265 + is a video encoding system that is an extension of the technology used in H.265 / HEVC.
H.265+ allows you to:
-Optimize the Basic Functions of the Camera;
-Allows Better Use of Network Bandwidth;
-Significantly Reduces Interference
Guarantees Long-term Archiving of Recordings Without Compromising Image Quality.
ICR -IR Cut Filter Removable
At night or under low illumination scenes, the camera switch from color mode to B/W mode automatically, which can improve low-light performance effectively.
Original Image
BLC and WDR are off.
BLC-Back Light Compensation
If you focus on an object against strong backlight, the object is usually too dark to be seen clearly. BLC compensates light to the object in the front to make it clear.
WDR-Wide Dynamic Range.
WDR cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visible.
EXIR 2.0
Infrared lamps EXIR 2.0 are an innovative technology that uses the latest type of highly efficient IR LED series EXIR. Compared with the traditional generation, EXIR 2.0 has better heat dissipation and increased lifespan of up to 20,000 hours.
Ultra-low Light Technology
DarkFighter technology, combining Full HD 2688 × 1520 @30fps and WDR 120dB enable that the Camera can be records images of exceptionally good quality even in the most demanding conditions.
DNR-Digital Noise Reduce
Hik cameras adopt 3D digital noise reduction to provide images with less noise in low-light surveillance scenes compared to conventional cameras. 3D DNR can be used to enhance image quality and save bandwidth.
AGC - Automatic Gain Control
It amplifies the signal to make the image brighter during night time. This amplification is called gain. The camera can auto adjust the gain control according to the signal level.
High Light Compensation
Compensate the strong light in the picture, so that the surrounding area wouldn't be over-exposed and still could be seen.
ROI-Region of Interest
ROI technology assigns a more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.
Privacy masking
Thanks to the system of privacy masks, it is possible to freely determine fragments of the image that will be excluded from the video surveillance.
Specifications
Hik IP Camera 4MP DS-2CD2043G0-I White Mini bullet camera | ||
Image Sensor | 1/2.5" Progressive Scan CMOS | |
Signal System | PAL/NTSC | |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
Shutter time | 1/3 s to 1/100,000 s | |
Lens | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° 8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45° | |
Lens Mount | M12 | |
Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
Day& Night | IR cut filter with auto switch | |
Wide Dynamic Range | 120 dB | |
Digital noise reduction | 3D DNR | |
Focus | Fixed | |
Compression Standard | ||
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate | 32Kbps~16Mbps | |
Triple Streams | Yes | |
H.264 code profile: | Main Profile/High Profile | |
Image | ||
Max. Image Resolution | 2688 × 1520 | |
Frame Rate | 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) | |
Sub Stream | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) | |
Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement | BLC/3D DNR/ROI/HLC | |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
Target Cropping: | NO | |
ROI | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch | Day/Night/Auto/Schedule | |
Network | ||
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI | |
Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
Interface | ||
Communication Interface | 1 RJ45 10M / 100M Ethernet interface | |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button | Yes | |
Smart Feature-set | ||
Behavior Analysis | Line crossing detection, intrusion detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection | Enter and loiter in a pre-defined virtual region | |
Recognation | Face Detection | |
General | ||
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption | 12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W | |

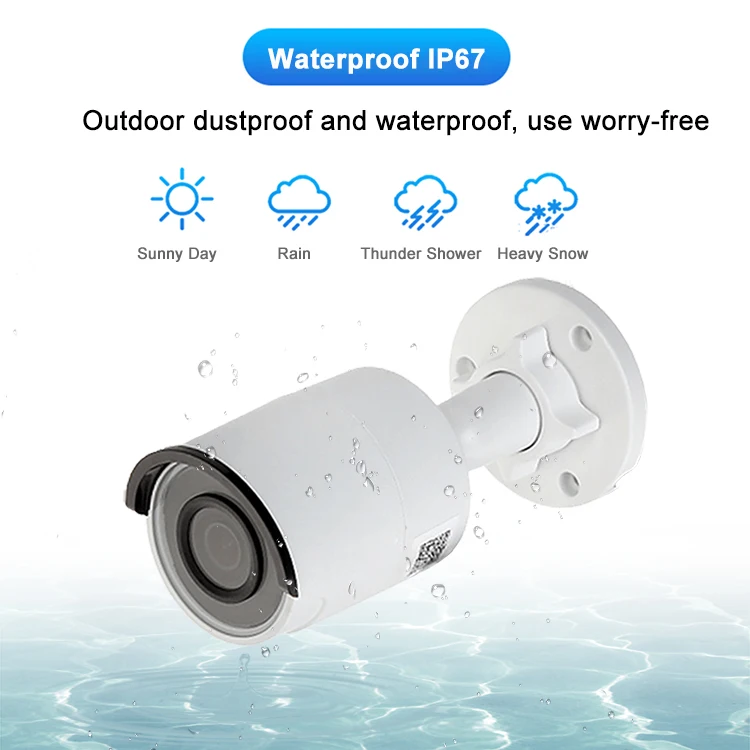

Weather Proof | IP67 | |
IR Range | up to 30 m | |
Dimensions | Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1") Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") | |
Weight | Camera: Approx. 420 g (0.9 lb.) With Package: Approx. 700 g (1.5 lb.) | |
Hot Products
Company Profile
Product Showcase
FAQ
1.How can we confirm the products are genuine HV and DH English version?
HV and DH softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3、What payment method can your company provide ?
We accept Alibaba Trade Assurance Orders payment, via TT (Bank transfer), Western Union,Paypal and so on.
4.How is your after-sales service?
Most of our sales engineers and technicians have won HV HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly.5. Can I install the IP camera by myself?

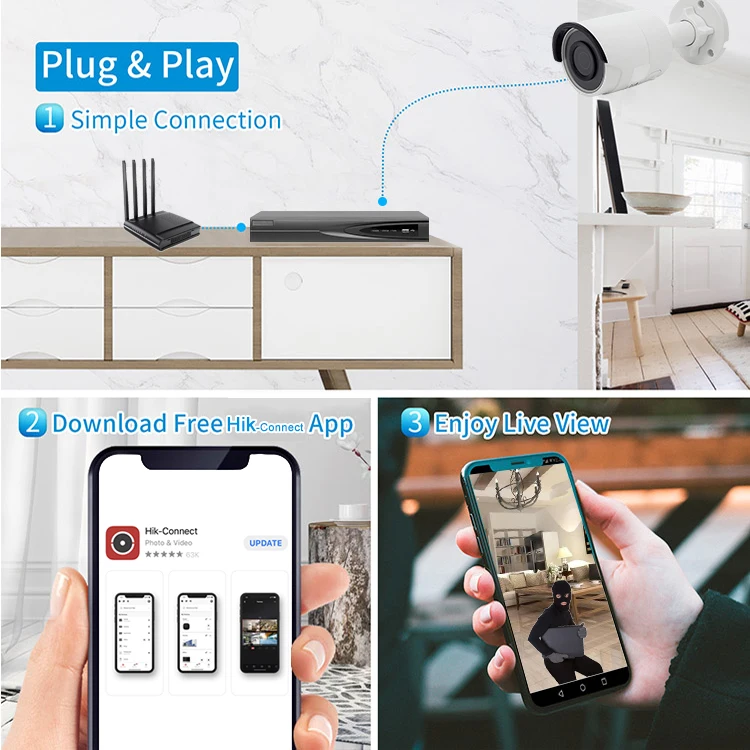

Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
