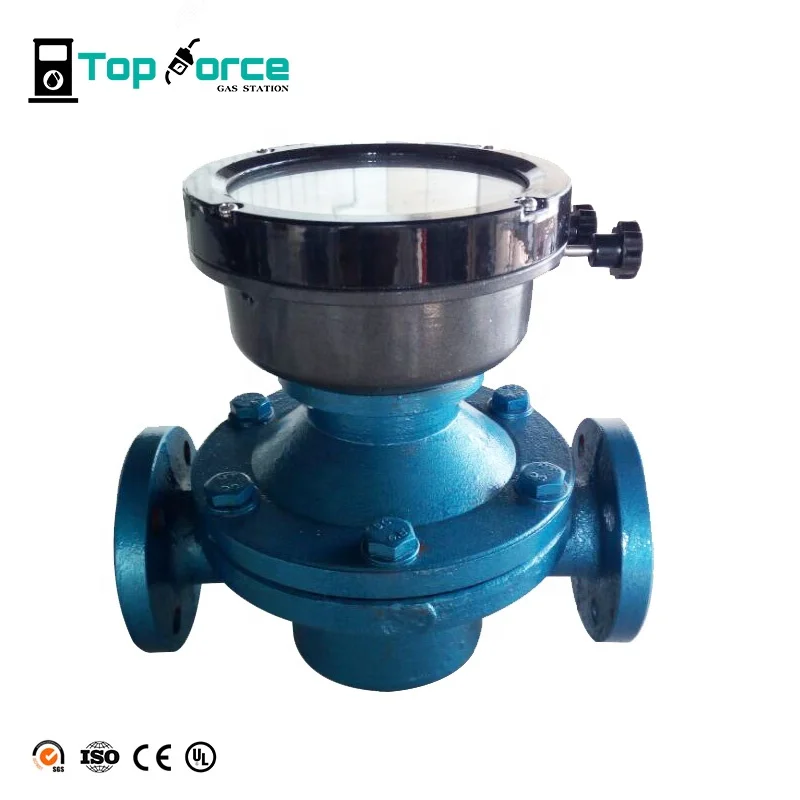

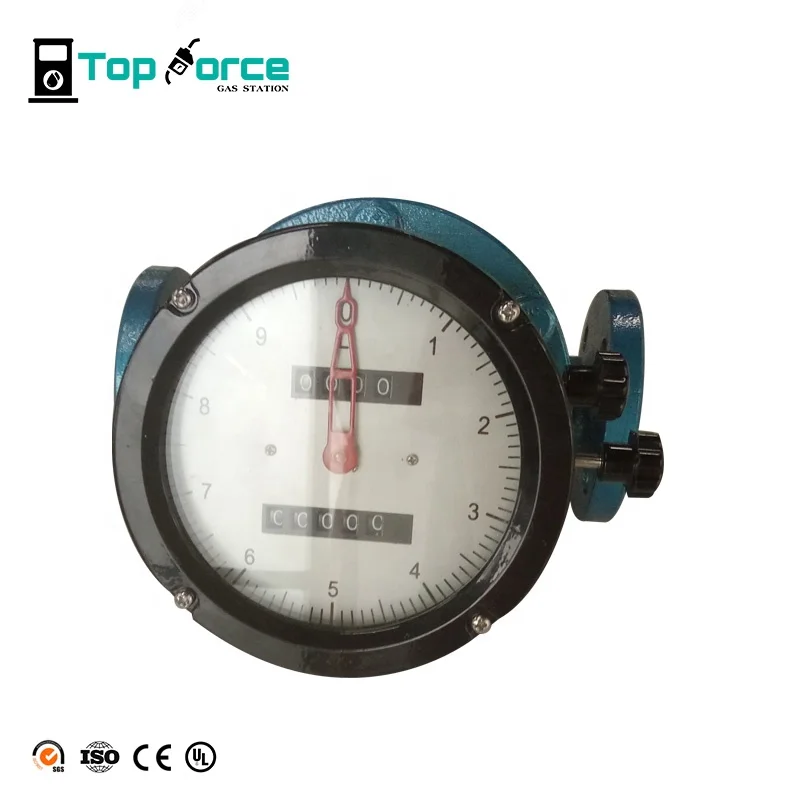

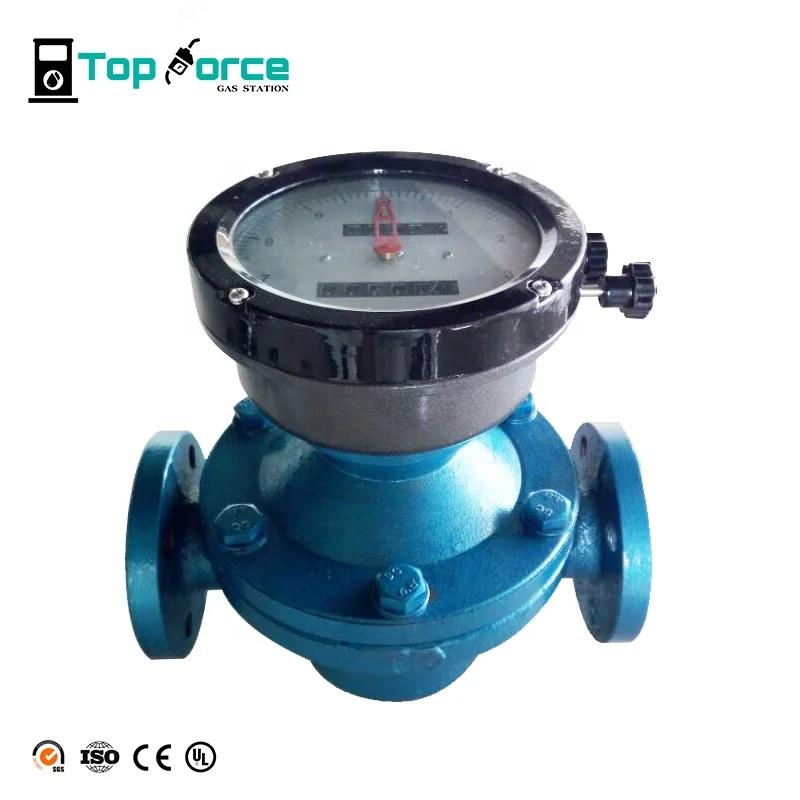

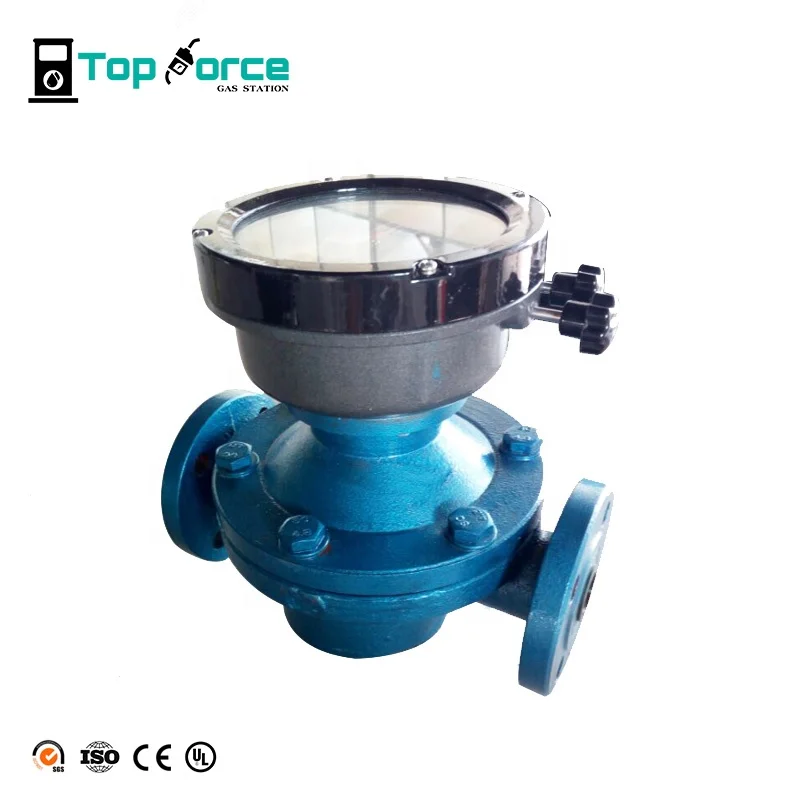

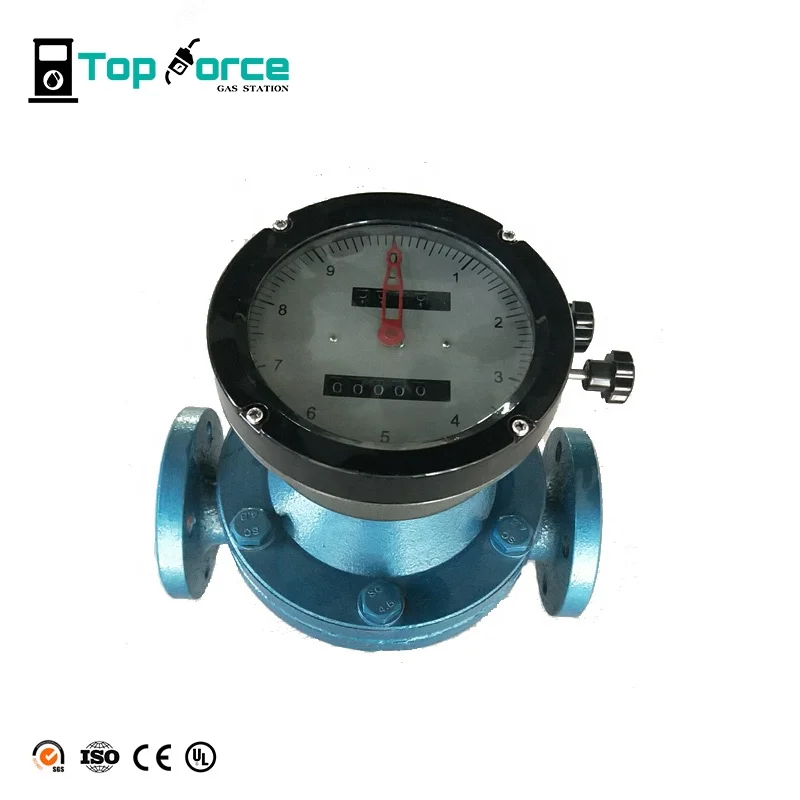

Hot sell diesel kerosene gasoline oval gear flowmeter

Technical Parameter--- oval gear Fuel flow meter

Nominal Pressure

cast iron1.6MPa; cast steel 2.5MPa;4.0MPa;64MPa;stainless steel 1.6Mpa

Measured Medium

heavy diesel fuel ,hydraulic oil, oil

Medium Temp

-20~+280℃;

Diameter range

10mm—200mm

Accuracy

0.5%,0.2%

Viscosity

2-2000mpa.s

Signal Output

Pulse 4-20mA ,RS485

Flange standard

ANSI,JIS ,GB/T,DIN etc

Flow range

Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s

Explosion proof

Exd IIBT4

Typical application

Measuring fuel oil, lubricating oil, marine ship fuel oil, bitumen, paraffin oil, furnace oil, palm oil,

crude oil, syrup, water, epoxies, solvent, etc.
