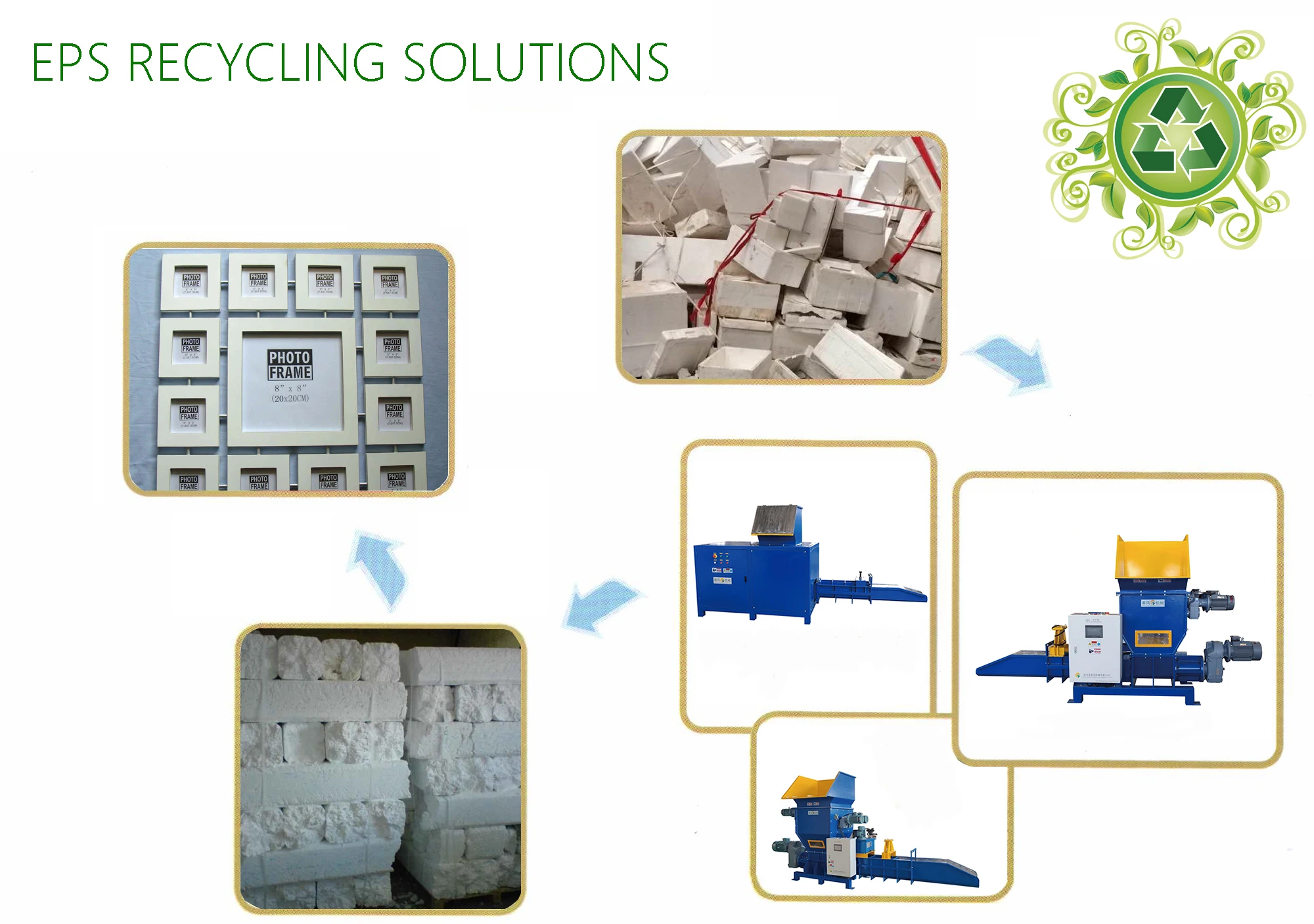

EPS compactor eps scrap blocks recycling plastic equipmentis a machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also known as recycling plastic equipment and EPS compactor. It is widely used in sea food processing plant, electronic factories, White goods and black goods stores, and the supermarkets.Polystyrene compactor makes it profitable for municipalities and businesses To recycle EPS,EPE,XPS.
EPS compactor Features:
1. Compacting expanded polystyrene with a density of 200-250kg/m3
2. Save costs for transport and land fill
3. Save space and handling by dealing with the EPS in a quick and efficient manner
4. Generate income from sales of the compacted EPS blocks, save power consunption
5. No heat is added to the process
Technical Parameters
Polystyrene compactor CF-CP Line
Each component color, electrical components brand, packaging size can be customized according to customer requirements
Plastic Recycling Machine CF-CP Line
Model Styrofoam compactor
CF-HCP Compacting Line
Capacity
200-300kg/h
Screw Diameter
φ350mm
Input size
1000mm *900mm
Screw rotation speed
36rpm

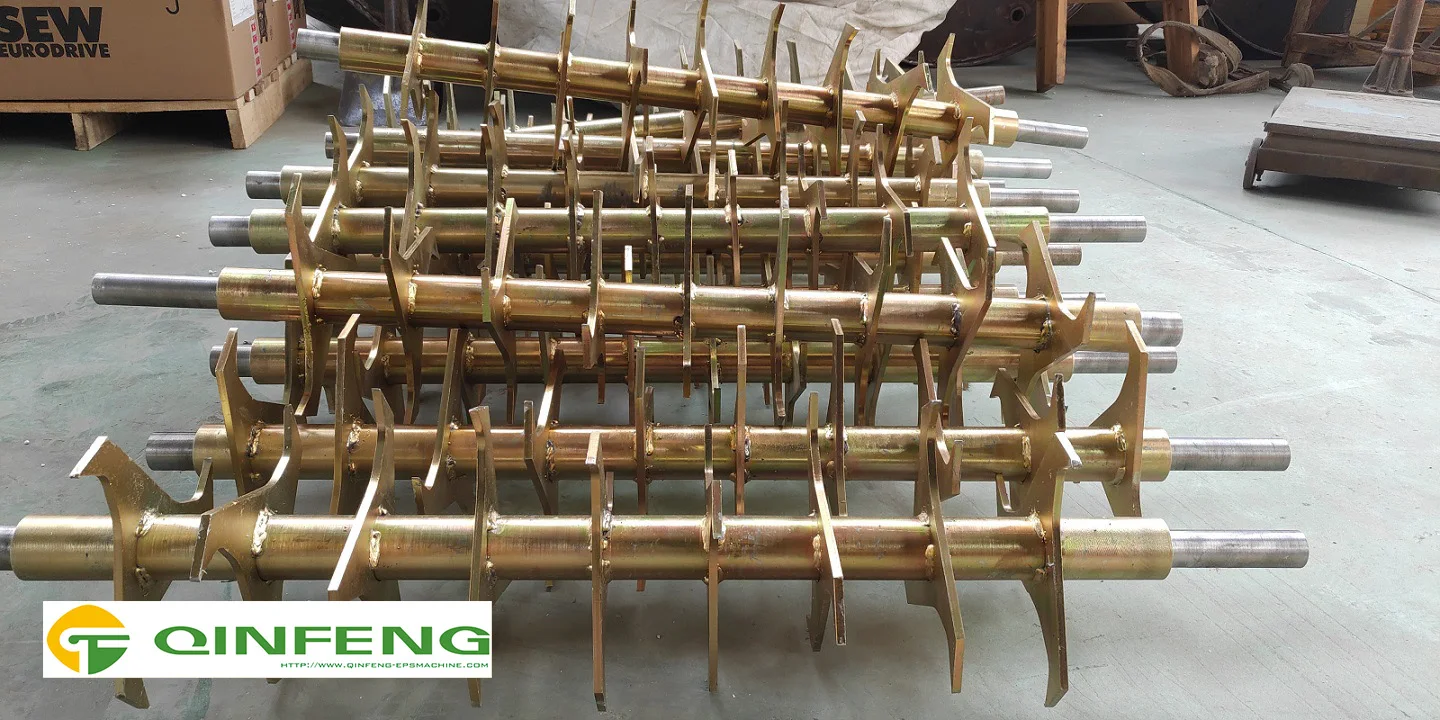

Crusher blades
4Sets 10+9+10+9sets
Conveyor motor
1.5kw
Fan motor
4kw
Main motor
15kw
Crusher motor
3kw X 4
Hydraulic motor
1.5kw
Production size
380x380mm
Configuration
Item
Simple Configuration
Standard configuration
Luxury configuration
Motor
Dongya
Dongya
SIEMENS
Control
(CURRENT CONTROL)
PLC Control SIEMENS
PLC Control SIEMENS
Touch Screen
(NONE)
WEINVIEW
SIEMENS
Gearbox
CASTLE
CASTLE
GUOMAO
Bearing
ZWZ
ZWZ
NSK
Hydraulic Station
Electromagnetic valve
Fanhua,Changzhou
Taiwan Qiyang
Japan Yuken
Electricity Elements
CHNT
Main parts use SIEMENS
Other parts use CHNT
All the elements
use SIEMENS
Detail View
Operational principle :

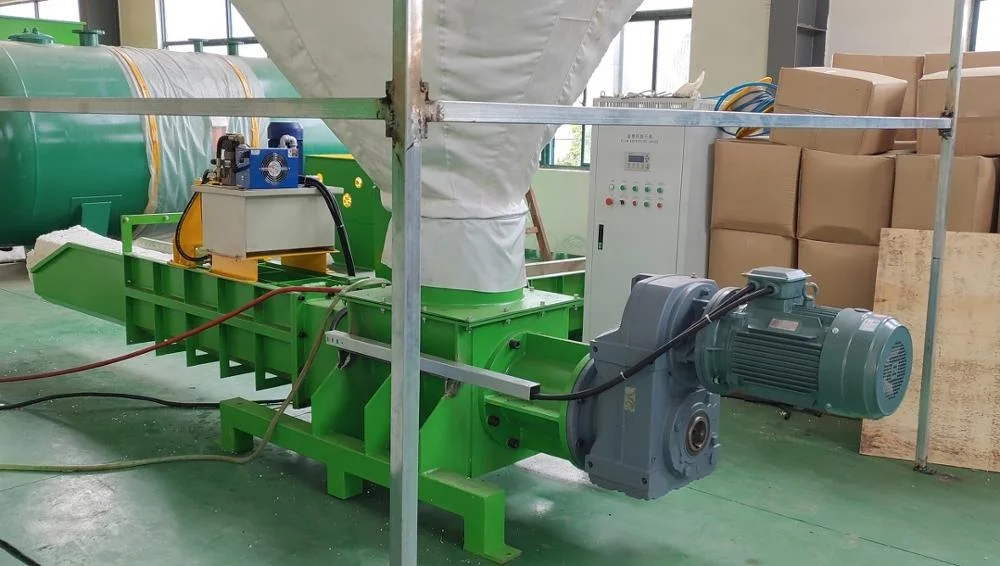

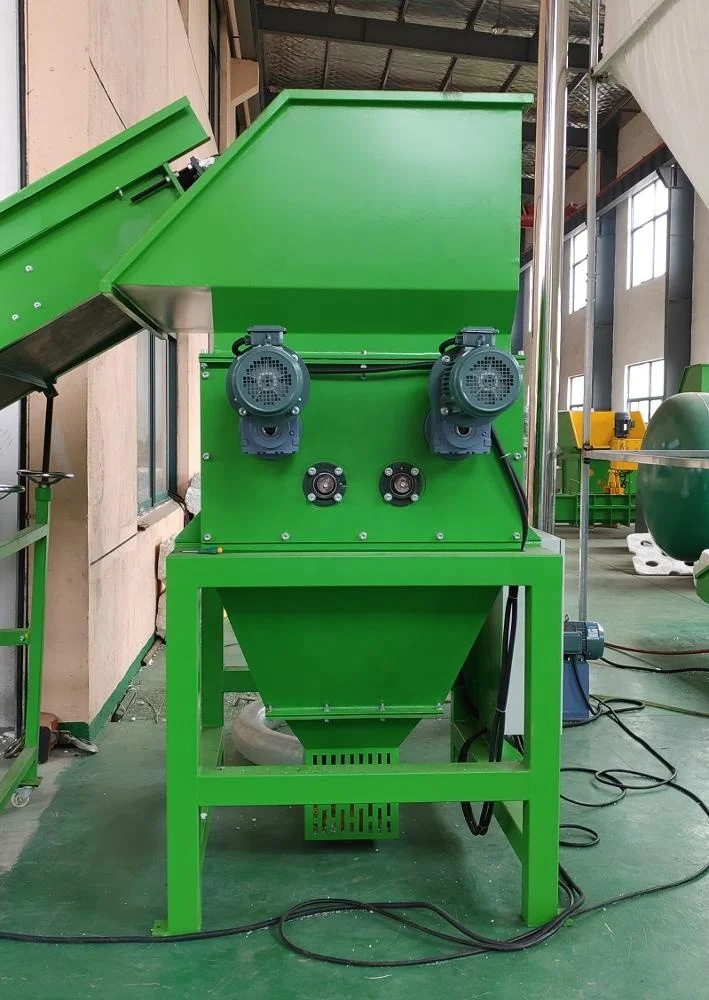

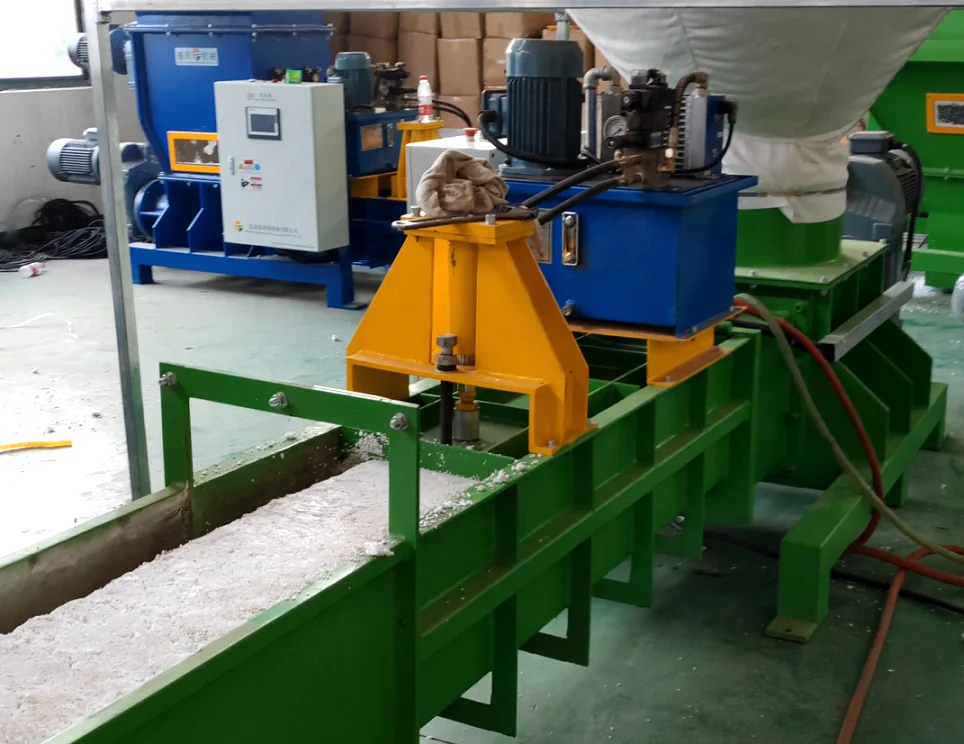

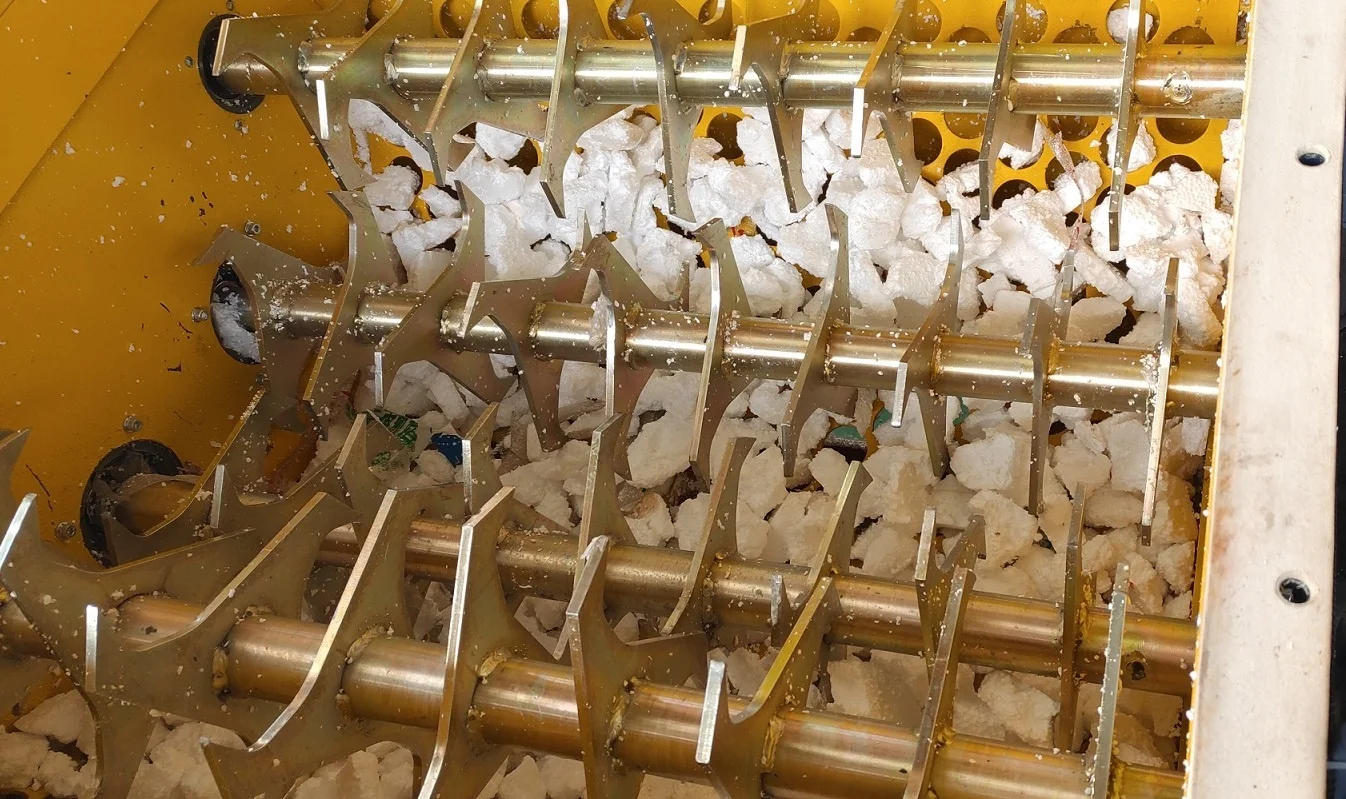

Put the polystyrene foams into the crushing bin, and the motor drives the crushing bin to break the foams(Polystyrene beehive box) into small pieces. The foams that pass will be screened through the filter screen. Those that pass will enter the squeezing bin, while those that don't will continue to break until they pass.The extrusion bin is fed by motor driven screw.There is a water tank between the discharge channel and the extrusion bin. Two water pipes are connected on the water tank for water circulation and cooling effect.When the screw transfers small pieces of foam to the front of the outlet, the surface of the outlet is covered with a layer of 304 stainless steel, and the upper part is pressed by a hydraulic pump, so it is difficult to extrude the foam during the discharge.Wait for the foam block to be pushed out by the screw. When the hydraulic pump drops down and there is no material, the cover plate and the upper surface of the discharge channel can form a negative Angle and wait for the accumulation of foam blocks, and then repeat the previous action in a cycle.

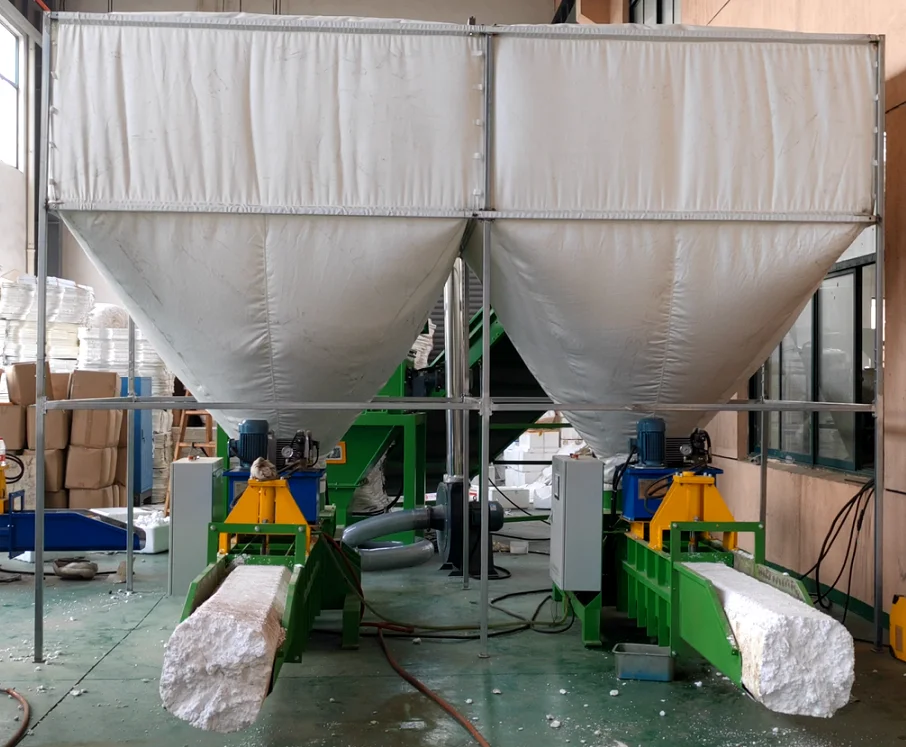

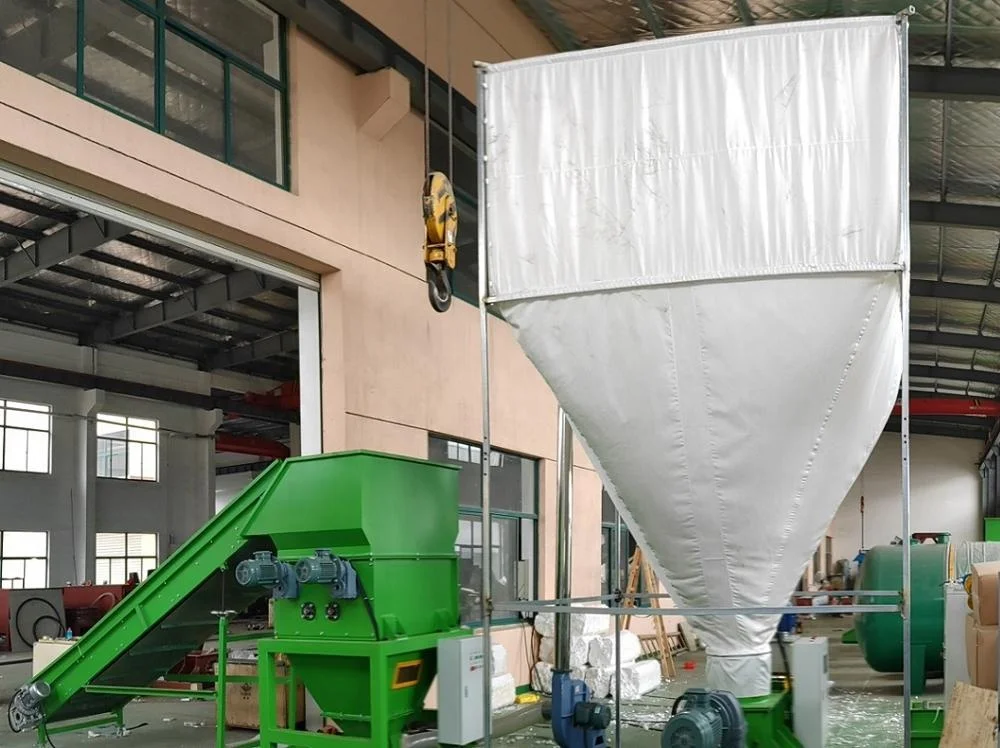

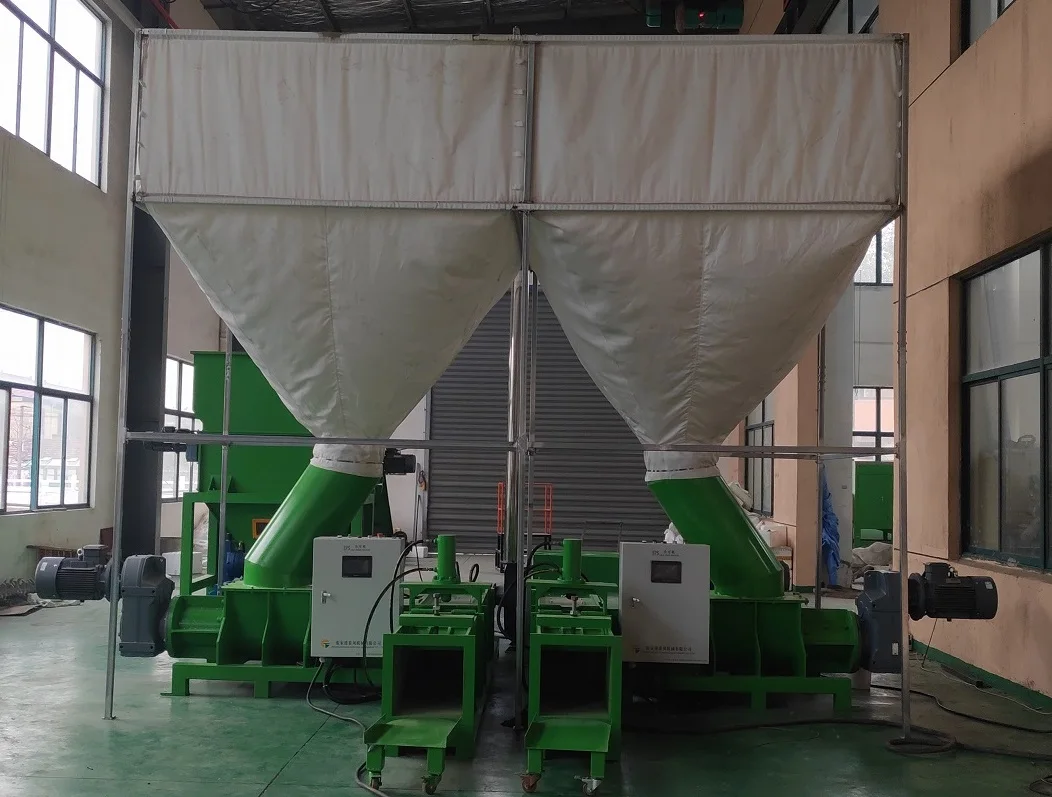

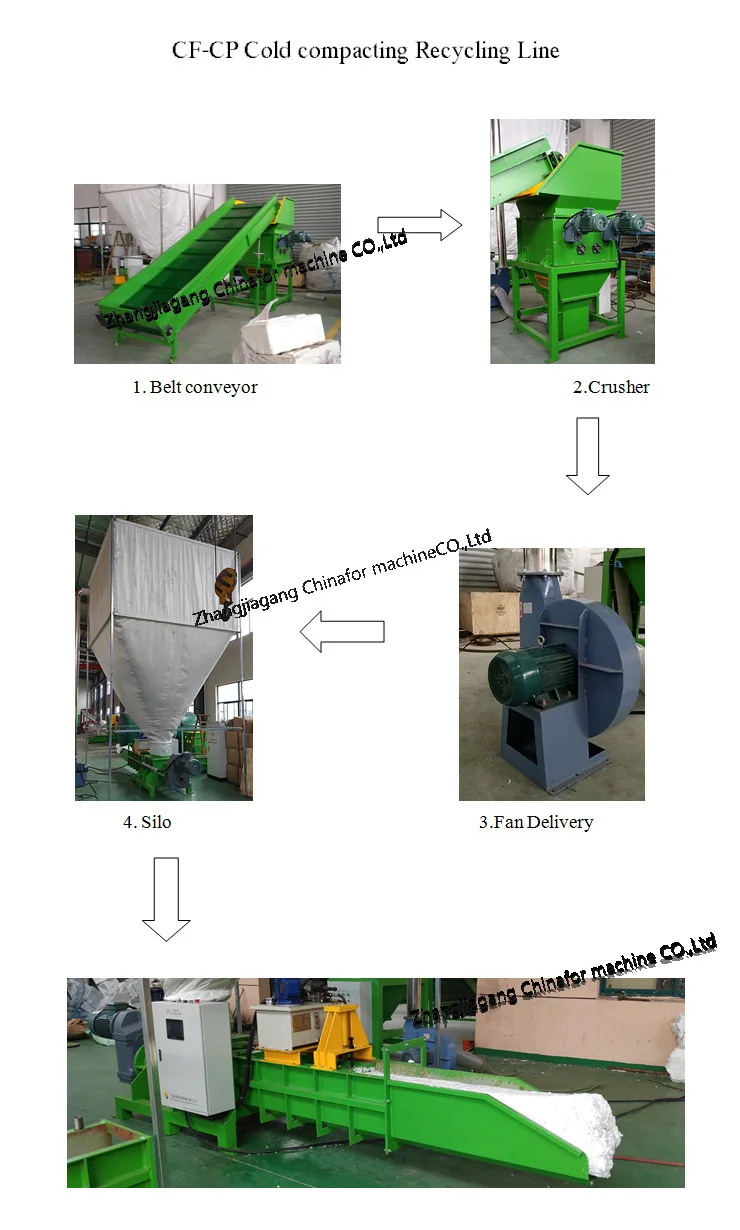

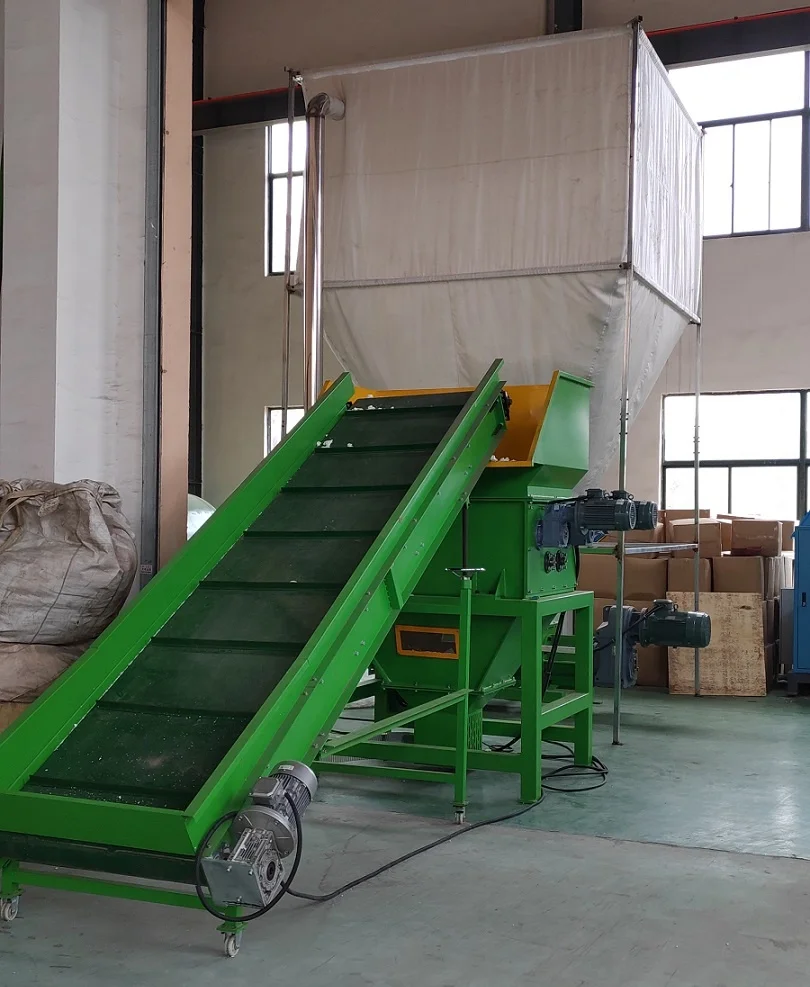

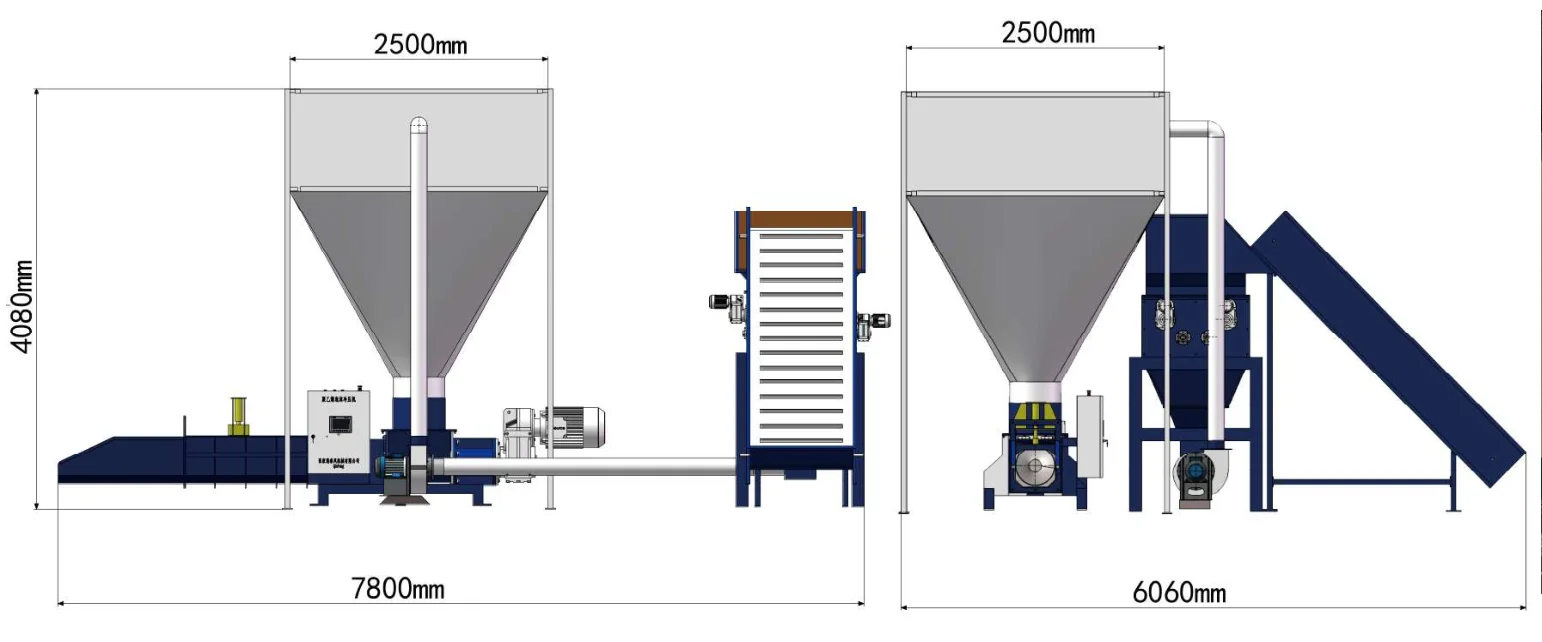

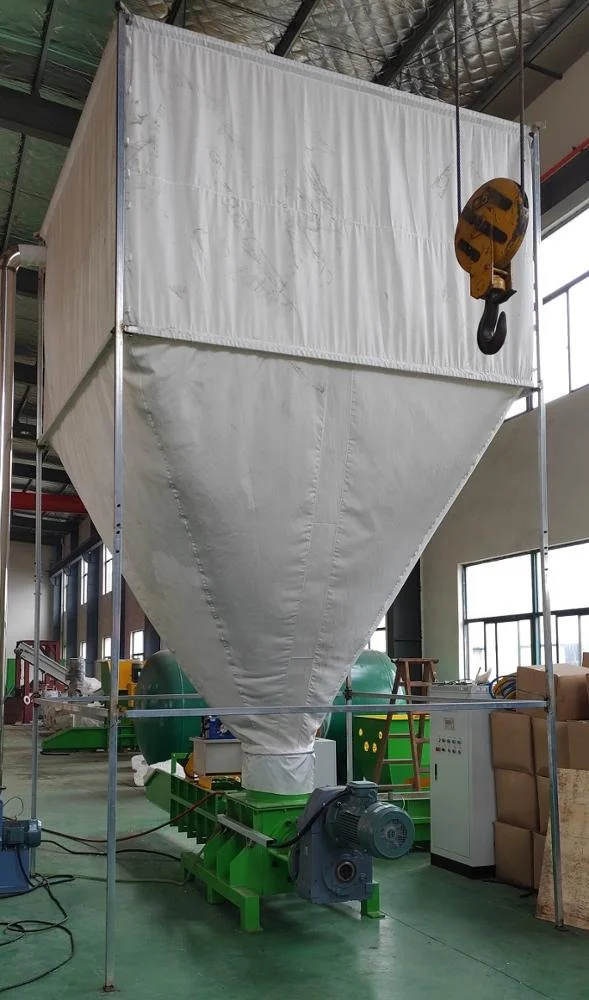

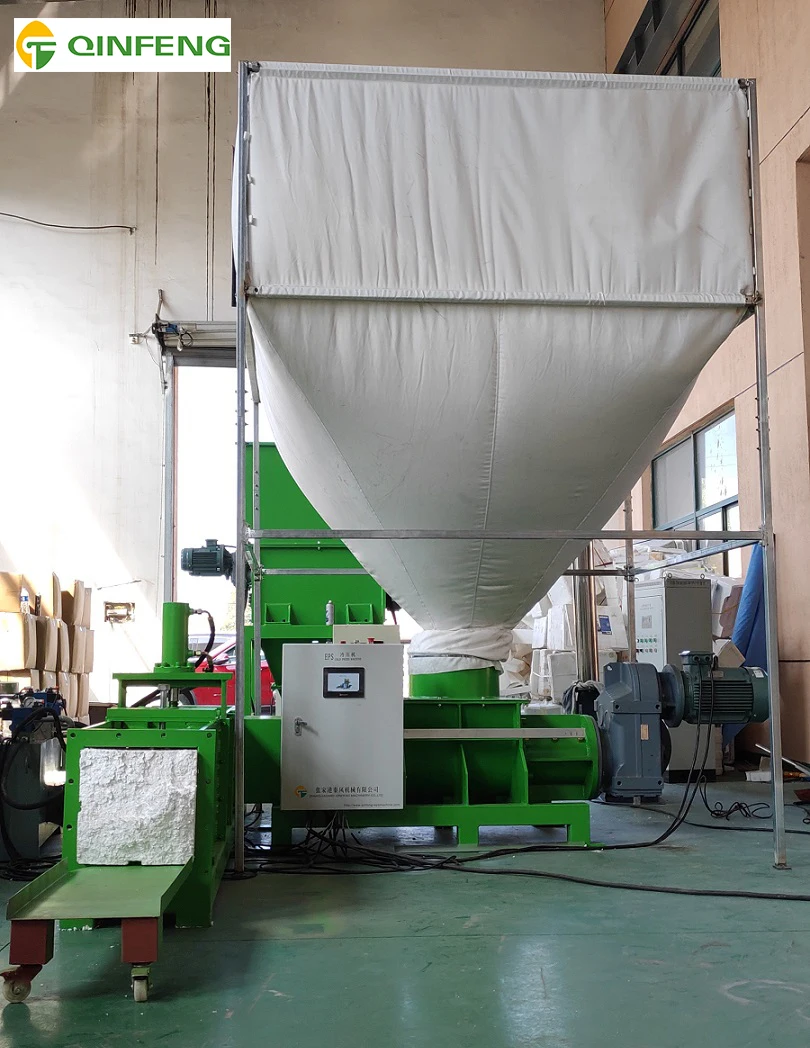

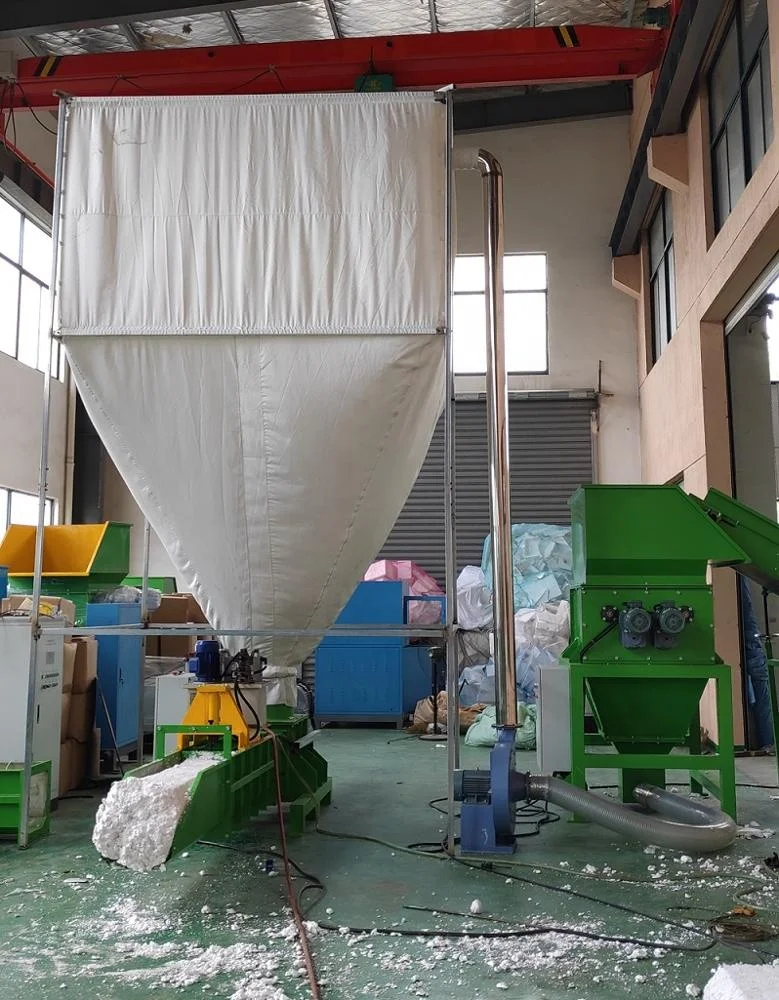

The CF-CP compacting line adopt the conveyor belt,fan delivery and silo system to increase the capacity of the line.
Mainly use in large size recycling center,big sea food market and the big distribution center.
Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of compactors for waste recycling.
Packaging & Shipping
FCL delivery, directly wrap film package packing;LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.
(The equipment can be packaged according to customer's requirement)
