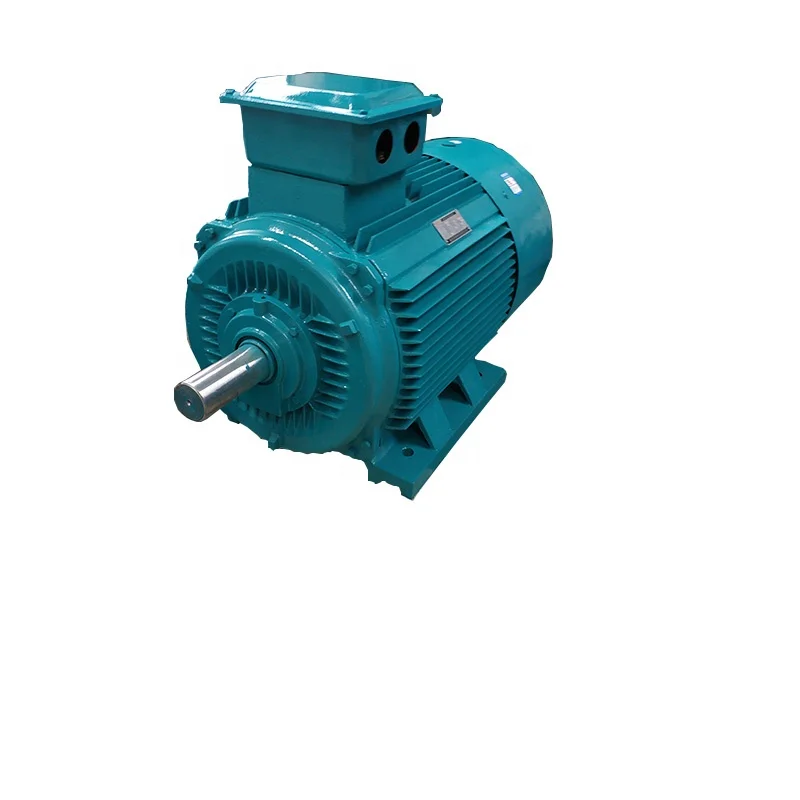

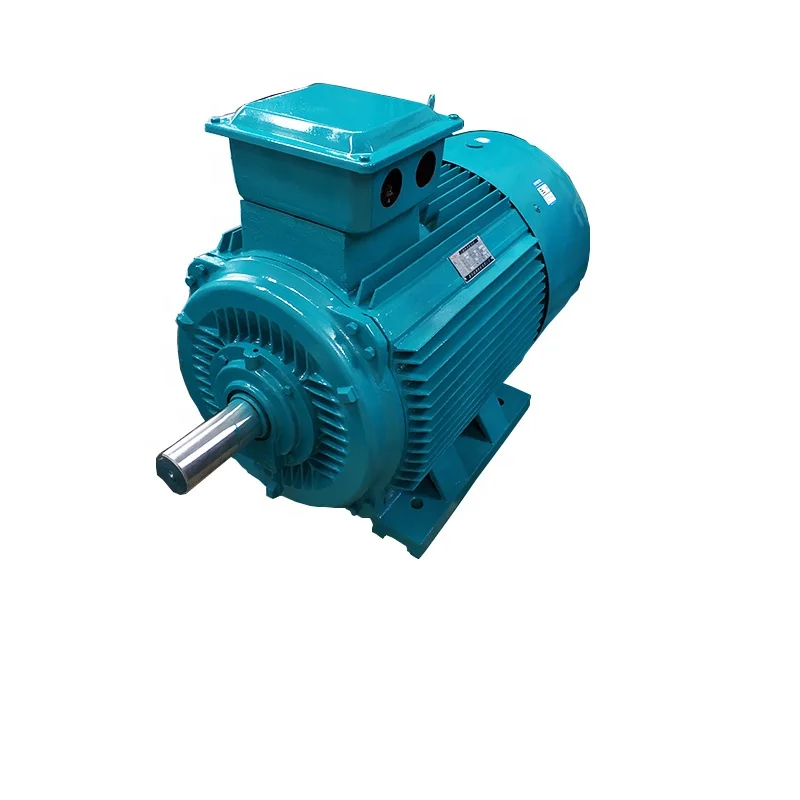

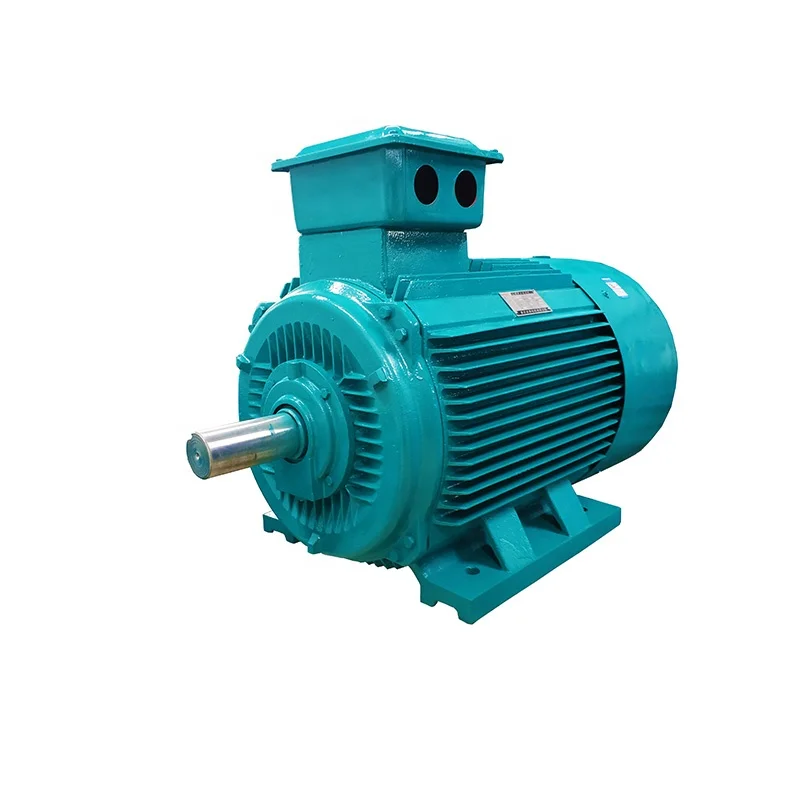

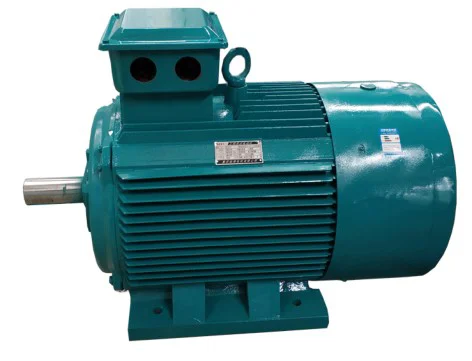

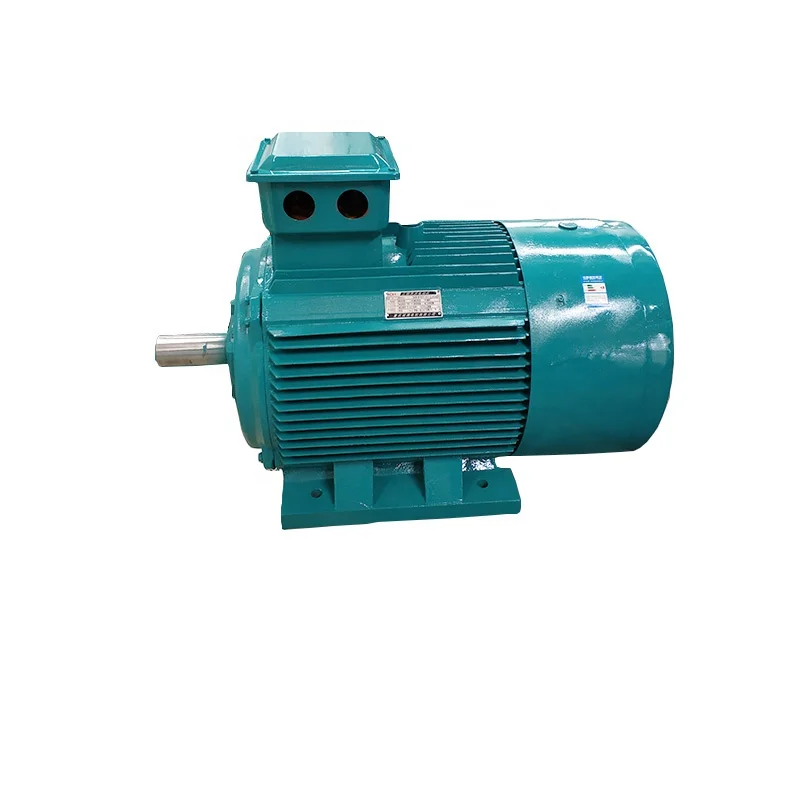

15kw 20hp Ultra-high efficiency three-phase asynchronous motor
Product Description
Product name:
15kw 20hp Ultra-high efficiency three-phase asynchronous motor
Type:
YE3-160L-4
Power:
15kw(20hp)
Power factor:
0.86cos
Current:
28.77A
Speed:
1460RPM
Efficient:
92.1%
Weight:
140Kg
Insulation Class:
Class B or F
Wire:
100% copper
Ambient temperature:
-15°C≤0≤40°C
Altitude:
Not exceed 1000m
Duty:
S1

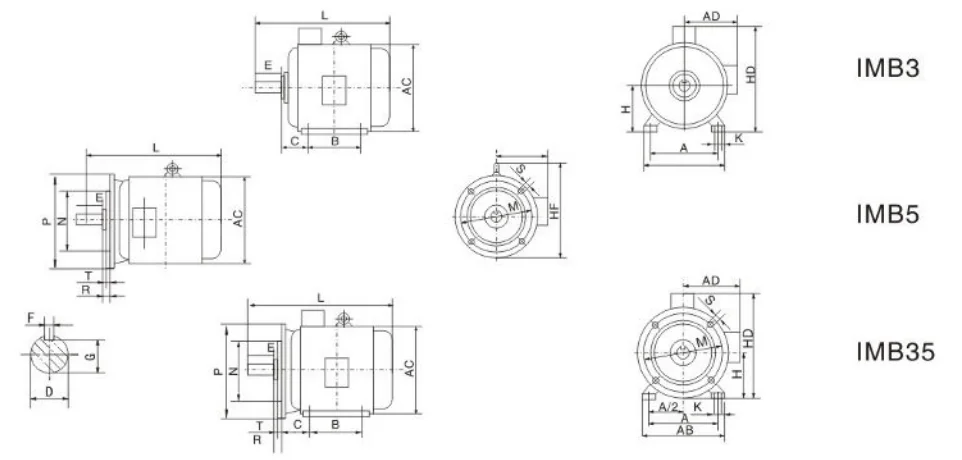

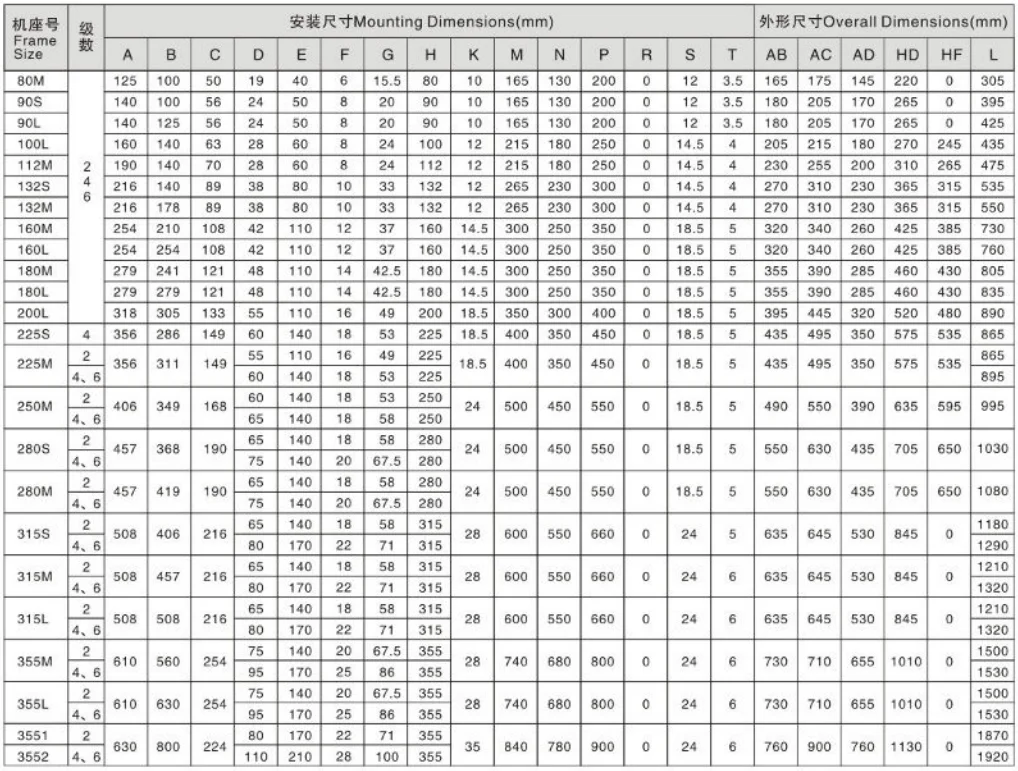

Overall Dimensions:
760mm*320mm*425mm

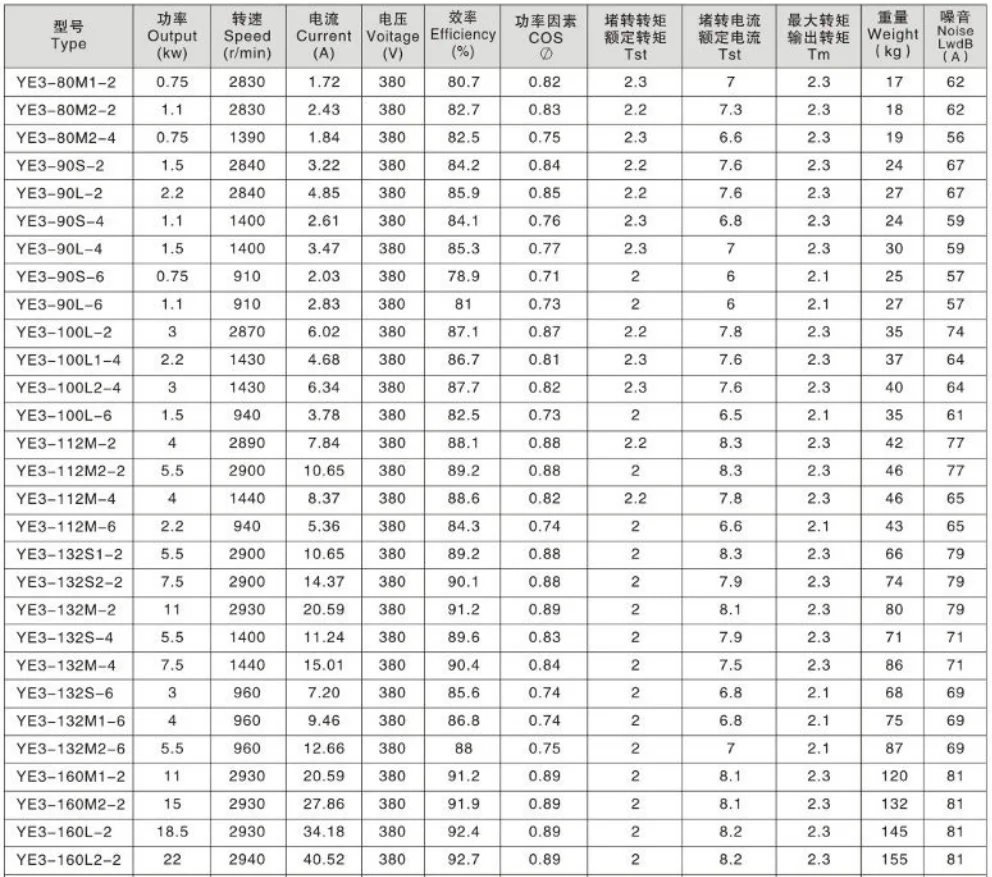

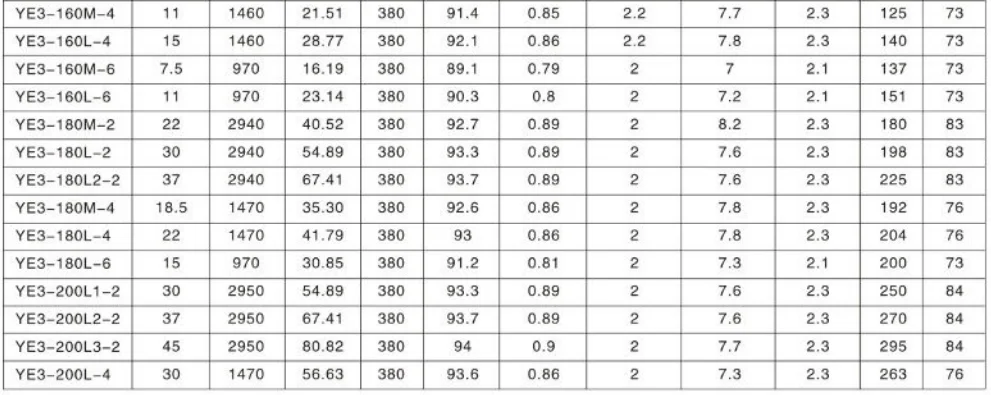

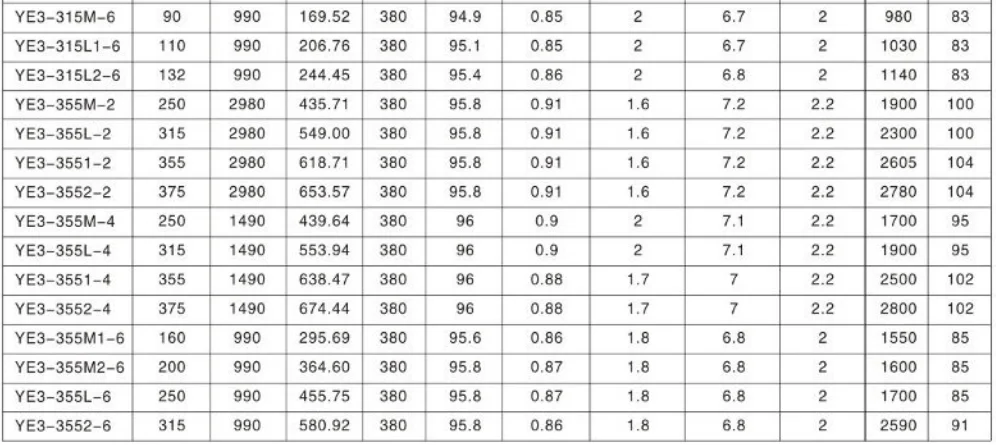

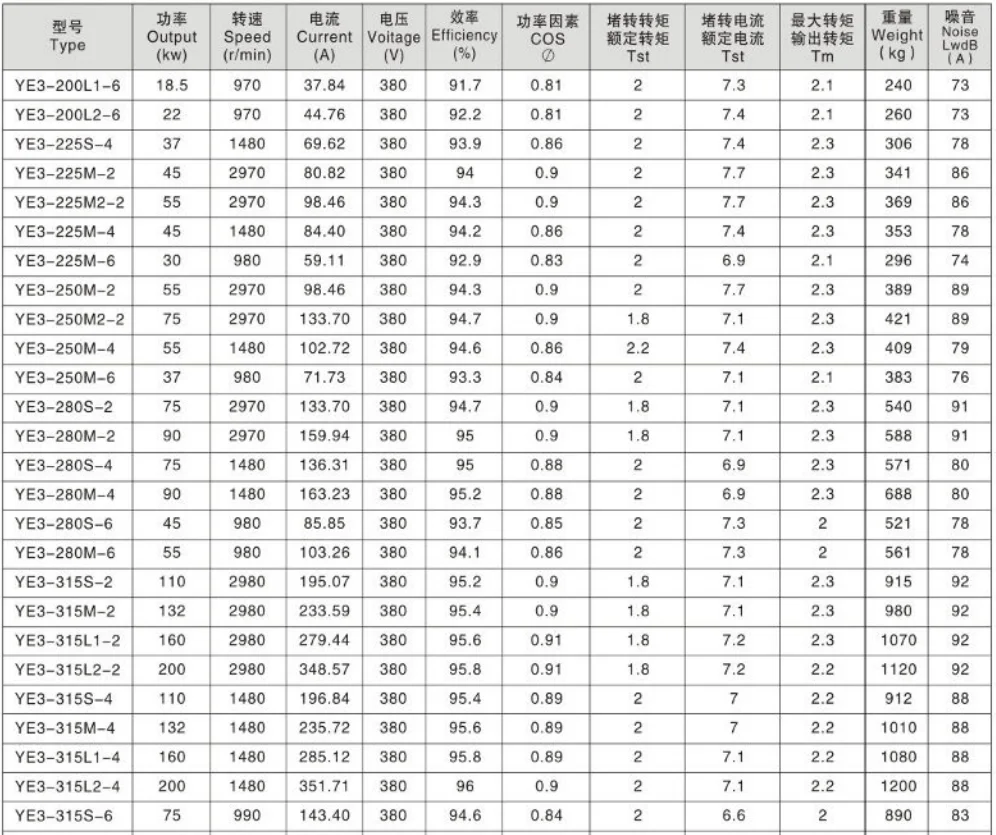

Related Products
Chengxie Motor can Supply many kinds of Motorss. Including YE3 Series, YE2 Series, Y3 Series, YVF2 Series, YB3 Series, YD Series, YL Series, YEJ Series, YCT Series, YB3 Flameproof Motor.
Company Information
Chongqing Chengxie Motor Co., Ltd is Located in Chongqing,China. Which is among the largest Industrial City in China. We have more than 20 Years of OEM Service Experience. And covering an area of 20,000 Square meters.
Chengxie Motor specializes in the production of Our main motor is YE2 series three-phase asynchronous motors, YE3 series Super high efficiency three-phase asynchronous motors, YD series multi-speed three-phase asynchronous motors, YCT series electromagnetic governor Motor, YVP/YVF2 series variable frequency speed-regulating motors, YEJ series electromagnetic Brake three-phase motors. YL Single Phase Motors. YB3 Flame Proof Motor and so on.
We have Professional Design & After-sale Team.
Certifications
Chongqing Chengxie Motor Co.,Ltd can supply CE & 3C for All of kinds Motors.
FAQ
Q: Are you Factory or Trading Company? A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty? A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q: Do you offer OEM Service? A: Yes. We offer OEM/ODM service.
Q: What is your lead Time? A: Usually 7 days. Precise Time depend on Qty.
