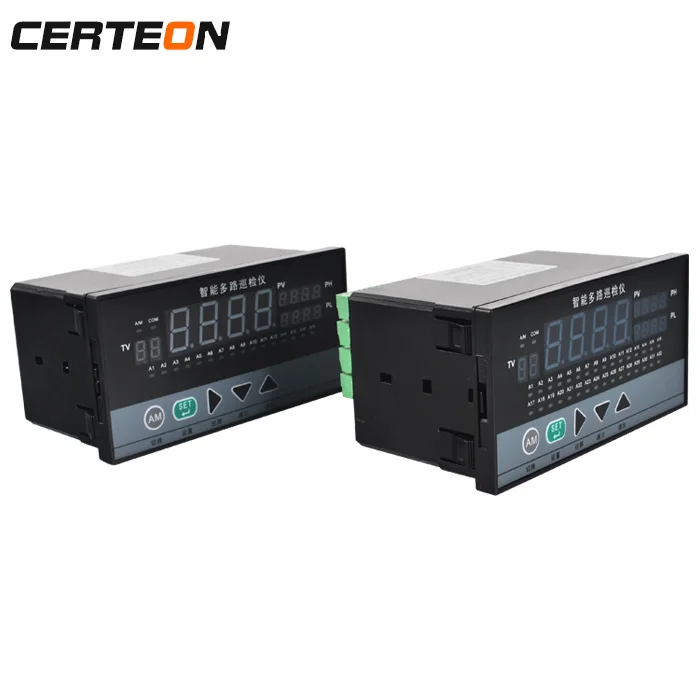

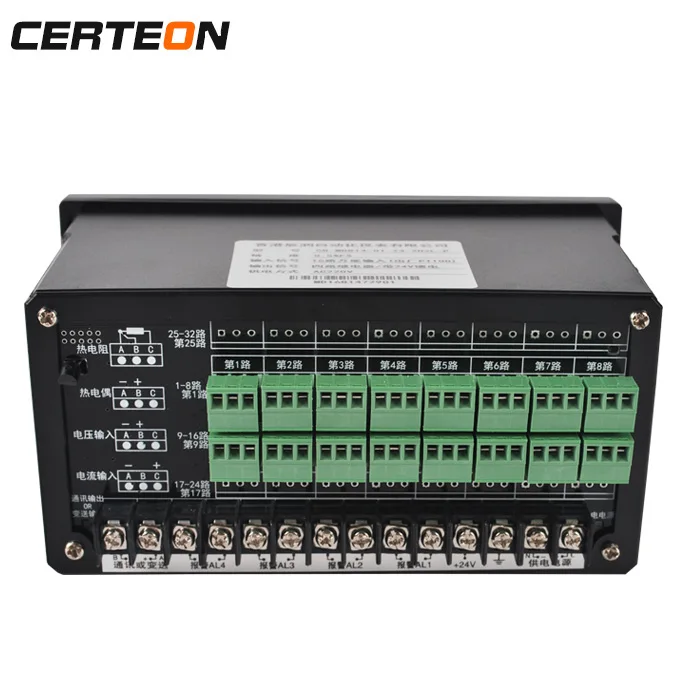

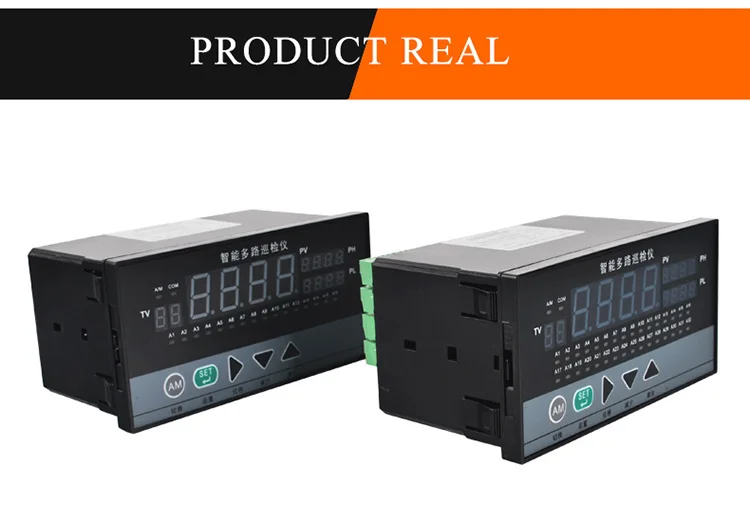

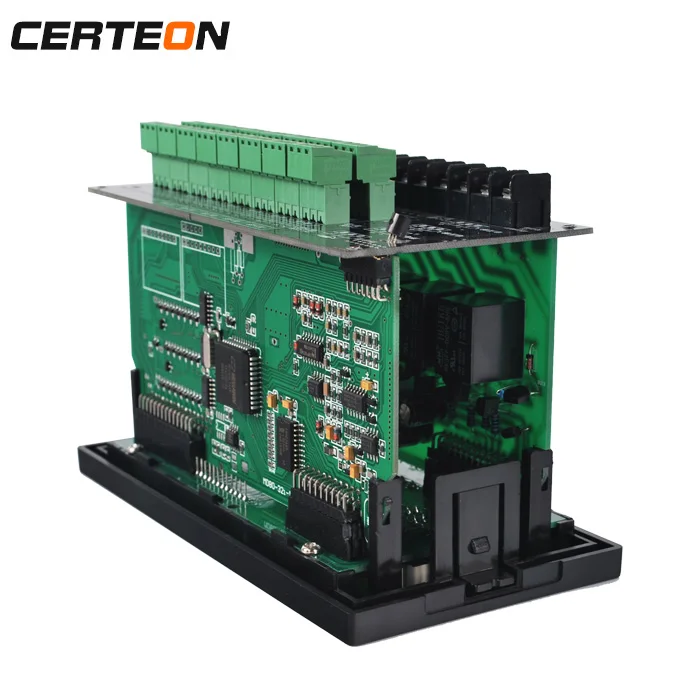

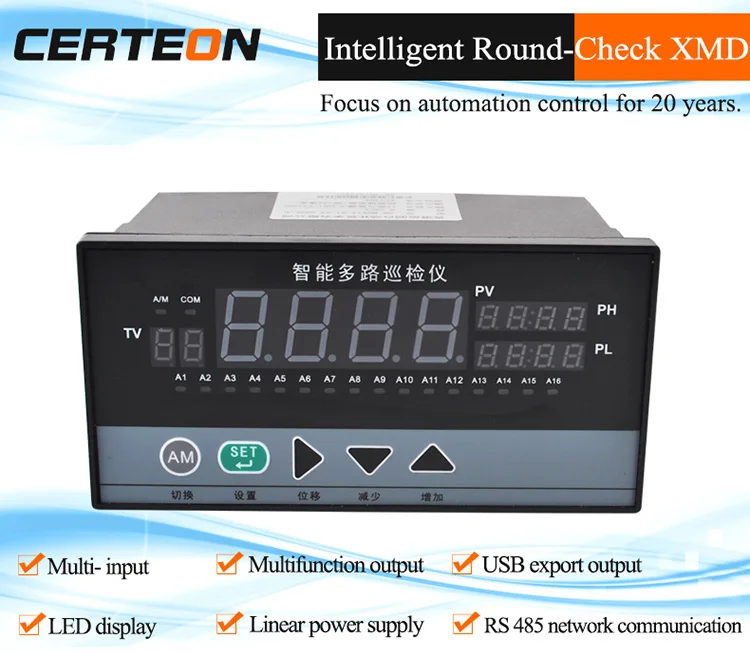

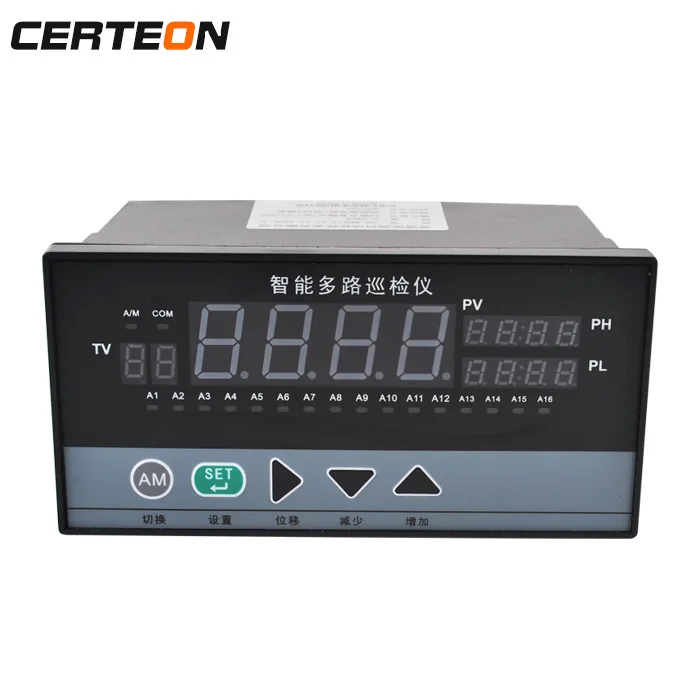

AC220V DC 24V xmtd multi channel RTD measurement analysis instruments incubator temperature controller for heating thermostat

Product Overview

Description

Product parameter

Model	XMD-1216
Basic error	±(0.5%FS+1)characters
Resolution	±1 character
Display range	-1999 to 9999

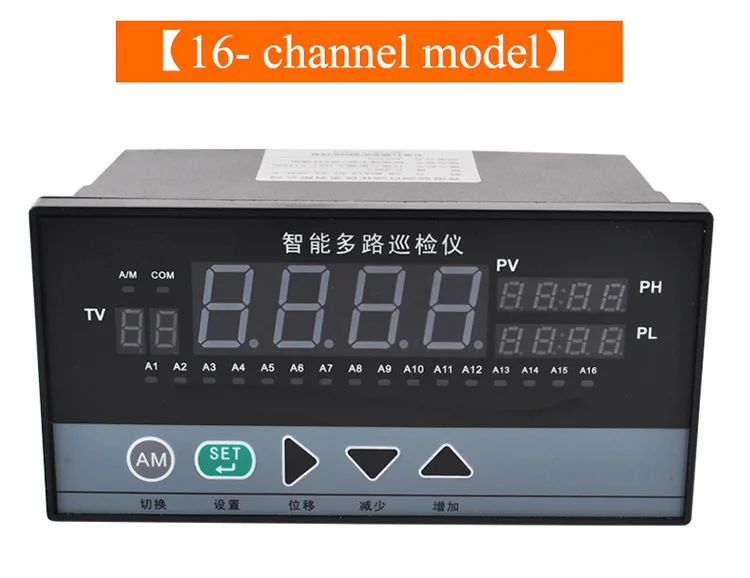

Measurement channel	1 to 16 Channels
Input signal	B,S,K,E,J,T,Pt100,Cu50
	Distance pressure resistance: 30-350Ω
	Standard current: 0-15mA; Input resistance: ≤250Ω
	Standard voltage: 0-5V; Input resistance: ≥250kΩ
Output signal	Analog output: DC 0-10mA(loaded resistance: ≤750Ω)
	4-20mA(loaded resistance: ≤500Ω)
	DC 0-5V  1-5V(loaded resistance: ≥250kΩ)
Alarm output	Relay control output, Relay ON/OFF with repeatability
Telecommunication output	Baud rate 300-9600bps, free internal setting
Feeder output	DC 24V load≤30mA
Alarm mode	1 to 16 channels integrated maximum and minimum alarm with repeatability(free user setting)
Dimension	96*96*170

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.



Q:What is the delivery time ?

 A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you



Q:How about your package ?

 A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .



Q: How about the Warranty time ?

 A:Our warranty time is 12 months after you get our goods  . All lifelong technology service and support .



Q:How about the payment terms ?

A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:What is the MOQ?

A:1PC.



Q:Can I get a lower price if I order large quantities?

A:Yes,cheaper prices with more bigger size orders.



Q:Can I have my own logo of the products?

A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
