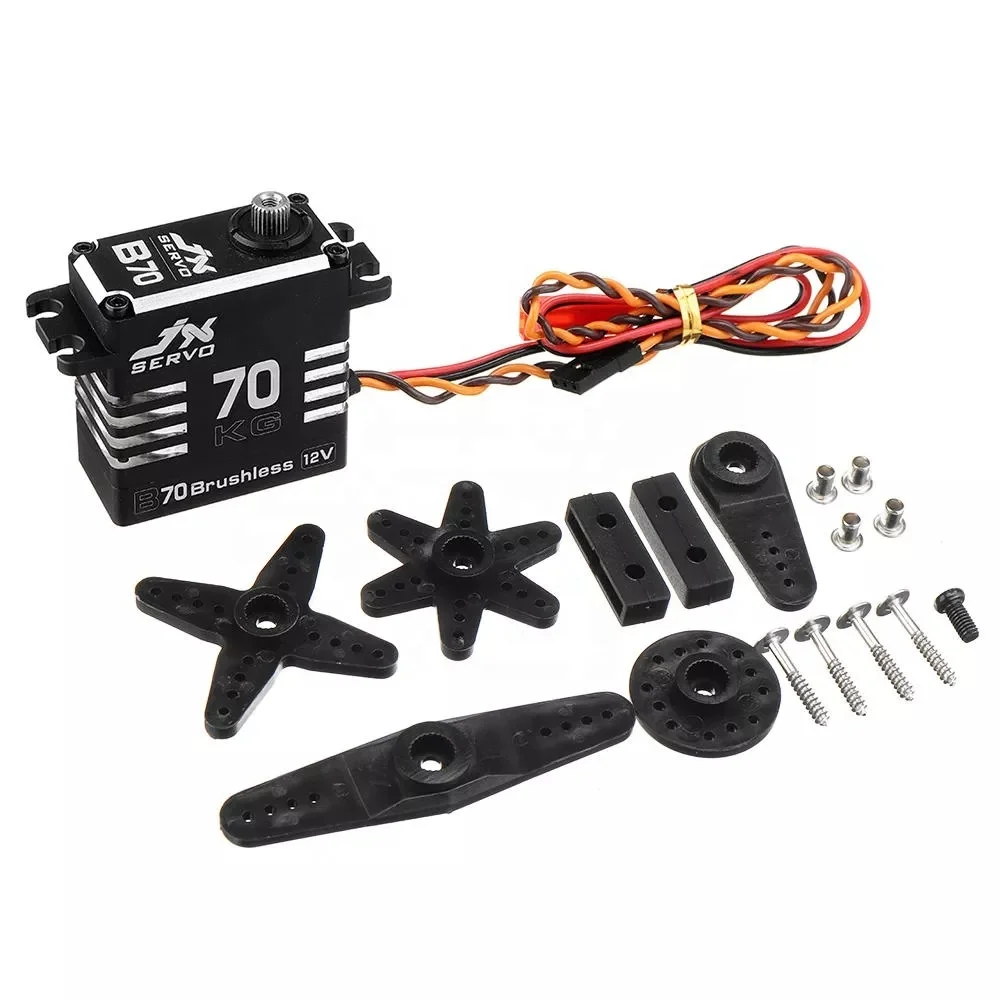

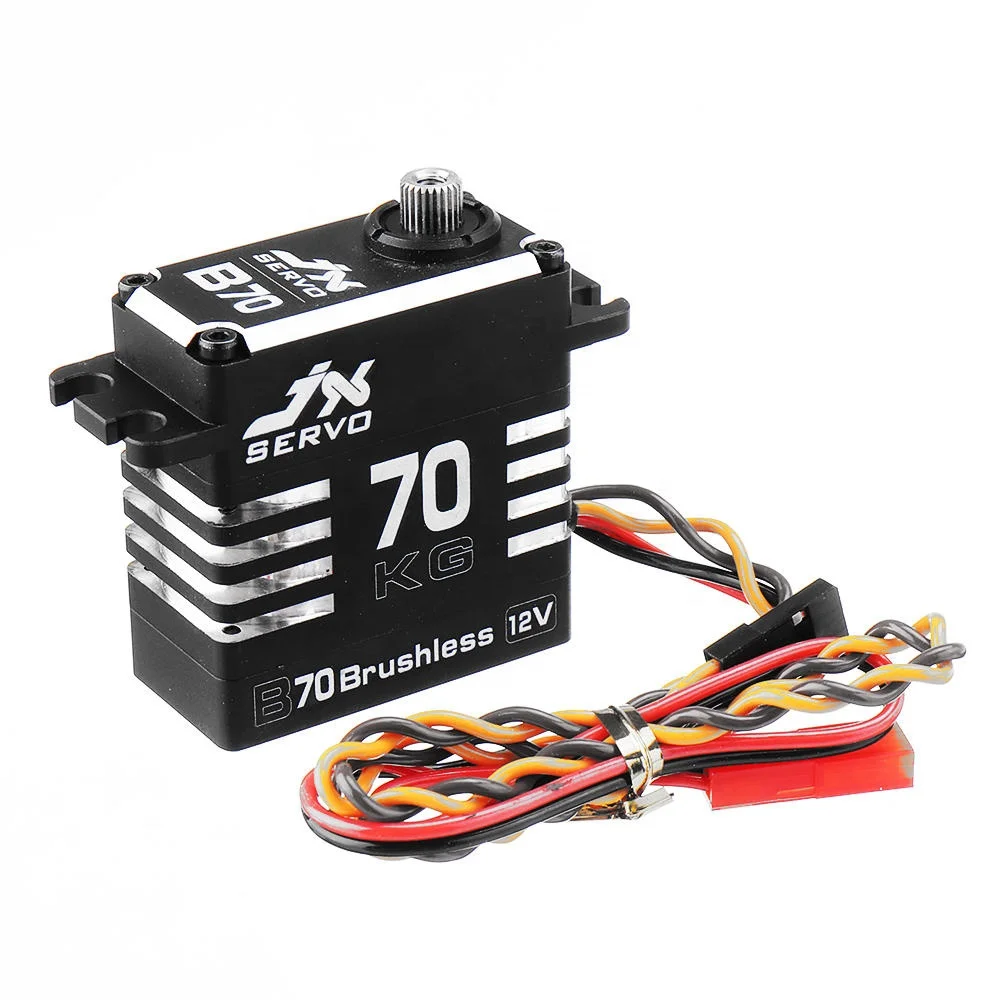

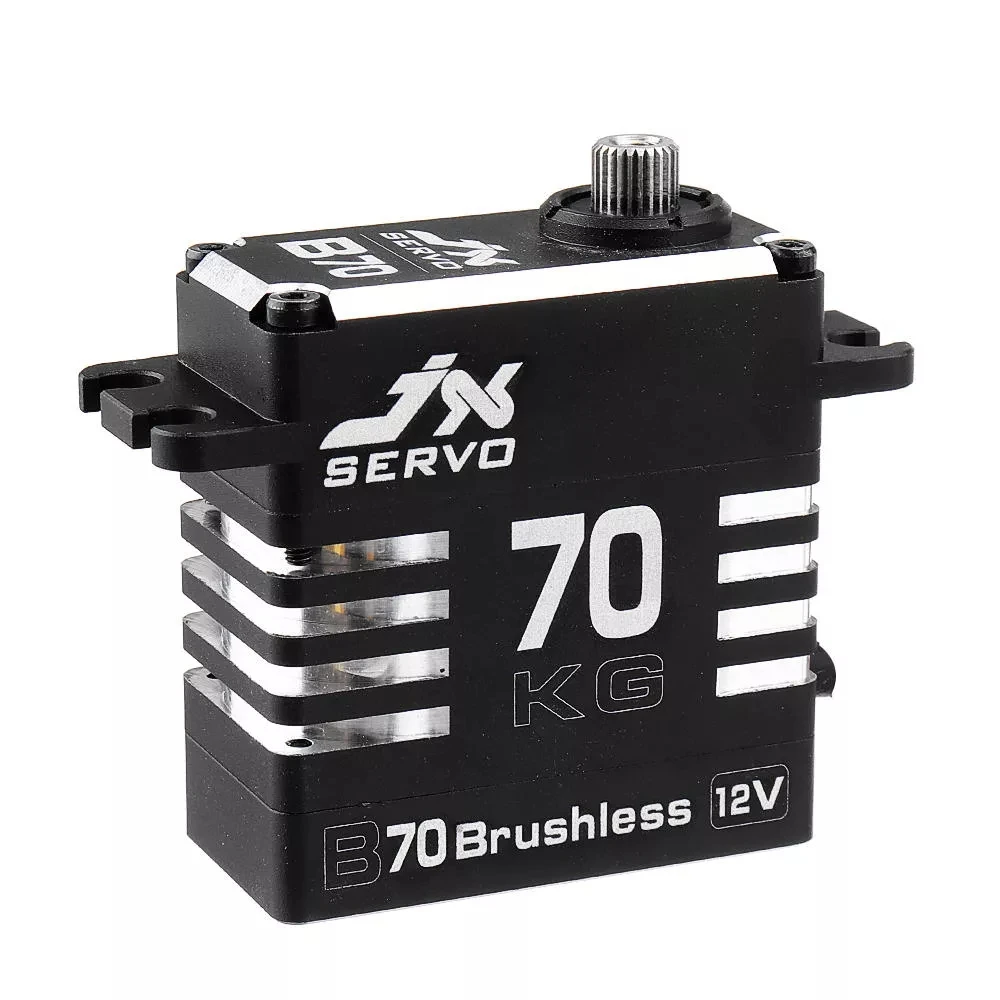

JX Servo B70 HV 12V 70KG 180 degree Brushless Large Torque Metal Gear Digital Servo For RC Helicopter Car Truck

Product Overview

Description

JX Servo B70 HV 12V 70KG 180 degree Brushless Large Torque Metal Gear Digital Servo For RC Helicopter Car Truck

Note: All our products are designed for RC Area, if you are not in this area or don't have the knowledge of servo and motor, please Do Not Directly pay before inquiried from us.

Product Description

Voltage range:11.1V-15V Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Motor: Brushless Motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (12.0V): 0.10sec/60°
Stall Torque (11.1V): 61kg.cm
Stall Torque (12.0V): 72kg.cm
Dimensions:40X20X43.3mm
Weight: 87g
Connector Wire Length: JR 265 mm
Bearing: 2B

Product Parameters

For the servos, please let us know your requirements:
We can custom made whatever brushless dc servo and motor you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.

OEM/ODM Order question


1. Which Area you used for? RC Servo or Industry Servo?

2. What's your expected torque?

3. What's your expected speed?

4. Do you have serice life requirement?

5. Your working voltage please.

6. Do you have your servo location place dimension limited? If have,please let me know the max legnth, width, height.

7. Do you need it waterproof?

8. How many qtys you need?

9. Other requirements if you need, for example, wire length, connector types and so on.

For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.

Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.

Below our custom made motors for other clients for your information.

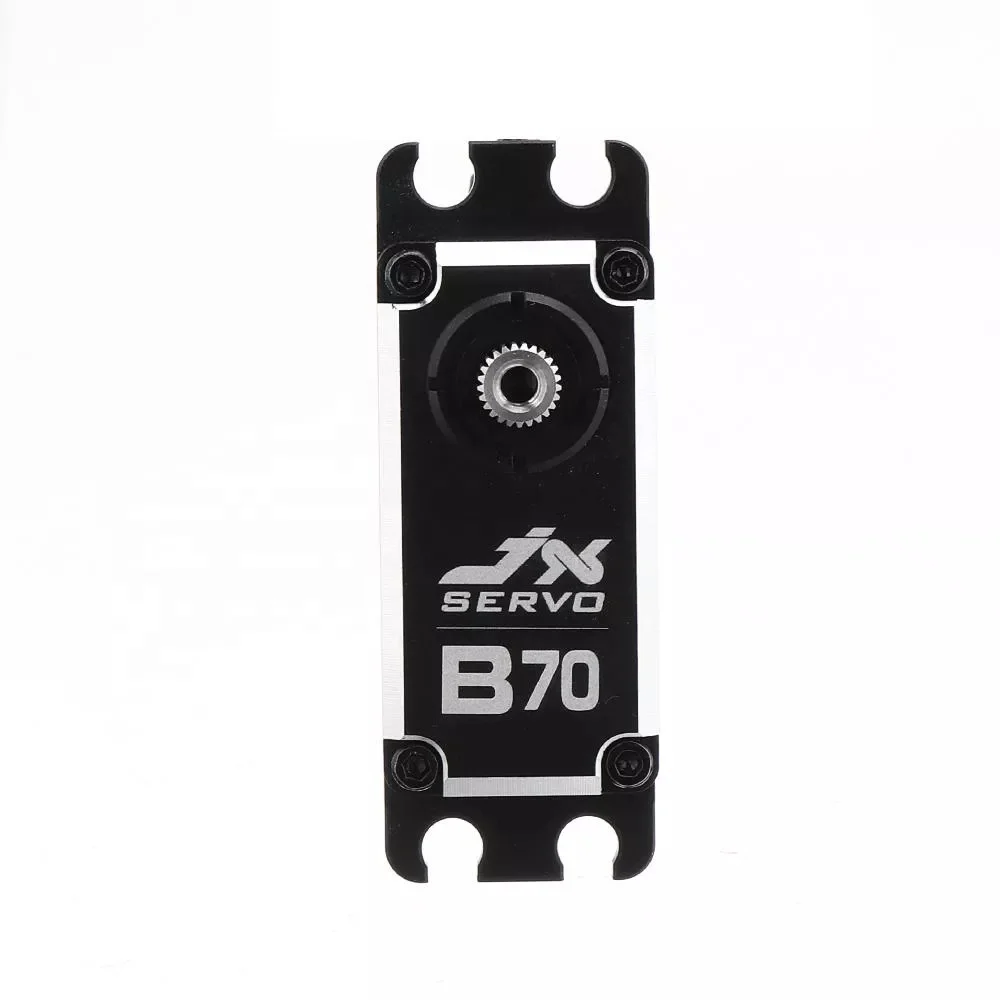

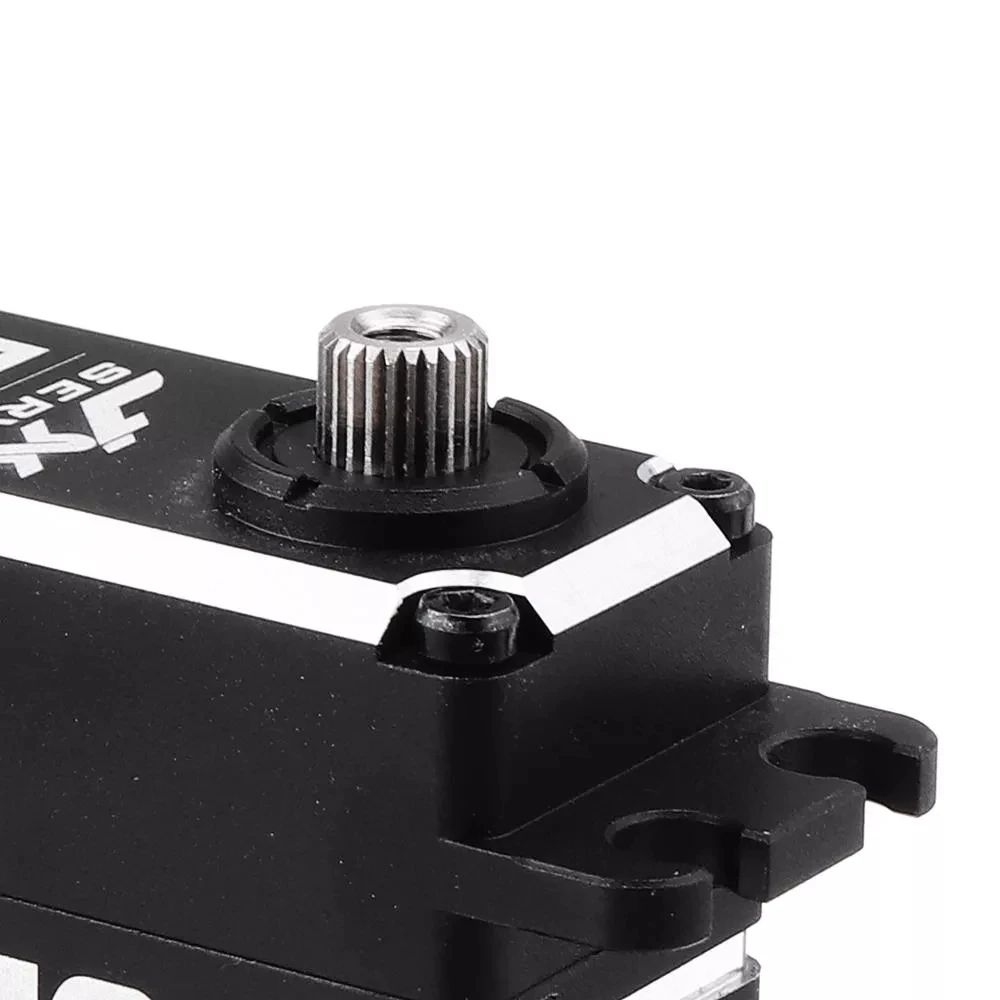

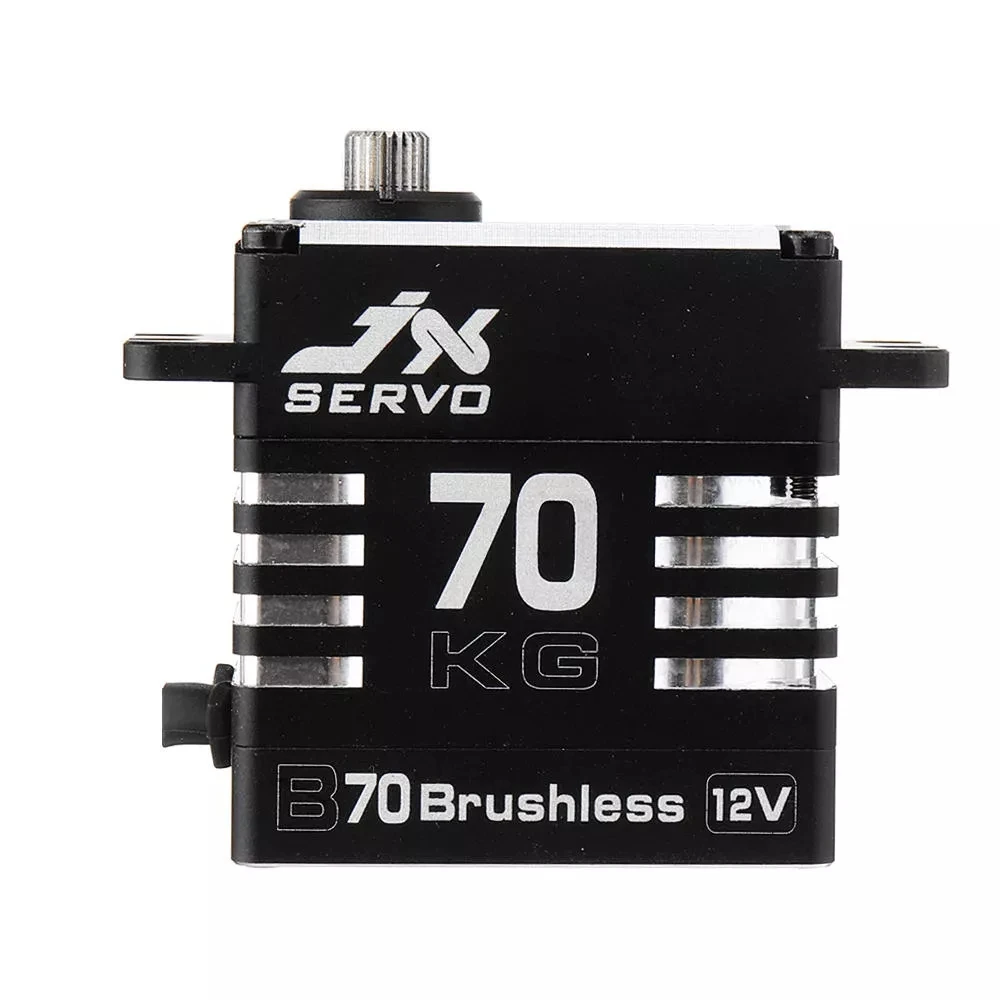

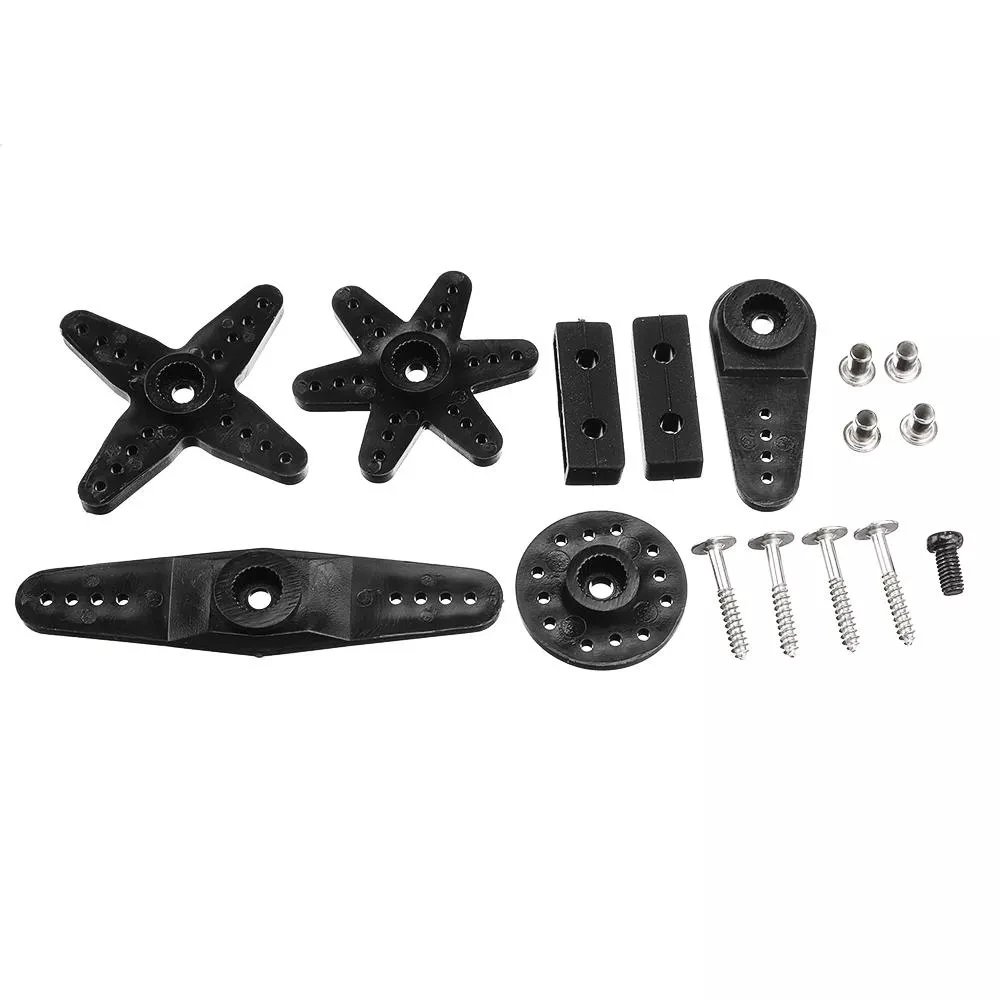

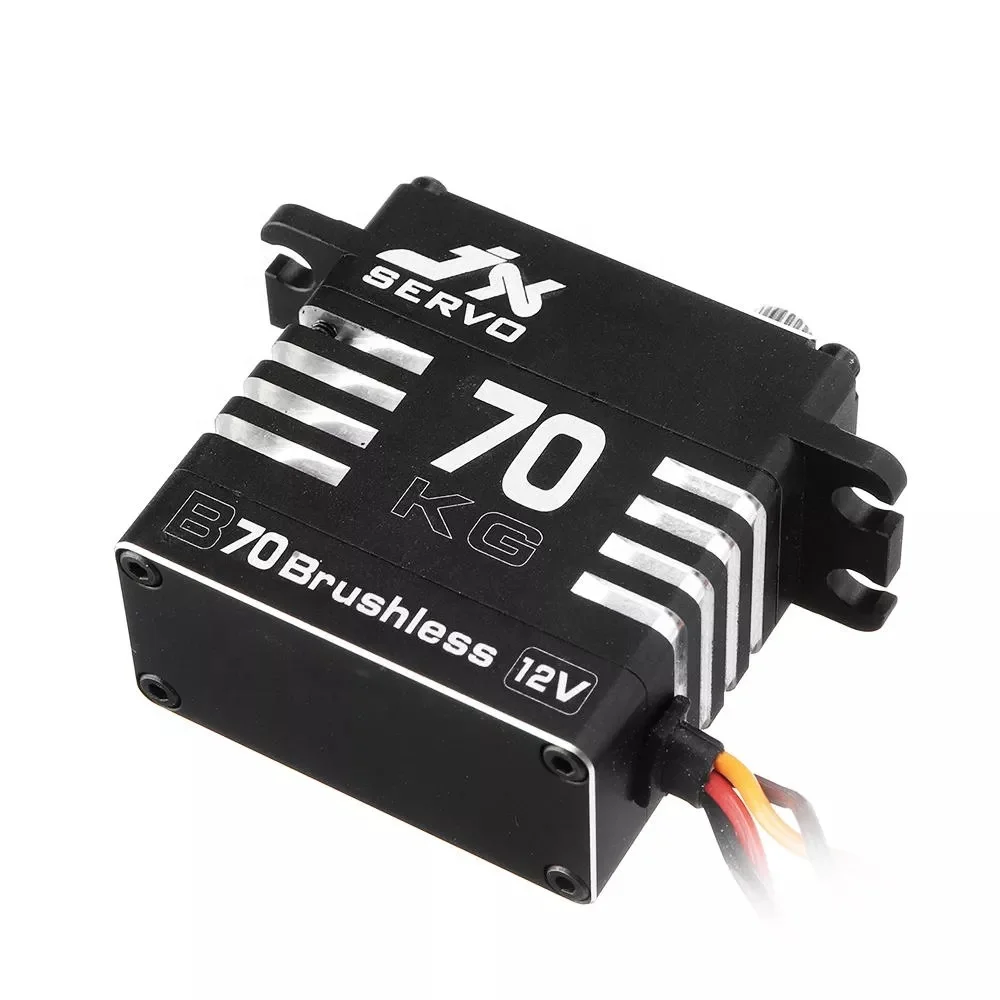

Product Pictures

Product Packing

Our Certificate

Our Factory

About US

Reacher Tech has devoted more than 10 years to the designing, developing and manufacturing the high-tech electronic brushless power systems for RC modelers and Industry Application.

We possess our own intellectual property and powerful R&D, which makes us design and produce products to satisfy customers’ needs (OEM customization service). All of our products can be meet CE and ROHS certification and some had passed Certificates. We’re looking forward to cooperating with global distributors of RC power systems (RC Brushless Motor, Industry brushless motor, Aero ESC, Car ESC, Marine ESC, RC Servos)

Reacher Tech consists of 3 departments as following at present:

--Brushless Motor and RC Servo Department. Including R&D and manufacture.

--Brushless ESC ( Electronic Speed Controller) Department.Including R&D and manufacture.

--Buyers Office (Searching relative products for clients, like RC Charger, Propeller, RC Plane, RC Car, UAV, Drone, Turbojet Plane, etc.

Whatever clients who want us to do the search and do the drop shipping, we are pleasure to do this service for you)

For the purpose of following the latest development of science & technology closely, we are dedicating to enhancing the product details and making continuous improvements in pursuit of the product perfection. Meanwhile, the products with high quality and stability together with professional services will be offered to the customers all the time.
