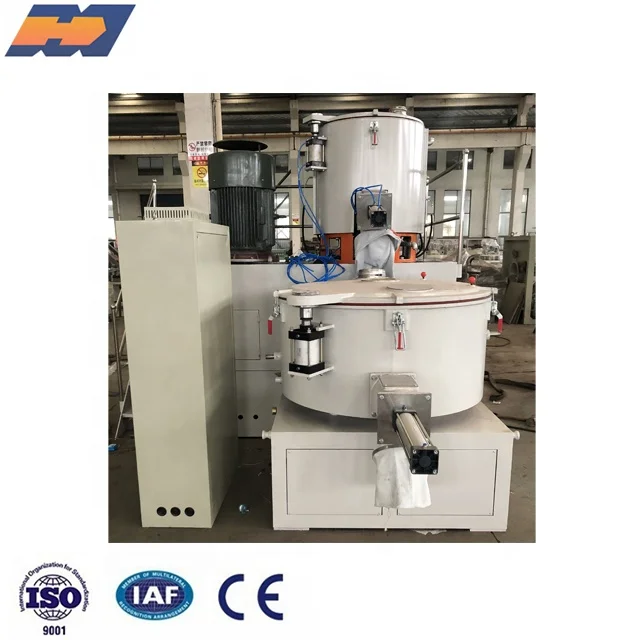

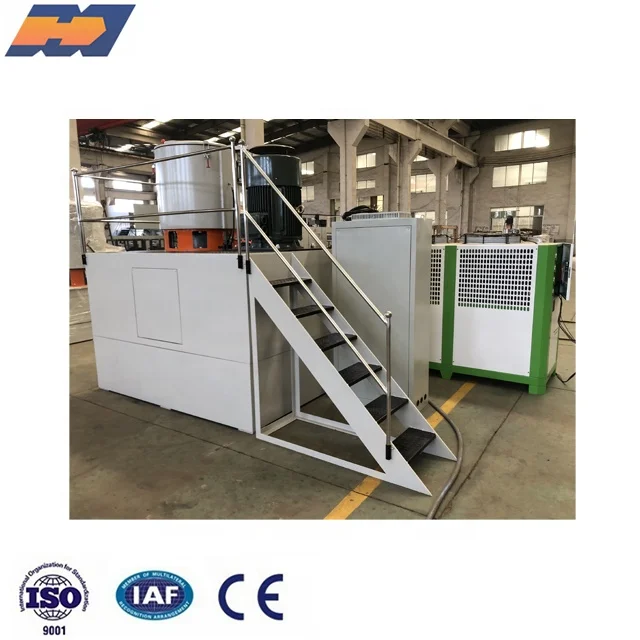

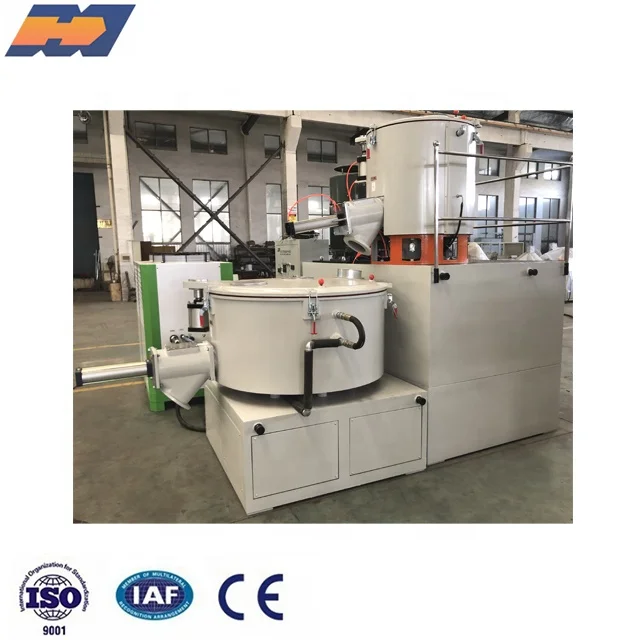

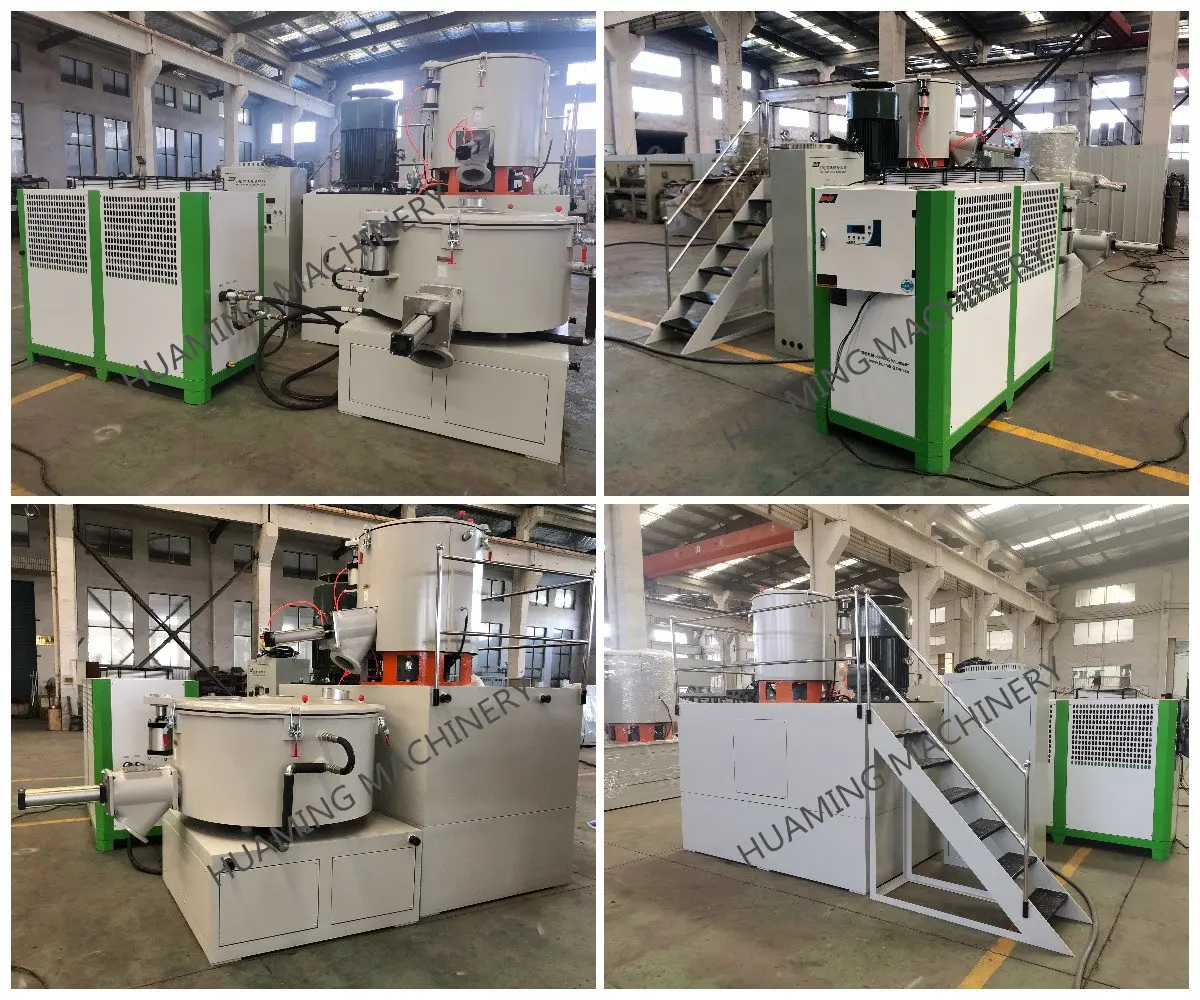

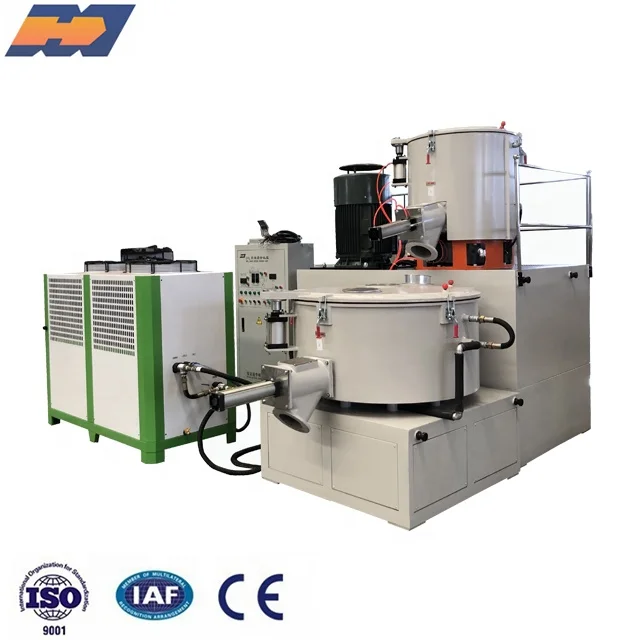

HUAMING Factory Price Plastic high speed Mixer unit

Product Overview

Description

Application & Features:

SRL-Z series mixer unit  is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.



SRL-Z series mixer unit  combines hot mixer and cooler mixer together .The materials after hot mixer can be getting into cooler mixer for cooling automatically ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.



SRL-Z series mixer unit   is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.



Main technical parameter:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total capacity(L)	100/200	200/500	300/600	500/1000	800/1600
Effective capacity(L)	75/160	150/320	225/390	375/650	600/1050
Mixer Speed(rpm)	650/1300/180	475/950/130	475/950/130	430/860/60	370/740/50
Mixed time(min)	6~10	6~10	6~10	6~10	6~10
Power(kw)	14/22/7.5	30/42/11	40/50/11	55/75/18.5	60/90/22
Measurement(mm)	3780x1870x2250	4580x2240x2470	4580x2440x2570	4600x3000x4050	4850x3860x6650
Weight(kg)	3200	3400	4200	5800	8700



We can also manufacture  the special mixer  according to customers requirement.



Any futher information you want to know, contact me or send inquiry!
