4 Rope Mechanical Multi Lope Orange Peel Grab


Handling bulk material with density up to 1.6t/m³,below data for your reference


























































































































































































































Crane lifting capacityt5,06,38,010,012,516,020,025,040,0
Grab capacitym³1,41,852,53,24,05,06,38,013.5
Number of shells 666666666
Dead weightopent2.6 3.2 3.9 4.7 5.8 7.5 9.4 11.6 17.6
half-opent2.7 3.3 4.0 4.8 5.9 7.7 9.6 11.8 18.0
closedt2.8 3.4 4.2 5.0 6.2 8.0 10.0 12.3 18.4

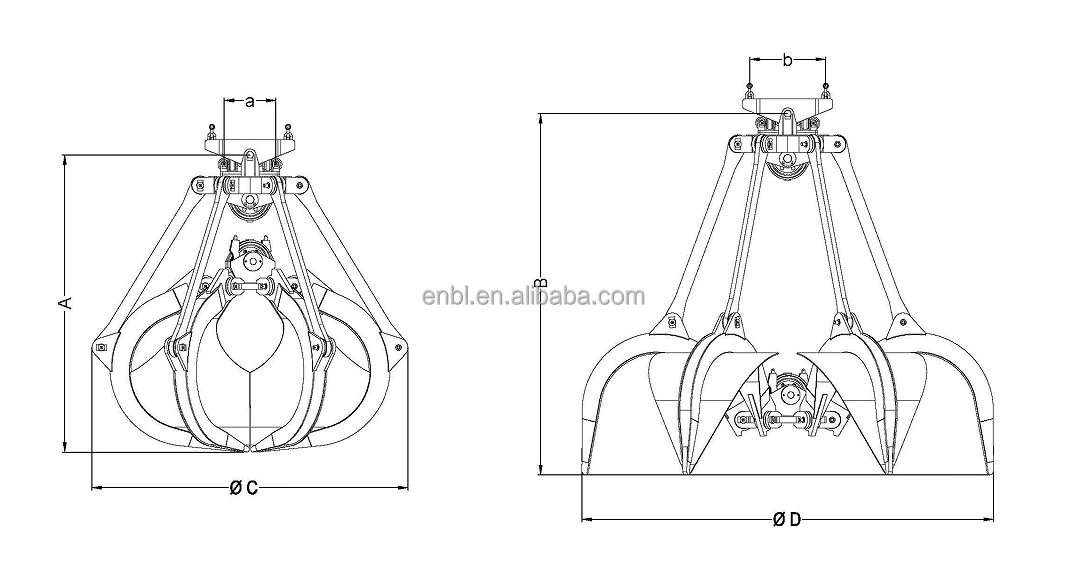

DimensionsAmm230024702770303033203490396040605220
Bmm273029203280356038904120476048006450
Cmm235025202810299032703430398040705180
Dmm322034303850414045404710527055506680
amm300380480480480595590670850
bmm6507809009009001000130013001400
Closing rope stroke 4-foldmm650053506400747573507004756085208770
Standard diameter of closing ropesmm141822221628283240
Closing rope-total length to operatem12.511.713.513.2161614.518.520
Dianmeter of closing rope sheavesmm280355450450450560560630800

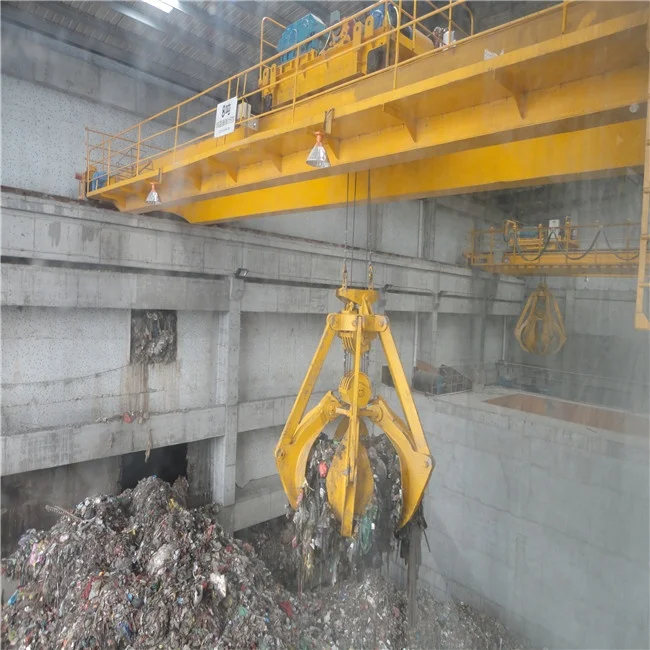

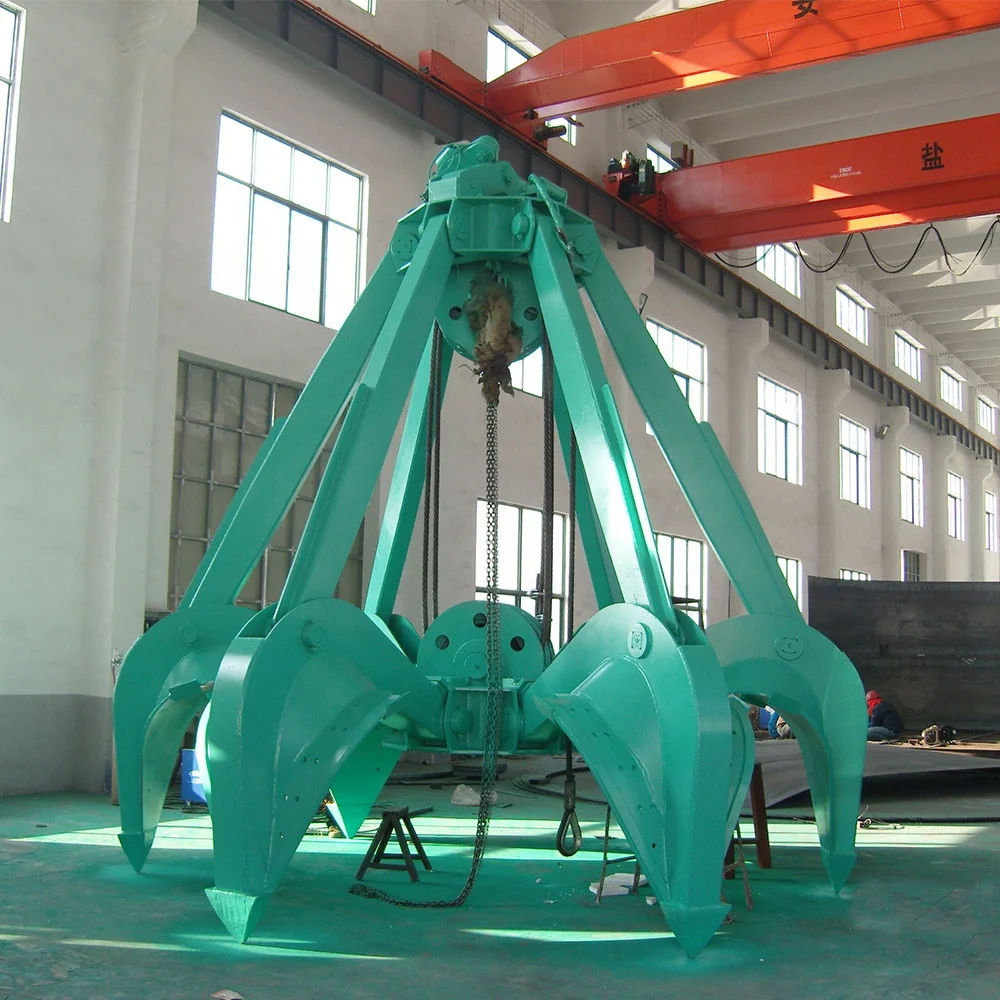

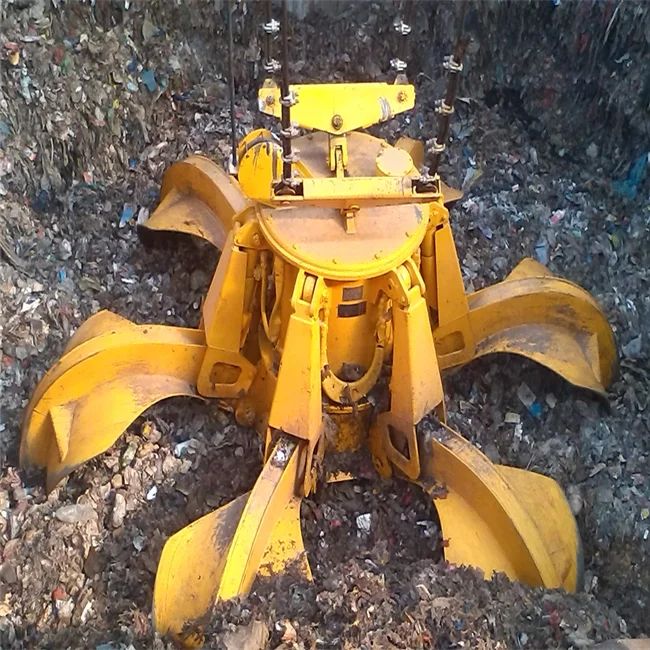

H8643945c92614673a28bc6a469a5c51bk.jpgHe1b26c3766394ba5a6848a72e1972c743.jpgH8d9a759a208d4c4e9d7496300aef2562Z.jpgH66112adb23b14862bc258a1fb80752d3c.jpgH4513d66f95c64760be4d6ab2732270a70.png





Company Information


_07.jpg_08.jpg_09.jpg All grab that we provide, we promise


























Technic support1, customized design team communicate with customer
2, customer's special need will take into account during design and produce
3, communicate well and find the best suitable solution
Quality control  (3tests before delivery)1,Test the parts of the test-bed to test the reliability of components before installation
2,  hour no-load test of the grab, check the pressure and temperature holding performance of the hydraulic system and various performance data of the grab
3,The grab shall be tested continuously for 8 hours with load to detect the temperature control of the grab and the stability under continuous load (three consecutive days if necessary)
