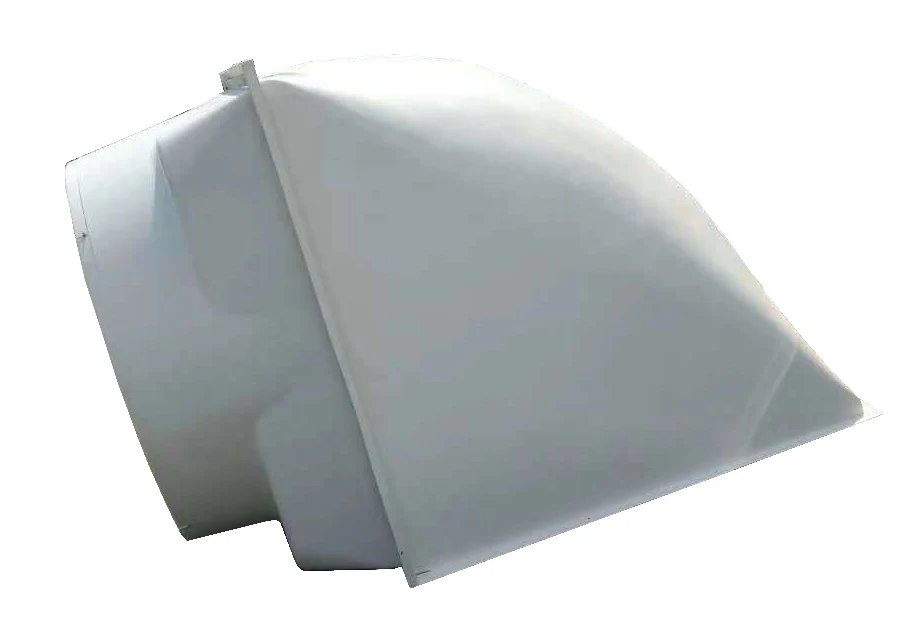

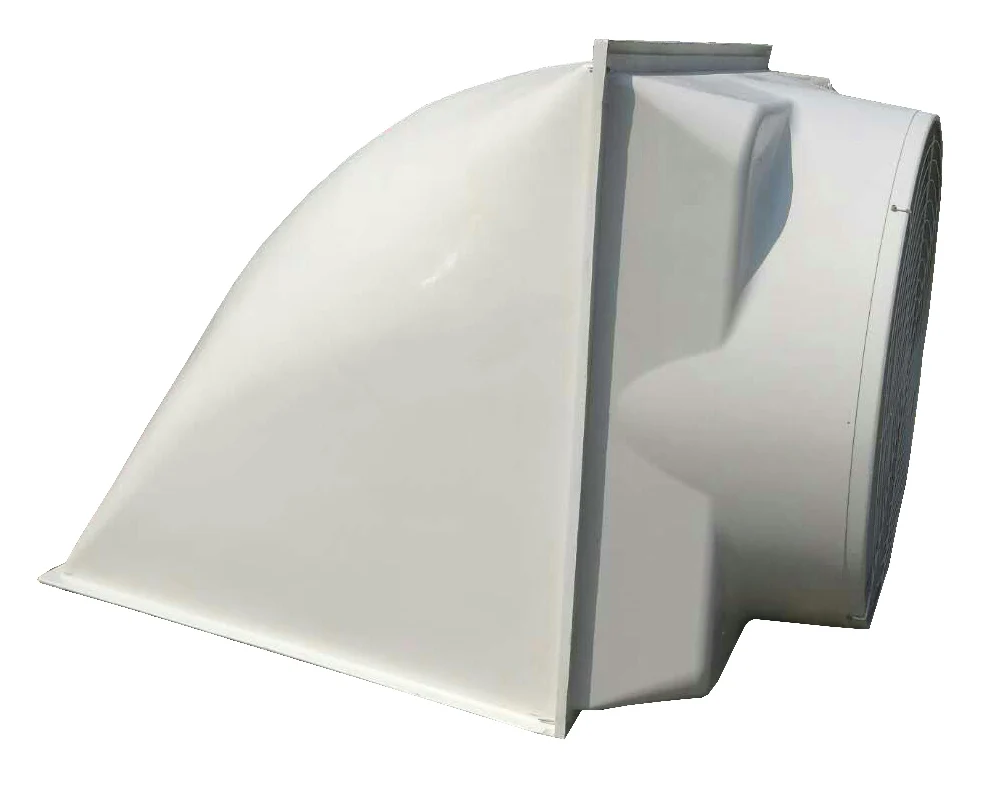

industrial FRP roof mount waterproof rooftop fiberglass exhaust fan

Product Overview

Description

industrial FRP roof mount waterproof rooftop fiberglass exhaust fan



Main Parameter of Exhaust Fan

Model No.	FW-WT85FM6P	FW-WT106FM6P	FW-WT126FM6P	FW-WT146FM6P
Airflow	23000m3/h	32000m3/h	37000m3/h	45000m3/h
Power	370W	550W	750W	1100W
Voltage	110V/220V/380V/440V	110V/220V/380V/440V	110V/220V/380V/440V	110V/220V/380V/440V
Blade Size	650mm (26in)	900mm(35in)	1070mm(42in)	1220mm(48in)
Blade Material	SMC	SMC	SMC	SMC
Blades Quantity	6 wings	6 wings	6 wings	6 wings
Rotating Speed	720 RPM	720 RPM	580 RPM	430 RPM
Noise	<65db	<65db	<68db	<72db
Fan Size	850*850*470mm	1060*1060*490mm	1260*1260*550mm	1460*1460*580mm



Advantage of Exhaust Fan

1. Huge airflow, Low noise, high efficiency.Good looking, the surface smoothness & gloss without rough edges.

2.Be introduced the advanced technology from Europe, suitable for various environment.

3.Fan housing: strength fiberglass.

4.Shutters: good plastic

5.Fan Propeller: 6pcs blades of propeller made by mould pressing.

6.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.

7.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.

8.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.

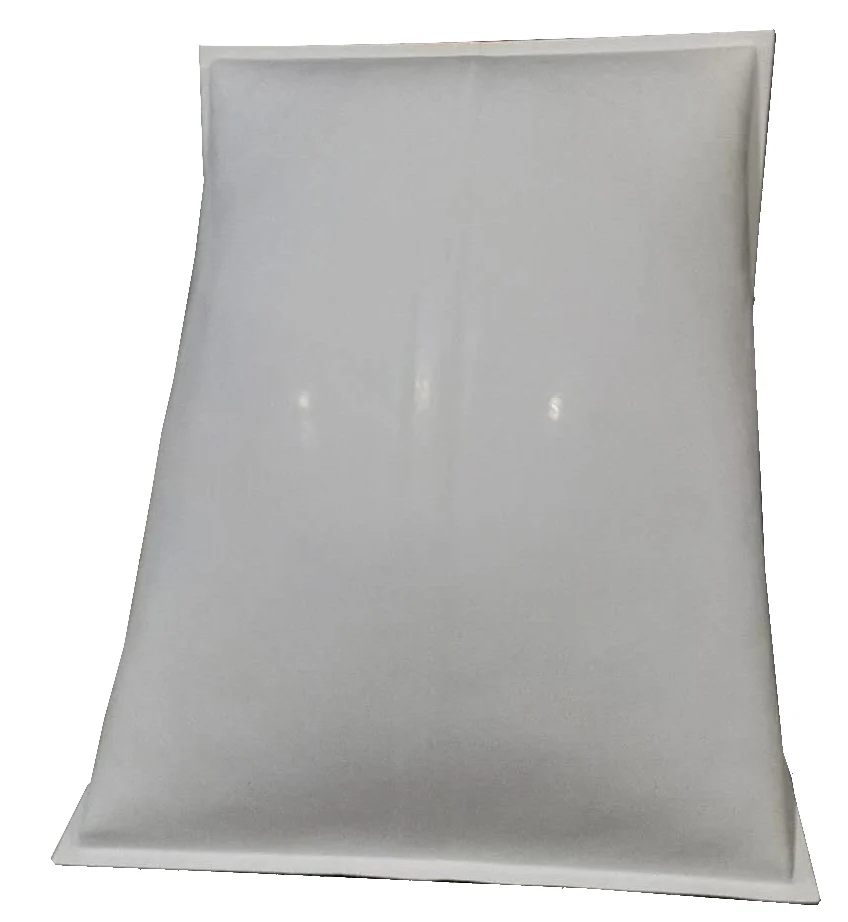

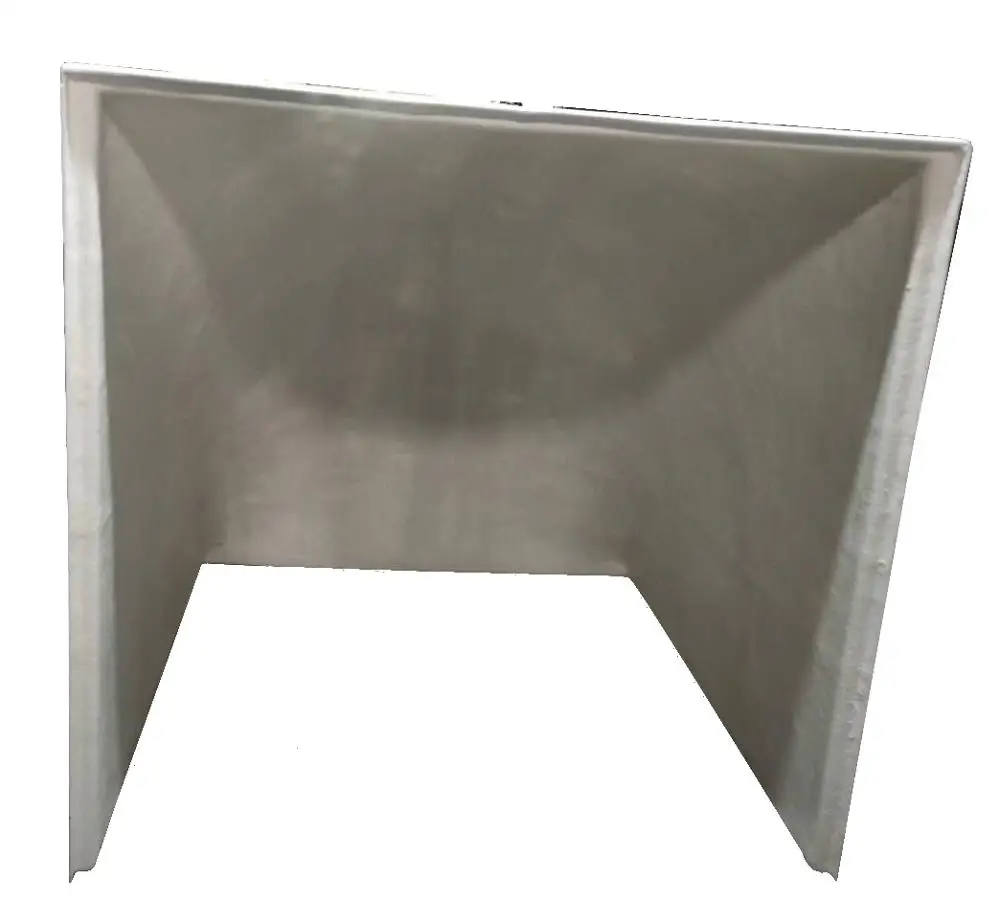

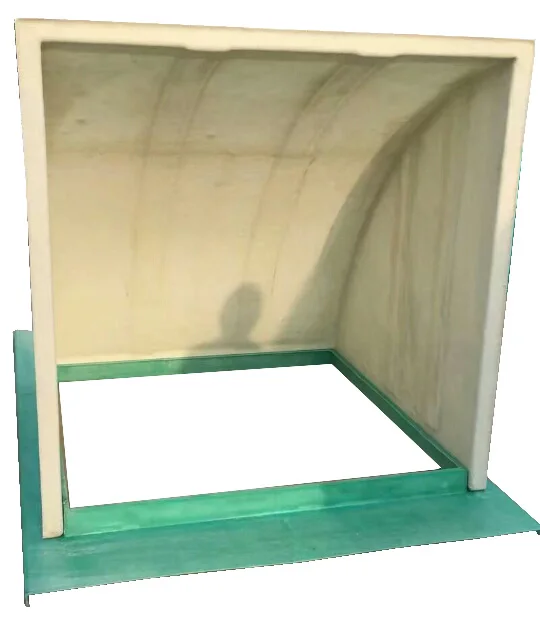

Housing of Exhaust Fan

corrosion resistant fiberglass housing

FRP molded impact resistant with U.V. protection for better durability, and life extra liner FRP resin inside for easy cleaning and minimal dirt and disease build-up and maximum air flow

flush mount design eliminates any protrusions or obstructions in the inside area

self draining sloped housing is quick and easy to clean FRP

 FRP molded has smooth shaped and low air restriction

very strong housing, 70kgs person on it, no deformation



Motor of Exhaust Fan

standard motors are totally enclosed, high efficiency all motors are designed and rated for years of trouble free operation

each motor is individually tested for 100% quality control Heavy duty casting pulley and hub



SMC Propeller of Exhaust Fan



Shutter of Exhaust Fan

shutter with PVC extrusion frame

all corner are weld and have extra stainless steel corner

PVC louver with T bar

wire by pass

easy clip to remove shutter

guard; powder coat and cold zinc galvanise for better protection





CE Certificate of Exhaust Fan



Our Facotry

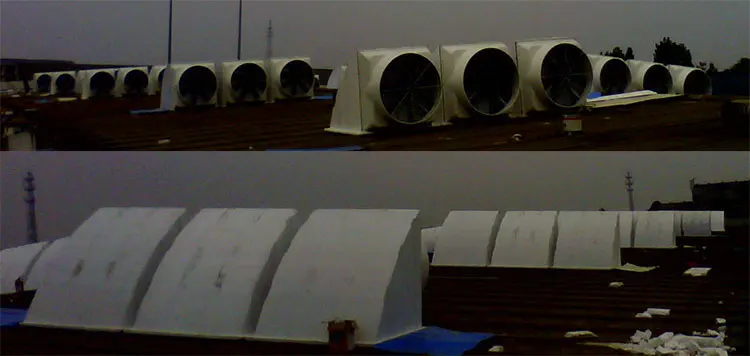

Application of Exhaust Fan



Our Markets



FAQ



1. Q : What are your main products ?

    A : Our mainly produce desiccant rotor, dehumidifer, energy wheel heat recovery unit etc.

2 .Q: May I get free sample?

    A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer        place bulk orders for that item.

3 .How to got the order?

4. Q: Can you supply OEM or ODM service?



     A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!



 5. Q: Which shipment available?



    A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.



       By sea to your nearest sea port



       By air to your nearest air port



       By express(UPS,DHL.FEDEX,TNT...) to your door



6. Q : How to guarantee after sale ?



    A : We supply 1 year products warranty. If the item is found to be defective in warranty,please contact                 us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our                 factory for repairing, or we send new one for you.
