Yitai Zipper Belt Machine High Speed Needle Loom
US $1600-$1700
Верхний нижний стопорный штифт, машина для впрыска молнии
- Category: Zipper Making Machines >>>
- Supplier: Wenzhou Primo Zipper Machine Co. Ltd.
Share on (62359603282):
Product Overview
Description
How to make zipper
Product Description

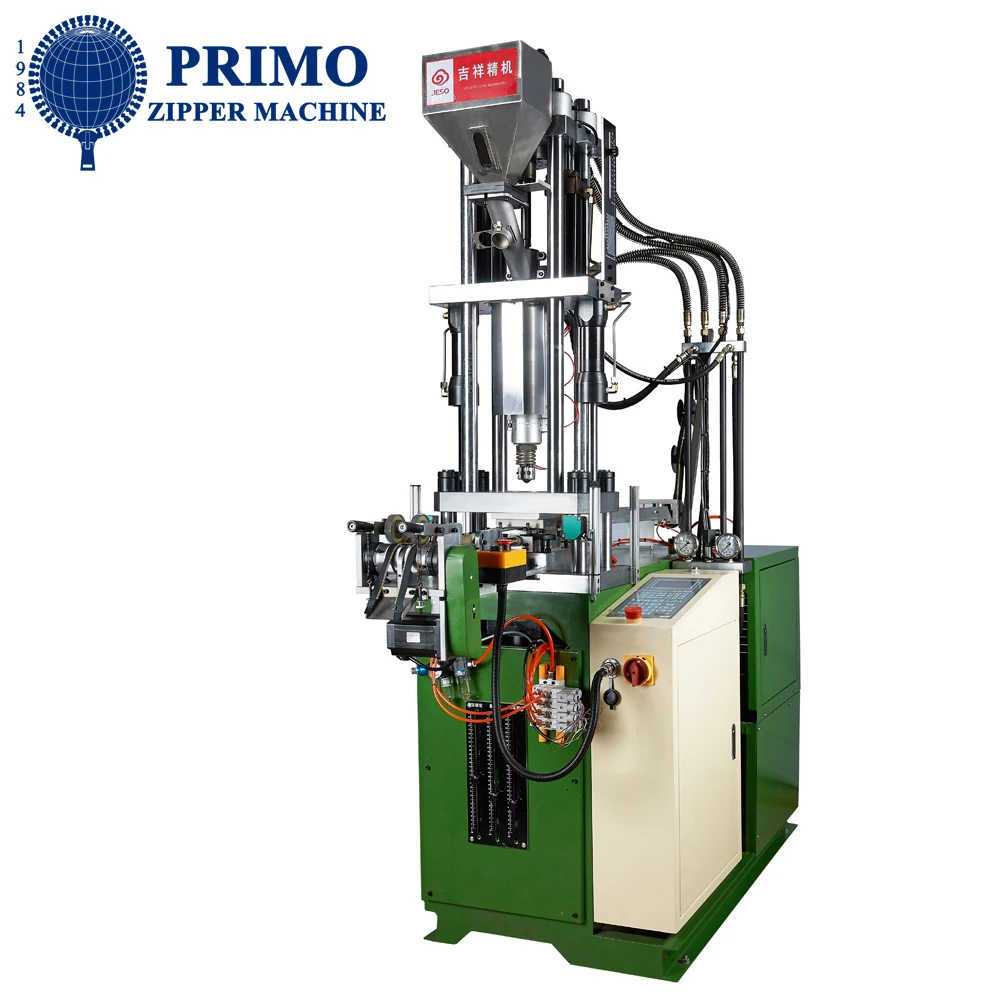

Plastic zipper pin and box injection machine
Plastic zipper pin annd box injection machine | ||
Model | PM-018 | |
Power | 4.0KW | |
Shot speed | 18~22 time/Min | |
Volt | 380/440V | |
Screw Diameter | 25 mm | |
Max.Shot Weight | 80 g | |
Injection rate | 28±2 g/s | |
Working Temperature | 150-200 ℃ | |
Material Hopper Capacity | 25 kgs | |
Clamping Force | 20 tons | |
Machine Weight | 950Kgs | |
Machine Dimensioms(L×W×H) | 2.00×0.70×2.20 m | |
Shipping Measurement(L×W×H) | 1.35×0.70 ×2.15 m | |
Main feature
This machine adopts open end plastic zipper and nylon zipper, inject pin box and top stop on the zipper, apply for zipper with slider and without slider, improve the pin and box injection quality, improve efficiency
1) industrial control computer control technology, high stability of the system.
2)The action by hydraulic power, pneumatic accessories.
3)Lower die fixed on machine plate and the upper die run to work, vertical merge and inject
4)Injection pressure by a single level and double class pressure (optional), speed can be adjusted, melt back pressure can be controlled.
5)automatic checkout system,if working meet some problem,it show in computer and ask you how to deal with it
Product Application
inject pin and box plastic stop and two ways plastic stop for plastic teeth zipper,nylon teeth zipper and metal teeth zipper
(1).Plastic zipperpin and of #3~#30 size
(2).Plastic zipper with mixture color
1) industrial control computer control technology, high stability of the system.
2)The action by hydraulic power, pneumatic accessories.
3)Lower die fixed on machine plate and the upper die run to work, vertical merge and inject
4)Injection pressure by a single level and double class pressure (optional), speed can be adjusted, melt back pressure can be controlled.
5)automatic checkout system,if working meet some problem,it show in computer and ask you how to deal with it
Product Application
inject pin and box plastic stop and two ways plastic stop for plastic teeth zipper,nylon teeth zipper and metal teeth zipper
(1).Plastic zipperpin and of #3~#30 size
(2).Plastic zipper with mixture color
Detailed Images

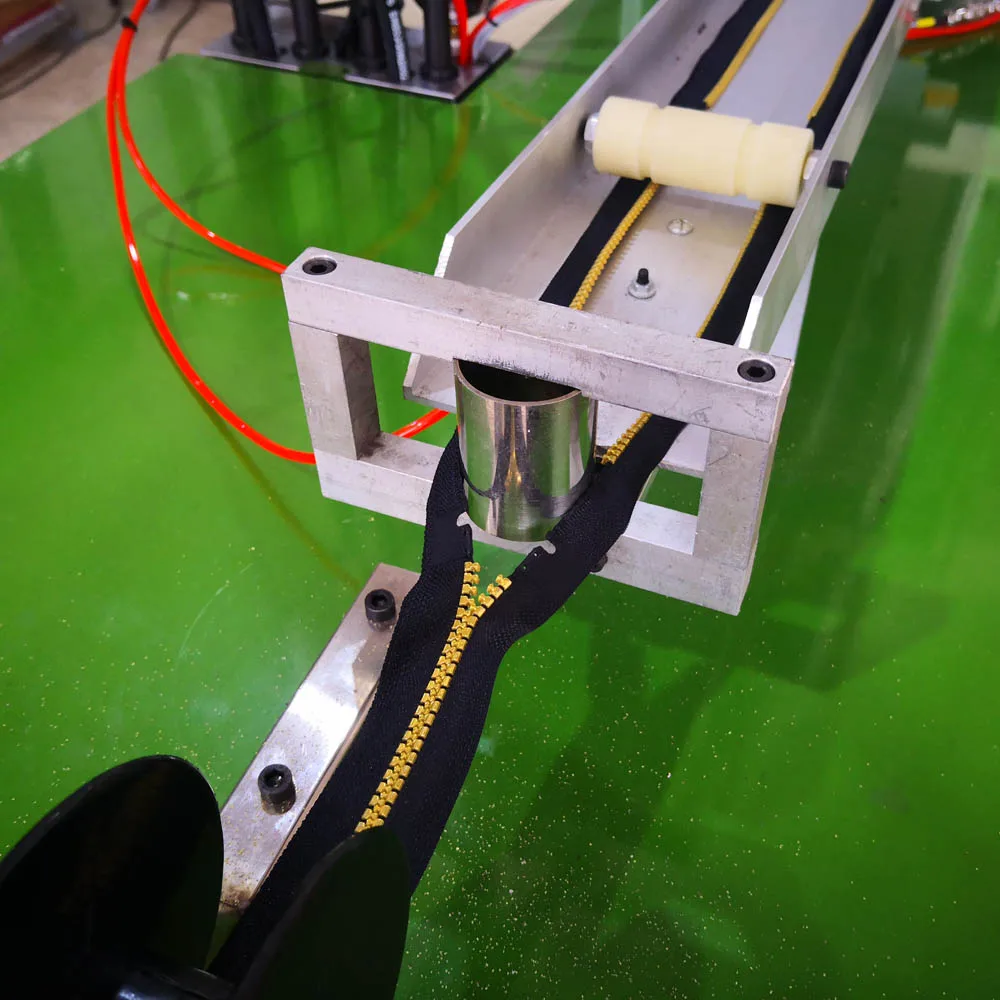

Separation system
Before injecting plastic pin and box,this system can separe the full zipper into two part
Nozzle and barrel with heating system.
The full nozzle and barrel fit with heating system,it keep material melting easily and quickly

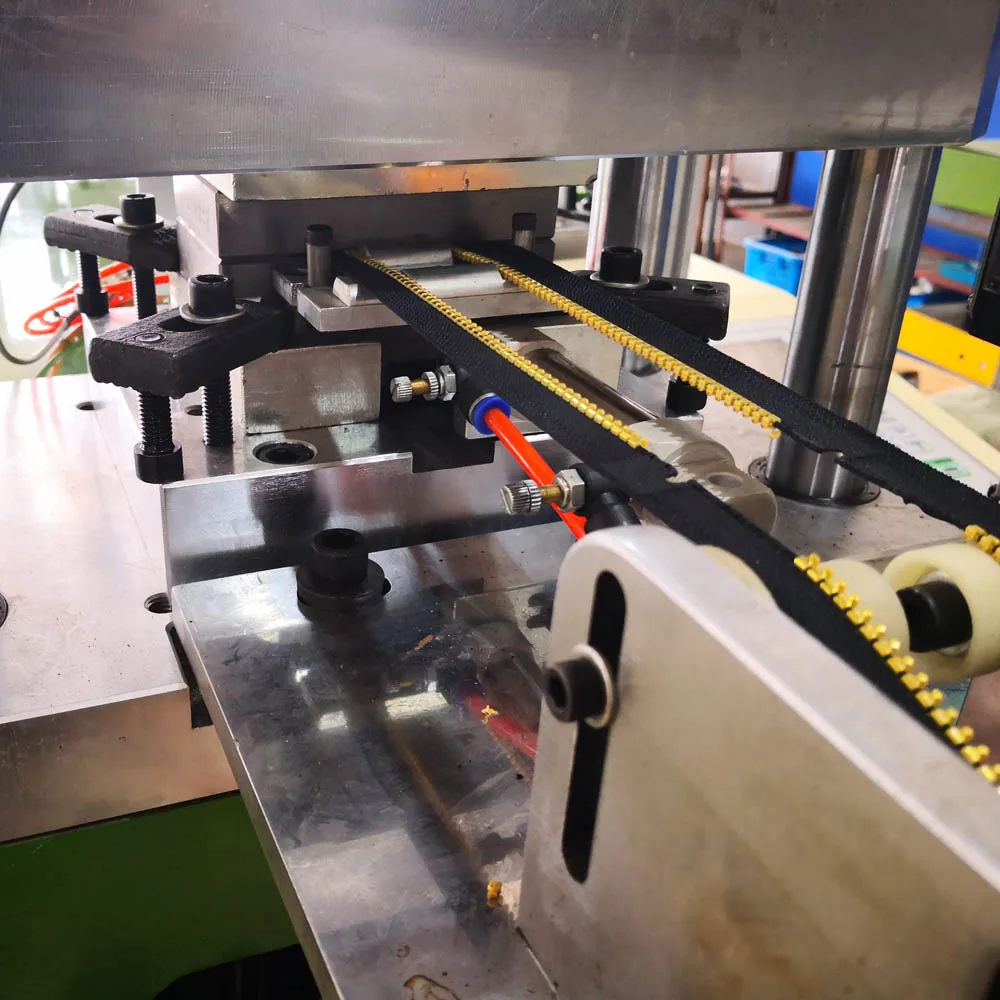

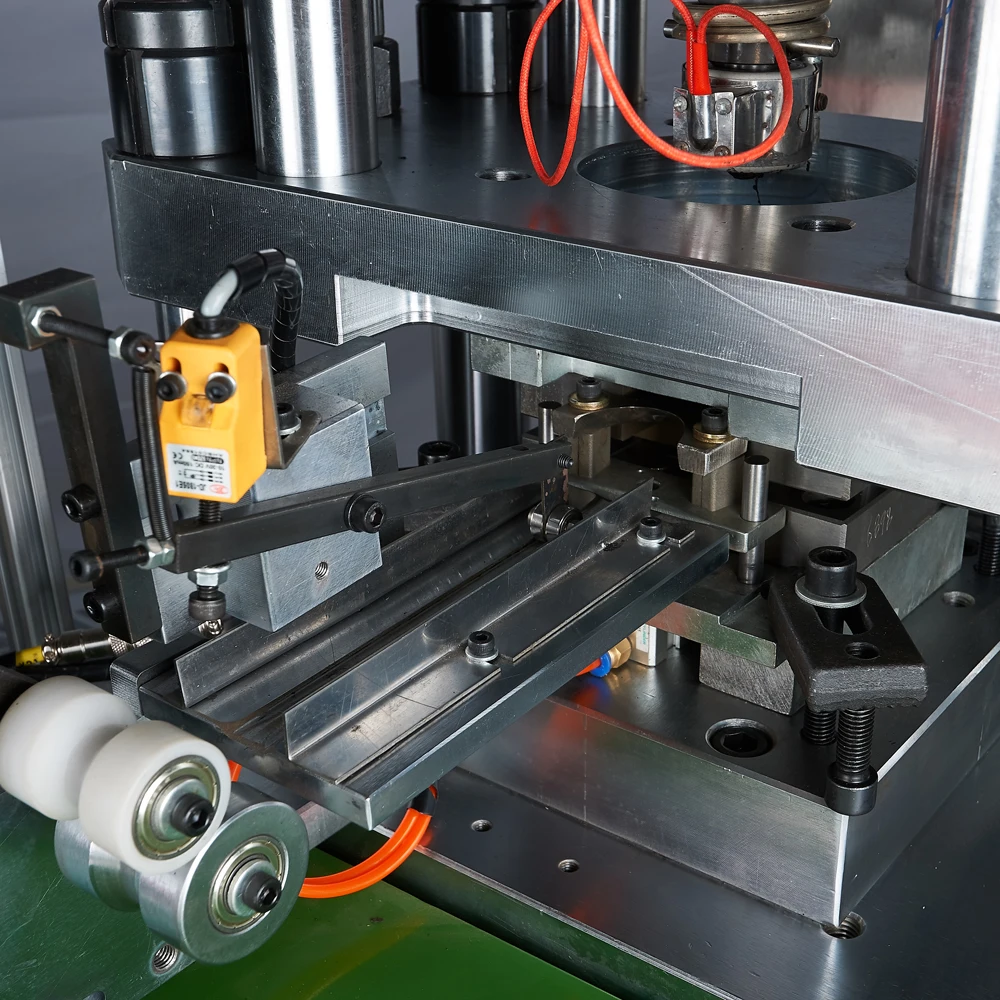

The mold location system
Our machine is easy to change mold,and suit for every pin and box mold,not change any spare part in machine

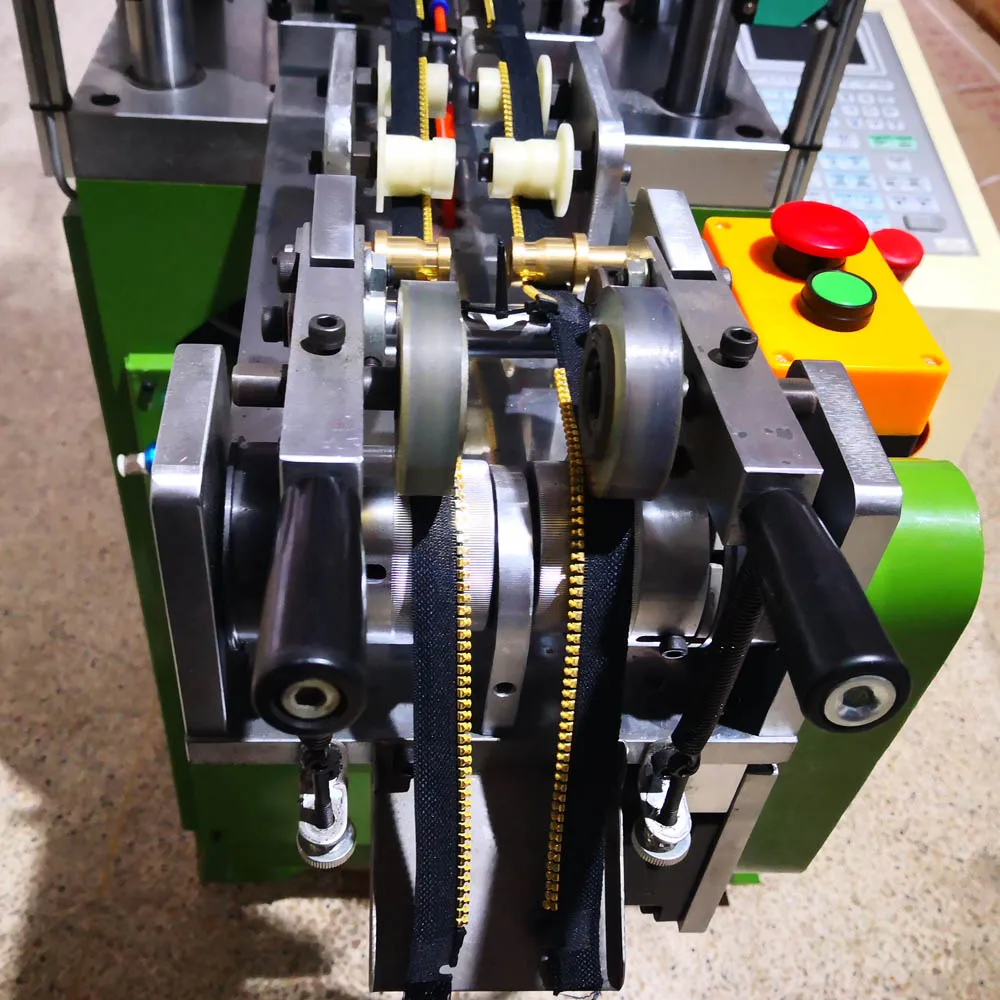

Two part zipper position system.
After injecting plastic pin and box,this system keep two part zipper out of mold in the right way.
