Simplex Duplex Optical Fibre Patch Cord Jumper Connector SC APC PC UPC

Product Overview

Description

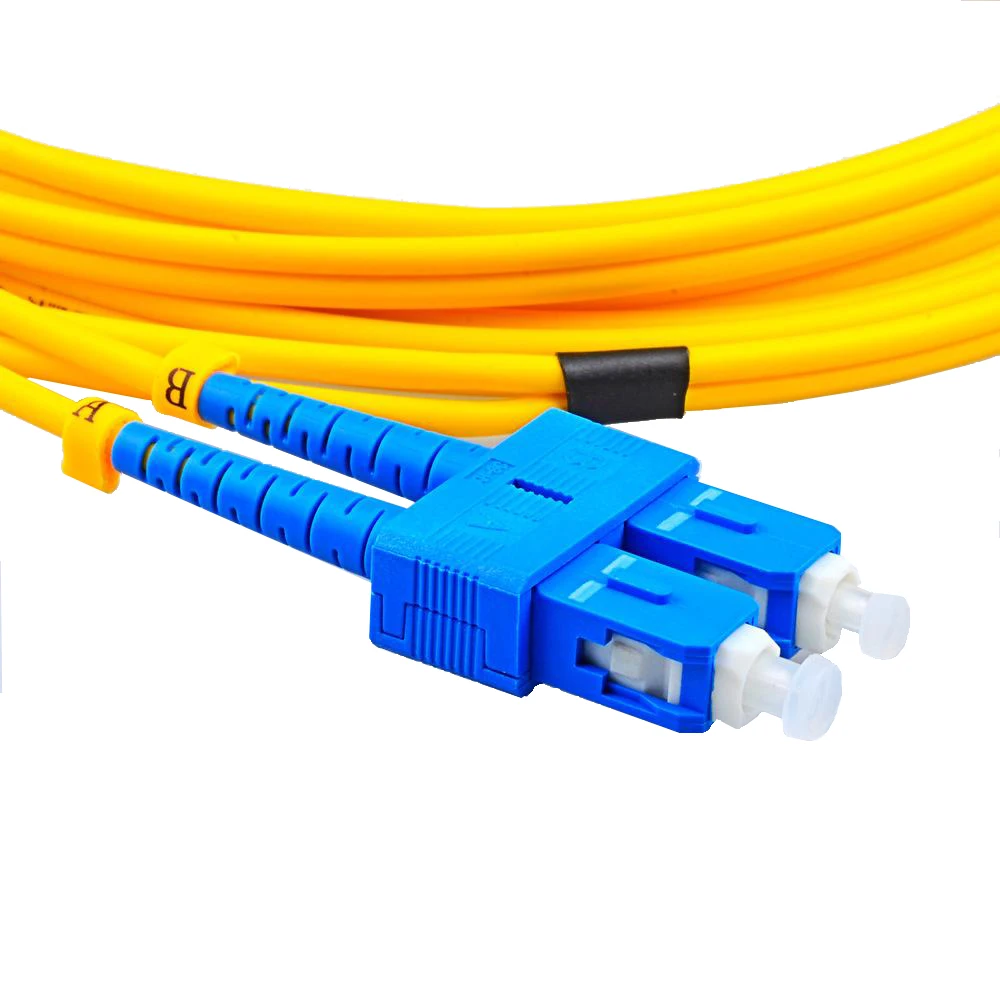

Simplex Duplex Optical Fibre Patch Cord Jumper Connector SC APC PC UPC



The fiber optic connector is one of the most widely used components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body types and boot colors to choose. The connector is combined with various of fiber optic cables to make different kinds of patch cords (jumpers), which have been widely applied to the CATV systems, communications systems, FTTx systems, Local Area Networks, Wide Area Networks, metro, test equipment, active device termination and so on.







Features:

• Factory-installed fiber stub
• No epoxy or polishing required
• Quick and easy fiber termination in the field
• Eliminates cable excess length and pigtail splice storage
• Cost effective
• Zirconia 1.25mm ceramics ferrule

• Small Size, High Precision

• Low insertion Loss,High Return Loss

• Single and duplex are available

 Applications:

• Bow-type drop cable;
• 0.9mm/2.0mm/3.0mm indoor cable;
• Telecom and Datacom equipment
• LAN\WAN
• Device Terminals

Technical Specifications:



ITEM	PARAMETER

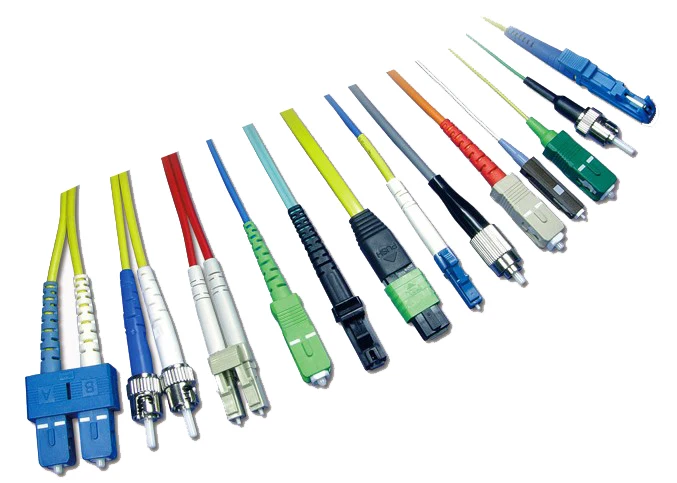

Applicable Connector Type	SC, LC, FC, ST, MU, D4, DIN
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB, Max≤0.30dB	typical≤0.15dB, Max≤0.25dB
Return Loss	UPC≥50.0dB, APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative Cable OD.	0.9mm/1.8mm&2.0mm /3.0mm (MU only 0.9mm/2.0mm)
Connector Ferrule OD.	2.5mm:SC, FC, ST, DIN; 2.0mm: D4; 1.25mm:LC, MU
Angle of Boot	SC, LC (45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm



Products Options:

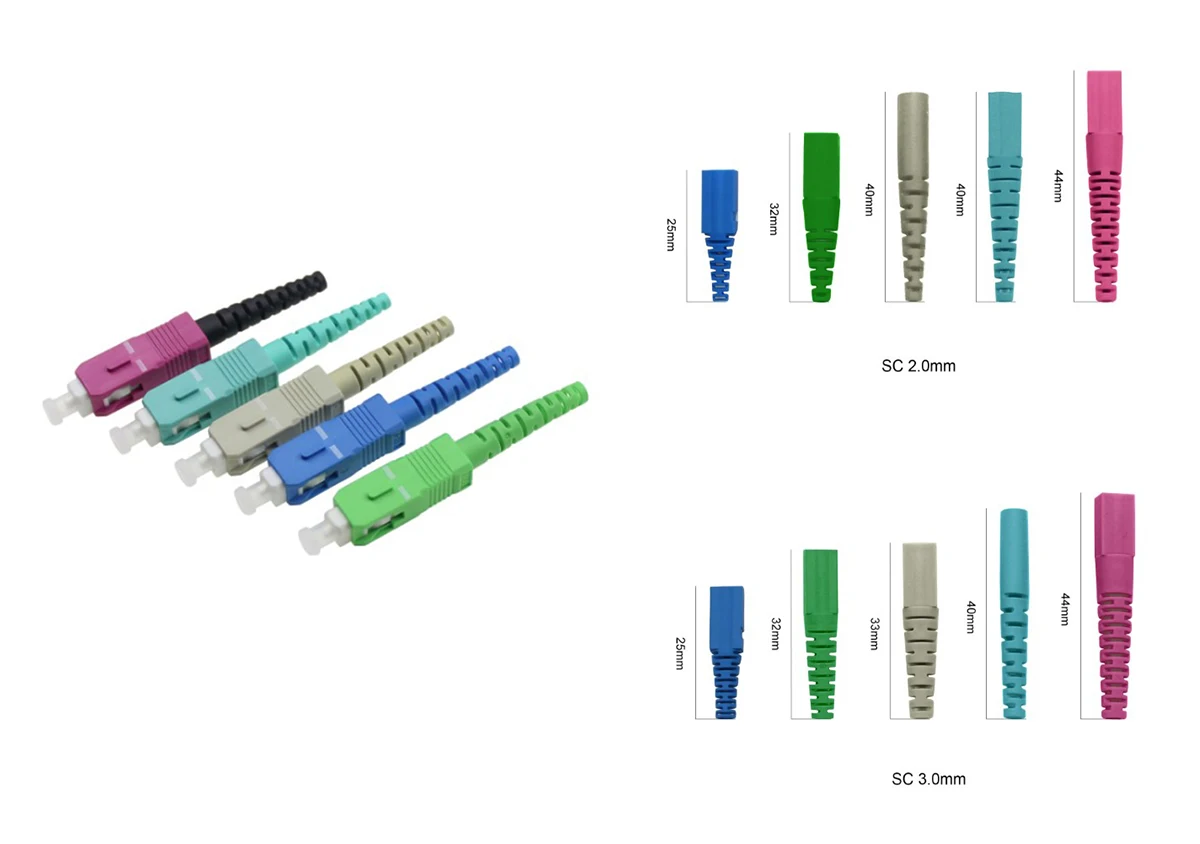

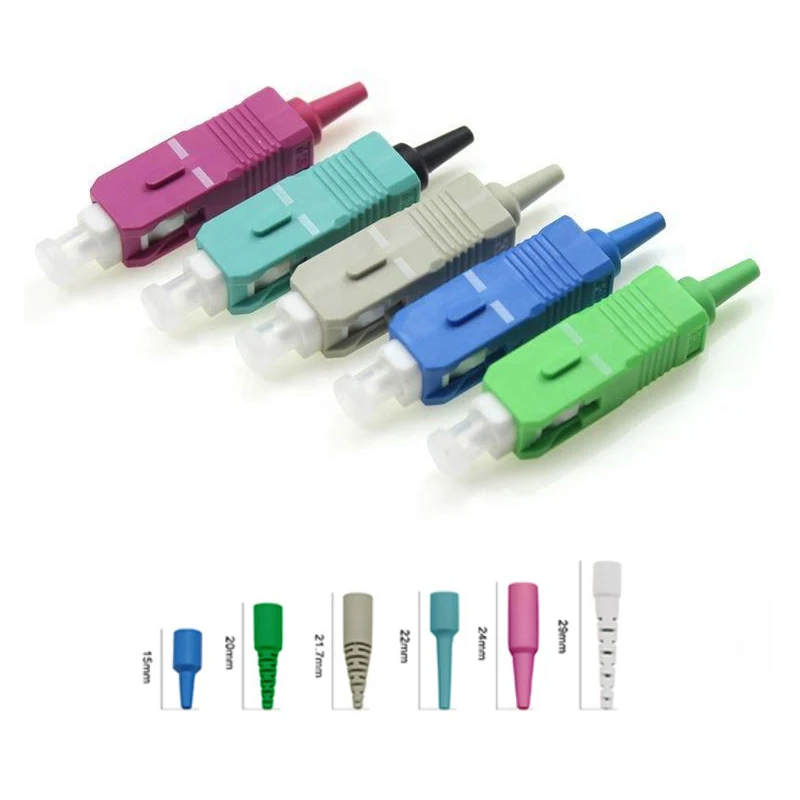

Housing Color	Boot Size	Boot Type	Boot Color	Dust Cap Type
Beige	0.9mm	slotted	Beige	Ferrule cap
Blue	2.0mm	smooth	Black
Brown			Blue
Red			Green
Yellow			Yellow
