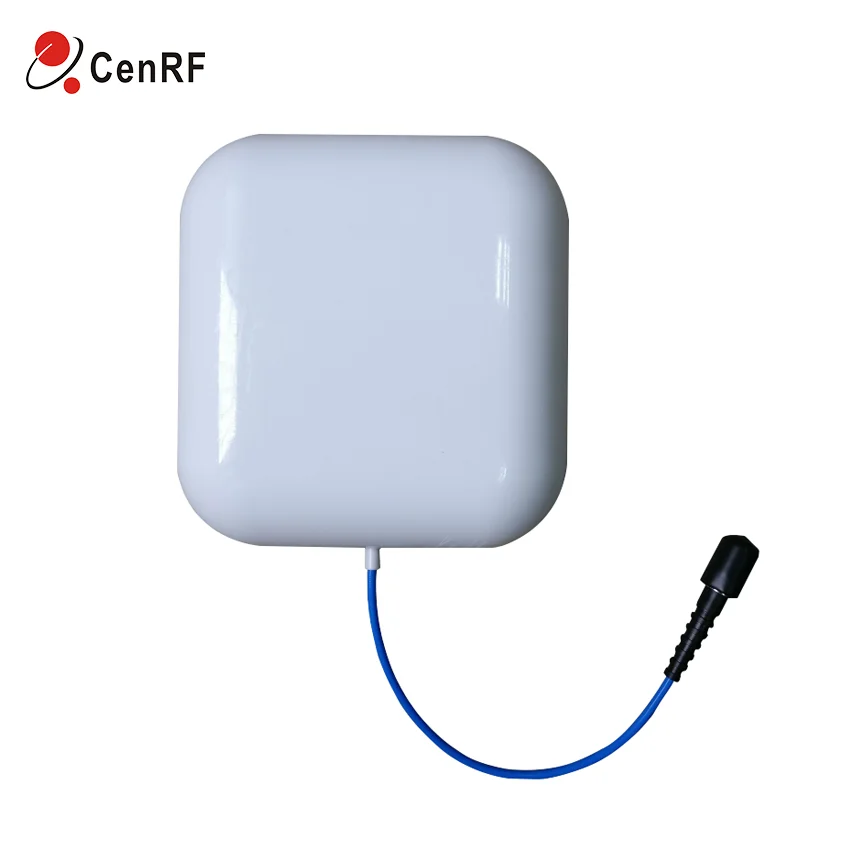

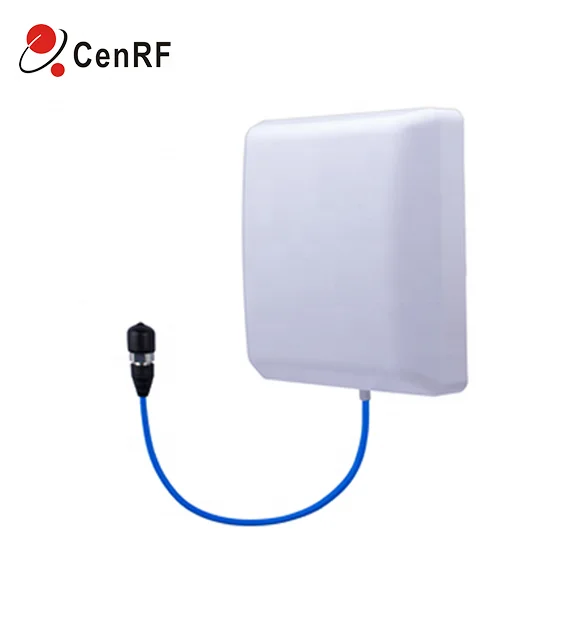

Customized RF 698 4000MHz 5/8dBi Directional Rfid N Female 5G Panel Antenna Panel Antenna Indoor
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (62359778431):
Product Overview
Description
Specification
Electrical Specifications | ||||||||
Frequency Range(MHz) | 698-960 | 1710-2170 | 2200-2700 | 3400-4000 | ||||
Gain(dBi) | 6.0±0.5 | 7.0±0.5 | 8.0±0.5 | 8.5±0.5 | ||||
VSWR | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ||||
Horizontal Beamwidth | 80° | 65° | 60° | 55° | ||||
Vertical Beamwidth | 73° | 60° | 60° | 30° | ||||
Polarization Type | Vertical polarization | |||||||
PIM(IM3) | ≤-150dBc @ 2x2W | |||||||
Max Power | 50W | |||||||
Input Impendence | 50Ω | |||||||
Environmental Specifications | ||||||||
Operating Temperature | -40 to +60℃ | |||||||
Relative Humidity | 5 to 95% | |||||||
Lightning Protection | DC ground | |||||||
Mechanical Specifications | ||||||||

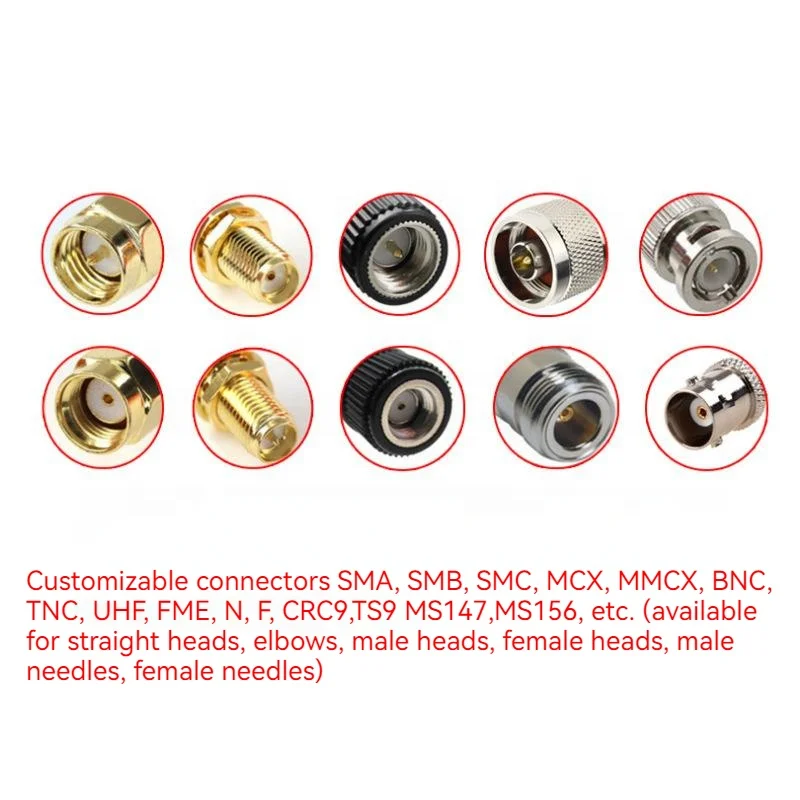

Connector Type | N-Female | |||||||
Weight | 0.4Kg | |||||||
Dimension | 180x170x60mm | |||||||
Radome Material | Uv-Protected ABS | |||||||
Radome Color | White | |||||||
Mounting Type | Wall Mounting | |||||||

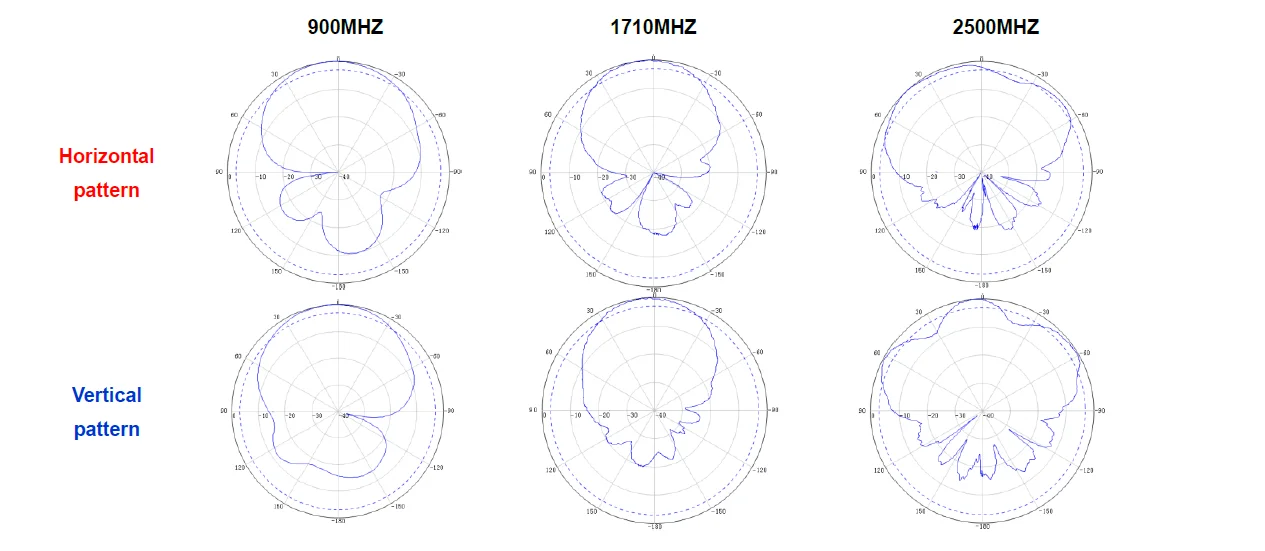

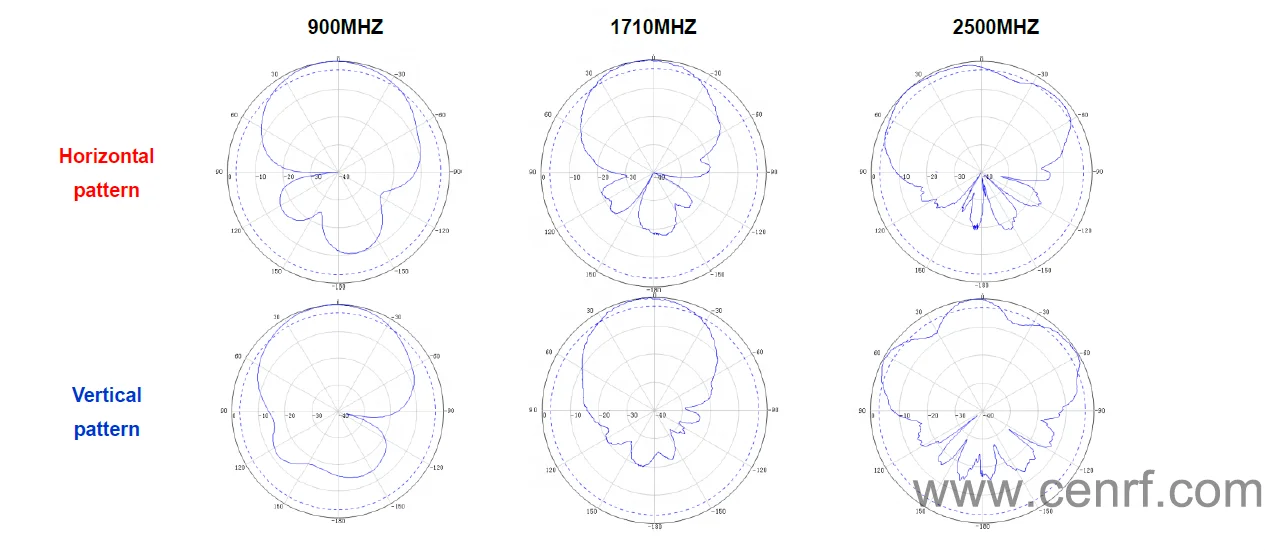

Radiation Pattern

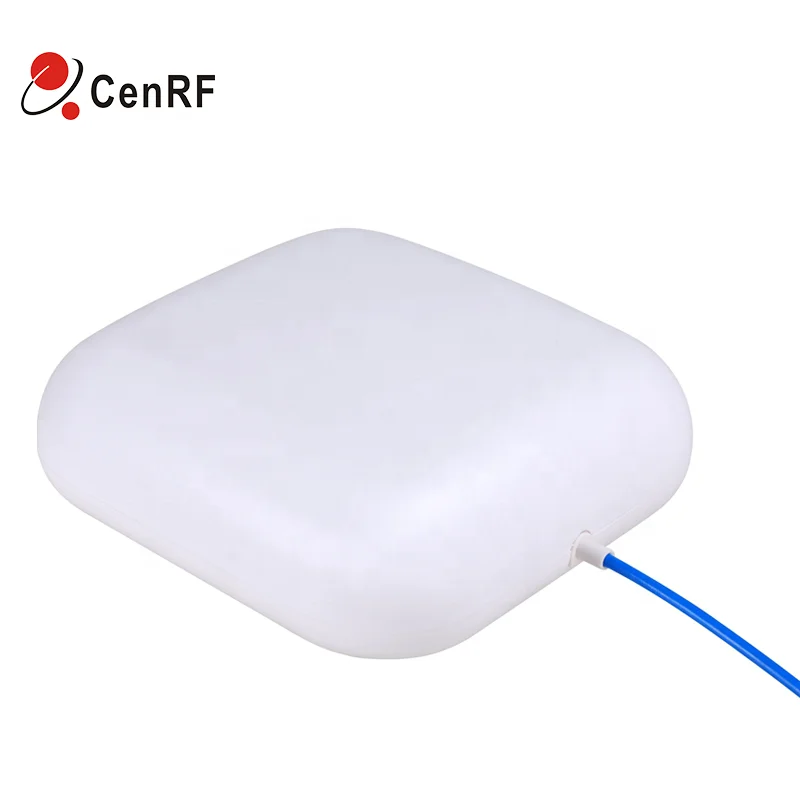

Product Show
Company Profile
Antenna workshop
Why Choose Us
FAQ
Q:What're the main products of CenRF?
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
Q: Can your company provide Technical Support?
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
Q: Do you test the equipment before your delivery?
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
Q: Do you have OEM&ODM service?
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q: Can your company provide CO or Form E certificate?
A: Yes, we can provide it if you need.
A: Yes, we can provide it if you need.
Q：Can your company provide solutions?
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
