hober stainless steel 24v 36v 200w BLDC screw pump submersible solar
- Category: >>>
- Supplier: Shenzhen Hober Technology Electronics Ltd
Share on (62359821929):
Product Overview
Description
Solar Pump Controller Description
The Solar Comes, The Water Comes
Solar Water Pump Systems Manufactured by Hober,

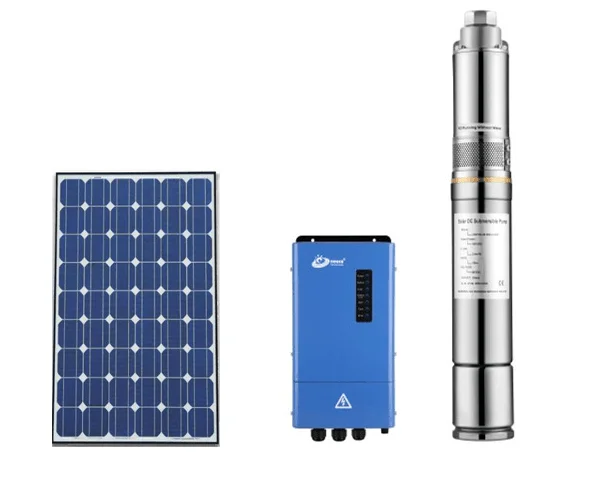

HBP3S-36-200-1.3-73 series is designed to be a complete dc solar water pumping system comprising of a pump controller (HBDC) and a matched pumps.
HBDC is the latest generation of high efficiency solar water pumping controller. The matched pump use a unique DC brushless and sensorless motor. The motor is a perfect match for solar applications as it has a very high efficiecny.
It covers a wide power range form 200W to 2000W with a wide range of pumps for submersible, surface or others.

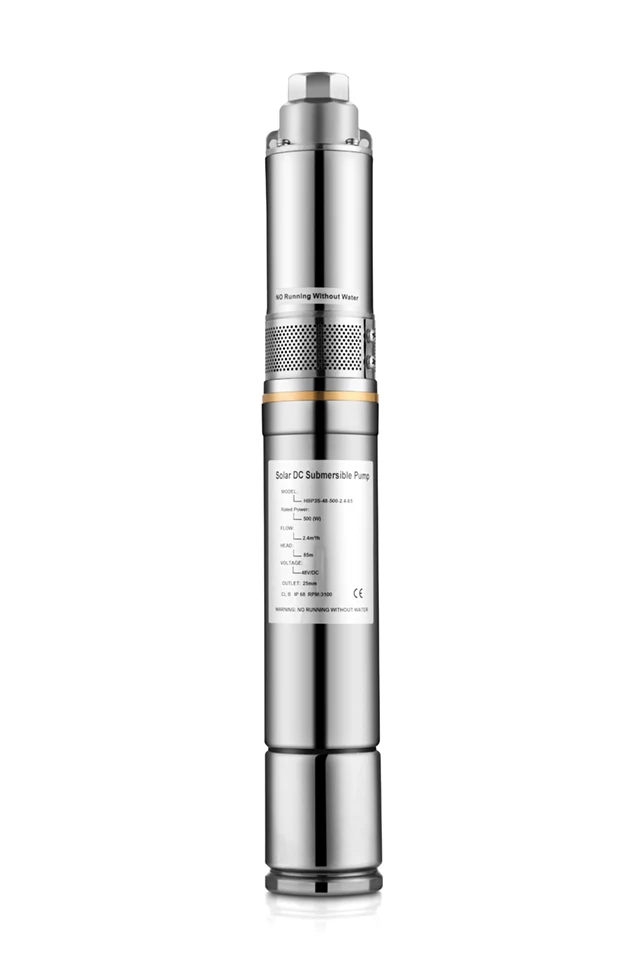

SOLAR DC PUMPS
Pump Model | HBP3S-36-200-1.3-73 | ||||||
Motor Power | 200W | ||||||
Pump Specifications | Screw Pump 36V | ||||||
Max. Head | 73M | ||||||
Max. Water Flow | 1.3m3/h | ||||||
Pump Outlet Dia. | 25mm G 1‘’ | ||||||
Pump Well Dia. | 75mm | ||||||
Pump Body Material | AISI 304 | ||||||
Pump Enclosure Class | IP68 | ||||||
Ambient Water pH Range | 6.5-8.0 | ||||||
Ambient Water Temperature | 1-35°C | ||||||
Pump package Size | 720mm*105mm*110mm | ||||||
Pump Weight | 5kg | ||||||
Solar Pumping Controller Model | HBDC750 | ||||||
Controller Power | 750W | ||||||
Max. DC Input Voltage | 100V | ||||||
Recommended MPPT Voltage | >36V | ||||||
Controller Ambient Temperature | -20~60°C | ||||||
Controller Enclosure Material | Stainless Steel | ||||||
Controller Package Size | 250mm*360mm*200mm | ||||||
Controller Weight | 4.5kg | ||||||
Performance
In solar dc pumping system, dc pump selection is also essential, which derectly affect the economy and the stability of the whole system. If you need high head and low water flow, you can choose screw pumps

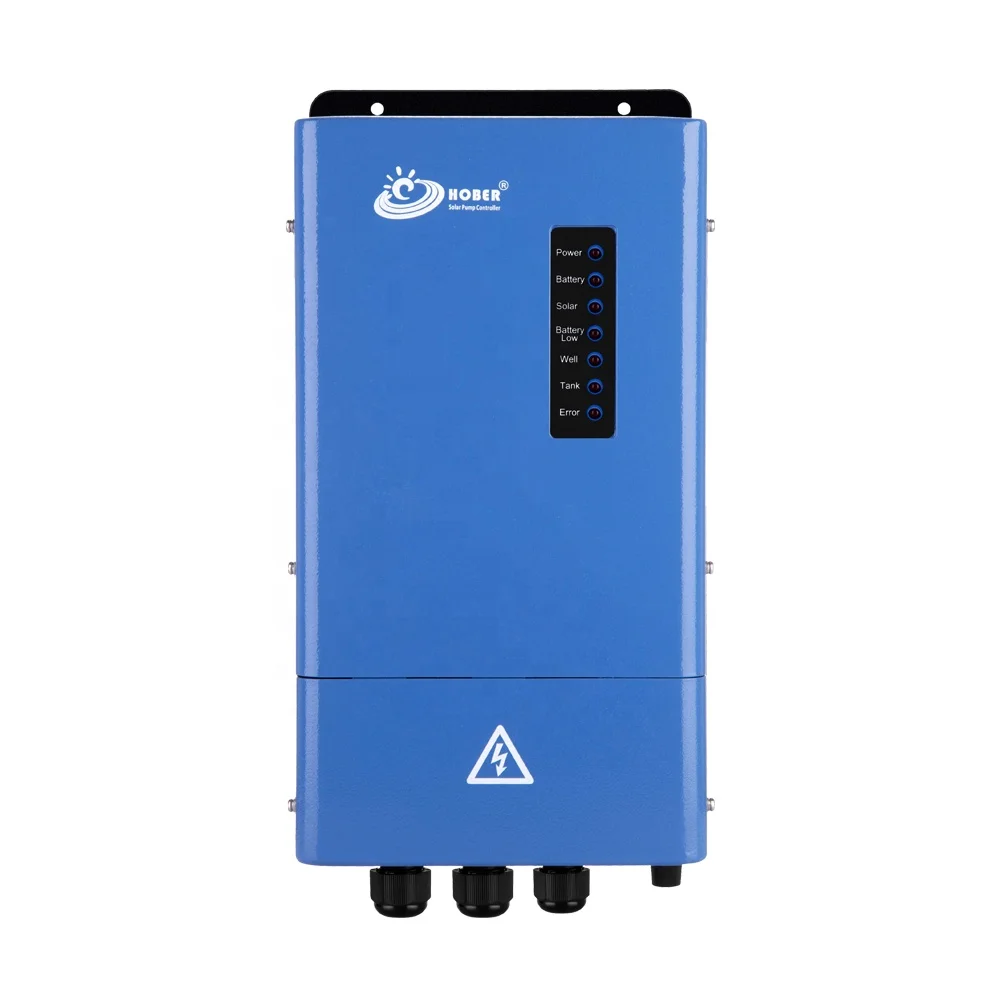

Solar Pump Controller Features
1. High quality, high efficiency, low cost running
Automatic MPPT function,HBP series solar dc pump controller drives brushless DC motors for maximum efficiency, the efficiency results is in a lower unit cost of water pumped.
2. Install almost anywhere
HBDC is designed to be a complete solar water pumping system comprising of a specialized pump controller and carefully matched pumps. It uses solar power, no need power infrastructure, so it can be installed almost anywhere.
3. Easy to operate and maintain
Fully automatical operation, no need setting parameters.
4. Perfect protection functions
solar dc input over-voltage, anti-reverse, dc output phase lost, short circuit, over temperature, water over flow of tank(by sensor), well water empty(by sensor)
5. Support 24/36/48/96/110V DC Motor.
