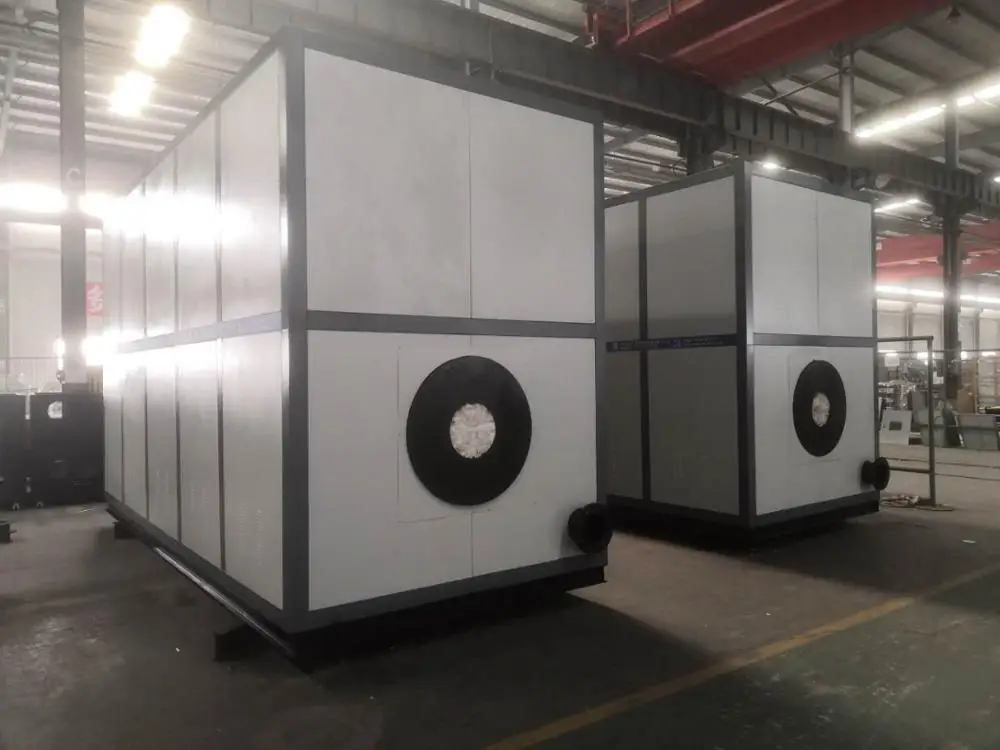

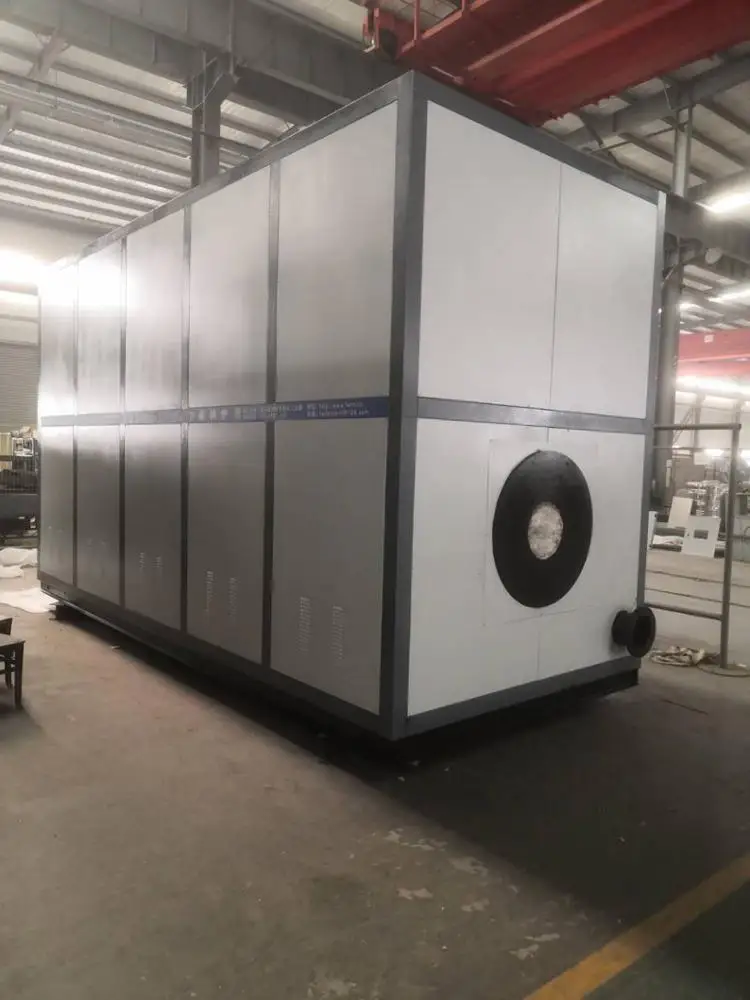

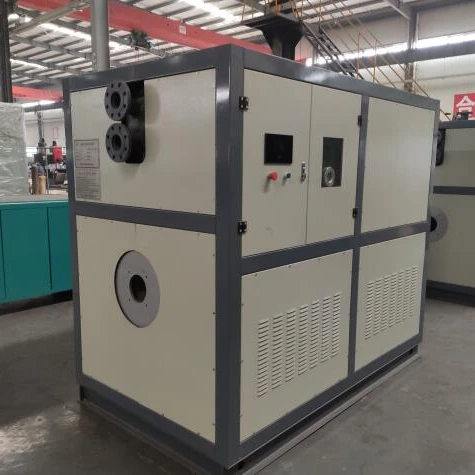

oil gas fuel Vacuum hot water boiler
- Category: >>>
- Supplier: Henan Leway Thermal Equipment Manufacture Co. Ltd.
Share on (62359833948):
Product Overview
Description
Product Description
High efficiency and energy saving:Utilizing highly efficient Korean vacuum hot-water boiler technology,the steam heating(condensing for heating) effectively imporoves heat efficiency with good ability to exchange heat and tri-circulation design,the rear smoke path installs surplus heat recycle equipment to increase resourse usage rate.the heat usage rate is as high as 96%.
The Unit operates in vacuum, the heat media is under vacuum condition with no danger of expansion or evplosion.The boiler also stores canstant heat-media water without danger to burn out, there are many self-protection installation with un-matchable safety features by other boiler.
No rusting ,no accumulation to prolong usage life.
The heat exchange machines uses stainless steel material for the heat-media to operate under closed space.under high temperature,there is no rusting ,no furring to prolong the life of the boiler,almost twice as the normal boilers,making it almost 20years.
| Item model | ZKW0.7 | ZKW1.05 | ZKW01.4 | ZKW1.75 | ZKW02.1 | ||
| -85/65 | -85/65 | -85/65 | -85/65 | -85/65 | |||
| Y(Q) | Y(Q) | Y(Q) | Y(Q) | Y(Q) | |||
| Reted heat | MW | 0.7 | 1.05 | 1.4 | 1.8 | 2.1 | |
| Working Pressure | Mpa | 0.06-0.08(Absolute pressure) | |||||
| temperature | ℃ | 85 | |||||
| water temperature | ℃ | 65 | |||||
| Thermal efficiency | % | 91 | |||||
| Water capacity | L | 2600 | 3300 | 3500 | 5100 | 5850 | |
| Smoke crossing | mm | 240x400 | 300x450 | 300x450 | 300x500 | 300x500 | |
| Dimensions | Length | mm | 3450 | 4070 | 4070 | 4510 | 4510 |
| Width | mm | 1580 | 1780 | 1860 | 1860 | 2000 | |
| Height | mm | 1850 | 2100 | 2220 | 2270 | 2450 | |
| Base size | mm | 2900x1500 | 3300x1550 | 3400x1600 | 3900x1800 | 3400x1600 | |
| Transport Weight | kg | 3000 | 4650 | 5205 | 5850 | 6348 | |
| Fuel Consumption | Light oil | kg/h | 64 | 96 | 128 | 165 | 193 |
| L.N.G | Nm³/h | 78 | 117 | 156 | 200 | 233 | |
| C.G | Nm³/h | 165 | 248 | 331 | 425 | 496 | |
Heat exchange 1 |
heat exchanger capacity | MW/h | 0.5 | 0.65 | 0.7 | 0.9 | 1.05 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | |
| hydraulic losses | mH2O | 10 | 11 | 11 | 11 | 12 | |
| Inlet and outlet water caliber | mm | 80 | 100 | 100 | 125 | 125 | |
| Heat exchange 2 | heat exchanger capacity | MW/h | 0.2 | 0.4 | 0.7 | 0.9 | 1.05 |
| Working Pressure | Mpa | 1 | 1 | 1 | 1 | 1 | |
| hydraulic losses | mH2O | 10 | 11 | 13 | 11 | 12 | |
| Inlet and outlet water caliber | mm | 65 | 65 | 62 | 80 | 80 | |
