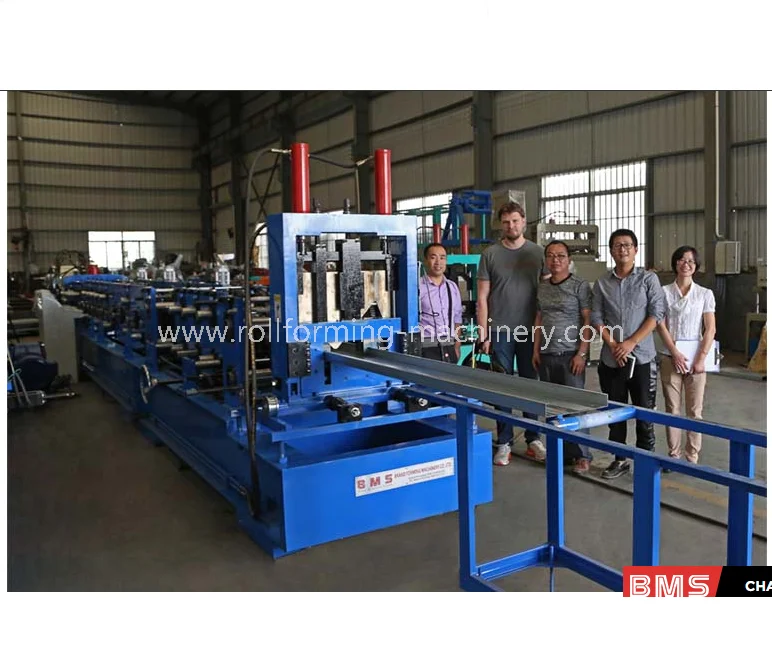

Heavy Duty Design CZ Interchangeable Purlin Roll Forming Machin
Popular in Russia and India market,welcomed by big steel structure companies

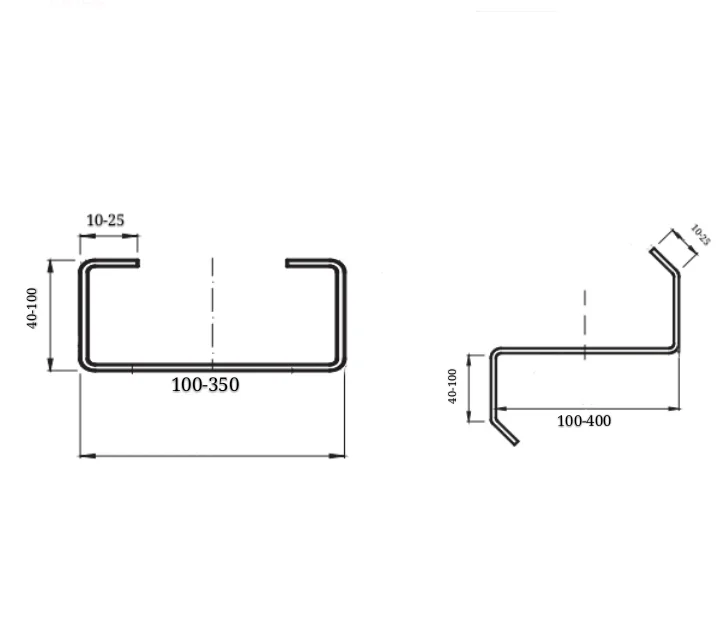

Main features of automatic C Zpurlin roll forming machine
The advantages of single size CZpurlin roll forming machine are as follows:
1.Produce different purlin size without changing rollers or sfacers
2.Pre-cutting design,no need changing cutter for different size
3.Easy operation, low maintenance cost
1.Produce different purlin size without changing rollers or sfacers
2.Pre-cutting design,no need changing cutter for different size
3.Easy operation, low maintenance cost
4.Infinite sizing（any size within machine range）,help to save material

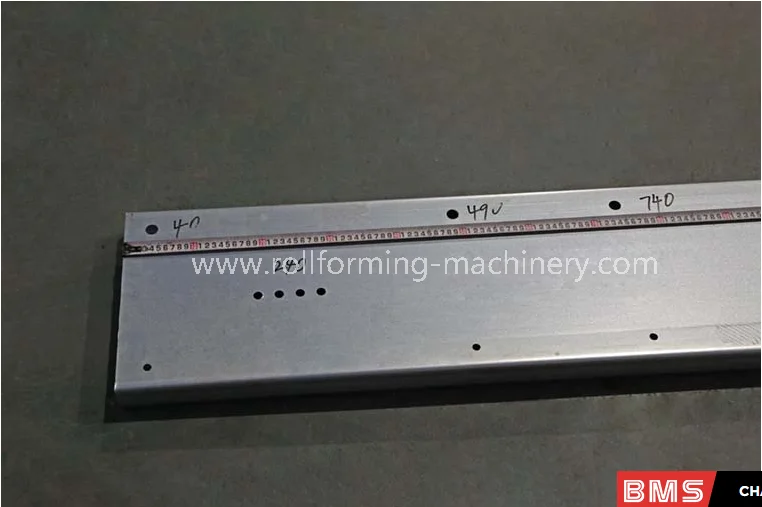

5.Optional punch hole at any positon of purlin web side and flange side

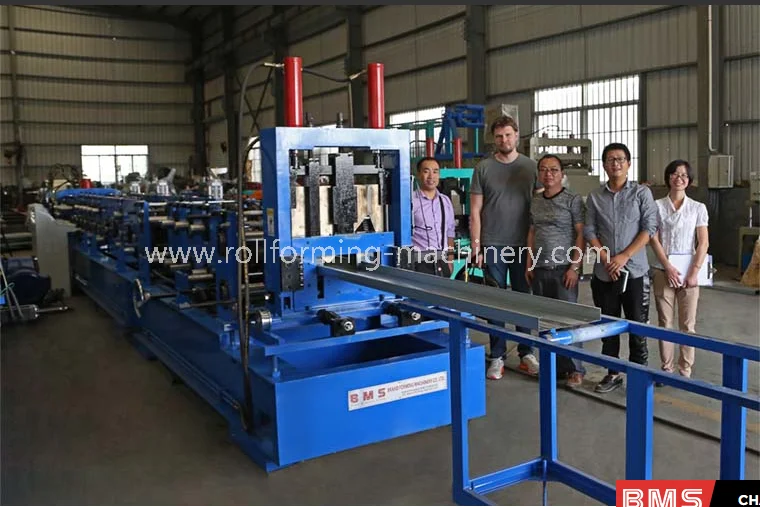

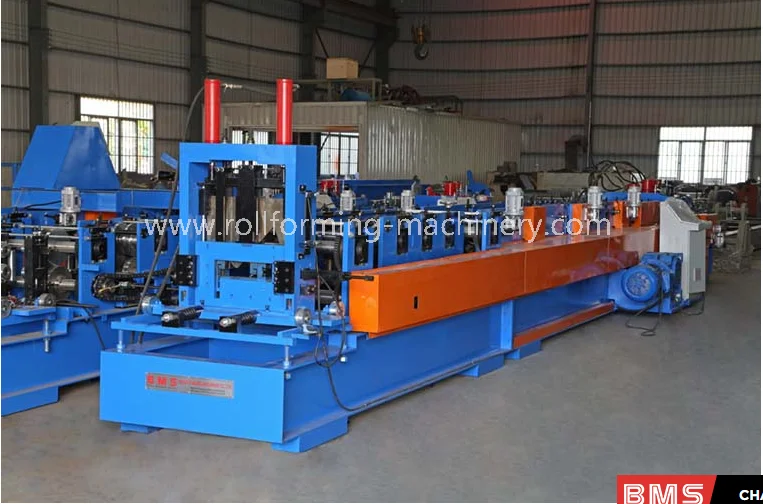

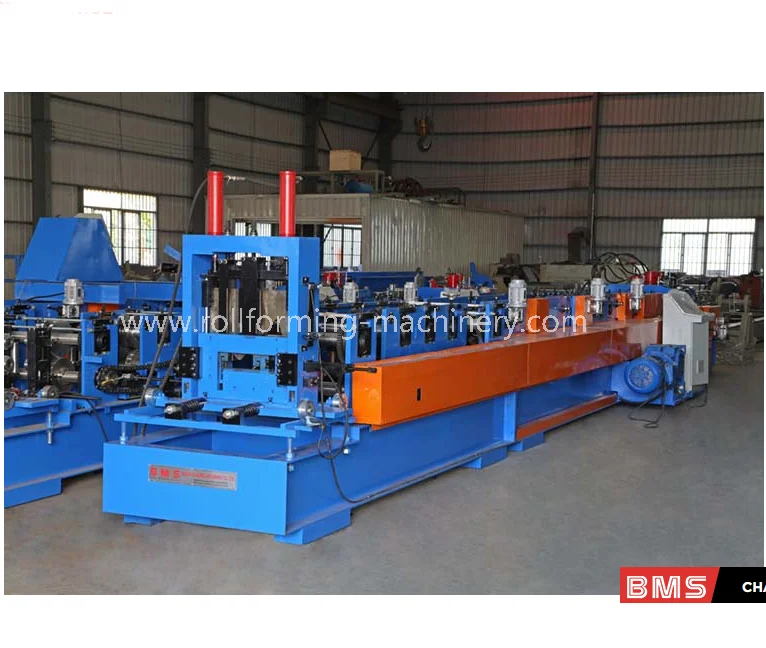

Detailed Images of CZ Purlin Roll Forming Machine
Machine Parts

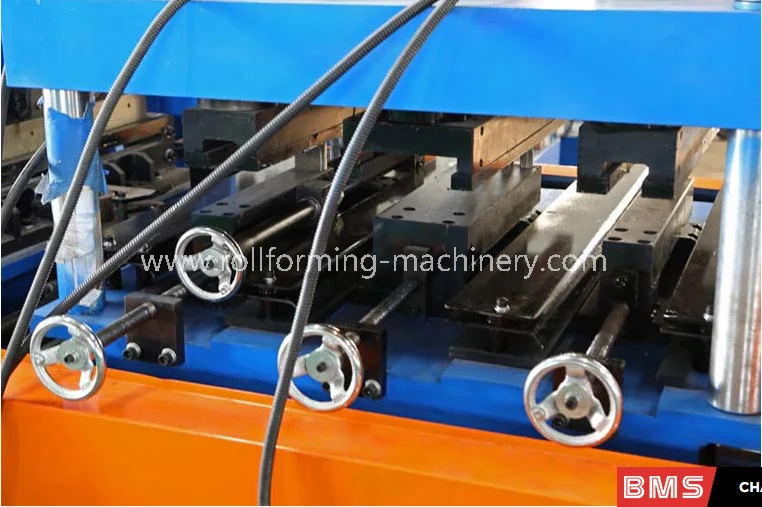

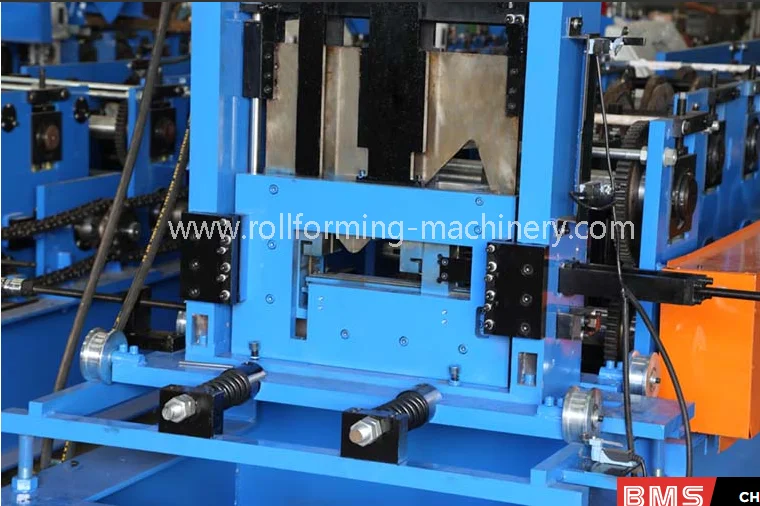

1) CZ purlin machine feeding guide and leveling device
Brand: BMS Original: China
1) CZ purlin machine feeding guide and leveling device
Brand: BMS Original: China
With 3 cylinder(1 cylinder for single hole and 2 cylinders for dual-holes)or 5 cylinders（popular for solar industry）

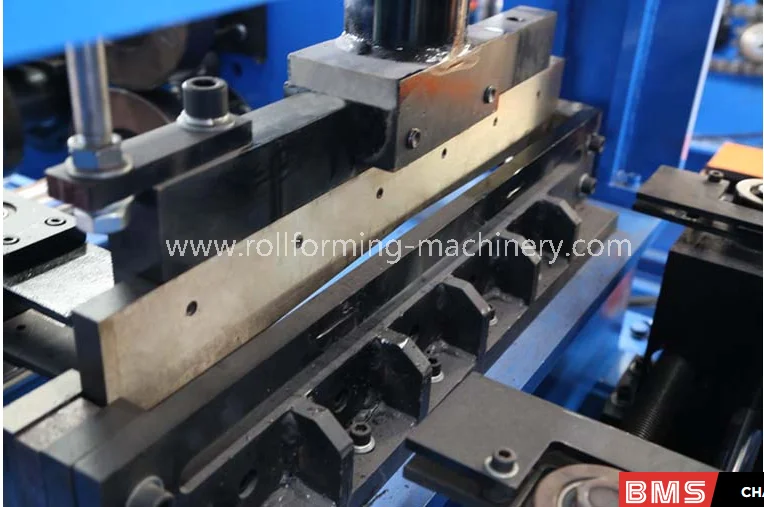

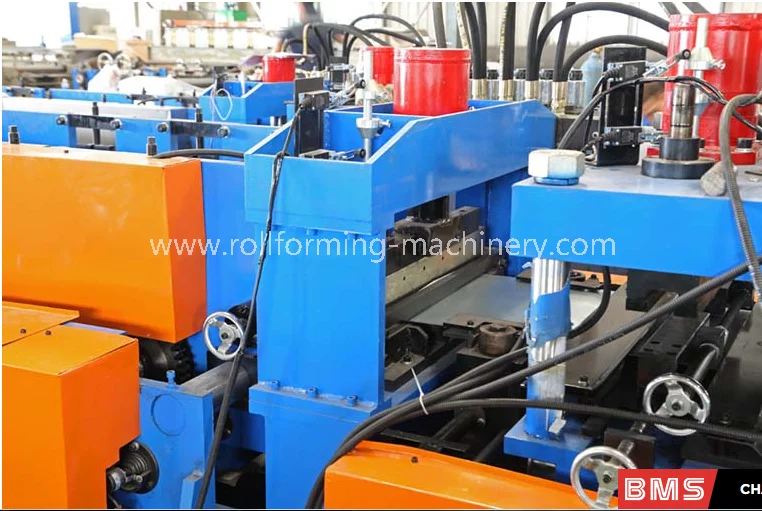

CZ purlin machine pre-cutter
Brand: BMS Original: China
CZ purlin machine pre-cutter made by high quality mold steel Cr12（D3 steel)with heat treatment cutter frame made from high quality 30mm steel plate by welding

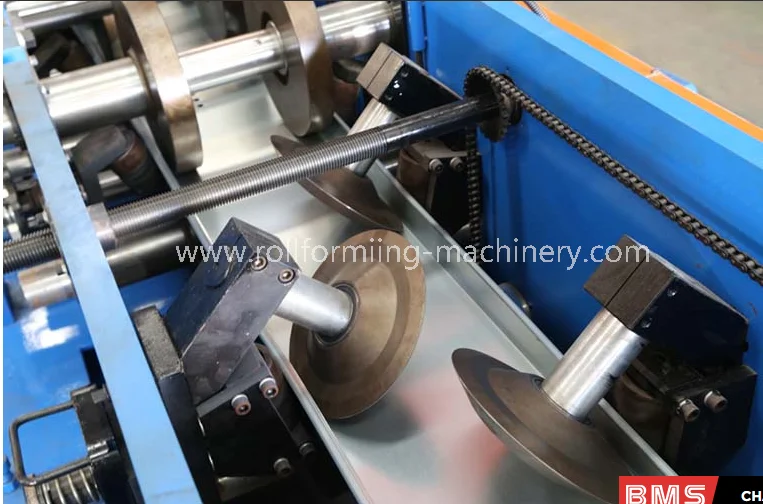

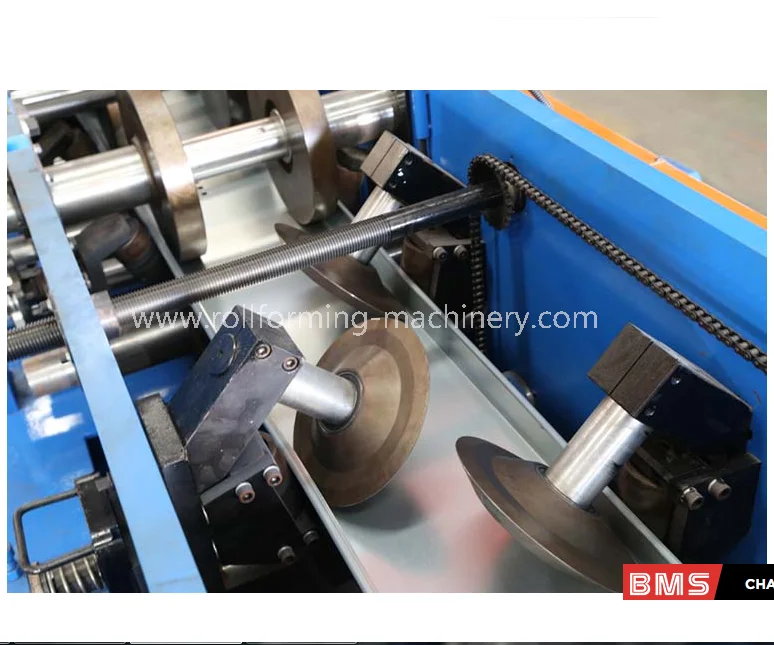

CZ purlin machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(=D3 steel), CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding
Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(=D3 steel), CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding

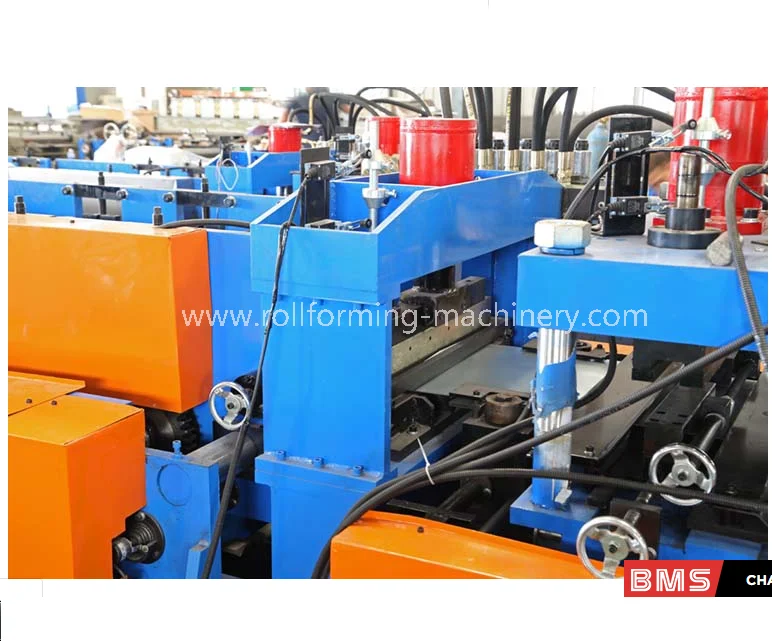

CZ purlin machine post cutter
Brand: BMS Original: China
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
Hydraulic pressure range: 0-16Mpa
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
Hydraulic pressure range: 0-16Mpa
CZ purlin machine decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton

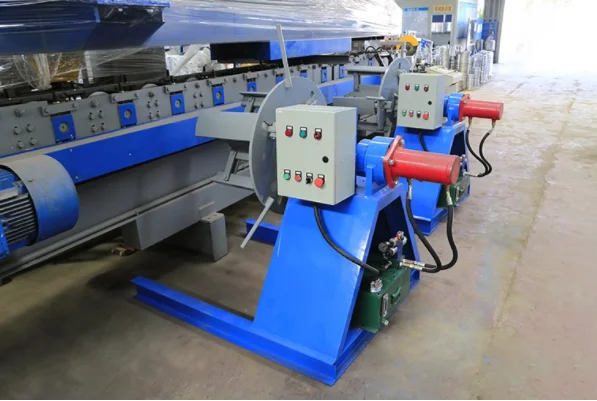

With 5 tons hydraulic decoiler for option
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
With 5 tons hydraulic decoiler for option
CZ purlin exit rack
Brand: BMS Original: China
Un-powered,two units,with rollers on it for finished purlins easy movement.
Un-powered,two units,with rollers on it for finished purlins easy movement.
Other detailes of CZ purlin roll forming machine
Suitable for material with thickness 1.5-3.5 mm
Shafts manufactured from 45#,Main shaft diameter=φ105mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form
Main motor=30KW(bigger power for higher speed) ,hydraulic motor:11KW(bigger power for powerful cutting) Frequency speed control. Forming speed approx.18-20m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
Shafts manufactured from 45#,Main shaft diameter=φ105mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form
Main motor=30KW(bigger power for higher speed) ,hydraulic motor:11KW(bigger power for powerful cutting) Frequency speed control. Forming speed approx.18-20m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of c purlin roll forming machine
1. The warranty of c purlin roll forming machine
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
is two years after the client receives the machine.
Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, etc.
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore, Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, etc.
